1.实现换肤的要求与方案分析

要求
1.换肤后每一次打开应用都是新的皮肤
2.换肤后所有的activity里面的View都要换肤（即时刷新）
做法：
为所有Activity添加theme的监听 当theme发生变化的时候 通知所有Activity进行换肤 如果使用fragment，activity内部遍历自己的fragment 也进行换肤

换肤分为两步
1.找到皮肤包的位置
2.给所有的view换肤

1.1皮肤包的位置方案

皮肤包根据实现的方式 存储的地方有所不同
像之前的文章（https://blog.csdn.net/u011109881/article/details/115558620）皮肤包自然是与我们的应用分离的
Android7.0左右已经支持theme切换，我们可以利用Android的这种新机制实现换肤 即定义不同的theme 那么此时的皮肤包其实就在apk内部 我们可以创建不同的theme 里面定义的颜色不同 这样我们在皮肤切换时切换theme 就能自动替换颜色
例如
themeDay.xml

<?xml version="1.0" encoding="utf-8"?>
<resources><style name="DayTheme" parent="activityScoutThemeNoTitle"><item name="commonButtonBgColor">@color/day_button</item><item name="commonTextColor">@color/day_text_color</item><item name="commonBg">@drawable/commonDayBg</item></style>
</resources>

themeNight.xml

<?xml version="1.0" encoding="utf-8"?>
<resources><style name="NightTheme" parent="DayTheme"><item name="commonButtonBgColor">@color/night_button</item><item name="commonBg">@drawable/commonNightBg</item><item name="commonTextColor">@color/night_text_color</item></style>
</resources>

这样我们就可以定义在布局中使用attr了

        <TextViewandroid:id="@+id/titleNameText"android:layout_width="wrap_content"android:layout_height="wrap_content"android:minWidth="200dp"android:text="@string/addressHome"android:textColor="?attr/commonTextColor"android:tag="textColor:attr:commonTextColor"android:textSize="28sp" />

1.2.替换所有view方案

这里列举三种方案
1.每一个activity里面都把需要换肤的View使用findviewbyid给找出来，然后调用代码去换肤；
弊端：当新增view删除view的时候 需要频繁修改代码 不够灵活 容易出错
2.获取activity里面的根布局，然后通过不断的循环获取子View, 查看xml是否添加了tag；
例子

        <TextViewandroid:id="@+id/titleNameText"android:layout_width="wrap_content"android:layout_height="wrap_content"android:minWidth="200dp"android:text="@string/addressHome"android:textColor="?attr/commonTextColor"android:tag="textColor:attr:commonTextColor"android:textSize="28sp" />

tag用于标记该view是否需要换肤
3.拦截View的创建，这是我们想要使用的方案
灵感来源于Android源码 我们发现继承Activity 和AppCompatActivity button的式样有所不同（继承AppCompatActivity Button是蓝色的） 好像换了皮肤 为什么呢
我们发现如果我们写一个Activity直接继承自Activity 那么Button使用的是android.widget.Button
但是如果继承的是AppCompatActivity Button的实例是com.google.android.material.button.MaterialButton
这就是Android material design的实现方式 拦截view的创建 换一套自己的view 使用新的皮肤
下面我们分析 Android自己是如何“换肤”的

2.setContentView源码分析

关于Activity的setContentView源码 我之前分析过 参见（https://blog.csdn.net/u011109881/article/details/111085949）
下面分析继承AppCompatActivity 时setContentView的源码（我的demo项目是支持AndroidX的 和不持支AndroidX的项目可能不同）
从Activity的setContentView开始跟进

   	// AppCompatActivitypublic void setContentView(@LayoutRes int layoutResID) {getDelegate().setContentView(layoutResID);}// AppCompatDelegatepublic abstract void setContentView(@LayoutRes int resId);// 无法继续跟进 需要知道getDelegate的实例public AppCompatDelegate getDelegate() {if (mDelegate == null) {mDelegate = AppCompatDelegate.create(this, this);}return mDelegate;}// AppCompatDelegateImplpublic static AppCompatDelegate create(@NonNull Activity activity,@Nullable AppCompatCallback callback) {return new AppCompatDelegateImpl(activity, callback);// 看来getDelegate的实例是AppCompatDelegateImpl//跟进AppCompatDelegateImpl的setContentView方法}public void setContentView(int resId) {ensureSubDecor();// 初始化DecorView 跟进去发现和继承Activity中installDecor方法的做法类似ViewGroup contentParent = mSubDecor.findViewById(android.R.id.content);// 找到系统布局供开发使用的布局contentParent.removeAllViews();LayoutInflater.from(mContext).inflate(resId, contentParent);// 将setContentView的布局填充到android.R.id.content的地方mAppCompatWindowCallback.getWrapped().onContentChanged();}

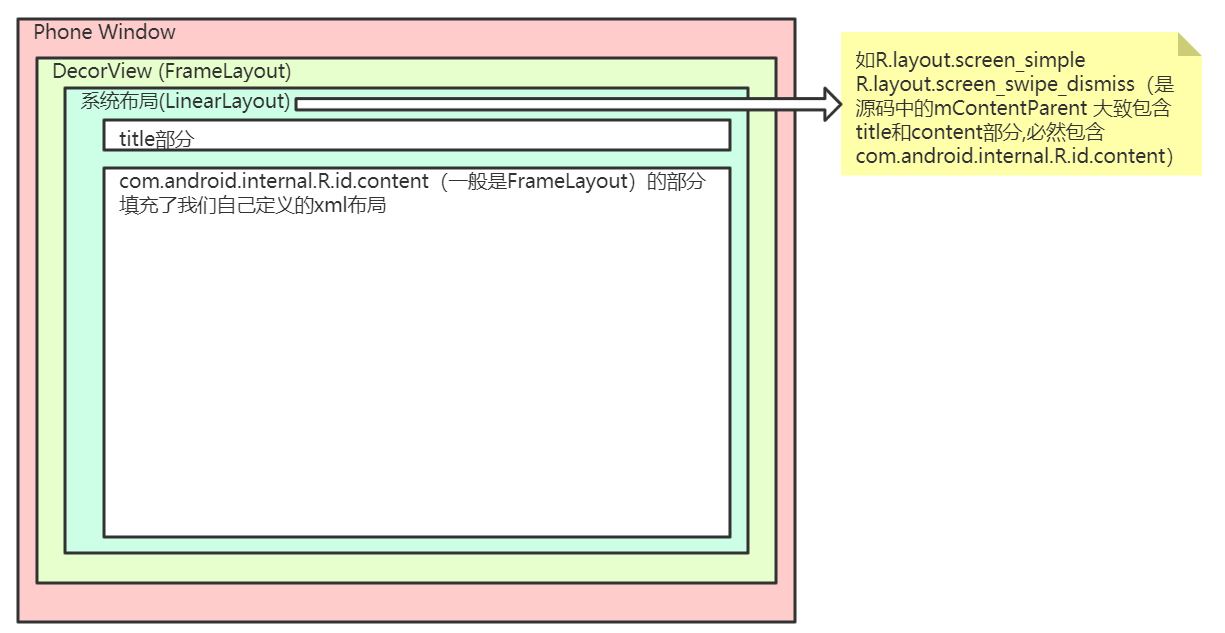

无论是继承Activity还是AppCompatActivity 其代码相差无几 最终的布局格局都是如下：
在这里插入图片描述
到目前位置 我们还没看到AppCompatActivity 是如何将Button替换了的 我们继续跟进

3.view的填充 LayoutInflater inflate填充布局源码分析（继承AppCompatActivity API 27）

首先需要注意AppCompatActivity的创建

    @Overrideprotected void onCreate(@Nullable Bundle savedInstanceState) {final AppCompatDelegate delegate = getDelegate();delegate.installViewFactory();delegate.onCreate(savedInstanceState);super.onCreate(savedInstanceState);}//AppCompatDelegate的installViewFactory只是抽象方法public abstract void installViewFactory();//具体实现在AppCompatDelegateImpl//AppCompatDelegateImpl继承自Factory2@Overridepublic void installViewFactory() {LayoutInflater layoutInflater = LayoutInflater.from(mContext);if (layoutInflater.getFactory() == null) {//注意setFactory2被调用LayoutInflaterCompat.setFactory2(layoutInflater, this);} else {if (!(layoutInflater.getFactory2() instanceof AppCompatDelegateImpl)) {Log.i(TAG, "The Activity's LayoutInflater already has a Factory installed"+ " so we can not install AppCompat's");}}}

前期准备工作完成 继续往下看

	// setContentView来自AppCompatDelegateImpl 注意继承自Factory2// class AppCompatDelegateImpl extends AppCompatDelegate//    implements MenuBuilder.Callback, LayoutInflater.Factory2 public void setContentView(int resId) {ensureSubDecor();ViewGroup contentParent = mSubDecor.findViewById(android.R.id.content);contentParent.removeAllViews();LayoutInflater.from(mContext).inflate(resId, contentParent);//跟进mAppCompatWindowCallback.getWrapped().onContentChanged();}// LayoutInflater.javapublic View inflate(@LayoutRes int resource, @Nullable ViewGroup root) {return inflate(resource, root, root != null);}public View inflate(@LayoutRes int resource, @Nullable ViewGroup root, boolean attachToRoot) {final Resources res = getContext().getResources();if (DEBUG) {Log.d(TAG, "INFLATING from resource: \"" + res.getResourceName(resource) + "\" ("+ Integer.toHexString(resource) + ")");}View view = tryInflatePrecompiled(resource, res, root, attachToRoot);if (view != null) {return view;}XmlResourceParser parser = res.getLayout(resource);try {return inflate(parser, root, attachToRoot);// 跟进} finally {parser.close();}}public View inflate(XmlPullParser parser, @Nullable ViewGroup root, boolean attachToRoot) {synchronized (mConstructorArgs) {Trace.traceBegin(Trace.TRACE_TAG_VIEW, "inflate");final Context inflaterContext = mContext;final AttributeSet attrs = Xml.asAttributeSet(parser);Context lastContext = (Context) mConstructorArgs[0];mConstructorArgs[0] = inflaterContext;View result = root;try {...// Inflate all children under temp against its context.rInflateChildren(parser, temp, attrs, true);// 关键if (DEBUG) {System.out.println("-----> done inflating children");}// We are supposed to attach all the views we found (int temp)// to root. Do that now.if (root != null && attachToRoot) {root.addView(temp, params);}// Decide whether to return the root that was passed in or the// top view found in xml.if (root == null || !attachToRoot) {result = temp;}}} ...finally {// Don't retain static reference on context.mConstructorArgs[0] = lastContext;mConstructorArgs[1] = null;Trace.traceEnd(Trace.TRACE_TAG_VIEW);}return result;}}final void rInflateChildren(XmlPullParser parser, View parent, AttributeSet attrs,boolean finishInflate) throws XmlPullParserException, IOException {rInflate(parser, parent, parent.getContext(), attrs, finishInflate);}void rInflate(XmlPullParser parser, View parent, Context context,AttributeSet attrs, boolean finishInflate) throws XmlPullParserException, IOException {final int depth = parser.getDepth();int type;boolean pendingRequestFocus = false;while (((type = parser.next()) != XmlPullParser.END_TAG ||parser.getDepth() > depth) && type != XmlPullParser.END_DOCUMENT) {if (type != XmlPullParser.START_TAG) {continue;}final String name = parser.getName();// 重点 后面会使用这个变量进行判断if (TAG_REQUEST_FOCUS.equals(name)) {pendingRequestFocus = true;consumeChildElements(parser);} else if (TAG_TAG.equals(name)) {parseViewTag(parser, parent, attrs);} else if (TAG_INCLUDE.equals(name)) {if (parser.getDepth() == 0) {throw new InflateException("<include /> cannot be the root element");}parseInclude(parser, context, parent, attrs);} else if (TAG_MERGE.equals(name)) {throw new InflateException("<merge /> must be the root element");} else {final View view = createViewFromTag(parent, name, context, attrs);// 继续跟进final ViewGroup viewGroup = (ViewGroup) parent;final ViewGroup.LayoutParams params = viewGroup.generateLayoutParams(attrs);rInflateChildren(parser, view, attrs, true);// 第一次走的这里 为了但是代码重复了 我跳过这次调用viewGroup.addView(view, params);}}if (pendingRequestFocus) {parent.restoreDefaultFocus();}if (finishInflate) {parent.onFinishInflate();}}private View createViewFromTag(View parent, String name, Context context, AttributeSet attrs) {return createViewFromTag(parent, name, context, attrs, false);}View createViewFromTag(View parent, String name, Context context, AttributeSet attrs,boolean ignoreThemeAttr) {...try {View view;if (mFactory2 != null) {//还记得前面的准备条件么 这里就走这条case view = mFactory2.onCreateView(parent, name, context, attrs);// 跟进// AppCompatDelegateImpl继承自Factory2 因此走的AppCompatDelegateImpl onCreateView方法} else if (mFactory != null) {view = mFactory.onCreateView(name, context, attrs);} else {view = null;}if (view == null && mPrivateFactory != null) {view = mPrivateFactory.onCreateView(parent, name, context, attrs);}if (view == null) {final Object lastContext = mConstructorArgs[0];mConstructorArgs[0] = context;try {if (-1 == name.indexOf('.')) {view = onCreateView(parent, name, attrs);} else {view = createView(name, null, attrs);}} finally {mConstructorArgs[0] = lastContext;}}return view;}...}public final View onCreateView(View parent, String name, Context context, AttributeSet attrs) {return createView(parent, name, context, attrs);}public View createView(View parent, final String name, @NonNull Context context,@NonNull AttributeSet attrs) {if (mAppCompatViewInflater == null) {TypedArray a = mContext.obtainStyledAttributes(R.styleable.AppCompatTheme);String viewInflaterClassName =a.getString(R.styleable.AppCompatTheme_viewInflaterClass);if (viewInflaterClassName == null) {// Set to null (the default in all AppCompat themes). Create the base inflater// (no reflection)mAppCompatViewInflater = new AppCompatViewInflater();} else {try {Class<?> viewInflaterClass = Class.forName(viewInflaterClassName);mAppCompatViewInflater =(AppCompatViewInflater) viewInflaterClass.getDeclaredConstructor().newInstance();} catch (Throwable t) {Log.i(TAG, "Failed to instantiate custom view inflater "+ viewInflaterClassName + ". Falling back to default.", t);mAppCompatViewInflater = new AppCompatViewInflater();}}}boolean inheritContext = false;if (IS_PRE_LOLLIPOP) {inheritContext = (attrs instanceof XmlPullParser)// If we have a XmlPullParser, we can detect where we are in the layout? ((XmlPullParser) attrs).getDepth() > 1// Otherwise we have to use the old heuristic: shouldInheritContext((ViewParent) parent);}return mAppCompatViewInflater.createView(parent, name, context, attrs, inheritContext,//跟进IS_PRE_LOLLIPOP, /* Only read android:theme pre-L (L+ handles this anyway) */true, /* Read read app:theme as a fallback at all times for legacy reasons */VectorEnabledTintResources.shouldBeUsed() /* Only tint wrap the context if enabled */);}// AppCompatViewInflater// 重点 将各种view重新创建final View createView(View parent, final String name, @NonNull Context context,@NonNull AttributeSet attrs, boolean inheritContext,boolean readAndroidTheme, boolean readAppTheme, boolean wrapContext) {final Context originalContext = context;// We can emulate Lollipop's android:theme attribute propagating down the view hierarchy// by using the parent's contextif (inheritContext && parent != null) {context = parent.getContext();}if (readAndroidTheme || readAppTheme) {// We then apply the theme on the context, if specifiedcontext = themifyContext(context, attrs, readAndroidTheme, readAppTheme);}if (wrapContext) {context = TintContextWrapper.wrap(context);}View view = null;// We need to 'inject' our tint aware Views in place of the standard framework versionsswitch (name) {case "TextView":view = createTextView(context, attrs);verifyNotNull(view, name);break;case "ImageView":view = createImageView(context, attrs);verifyNotNull(view, name);break;case "Button":view = createButton(context, attrs);verifyNotNull(view, name);break;case "EditText":view = createEditText(context, attrs);verifyNotNull(view, name);break;case "Spinner":view = createSpinner(context, attrs);verifyNotNull(view, name);break;case "ImageButton":view = createImageButton(context, attrs);verifyNotNull(view, name);break;case "CheckBox":view = createCheckBox(context, attrs);verifyNotNull(view, name);break;case "RadioButton":view = createRadioButton(context, attrs);verifyNotNull(view, name);break;case "CheckedTextView":view = createCheckedTextView(context, attrs);verifyNotNull(view, name);break;case "AutoCompleteTextView":view = createAutoCompleteTextView(context, attrs);verifyNotNull(view, name);break;case "MultiAutoCompleteTextView":view = createMultiAutoCompleteTextView(context, attrs);verifyNotNull(view, name);break;case "RatingBar":view = createRatingBar(context, attrs);verifyNotNull(view, name);break;case "SeekBar":view = createSeekBar(context, attrs);verifyNotNull(view, name);break;case "ToggleButton":view = createToggleButton(context, attrs);verifyNotNull(view, name);break;default:// The fallback that allows extending class to take over view inflation// for other tags. Note that we don't check that the result is not-null.// That allows the custom inflater path to fall back on the default one// later in this method.view = createView(context, name, attrs);}if (view == null && originalContext != context) {// If the original context does not equal our themed context, then we need to manually// inflate it using the name so that android:theme takes effect.view = createViewFromTag(context, name, attrs);}if (view != null) {// If we have created a view, check its android:onClickcheckOnClickListener(view, attrs);}return view;}// MaterialComponentsViewInflater.javaprotected AppCompatButton createButton(@NonNull Context context, @NonNull AttributeSet attrs) {return new MaterialButton(context, attrs);}

可以看到 填充子布局的时候会根据xml解析后的节点名称 如SeekBar CheckBox Button 将该节点创建为不同的view
而MaterialButton内部有很多设置背景的方法 自然可以显示和普通button不同的式样
值得注意的是其中一个变量
private final MaterialButtonHelper materialButtonHelper;
它包含了一系列setBackground的方法 帮助MaterialButton进行背景设置 我们的换肤可以参考这种设计
AppCompateActivity创建View的时候会被拦截，不会走系统的LayoutInflater的创建而是走的AppCompatViewInflater的创建，就会被替换掉一些特定的View
其中最重要的是我们继承了AppCompatActivity 并在他的delegate调用installViewFactory AppCompatDelegateImpl本身又继承自Factory2
LayoutInflaterCompat.setFactory2(layoutInflater, this);
这句执行是关键

4.view创建的拦截

4.1 view的创建方式有如下三种

         View layoutView = View.inflate(this,R.layout.activity_main,null);layoutView = LayoutInflater.from(this).inflate(R.layout.activity_main,null);layoutView = LayoutInflater.from(this).inflate(R.layout.activity_main,null,false);

第一种我们看代码实际调用的就是第二种方式 LayoutInflater.from(this).inflate(R.layout.activity_main,null);

    public static View inflate(Context context, @LayoutRes int resource, ViewGroup root) {LayoutInflater factory = LayoutInflater.from(context);return factory.inflate(resource, root);}

我们看第二种的调用

    public View inflate(@LayoutRes int resource, @Nullable ViewGroup root) {return inflate(resource, root, root != null);}

实际上又是调用的第三种 所以三种方式没有区别

4.2 LayoutInflater的初始化

	// LayoutInflaterpublic static LayoutInflater from(Context context) {LayoutInflater LayoutInflater =(LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);if (LayoutInflater == null) {throw new AssertionError("LayoutInflater not found.");}return LayoutInflater;}//Activitypublic Object getSystemService(@ServiceName @NonNull String name) {if (getBaseContext() == null) {throw new IllegalStateException("System services not available to Activities before onCreate()");}if (WINDOW_SERVICE.equals(name)) {return mWindowManager;} else if (SEARCH_SERVICE.equals(name)) {ensureSearchManager();return mSearchManager;}return super.getSystemService(name);//here}// android.view.ContextThemeWrapperpublic Object getSystemService(String name) {if (LAYOUT_INFLATER_SERVICE.equals(name)) {if (mInflater == null) {mInflater = LayoutInflater.from(getBaseContext()).cloneInContext(this);}return mInflater;}return getBaseContext().getSystemService(name);}// LayoutInflater public static LayoutInflater from(Context context) {LayoutInflater LayoutInflater =(LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);if (LayoutInflater == null) {throw new AssertionError("LayoutInflater not found.");}return LayoutInflater;}// androidx.appcompat.view.ContextThemeWrapperpublic Object getSystemService(String name) {if (LAYOUT_INFLATER_SERVICE.equals(name)) {if (mInflater == null) {mInflater = LayoutInflater.from(getBaseContext()).cloneInContext(this);}return mInflater;}return getBaseContext().getSystemService(name);}// LayoutInflater public static LayoutInflater from(Context context) {LayoutInflater LayoutInflater =(LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);if (LayoutInflater == null) {throw new AssertionError("LayoutInflater not found.");}return LayoutInflater;}// ContextImplpublic Object getSystemService(String name) {return SystemServiceRegistry.getSystemService(this, name);}// SystemServiceRegistrypublic static Object getSystemService(ContextImpl ctx, String name) {ServiceFetcher<?> fetcher = SYSTEM_SERVICE_FETCHERS.get(name);return fetcher != null ? fetcher.getService(ctx) : null;}//所有系统服务存储在这个hashMap中了private static final HashMap<String, ServiceFetcher<?>> SYSTEM_SERVICE_FETCHERS =new HashMap<String, ServiceFetcher<?>>();// 提供了静态注册service的方法private static <T> void registerService(String serviceName, Class<T> serviceClass,ServiceFetcher<T> serviceFetcher) {SYSTEM_SERVICE_NAMES.put(serviceClass, serviceName);SYSTEM_SERVICE_FETCHERS.put(serviceName, serviceFetcher);}// 我们在静态代码块中找到了初始化LAYOUT_INFLATER_SERVICE的部分static{...registerService(Context.LAYOUT_INFLATER_SERVICE, LayoutInflater.class,new CachedServiceFetcher<LayoutInflater>() {@Overridepublic LayoutInflater createService(ContextImpl ctx) {return new PhoneLayoutInflater(ctx.getOuterContext());}});...}

因此LayoutInflater是一个单例 从始至终只有一个实例

4.3 inflate方法的参数attachToRoot

起点：View.inflate

	// Viewpublic static View inflate(Context context, @LayoutRes int resource, ViewGroup root) {LayoutInflater factory = LayoutInflater.from(context);return factory.inflate(resource, root);}// LayoutInflaterpublic View inflate(@LayoutRes int resource, @Nullable ViewGroup root) {return inflate(resource, root, root != null);}// LayoutInflaterpublic View inflate(@LayoutRes int resource, @Nullable ViewGroup root, boolean attachToRoot) {final Resources res = getContext().getResources();if (DEBUG) {Log.d(TAG, "INFLATING from resource: \"" + res.getResourceName(resource) + "\" ("+ Integer.toHexString(resource) + ")");}// 获取xml解析器final XmlResourceParser parser = res.getLayout(resource);try {return inflate(parser, root, attachToRoot);} finally {parser.close();}}// LayoutInflaterpublic View inflate(XmlPullParser parser, @Nullable ViewGroup root, boolean attachToRoot) {synchronized (mConstructorArgs) {Trace.traceBegin(Trace.TRACE_TAG_VIEW, "inflate");final Context inflaterContext = mContext;final AttributeSet attrs = Xml.asAttributeSet(parser);Context lastContext = (Context) mConstructorArgs[0];mConstructorArgs[0] = inflaterContext;View result = root;try {// Look for the root node. // 寻找xml布局的根标签int type;while ((type = parser.next()) != XmlPullParser.START_TAG &&type != XmlPullParser.END_DOCUMENT) {// Empty}// 没有找到起始点START_TAG 会抛出异常if (type != XmlPullParser.START_TAG) {throw new InflateException(parser.getPositionDescription()+ ": No start tag found!");}// 获取当前标签的名字 比如 TextViewfinal String name = parser.getName();if (DEBUG) {System.out.println("**************************");System.out.println("Creating root view: "+ name);System.out.println("**************************");}// merge标签只能用在parent不为空并且attachToRoot=true的情况// 否则抛出异常if (TAG_MERGE.equals(name)) {if (root == null || !attachToRoot) {throw new InflateException("<merge /> can be used only with a valid "+ "ViewGroup root and attachToRoot=true");}rInflate(parser, root, inflaterContext, attrs, false);} else {// Temp is the root view that was found in the xmlfinal View temp = createViewFromTag(root, name, inflaterContext, attrs);//4.4用到// 布局参数     ViewGroup.LayoutParams params = null;if (root != null) {if (DEBUG) {System.out.println("Creating params from root: " +root);}// Create layout params that match root, if supplied// 生成布局参数 注意只有root不为空的时候 这些参数才会生效params = root.generateLayoutParams(attrs);if (!attachToRoot) {// Set the layout params for temp if we are not// attaching. (If we are, we use addView, below)temp.setLayoutParams(params);}}if (DEBUG) {System.out.println("-----> start inflating children");}// Inflate all children under temp against its context.rInflateChildren(parser, temp, attrs, true);if (DEBUG) {System.out.println("-----> done inflating children");}// We are supposed to attach all the views we found (int temp)// to root. Do that now.// 如果attachToRoot为true 并且root不为空 将之前创建的temp都填充到根view rootif (root != null && attachToRoot) {root.addView(temp, params);}// Decide whether to return the root that was passed in or the// top view found in xml.// 如果attachToRoot == false 返回子view（temp）填充的viewif (root == null || !attachToRoot) {result = temp;}}} catch (XmlPullParserException e) {final InflateException ie = new InflateException(e.getMessage(), e);ie.setStackTrace(EMPTY_STACK_TRACE);throw ie;} catch (Exception e) {final InflateException ie = new InflateException(parser.getPositionDescription()+ ": " + e.getMessage(), e);ie.setStackTrace(EMPTY_STACK_TRACE);throw ie;} finally {// Don't retain static reference on context.mConstructorArgs[0] = lastContext;mConstructorArgs[1] = null;Trace.traceEnd(Trace.TRACE_TAG_VIEW);}return result;}}

也就是说
inflate(int resource, ViewGroup root, boolean attachToRoot)这个方法有两种使用场景
1.root为空的情况
attachToRoot的作用可以忽略 返回的是填充完毕的resource的view
2.root不为为空的情况
如果 attachToRoot = false 则会将布局文件最外层的所有layout属性进行设置，当该view被添加到父view当中时，这些layout属性会自动生效
如果 attachToRoot = true 那么会给加载的布局文件的指定一个父布局，即root
其实很简单 即如果参数root不为空并且attachToRoot 为true 那么Android会解析resource的布局并调用addView添加到root中去
否则 仅仅是解析resource并将他转换为一个view对象 由外部自己决定是否调用addView将布局解析出的view添加到哪里去

4.4 如何拦截view 并重新创建view 具体分析

继续跟进createViewFromTag方法

    private View createViewFromTag(View parent, String name, Context context, AttributeSet attrs) {return createViewFromTag(parent, name, context, attrs, false);}View createViewFromTag(View parent, String name, Context context, AttributeSet attrs,boolean ignoreThemeAttr) {if (name.equals("view")) {name = attrs.getAttributeValue(null, "class");}// Apply a theme wrapper, if allowed and one is specified.if (!ignoreThemeAttr) {final TypedArray ta = context.obtainStyledAttributes(attrs, ATTRS_THEME);final int themeResId = ta.getResourceId(0, 0);if (themeResId != 0) {context = new ContextThemeWrapper(context, themeResId);}ta.recycle();}if (name.equals(TAG_1995)) {// 彩蛋？？//试了一下使用TAG_1995 报错 找不到这个类BlinkLayout 可能是AndroidX没有这个类// Let's party like it's 1995!return new BlinkLayout(context, attrs);}try {View view;if (mFactory2 != null) {view = mFactory2.onCreateView(parent, name, context, attrs);//走这里拦截view 重新创建//上面已经分析过 不再分析} else if (mFactory != null) {view = mFactory.onCreateView(name, context, attrs);} else {view = null;}if (view == null && mPrivateFactory != null) {view = mPrivateFactory.onCreateView(parent, name, context, attrs);}if (view == null) {// 如果mFactory2.onCreateView返回的view为空 调用其他方法继续创建view// 比如自定义view和其他不在mFactory2.onCreateView所列出类型的viewfinal Object lastContext = mConstructorArgs[0];mConstructorArgs[0] = context;try {// 判断是不是自定义View 因为自定义view中带有. 是路径全名if (-1 == name.indexOf('.')) {// onCreateView内部会调用createView 并且传入的prefix是android.view.view = onCreateView(parent, name, attrs);} else {//Android中的view 如Button TextViewview = createView(name, null, attrs);//因为上下两个case//都会走这个方法 继续分析该方法}} finally {mConstructorArgs[0] = lastContext;}}return view;} catch (InflateException e) {throw e;} catch (ClassNotFoundException e) {final InflateException ie = new InflateException(attrs.getPositionDescription()+ ": Error inflating class " + name, e);ie.setStackTrace(EMPTY_STACK_TRACE);throw ie;} catch (Exception e) {final InflateException ie = new InflateException(attrs.getPositionDescription()+ ": Error inflating class " + name, e);ie.setStackTrace(EMPTY_STACK_TRACE);throw ie;}}// LayoutInflater// 通过反射创建viewpublic final View createView(String name, String prefix, AttributeSet attrs)throws ClassNotFoundException, InflateException {// 先从缓存中拿构造方法 sConstructorMap是一个静态hashmapConstructor<? extends View> constructor = sConstructorMap.get(name);if (constructor != null && !verifyClassLoader(constructor)) {constructor = null;sConstructorMap.remove(name);}Class<? extends View> clazz = null;try {Trace.traceBegin(Trace.TRACE_TAG_VIEW, name);// 从缓存中没有取到构造方法if (constructor == null) {// Class not found in the cache, see if it's real, and try to add it// 加载 Class// 如果前缀prefix不为空 就将其拼接clazz = mContext.getClassLoader().loadClass(prefix != null ? (prefix + name) : name).asSubclass(View.class);// 创建View的构造函数if (mFilter != null && clazz != null) {boolean allowed = mFilter.onLoadClass(clazz);if (!allowed) {failNotAllowed(name, prefix, attrs);}}constructor = clazz.getConstructor(mConstructorSignature);constructor.setAccessible(true);// 加入缓存集合集合sConstructorMap.put(name, constructor);} else {//省略生成构造方法的步骤// If we have a filter, apply it to cached constructorif (mFilter != null) {// Have we seen this name before?Boolean allowedState = mFilterMap.get(name);if (allowedState == null) {// New class -- remember whether it is allowedclazz = mContext.getClassLoader().loadClass(prefix != null ? (prefix + name) : name).asSubclass(View.class);boolean allowed = clazz != null && mFilter.onLoadClass(clazz);mFilterMap.put(name, allowed);if (!allowed) {failNotAllowed(name, prefix, attrs);}} else if (allowedState.equals(Boolean.FALSE)) {failNotAllowed(name, prefix, attrs);}}}Object lastContext = mConstructorArgs[0];if (mConstructorArgs[0] == null) {// Fill in the context if not already within inflation.mConstructorArgs[0] = mContext;}Object[] args = mConstructorArgs;args[1] = attrs;// 通过反射创建Viewfinal View view = constructor.newInstance(args);if (view instanceof ViewStub) {// Use the same context when inflating ViewStub later.final ViewStub viewStub = (ViewStub) view;viewStub.setLayoutInflater(cloneInContext((Context) args[0]));}mConstructorArgs[0] = lastContext;return view;} ...finally {Trace.traceEnd(Trace.TRACE_TAG_VIEW);}}

拦截view创建的demo：

首先有这样的关系
public class MainActivity extends BaseSkinActivity
public abstract class BaseSkinActivity extends BaseActivity

public abstract class BaseSkinActivity extends BaseActivity {private static final String TAG = "BaseSkinActivity";@Overrideprotected void onCreate(@Nullable Bundle savedInstanceState) {LayoutInflater layoutInflater = LayoutInflater.from(this);LayoutInflaterCompat.setFactory2(layoutInflater, new LayoutInflater.Factory2() {@Nullable@Overridepublic View onCreateView(@Nullable View parent, @NonNull String name, @NonNull Context context, @NonNull AttributeSet attrs) {//在这里拦截view创建//可以在这里进行换肤Log.e(TAG, "onCreateView: 拦截了view " + name);View view = null;switch (name) {case "TextView":view = new AppCompatTextView(context, attrs);break;case "ImageView":view = new AppCompatImageView(context, attrs);break;case "Button":view = new AppCompatButton(context, attrs);((Button) view).setText("拦截");// 预先将所有Button的文字改了break;case "EditText":view = new AppCompatEditText(context, attrs);break;case "Spinner":view = new AppCompatSpinner(context, attrs);break;case "ImageButton":view = new AppCompatImageButton(context, attrs);break;case "CheckBox":view = new AppCompatCheckBox(context, attrs);break;case "RadioButton":view = new AppCompatRadioButton(context, attrs);break;case "CheckedTextView":view = new AppCompatCheckedTextView(context, attrs);break;case "AutoCompleteTextView":view = new AppCompatAutoCompleteTextView(context, attrs);break;case "MultiAutoCompleteTextView":view = new AppCompatMultiAutoCompleteTextView(context, attrs);break;case "RatingBar":view = new AppCompatRatingBar(context, attrs);break;case "SeekBar":view = new AppCompatSeekBar(context, attrs);break;}return view;}@Nullable@Overridepublic View onCreateView(@NonNull String name, @NonNull Context context, @NonNull AttributeSet attrs) {//Factory的方法 可以忽略Log.e(TAG, "onCreateView: ");return null;}});super.onCreate(savedInstanceState);}
}

小结：

本篇讲述的内容稍显杂乱 知识点整理如下：
1.换肤方案分析，分两步 第一，皮肤包存储位置 第二，如何找到所有的view并换肤
2.setContentView源码分析 我们需要清晰知道我们在mainActivity加载的布局 在系统布局中的具体位置
3.分析继承AppCompatActivity时inflate的方法 我们能知道AppCompatViewInflater内部如何将各种view替换为其他的view的
4.LayoutInflater的初始化是在一个静态代码块中 它是一个系统服务，并且是一个单例 各种获取LayoutInflater的方法其实都是返回的同一个对象
5.LayoutInflater.inflate(@LayoutRes int resource, @Nullable ViewGroup root, boolean attachToRoot)方法详解 主要是看root是否为空以及attachToRoot是否为true
6.拦截view的demo
本节讲述的都是换肤的前提条件 下一步我们就可以具体实现换肤了
