本文主要是介绍Android App----Mr Expense 之主界面,希望对大家解决编程问题提供一定的参考价值,需要的开发者们随着小编来一起学习吧!
这篇文章放在草稿箱很多天了,知道现在才发出来,主要是我的主界面和Listview相关甚大,但是博主对listview用法始终掌握不好,这几天有空的时候就看了好多文章,总结一下listview,感觉很强大的酱紫。
-------------------------------------------

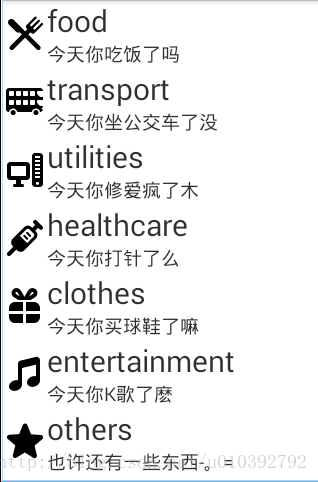

先上个被我抛弃的主界面:
main.xml:
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical" ><ListView android:id="@id/android:list"android:layout_width="match_parent"android:layout_height="match_parent"android:layout_weight="1"android:divider="@null"android:cacheColorHint="@android:color/transparent" />
</LinearLayout>
listview.xml:
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" > <ImageView android:id="@+id/image" android:layout_width="wrap_content" android:layout_height="match_parent" android:layout_centerVertical="true" android:layout_alignParentTop="true" android:layout_alignParentBottom="true" android:layout_alignParentLeft="true" android:adjustViewBounds="true" android:padding="2dp" /> <TextView android:id="@+id/title" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_toRightOf="@id/image" android:layout_alignParentTop="true" android:layout_alignWithParentIfMissing="true" android:textSize="30dp" /><TextViewandroid:id="@+id/text"android:layout_width="match_parent"android:layout_height="wrap_content"android:layout_alignParentBottom="true"android:layout_below="@id/title"android:layout_toRightOf="@id/image"android:ellipsize="marquee"android:gravity="bottom"android:singleLine="true"android:textSize="19dp" /></RelativeLayout>
public class Main extends ListActivity { private String[] mListTitle = { "food", "transport", "utilities", "healthcare","clothes","entertainment","others"}; private String[] mListStr = { "今天你吃饭了吗", "今天你坐公交车了没", "今天你修爱疯了木", "今天你打针了么", "今天你买球鞋了嘛","今天你K歌了麽","也许还有一些东西-。=" }; private Object[] mListImage={R.drawable.shiwu,R.drawable.jiaotong,R.drawable.shebei,R.drawable.yiliao,R.drawable.yifu,R.drawable.yule,R.drawable.zawu};ListView mListView = null; ArrayList<Map<String,Object>> mData= new ArrayList<Map<String,Object>>(); @Override protected void onCreate(Bundle savedInstanceState) { requestWindowFeature(Window.FEATURE_NO_TITLE);getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN);setContentView(R.layout.main);mListView = getListView(); int lengh = mListTitle.length; for(int i =0; i < lengh; i++) { Map<String,Object> item = new HashMap<String,Object>(); item.put("image", mListImage[i]); item.put("title", mListTitle[i]); item.put("text", mListStr[i]);mData.add(item); } SimpleAdapter adapter = new SimpleAdapter(this,mData,R.layout.listitem, new String[]{"image","title","text","background"},new int[]{R.id.image,R.id.title,R.id.text}); setListAdapter(adapter); mListView.setOnItemClickListener(new OnItemClickListener() { @Override public void onItemClick(AdapterView<?> adapterView,View view, int position, long id) { Toast.makeText(Main.this,"您选择了标题:" + mListTitle[position] + "内容:"+mListStr[position], Toast.LENGTH_LONG).show(); } }); super.onCreate(savedInstanceState); }
}
说明:
0、主界面很简单,就一个Listview,然后每个item有3个view,好白有木有!
1、android:divider="@null"这句话会把item之间的黑线去掉,哎没去掉之前更是不忍直视
2、一开始我的Listview充满不了屏幕,然后上网问啊,有个人跟我说layout设置vertical,然后权重设1,于是如代码所示,
android:layout_weight="1",但其实是没用的,我之所以没去掉,主要是看到能让我想起它的其他作用,权重可以分配位置的大小,但是也不是那么想当然的分配,有篇文章深入探讨了:ht@tp://mobile.51cto.com/abased-375428.htm
3、android:cacheColorHint="@android:color/transparent" 去底色,在这里可用可不用
4、Listview用的RelativeLayout,发现比LinearLayout复杂太多,常用属性:ht@tp://blog.csdn.net/notenlife/article/details/7256363
5、android:layout_centerVertical="true"让图片在imageview中居中
6、为了让Listview充满屏幕,只能调节字体的大小了,不知道还有没有其他简单高效的方法
7、android:gravity="bottom" text在最下面体现
8、android:ellipsize="marquee" android:singleLine="true"单行 跑马,当然在这里是多余的。另外,想要跑马灯,设置focus,详见:ht@tp://www.cnblogs.com/Gaojiecai/archive/2013/06/18/3142783.html
9、下面来说说Listview
Listview和数据关联要用到adapter,常见的ArrayAdapter,SimpleAdapter,还有继承BaseAdapter
这个主界面是用的SimpleAdapter(this,data,layout,string,int)
getListView()是只有继承ListActivity才有的
但是这个主界面越看越不爽,有木有,虽然简约是我的风格,but做人做事那是两码子事,果断throw IT away。
我接下来就想给每个item都上个色,五彩斑斓的多好,然后其他地方也微调下。差不多就酱紫。
于是我在main.xml加了android:layout_background="@+id/background",然后在Activity中直接把颜色put进item中,然后设置下adapter,想当然以为Listview能五颜六色了,发现报错了。。。看来这个只是用于整个Listview的背景色。
然后呢,我就用了Listview的BaseAdapter,自定义总可以了吧。
public class Main extends ListActivity {private String[] mListTitle = { "food", "transport", "utilities", "healthcare","clothes","entertainment","others"}; private String[] mListStr = { "今天你吃饭了吗", "今天你坐公交车了没", "今天你修爱疯了木", "今天你打针了么", "今天你买球鞋了嘛","今天你K歌了麽","也许还有一些东西 -。=" }; private int[] mListImage={R.drawable.shiwu,R.drawable.jiaotong,R.drawable.shebei,R.drawable.yiliao,R.drawable.yifu,R.drawable.yule,R.drawable.zawu};private int[] mListColor=new int []{0xffff0033,0xff66cccc,0xff3333cc,0xff66cc33,0xffffcc33,0xffff9900,0xffcc6600};ListView mListView = null;MyListAdapter myAdapter = null;@Overrideprotected void onCreate(Bundle savedInstanceState) {requestWindowFeature(Window.FEATURE_NO_TITLE);getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN);setContentView(R.layout.main);mListView = getListView(); myAdapter = new MyListAdapter(this);setListAdapter(myAdapter);mListView.setOnItemClickListener(new OnItemClickListener() {@Overridepublic void onItemClick(AdapterView<?> adapterView, View view, int position,long id) {View v=adapterView.getChildAt(position);Toast.makeText(Main.this,"您选择了" + mListTitle[position], Toast.LENGTH_LONG).show();}});super.onCreate(savedInstanceState);}class MyListAdapter extends BaseAdapter {private Context mContext;public MyListAdapter(Context context) { mContext = context;}public int getCount() { return mListStr.length;}@Overridepublic boolean areAllItemsEnabled() {return false;}public Object getItem(int position) {return position;}public long getItemId(int position) {return position;}public View getView(int position, View convertView, ViewGroup parent) {ImageView image = null;TextView title = null;TextView text = null;if (convertView == null) {convertView = LayoutInflater.from(mContext).inflate(R.layout.listitem, null);image = (ImageView) convertView.findViewById(R.id.image);title =(TextView) convertView.findViewById(R.id.title);text= (TextView) convertView.findViewById(R.id.text);} int colorPos = position % mListColor.length;convertView.setBackgroundColor(mListColor[colorPos]);image.setImageResource(mListImage[position]);title.setText(mListTitle[position]);text.setText(mListStr[position]);return convertView;}}}
效果图:
既然走的是“色”的路线,那么欢迎界面也该搞得“色”一点,这样跳跃才不会太大,O(∩_∩)O~
OK,到此主界面先这样,还木有数据的处理呢。
作业可以先handle了,接下来该去看看怎么搞数据了。
-------------------------
4.23 nju
