更多关于knife4j的详细介绍请参考官方文档
更轻量级的OpenAPI文档聚合方案可以考虑Knife4j推出的Aggregation或者Desktop组件
本篇博客主要讲解通过knife4j项目如何集成Spring Cloud Gateway网关,通过网关聚合所有的Swagger微服务文档
源码地址请参考:knife4j-spring-cloud-gateway
整体项目结构如下:
|-knife4j-spring-cloud-gateway
|-----service-doc //文档聚合中心,是所有微服务文档的出口
|-----service-order //订单服务,包含所有与订单业务模块相关的接口
|-----service-server //eureka 注册中心
|-----service-user //用户服务,包含所有的用户接口
eureka注册中心
注册中心几乎没有代码,只是在pom.xml文件中引入了eureka服务的jar包
<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
项目的application.yml
配置文件如下:
server:port: 10000
eureka:instance:hostname: localhostclient:register-with-eureka: falsefetch-registry: falseservice-url:defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
spring:application:name: knife4j-gateway-server
定义注册中心访问地址,端口号等属性
最后通过注解@EnableEurekaServer
来启用注册中心
@EnableEurekaServer
@SpringBootApplication
public class ServiceServerApplication {}
服务接口(订单order & 用户User)
由于服务接口订单和用户两个模块其实属性是差不多,只是接口不一样,因此就随便挑一个服务的配置来说吧
service-user:用户服务的接口
每个微服务只需要引入和swagger相关的后端jar包即可,不需要引入swagger的前端Ui包,knife4j为我们提供了微服务项的starter,供开发者使用
当然,作为子服务,还需要引入eureka-client的jar包,所以,pom.xml文件相关配置如下:
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope>
</dependency>
<dependency><groupId>com.github.xiaoymin</groupId><artifactId>knife4j-micro-spring-boot-starter</artifactId>
</dependency>
项目的jar包引入完成后,接下来是配置swagger的相关配置,SwaggerConfiguration.java
配置如下:
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUi
@Import(BeanValidatorPluginsConfiguration.class)
public class SwaggerConfiguration {@Bean(value = "userApi")@Order(value = 1)public Docket groupRestApi() {return new Docket(DocumentationType.SWAGGER_2).apiInfo(groupApiInfo()).select().apis(RequestHandlerSelectors.basePackage("com.xiaominfo.swagger.service.user.controller")).paths(PathSelectors.any()).build();}private ApiInfo groupApiInfo(){return new ApiInfoBuilder().title("swagger-bootstrap-ui很棒~~~!!!").description("<div style='font-size:14px;color:red;'>swagger-bootstrap-ui-demo RESTful APIs</div>").termsOfServiceUrl("http://www.group.com/").contact("group@qq.com").version("1.0").build();}}
配置扫描目录包
通过@EnableSwagger2
和@EnableSwaggerBootstrapUi
来开启swagger和增强特性
配置项目的application.yml
文件,如下:
server:port: 10001
spring:application:name: service-user
eureka:client:serviceUrl:defaultZone: http://localhost:10000/eureka/
指定注册中心地址即可
最后,启用eureka客户端
@EnableEurekaClient
@SpringBootApplication
public class ServiceUserApplication {
}
当然,在服务的模块中还有和自己服务相关的业务接口(Controller代码),在这里就不列举了
订单模块(service-order)的代码配置和用户是类似的
文档聚合
有了eureka注册中心,服务模块的接口也已完成,最后一步是把我们所有的微服务都聚合到一个文档,统一输出到前端,供开发者调用了
pom引入相关jar包
service-doc
也是一个eureka客户端,首先引入相关的jar包,pom.xml配置文件如下:
<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<dependency><groupId>com.github.xiaoymin</groupId><artifactId>knife4j-spring-boot-starter</artifactId>
</dependency>
- spring-cloud-starter-netflix-eureka-client:eureka客户端
- spring-cloud-starter-gateway:gateway网关
- knife4j-spring-boot-starter:knife4j提供的前端ui和后端代码
另外,其实在文档这里,如果没有后端代码编写的话,仅仅引入一个swagger的前端ui模块也是可以的
<dependency><groupId>com.github.xiaoymin</groupId><artifactId>knife4j-spring-ui</artifactId>
</dependency>
application文件配置
配置我们的网关属性,路由规则等,application.yml
配置文件如下:
server:port: 10003
spring:application:name: service-doccloud:gateway:discovery:locator:# enabled: truelowerCaseServiceId: trueroutes:- id: service-useruri: lb://service-userpredicates:- Path=/user/**# - Header=Cookie,Set-Cookiefilters:- SwaggerHeaderFilter- StripPrefix=1- id: service-orderuri: lb://service-orderpredicates:- Path=/order/**filters:- SwaggerHeaderFilter- StripPrefix=1eureka:client:serviceUrl:defaultZone: http://localhost:10000/eureka/logging:level:org.springframework:cloud.gateway: debug
文档聚合业务编码
在我们使用Spring Boot等单体架构集成swagger项目时,是通过对包路径进行业务分组,然后在前端进行不同模块的展示,而在微服务架构下,我们的一个服务就类似于原来我们写的一个业务组
springfox-swagger提供的分组接口是swagger-resource
,返回的是分组接口名称、地址等信息
在Spring Cloud微服务架构下,我们需要重写该接口,主要是通过网关的注册中心动态发现所有的微服务文档,代码如下:
@Slf4j
@Component
@Primary
@AllArgsConstructor
public class SwaggerResourceConfig implements SwaggerResourcesProvider {private final RouteLocator routeLocator;private final GatewayProperties gatewayProperties;@Overridepublic List<SwaggerResource> get() {List<SwaggerResource> resources = new ArrayList<>();List<String> routes = new ArrayList<>();routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));gatewayProperties.getRoutes().stream().filter(routeDefinition -> routes.contains(routeDefinition.getId())).forEach(route -> {route.getPredicates().stream().filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName())).forEach(predicateDefinition -> resources.add(swaggerResource(route.getId(),predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0").replace("**", "v2/api-docs"))));});return resources;}private SwaggerResource swaggerResource(String name, String location) {log.info("name:{},location:{}",name,location);SwaggerResource swaggerResource = new SwaggerResource();swaggerResource.setName(name);swaggerResource.setLocation(location);swaggerResource.setSwaggerVersion("2.0");return swaggerResource;}
}
接口:
@RestController
public class SwaggerHandler {@Autowired(required = false)private SecurityConfiguration securityConfiguration;@Autowired(required = false)private UiConfiguration uiConfiguration;private final SwaggerResourcesProvider swaggerResources;@Autowiredpublic SwaggerHandler(SwaggerResourcesProvider swaggerResources) {this.swaggerResources = swaggerResources;}@GetMapping("/swagger-resources/configuration/security")public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {return Mono.just(new ResponseEntity<>(Optional.ofNullable(securityConfiguration).orElse(SecurityConfigurationBuilder.builder().build()), HttpStatus.OK));}@GetMapping("/swagger-resources/configuration/ui")public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {return Mono.just(new ResponseEntity<>(Optional.ofNullable(uiConfiguration).orElse(UiConfigurationBuilder.builder().build()), HttpStatus.OK));}@GetMapping("/swagger-resources")public Mono<ResponseEntity> swaggerResources() {return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));}
}
启动配置
最后,项目启动类添加相关注解,代码如下:
@EnableDiscoveryClient
@EnableEurekaClient
@SpringBootApplication
public class ServiceDocApplication {public static void main(String[] args) {SpringApplication.run(ServiceDocApplication.class, args);}}
文档展示
最后分别依次启动项目:
- service-server
- service-user
- service-order
- service-doc

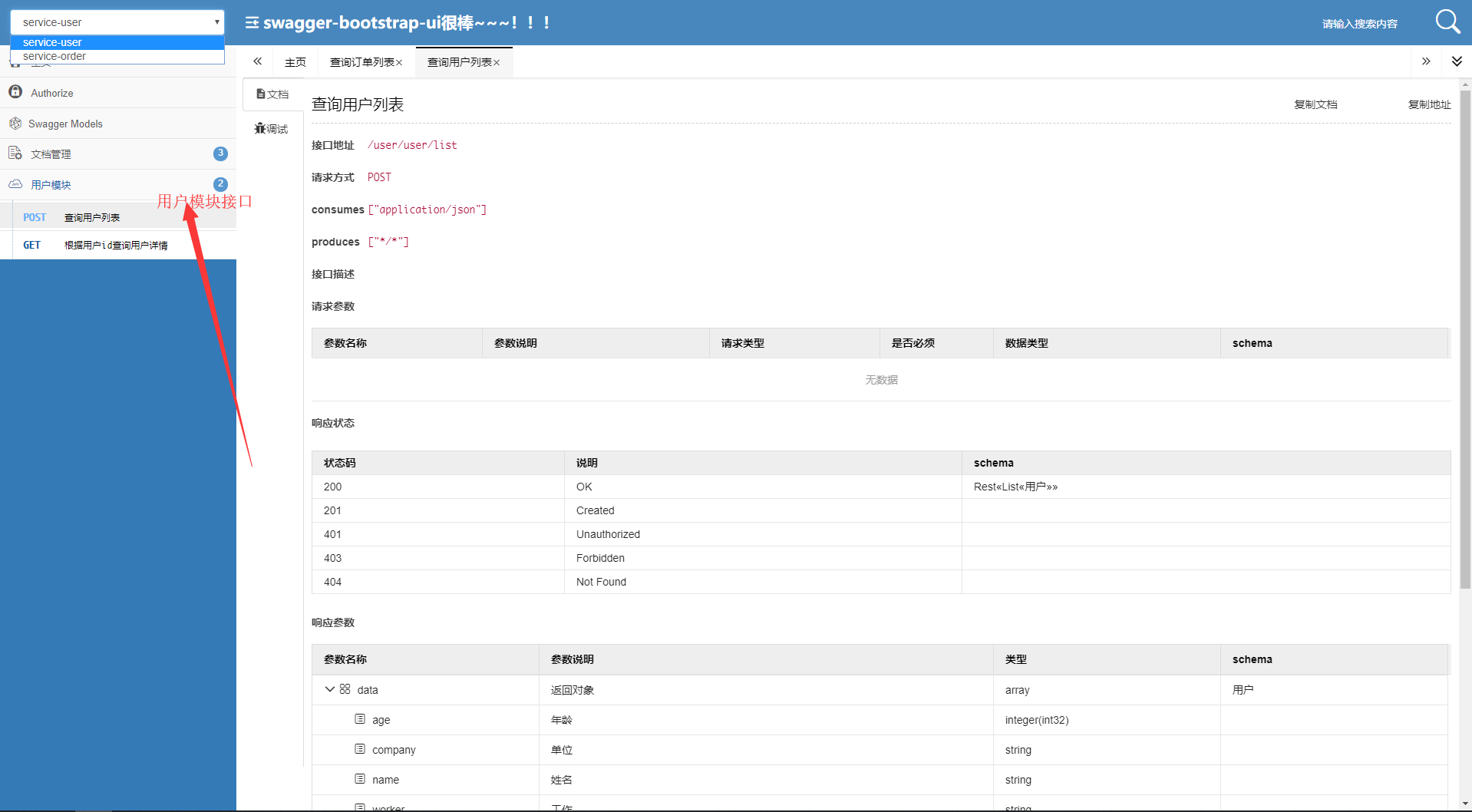

打开文档地址:http://localhost:10003/doc.html
查看文档效果如下:
注意点
在集成Spring Cloud Gateway网关的时候,会出现没有basePath的情况(即定义的例如/user、/order等微服务的前缀),这个情况在使用zuul网关的时候不会出现此问题,因此,在Gateway网关需要添加一个Filter实体Bean,代码如下:
@Component
public class SwaggerHeaderFilter extends AbstractGatewayFilterFactory {private static final String HEADER_NAME = "X-Forwarded-Prefix";private static final String URI = "/v2/api-docs";@Overridepublic GatewayFilter apply(Object config) {return (exchange, chain) -> {ServerHttpRequest request = exchange.getRequest();String path = request.getURI().getPath();if (!StringUtils.endsWithIgnoreCase(path,URI )) {return chain.filter(exchange);}String basePath = path.substring(0, path.lastIndexOf(URI));ServerHttpRequest newRequest = request.mutate().header(HEADER_NAME, basePath).build();ServerWebExchange newExchange = exchange.mutate().request(newRequest).build();return chain.filter(newExchange);};}
}
然后在配置文件指定这个filter
spring:application:name: service-doccloud:gateway:discovery:locator:# enabled: truelowerCaseServiceId: trueroutes:- id: service-useruri: lb://service-userpredicates:- Path=/user/**# - Header=Cookie,Set-Cookiefilters:- SwaggerHeaderFilter- StripPrefix=1- id: service-orderuri: lb://service-orderpredicates:- Path=/order/**filters:- SwaggerHeaderFilter //指定filter- StripPrefix=1
