Spring Boot事件发布及监听机制
一、 事件驱动模型
1. 面向事件编程在Spring下实践
事件驱动模型可以最大程度减少耦合度,而Spring拥有一套完善的事件发布与处理机制。在Spring中想完成一个完整的面向事件编程,需要以下三个步骤:
- 自定义一个事件,该事件需要继承
ApplicationEvent
,参考Spring Boot v2.4.4源码解析(三)事件机制篇一; - 事件发布者注入
ApplicationEventPublisher
对象,用于发布事件; - 事件监听者实现
ApplicationListener
接口,或者使用@EventListener
注解(Spring 4.1引入);
具体实现细节可以参考文档Better application events in Spring Framework 4.2。
调试时会发现注入事件发布者ApplicationEventPublisher
其实是Spring Boot应用上下文AnnotationConfigServletWebServerApplicationContext
。
看下应用上下文接口ApplicationContext
UML类图:
可以看出,ApplicationContext
继承接口ApplicationEventPublisher
提供事件发布功能。
2. 拓展面试题:BeanFactory和ApplicationContext的区别
这里可以衍生出一道经典面试题:Spring中 BeanFactory
和ApplicationContext
的区别。
从上面接口继承关系可以看出ApplicationContext
继承至接口BeanFactory
,所以BeanFactory
提供的功能ApplicationContext
均支持,并且ApplicationContext
扩展了如下功能:
- 扩展
MessageResource
接口,支持消息国际化; - 扩展
ApplicationEventPublisher
接口,支持事件发布; - 扩展
ResourcePatternResolver
接口,支持资源加载;
ApplicationContext
提供自动BeanPostProcessor
注册功能;ApplicationContext
提供自动BeanFactoryPostProcessor
注册功能;BeanFactroy
采用的是延迟加载形式注入bean,ApplicationContext
则相反,它是在容器启动时,一次性创建了所有的bean;
具体细节可以参考Chapter 3. The IoC container
3. 事件发布者真面目

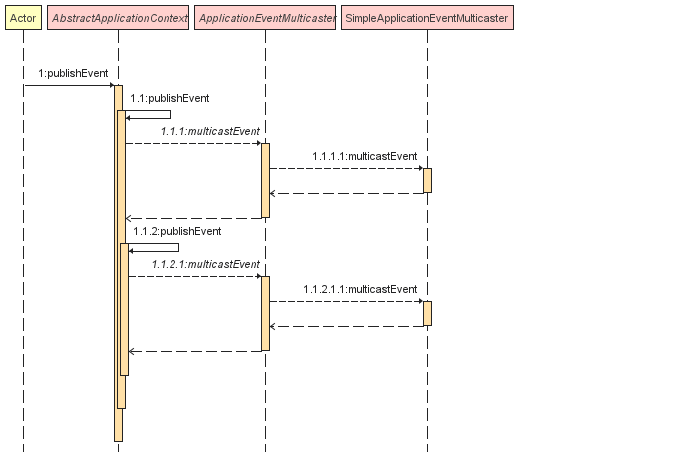

看下AnnotationConfigServletWebServerApplicationContext
发布事件时序图:
可以看出,AnnotationConfigServletWebServerApplicationContext
发布事件最终也是委托给SimpleApplicationEventMulticaster
。
二、 事件广播器
看下SimpleApplicationEventMulticaster
UML类图:
1. 顶级接口ApplicationEventMulticaster规定事件广播器功能
除了Aware接口,SimpleApplicationEventMulticaster
顶级接口为ApplicationEventMulticaster
,ApplicationEventMulticaster
定义了管理ApplicationListener
事件监听者和向这些监听者广播事件的一些方法。并且官方注释明确指出,ApplicationEventPublisher
(特别是ApplicationContext
)可以将实际事件发布功能委托给ApplicationEventMulticaster
实现类。
ApplicationEventMulticaster
接口规定事件广播器需要具备如下功能:
- 注册事件监听器功能,支持通过实例和bean名称方式注册;
void addApplicationListener(ApplicationListener<?> listener); void addApplicationListenerBean(String listenerBeanName);
- 移除已经注册的事件监听器功能,不仅支持通过实例和bean名称方式移除,还能通过Predicate断言方式批量移除;
void removeApplicationListener(ApplicationListener<?> listener); void removeApplicationListenerBean(String listenerBeanName);// 注意, 这里只能移除通过实例注册的事件监听器, 不能移除通过bean名称注册的事件监听器 void removeApplicationListeners(Predicate<ApplicationListener<?>> predicate);// 注意, 这里只能移除通过bean名称注册的事件监听器, 不能移除通过实例注册的事件监听器 void removeApplicationListenerBeans(Predicate<String> predicate);
- 事件广播功能;
void multicastEvent(ApplicationEvent event); void multicastEvent(ApplicationEvent event, @Nullable ResolvableType eventType);
2. AbstractApplicationEventMulticaster管理事件监听器
抽象类AbstractApplicationEventMulticaster
实现了ApplicationEventMulticaster
管理事件监听器功能,这就不难理解为什么AbstractApplicationEventMulticaster
要实现BeanFactoryAware
接口,因为ApplicationEventMulticaster
支持通过bean名称方式注册和移除监听器,所以需要beanFactory
根据bean名称获取事件监听器实例。
2.1 内部类与缓存
AbstractApplicationEventMulticaster
中定义了几个内部类:
DefaultListenerRetriever
,封装已经注册的事件监听器,注册和移除时都是对该类进行操作。成员变量applicationListeners
和applicationListenerBeans
分别代表通过实例和bean名称注册的事件监听器;private class DefaultListenerRetriever {public final Set<ApplicationListener<?>> applicationListeners = new LinkedHashSet<>();public final Set<String> applicationListenerBeans = new LinkedHashSet<>();// 获取所有事件监听器public Collection<ApplicationListener<?>> getApplicationListeners() {List<ApplicationListener<?>> allListeners = new ArrayList<>(this.applicationListeners.size() + this.applicationListenerBeans.size());allListeners.addAll(this.applicationListeners);if (!this.applicationListenerBeans.isEmpty()) {BeanFactory beanFactory = getBeanFactory();for (String listenerBeanName : this.applicationListenerBeans) {try {ApplicationListener<?> listener =beanFactory.getBean(listenerBeanName, ApplicationListener.class); // 从beanFactory中获取if (!allListeners.contains(listener)) { // 去重allListeners.add(listener);}}catch (NoSuchBeanDefinitionException ex) {}}}AnnotationAwareOrderComparator.sort(allListeners);return allListeners;}}
CachedListenerRetriever
,DefaultListenerRetriever
封装所有已经注册的事件监听器,但是一个监听器只能监听一种事件,当事件发生时需要从DefaultListenerRetriever
筛选出能够处理该种事件的监听器。这样当同一类型事件发生多次时,势必会造成重复筛选;为了避免重复筛选,AbstractApplicationEventMulticaster
将已经筛选出来的事件监听器封装成CachedListenerRetriever
进行缓存。CachedListenerRetriever
和DefaultListenerRetriever
类似,只不过applicationListeners
和applicationListenerBeans
由volatile
修饰,保证线程可见性,并且在调用getApplicationListeners()
方法获取事件监听器需要判断缓存是否已加载(applicationListeners
或applicationListenerBeans
是否为null
)。这里不贴CachedListenerRetriever
源码。ListenerCacheKey
,事件监听器缓存键,成员变量eventType
和sourceType
分别表示事件类型和事件源类型。从这里可以看出DefaultListenerRetriever
是根据事件类型和事件源类型对事件监听器进行缓存的。ListenerCacheKey
还重写了equals
方法:只有eventType
和sourceType
都相同时,才认为两个ListenerCacheKey
相同。
AbstractApplicationEventMulticaster
内部变量如下:
// 已经注册的事件监听器
private final DefaultListenerRetriever defaultRetriever = new DefaultListenerRetriever();
// 缓存, 数据源是defaultRetriever
final Map<ListenerCacheKey, CachedListenerRetriever> retrieverCache = new ConcurrentHashMap<>(64); private ClassLoader beanClassLoader; // 通过BeanClassLoaderAware接口注入
private ConfigurableBeanFactory beanFactory; // 通过BeanFactoryAware接口注入
2.2 Cache-Aside 缓存模式
retrieverCache
为ConcurrentHashMap
类型,线程安全。但是DefaultListenerRetriever
非线程安全类,考虑到线程安全性,所有对defaultRetriever
的读(保证线程可见性)写操作都要加锁。
AbstractApplicationEventMulticaster
缓存使用Cache-Aside(旁路缓存)模式,所有对数据源defaultRetriever
的修改操作,都会清空缓存。
例如:
// 省略beanClassLoader和beanFactory的set/get方法@Override
public void addApplicationListener(ApplicationListener<?> listener) {synchronized (this.defaultRetriever) {// 移除代理, 防止同一个事件监听器多次添加Object singletonTarget = AopProxyUtils.getSingletonTarget(listener);if (singletonTarget instanceof ApplicationListener) {this.defaultRetriever.applicationListeners.remove(singletonTarget);}this.defaultRetriever.applicationListeners.add(listener);this.retrieverCache.clear(); // 清空缓存}
}// addApplicationListenerBean(String), removeApplicationListener(ApplicationListener<?>)
// removeApplicationListenerBean(String), removeApplicationListeners(Predicate<ApplicationListener<?>>)
// removeApplicationListenerBeans(Predicate<String> )
// removeAllListeners()方法类似addApplicationListener(ApplicationListener<?>)方法
// 都是先对defaultRetriever的applicationListeners或者applicationListenerBeans进行操作
// 然后清除retrieverCache缓存, 这里省略// 获取所有事件监听器
protected Collection<ApplicationListener<?>> getApplicationListeners() {synchronized (this.defaultRetriever) { // synchronized保证其他线程对defaultRetriever的修改, 线程可见return this.defaultRetriever.getApplicationListeners();}
}
2.3 获取指定类型监听器
getApplicationListeners(ApplicationEvent , ResolvableType)
是AbstractApplicationEventMulticaster
比较重要的方法,用于获取指定事件类型的事件监听器。
protected Collection<ApplicationListener<?>> getApplicationListeners(ApplicationEvent event, ResolvableType eventType) {Object source = event.getSource();Class<?> sourceType = (source != null ? source.getClass() : null);ListenerCacheKey cacheKey = new ListenerCacheKey(eventType, sourceType); // 计算缓存键// 需要填充属性值的CachedListenerRetriever, 如果newRetriever为null, 表示不需要属性填充CachedListenerRetriever newRetriever = null;// 快速检查是否缓存中命中CachedListenerRetriever existingRetriever = this.retrieverCache.get(cacheKey);if (existingRetriever == null) {// 缓存安全?if (this.beanClassLoader == null ||(ClassUtils.isCacheSafe(event.getClass(), this.beanClassLoader) &&(sourceType == null || ClassUtils.isCacheSafe(sourceType, this.beanClassLoader)))) {newRetriever = new CachedListenerRetriever();// 注意, 此时放进去的newRetriever是CachedListenerRetriever属性// 未赋值(applicationListeners和applicationListenerBeans均为null)的空壳子existingRetriever = this.retrieverCache.putIfAbsent(cacheKey, newRetriever);// 在retrieverCache.get和etrieverCache.putIfAbsent之间可能已经有其他线程将该类型事件监听器放入缓存// 所以这里还需要检测, 避免重复属性赋值if (existingRetriever != null) {newRetriever = null; }}}if (existingRetriever != null) {Collection<ApplicationListener<?>> result = existingRetriever.getApplicationListeners();if (result != null) {return result;}// 如果result为null, 表示在retrieverCache.get和etrieverCache.putIfAbsent之间有其他线程将该类型事件监听器放入缓存// 但放入的还是个没来得及属性赋值的CachedListenerRetriever空壳子// 还需要调用函数retrieveApplicationListeners获取}// 从defaultRetriever中获取事件类型为eventType, 事件源类型为sourceType的事件监听器// 如果newRetriever非null, 还需要将获取事件监听器赋值给newRetriever的applicationListeners和applicationListenerBeans属性return retrieveApplicationListeners(eventType, sourceType, newRetriever);}
如果缓存未命中,AbstractApplicationEventMulticaster
会立即新建一个未属性赋值的CachedListenerRetriever
空壳子放入缓存,随后在retrieveApplicationListeners(ResolvableType, Class<?>, CachedListenerRetriever)
函数中再对放入缓存的CachedListenerRetriever
属性赋值。
考虑多线程环境:如果多个线程同时缓存未命中,都将新建的CachedListenerRetriever
放入缓存这一步没有问题(ConcurrentHashMap
线程安全,putIfAbsent
只会将第一次调用CachedListenerRetriever
放入缓存),但是如果每个线程都将自己新建的CachedListenerRetriever
在retrieveApplicationListeners
函数中属性赋值这不就没有必要吗。所以在缓存未命中,将新建的CachedListenerRetriever
放入缓存,如果发现有返回(其他线程放入)时,需要将newRetriever
置为null
,后续不需要再对其属性赋值。
看下retrieveApplicationListeners
函数源码:
private Collection<ApplicationListener<?>> retrieveApplicationListeners(ResolvableType eventType, @Nullable Class<?> sourceType, @Nullable CachedListenerRetriever retriever) {List<ApplicationListener<?>> allListeners = new ArrayList<>(); // 返回的所有过滤后的事件监听器// 已经根据eventType和sourceType过滤的事件监听器, 用于给retriever属性赋值Set<ApplicationListener<?>> filteredListeners = (retriever != null ? new LinkedHashSet<>() : null);Set<String> filteredListenerBeans = (retriever != null ? new LinkedHashSet<>() : null);Set<ApplicationListener<?>> listeners;Set<String> listenerBeans;synchronized (this.defaultRetriever) { // 使用synchronized保证其他线程对defaultRetriever的修改本线程可见listeners = new LinkedHashSet<>(this.defaultRetriever.applicationListeners);listenerBeans = new LinkedHashSet<>(this.defaultRetriever.applicationListenerBeans);}// 从所有事件监听器中筛选能支持eventType和sourceType的事件监听器for (ApplicationListener<?> listener : listeners) {if (supportsEvent(listener, eventType, sourceType)) {if (retriever != null) {filteredListeners.add(listener);}allListeners.add(listener);}}// 通过bean名称筛选if (!listenerBeans.isEmpty()) {ConfigurableBeanFactory beanFactory = getBeanFactory();for (String listenerBeanName : listenerBeans) {try {// 初始筛选, 避免在getBean时提前实例化if (supportsEvent(beanFactory, listenerBeanName, eventType)) {ApplicationListener<?> listener = // 根据bean名称从beanFactory获取实例beanFactory.getBean(listenerBeanName, ApplicationListener.class);// 可能已经通过实例注册过if (!allListeners.contains(listener) && supportsEvent(listener, eventType, sourceType)) {if (retriever != null) {if (beanFactory.isSingleton(listenerBeanName)) {filteredListeners.add(listener);}else {filteredListenerBeans.add(listenerBeanName);}}allListeners.add(listener);}}else {// 不支持, 移除通过实例方式注册的事件监听器Object listener = beanFactory.getSingleton(listenerBeanName);if (retriever != null) {filteredListeners.remove(listener);}allListeners.remove(listener);}}catch (NoSuchBeanDefinitionException ex) { // 未找到单例bean, 可能位于bean销毁阶段}}}AnnotationAwareOrderComparator.sort(allListeners); // 排序if (retriever != null) {// retriever属性赋值if (filteredListenerBeans.isEmpty()) {retriever.applicationListeners = new LinkedHashSet<>(allListeners);retriever.applicationListenerBeans = filteredListenerBeans;}else {retriever.applicationListeners = filteredListeners;retriever.applicationListenerBeans = filteredListenerBeans;}}return allListeners;}
从上面源码可以看出,retrieveApplicationListeners(ResolvableType eventType , Class<?> sourceType , CachedListenerRetriever retriever)
函数实现两个功能:
- 获取指定事件类型
eventType
和事件源类型sourceType
的监听器实例集合(通过bean名称注册的需要通过beanFactory
获取); - 如果
retriever
非null
,将获取到监听器的实例集合和bean名称集合给retriever
属性赋值;
2.4 筛选监听器
从defaultRetriever
中筛选特定事件类型和事件源类型事件监听器工作主要由supportsEvent
函数实现,supportsEvent
函数有两种重载形式:
supportsEvent( ConfigurableBeanFactory beanFactory, String listenerBeanName, ResolvableType eventType)
形式,前文已经介绍,beanFactory
采用的是延迟加载形式注入bean,在第一次调用getBean
方法时才会实例化bean,对于不满足条件的bean,如果直接调用getBean
的话会造成不必要的实例化操作,该方法通过检查bean定义事件泛型避免不必要实例化操作,但不能精确判断。private boolean supportsEvent(ConfigurableBeanFactory beanFactory, String listenerBeanName, ResolvableType eventType) {Class<?> listenerType = beanFactory.getType(listenerBeanName);// GenericApplicationListener继承SmartApplicationListener// SmartApplicationListener又继承ApplicationListener<ApplicationEvent>// listenerType为null, 或者SmartApplicationListener是SmartApplicationListener\ApplicationListener<ApplicationEvent>返回trueif (listenerType == null || GenericApplicationListener.class.isAssignableFrom(listenerType) ||SmartApplicationListener.class.isAssignableFrom(listenerType)) {return true;}// 判断listenerType实现ApplicationListener接口时, 泛型是否继承eventTypeif (!supportsEvent(listenerType, eventType)) {return false;}try {BeanDefinition bd = beanFactory.getMergedBeanDefinition(listenerBeanName);ResolvableType genericEventType = bd.getResolvableType().as(ApplicationListener.class).getGeneric();// 没有实现ApplicationListener接口返回true// 实现ApplicationListener且泛型继承eventType也返回truereturn (genericEventType == ResolvableType.NONE || genericEventType.isAssignableFrom(eventType));}catch (NoSuchBeanDefinitionException ex) { // 手工注入bean名称return true;} }
supportsEvent(Class<?> listenerType, ResolvableType eventType)
, 判断listenerType
实现ApplicationListener
接口时,ApplicationListener
接口泛型是否继承eventType
。但如果listenerType
没有实现ApplicationListener
接口,该方法也会返回true
;protected boolean supportsEvent(Class<?> listenerType, ResolvableType eventType) {ResolvableType declaredEventType = GenericApplicationListenerAdapter.resolveDeclaredEventType(listenerType);return (declaredEventType == null || declaredEventType.isAssignableFrom(eventType)); }
supportsEvent(ApplicationListener<?> listener, ResolvableType eventType, @Nullable Class<?> sourceType)
, 精确判断listener
能否监听事件类型eventType
且事件源类型sourceType
;protected boolean supportsEvent(ApplicationListener<?> listener, ResolvableType eventType, @Nullable Class<?> sourceType) {GenericApplicationListener smartListener = (listener instanceof GenericApplicationListener ?(GenericApplicationListener) listener : new GenericApplicationListenerAdapter(listener));return (smartListener.supportsEventType(eventType) && smartListener.supportsSourceType(sourceType)); }
3. SimpleApplicationEventMulticaster事件广播
AbstractApplicationEventMulticaster
实现了ApplicationEventMulticaster
接口管理事件监听器功能, 所以其子类SimpleApplicationEventMulticaster
只需要实现ApplicationEventMulticaster
接口事件广播功能(由multicastEvent
方法定义)即可。AbstractApplicationEventMulticaster
定义了获取特定事件类型所有事件监听器方法getApplicationListeners(ApplicationEvent event, ResolvableType eventType)
,那广播事件也简单了,只需要调用该方法获取所有事件监听器,然后循环调用这些事件监听器的onApplicationEvent
方法处理事件逻辑即可;在事件发布线程中循环执行事件监听者处理逻辑,虽然开销比较小,但会面临一个风险:流氓监听器可能会阻塞整个应用程序。
为了解决这个问题,SimpleApplicationEventMulticaster
定义了一个Executor
类型的taskExecutor
,如果Executor
不为空,则让监听程序在Executor
中执行,可以实现异步监听。
SimpleApplicationEventMulticaster
广播事件核心方法源码如下:
@Override
public void multicastEvent(ApplicationEvent event) {multicastEvent(event, resolveDefaultEventType(event));
}@Override
public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));Executor executor = getTaskExecutor();// 循环调用for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {if (executor != null) {executor.execute(() -> invokeListener(listener, event));}else {invokeListener(listener, event);}}
}private ResolvableType resolveDefaultEventType(ApplicationEvent event) {return ResolvableType.forInstance(event);
}// 同步/异步调用监听器
protected void invokeListener(ApplicationListener<?> listener, ApplicationEvent event) {ErrorHandler errorHandler = getErrorHandler();if (errorHandler != null) {try {doInvokeListener(listener, event);}catch (Throwable err) { // 处理错误errorHandler.handleError(err);}}else {doInvokeListener(listener, event);}
}@SuppressWarnings({"rawtypes", "unchecked"})
private void doInvokeListener(ApplicationListener listener, ApplicationEvent event) {try {// 调用监听器监听逻辑listener.onApplicationEvent(event);}catch (ClassCastException ex) {String msg = ex.getMessage();if (msg == null || matchesClassCastMessage(msg, event.getClass()) ||(event instanceof PayloadApplicationEvent &&matchesClassCastMessage(msg, ((PayloadApplicationEvent) event).getPayload().getClass()))) {// Possibly a lambda-defined listener which we could not resolve the generic event type for// -> let's suppress the exception.Log loggerToUse = this.lazyLogger;if (loggerToUse == null) {loggerToUse = LogFactory.getLog(getClass());this.lazyLogger = loggerToUse;}if (loggerToUse.isTraceEnabled()) {loggerToUse.trace("Non-matching event type for listener: " + listener, ex);}}else {throw ex;}}
}
也可以使用Spring提供的@EnableAsync
+ @Asnc
方式实现异步监听。
4. 事件监听器注册时机
这里还有一个问题:在发布事件调用getApplicationListeners(ApplicationEvent event, ResolvableType eventType)
获取事件监听器时,要确保所有监听器已经注册完成,那这些事件监听器什么时候注册的呢?
EventPublishingRunListener
(将Spring Boot启动时间节点封装成时间并发布,参考Spring Boot v2.4.4源码解析(三)事件机制篇一)内部的SimpleApplicationEventMulticaster
,在创建时,就注册通过SPI机制加载的事件监听器;public EventPublishingRunListener(SpringApplication application, String[] args) {this.application = application;this.args = args;this.initialMulticaster = new SimpleApplicationEventMulticaster();for (ApplicationListener<?> listener : application.getListeners()) {this.initialMulticaster.addApplicationListener(listener);} }
- 实现
ApplicationListener
接口,或者使用@EventListener
注解的事件监听器,Spring Boot会在刷新上下文时调用registerListeners
()注册。
protected void registerListeners() {// Register statically specified listeners first.for (ApplicationListener<?> listener : getApplicationListeners()) {getApplicationEventMulticaster().addApplicationListener(listener);}// Do not initialize FactoryBeans here: We need to leave all regular beans// uninitialized to let post-processors apply to them!String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);for (String listenerBeanName : listenerBeanNames) {getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);}// Publish early application events now that we finally have a multicaster...Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;this.earlyApplicationEvents = null;if (!CollectionUtils.isEmpty(earlyEventsToProcess)) {for (ApplicationEvent earlyEvent : earlyEventsToProcess) {getApplicationEventMulticaster().multicastEvent(earlyEvent);}} }
- 手动调用
AbstractApplicationEventMulticaster
的addApplicationListenerBean
系列方法注册;
