本文主要是介绍Spring多数据源分布式事务管理/springmvc+spring+atomikos[jta]+druid+mybatis，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！
项目进行读写分离及分库分表，在一个业务中，在一个事务中处理时候将切换多个数据源，需要保证同一事务多个数据源数据的一致性。此处使用atomikos来实现：最后附源码：
1：spring3.0之后不再支持jtom[jta]了，第三方开源软件atomikos(http://www.atomikos.com/)来实现．
2：org.springframework.transaction.jta.JotmFactoryBean类，spring-tx-2.5.6.jar中有此类，spring-tx-3.0.0.RELEASE.jar之后没有此类。
3：atomikos事务控制框架，其中看到有3种数据源，分别是，SimpleDataSourceBean,AtomikosDataSourceBean,AtomikosNonXADataSourceBean。
a:SimpleDataSourceBean: 这个是最简单地数据源配置,需要配置XA驱动。
b:AtomikosDataSourceBean: 分布式数据源,Atomikos实现的数据源，需要配置XA驱动，推荐此配置，可以配置连接池的信息。
c:AtomikosNonXADataSourceBean: 非分布式数据源,该数据源配置需要普通JDBC的驱动，可以配置连接池：
4：Atomikos支持XA(全局事务)和NON-XA(非全局事务)，NON-XA[nonxadatasource]效率高于XA.XA事务往往是包括多个数据源的全局事务，非XA是单个数据源的.
5：XA连接是一个JTA事务中的参与者。XA连接不支持JDBC的自动提交特性。也就是说应用程序不必在xadatasource[XA]连接上调用java.sql.Connection.commit()或java.sql.Connection.rollback()；而应用程序应该使用UserTransaction.begin(),UserTransaction.commit()和UserTransaction.rollback().
看看pom.xml依赖：
<!-- transaction --><dependency><groupId>org.springframework</groupId><artifactId>spring-tx</artifactId><version>4.2.5.RELEASE</version></dependency><dependency><groupId>javax.transaction</groupId><artifactId>jta</artifactId><version>1.1</version></dependency><dependency><groupId>com.atomikos</groupId><artifactId>atomikos-util</artifactId><version>4.0.2</version></dependency><dependency><groupId>com.atomikos</groupId><artifactId>transactions</artifactId><version>4.0.2</version></dependency><dependency><groupId>com.atomikos</groupId><artifactId>transactions-jta</artifactId><version>4.0.2</version></dependency><dependency><groupId>com.atomikos</groupId><artifactId>transactions-jdbc</artifactId><version>4.0.2</version></dependency><dependency><groupId>com.atomikos</groupId><artifactId>transactions-api</artifactId><version>4.0.2</version></dependency><dependency><groupId>cglib</groupId><artifactId>cglib-nodep</artifactId><version>3.2.2</version></dependency><?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop"xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsdhttp://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true"><description>配置主-从数据源信息</description><!-- com.atomikos.jdbc.nonxa.AtomikosNonXADataSourceBean --><bean id="abstractXADataSource" class="com.atomikos.jdbc.AtomikosDataSourceBean" init-method="init" destroy-method="close" abstract="true"> <property name="xaDataSourceClassName" value="${jdbc.xaDataSourceClassName}"/> <!-- SQLErrorCodes loaded: [DB2, Derby, H2, HSQL, Informix, MS-SQL, MySQL, Oracle, PostgreSQL, Sybase, Hana] --><property name="poolSize" value="10" /> <property name="minPoolSize" value="10"/> <property name="maxPoolSize" value="30"/> <property name="borrowConnectionTimeout" value="60"/> <property name="reapTimeout" value="20"/> <property name="maxIdleTime" value="60"/> <property name="maintenanceInterval" value="60"/> <property name="loginTimeout" value="60"/> <property name="testQuery" value="${validationQuery}"/> </bean> <bean id="masterDataSource" parent="abstractXADataSource"> <property name="uniqueResourceName" value="masterDB" /> <property name="xaProperties"><props><prop key="driverClassName">${jdbc.driverClassName}</prop><prop key="url">${master.jdbc.url}</prop><prop key="password">${jdbc.password}</prop><!-- <prop key="user">${jdbc.username}</prop> --> <!-- mysql --><prop key="username">${jdbc.username}</prop> <!-- durid --><prop key="initialSize">0</prop><prop key="maxActive">20</prop> <!-- 若不配置则代码执行"{dataSource-1} inited"此处停止 --><prop key="minIdle">0</prop><prop key="maxWait">60000</prop><prop key="validationQuery">${validationQuery}</prop><prop key="testOnBorrow">false</prop><prop key="testOnReturn">false</prop><prop key="testWhileIdle">true</prop><prop key="removeAbandoned">true</prop><prop key="removeAbandonedTimeout">1800</prop><prop key="logAbandoned">true</prop><prop key="filters">mergeStat</prop></props></property></bean> <bean id="slaveDataSource" parent="abstractXADataSource"> <property name="uniqueResourceName" value="slaveDB" /> <property name="xaProperties"><props><prop key="driverClassName">${jdbc.driverClassName}</prop><prop key="url">${slave.jdbc.url}</prop><prop key="password">${jdbc.password}</prop><!-- <prop key="user">${jdbc.username}</prop> --><prop key="username">${jdbc.username}</prop><prop key="initialSize">0</prop><prop key="maxActive">20</prop><prop key="minIdle">0</prop><prop key="maxWait">60000</prop><prop key="validationQuery">${validationQuery}</prop><prop key="testOnBorrow">false</prop><prop key="testOnReturn">false</prop><prop key="testWhileIdle">true</prop><prop key="removeAbandoned">true</prop><prop key="removeAbandonedTimeout">1800</prop><prop key="logAbandoned">true</prop><prop key="filters">mergeStat</prop></props></property></bean>
</beans><?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop"xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.2.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.2.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd"> <!-- 使用annotation 自动注册bean,并检查@Required,@Autowired的属性已被注入 --><context:component-scan base-package="com.tx" /><!-- 使用AspectJ方式配置AOP --> <aop:aspectj-autoproxy /><!-- 引入属性配置文件 --><bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer"> <property name="location" value="classpath:properties/database.properties" /> </bean> <!--或 <context:property-placeholder location="classpath*:*.properties" /> -->
</beans> #mysql-Used to verify the effectiveness of the database connection
validationQuery=SELECT 1
jdbc.initialSize=5
jdbc.maxActive=20
jdbc.maxWait=60000
jdbc.poolPreparedStatements=false
jdbc.poolMaximumIdleConnections=0
jdbc.driverClassName=org.gjt.mm.mysql.Driver
jdbc.xaDataSourceClassName=com.alibaba.druid.pool.xa.DruidXADataSource
#jdbc.xaDataSourceClassName=com.mysql.jdbc.jdbc2.optional.MysqlXADataSource
#1.tms business. 2.The db level optimization,data concurrency,desirable.
master.jdbc.url=jdbc:mysql://your ip:3306/master?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull
slave.jdbc.url=jdbc:mysql://your ip:3306/slave?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull
jdbc.username=username
jdbc.password=password<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsdhttp://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true"><description>MyBatis的数据库持久层配置/配置主-从数据源</description><bean id="masterSqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"><property name="configLocation" value="classpath:mybatis/mybatis-config-master.xml" /><property name="dataSource" ref="masterDataSource" /></bean><bean id="slaveSqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"><property name="configLocation" value="classpath:mybatis/mybatis-config-slave.xml" /><property name="dataSource" ref="slaveDataSource" /></bean>
</beans>mybatis-config-master.xml：
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration><typeAliases><typeAlias alias="Member" type="com.tx.entity.Member"/></typeAliases><mappers><mapper resource="com/tx/xml/MemberMapper.xml" /></mappers>
</configuration><?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration><typeAliases><typeAlias alias="MemberInfo" type="com.tx.entity.MemberInfo"/></typeAliases><mappers><mapper resource="com/tx/xml/MemberInfoMapper.xml" /></mappers>
</configuration><?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsdhttp://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true"><description>MyBatis为不同的mapper注入sqlSessionFactory</description><!-- Mapper的管理及注入 --><bean id="memberMapper" class="org.mybatis.spring.mapper.MapperFactoryBean"><property name="sqlSessionFactory" ref="masterSqlSessionFactory" /><property name="mapperInterface" value="com.tx.dao.MemberMapper" /></bean><bean id="memberInfoMapper" class="org.mybatis.spring.mapper.MapperFactoryBean"><property name="sqlSessionFactory" ref="slaveSqlSessionFactory" /><property name="mapperInterface" value="com.tx.dao.MemberInfoMapper" /></bean>
</beans><?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop"xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsdhttp://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd" default-lazy-init="true"><description>配置事物</description><!-- atomikos事务管理器 --><bean id="atomikosTransactionManager" class="com.atomikos.icatch.jta.UserTransactionManager" init-method="init" destroy-method="close"><property name="forceShutdown"><value>true</value></property></bean><bean id="atomikosUserTransaction" class="com.atomikos.icatch.jta.UserTransactionImp"><property name="transactionTimeout" value="300" /></bean><!-- spring 事务管理器 --> <bean id="springTransactionManager" class="org.springframework.transaction.jta.JtaTransactionManager"><property name="transactionManager" ref="atomikosTransactionManager" /><property name="userTransaction" ref="atomikosUserTransaction" /><!-- 必须设置，否则程序出现异常 JtaTransactionManager does not support custom isolation levels by default --><property name="allowCustomIsolationLevels" value="true"/> </bean><aop:config proxy-target-class="true"><aop:advisor pointcut="(execution(* com.tx.service.*.* (..)))" advice-ref="txAdvice" /></aop:config><tx:advice id="txAdvice" transaction-manager="springTransactionManager"><tx:attributes><tx:method name="get*" propagation="REQUIRED" read-only="true" /><tx:method name="find*" propagation="REQUIRED" read-only="true" /><tx:method name="has*" propagation="REQUIRED" read-only="true" /><tx:method name="locate*" propagation="REQUIRED" read-only="true" /><tx:method name="register*" propagation="REQUIRED" rollback-for="java.lang.Exception" /></tx:attributes></tx:advice>
</beans>com.atomikos.icatch.service=com.atomikos.icatch.standalone.UserTransactionServiceFactory
com.atomikos.icatch.console_file_name = /home/logs/tx/tx.out.log
com.atomikos.icatch.log_base_name = txlog
com.atomikos.icatch.tm_unique_name = com.atomikos.spring.jdbc.tm
com.atomikos.icatch.console_log_level=DEBUGa:mybatis的mapper和dao接口[MemberMapper/MemberInfoMapper]：
package com.tx.dao;
import com.tx.entity.Member;
public interface MemberMapper {int insert(Member record);
}package com.tx.dao;
import com.tx.entity.MemberInfo;
public interface MemberInfoMapper {int insert(MemberInfo record);
}<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.tx.dao.MemberMapper" ><resultMap id="BaseResultMap" type="com.tx.entity.Member" ><id column="id" property="id" jdbcType="INTEGER" /><result column="username" property="username" jdbcType="VARCHAR" /><result column="password" property="password" jdbcType="VARCHAR" /><result column="status" property="status" jdbcType="TINYINT" /></resultMap><sql id="Base_Column_List" >id, username, password, status</sql><insert id="insert" parameterType="com.tx.entity.Member" >insert into member (id, username, password, status)values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR}, #{status,jdbcType=TINYINT})</insert>
</mapper><?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.tx.dao.MemberInfoMapper" ><resultMap id="BaseResultMap" type="com.tx.entity.MemberInfo" ><id column="id" property="id" jdbcType="INTEGER" /><result column="nickname" property="nickname" jdbcType="VARCHAR" /><result column="realname" property="realname" jdbcType="VARCHAR" /><result column="age" property="age" jdbcType="TINYINT" /></resultMap><sql id="Base_Column_List" >id, nickname, realname, age</sql><insert id="insert" parameterType="com.tx.entity.MemberInfo" >insert into member_info (id, nickname, realname, age)values (#{id,jdbcType=INTEGER}, #{nickname,jdbcType=VARCHAR}, #{realname,jdbcType=VARCHAR}, #{age,jdbcType=TINYINT})</insert>
</mapper>package com.tx.sevice;import com.tx.entity.Member;
import com.tx.entity.MemberInfo;public interface MemberService {boolean registerMember(Member member, MemberInfo memberInfo);
}
package com.tx.sevice.impl;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import com.tx.dao.MemberInfoMapper;
import com.tx.dao.MemberMapper;
import com.tx.entity.Member;
import com.tx.entity.MemberInfo;
import com.tx.sevice.MemberService;@Service("memberService")
public class MemberServiceImpl implements MemberService {//logprivate static final Logger LOG = LoggerFactory.getLogger(MemberServiceImpl.class);@Autowiredprivate MemberMapper memberMapper;@Autowiredprivate MemberInfoMapper memberInfoMapper;@Overridepublic boolean registerMember(Member member, MemberInfo memberInfo) {boolean resRegister = false;try {if(memberMapper.insert(member) != 1){throw new RuntimeException("注册用户:Member表数据插入不一致.");}if(memberInfoMapper.insert(memberInfo) != 1){throw new RuntimeException("注册用户:MemberInfo表数据插入不一致.");}resRegister = true;} catch (Exception e) {LOG.info("注册用户:数据库保存异常." + e.getMessage(), e);throw new RuntimeException("注册用户:数据库保存异常");}return resRegister;}}
package com.tx.test;import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;import com.tx.entity.Member;
import com.tx.entity.MemberInfo;
import com.tx.sevice.MemberService;@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath:spring-context.xml","classpath:datasource-context.xml","classpath:mybatis-context.xml","classpath:mapper-context.xml","classpath:transaction-context.xml"})
public class JTATest {//logprivate static final Logger LOG = LoggerFactory.getLogger(JTATest.class);@Autowiredprivate MemberService memberService;@Testpublic void testRegister(){Member member = new Member();member.setId(2);member.setUsername("童可可");member.setPassword("12345678");member.setStatus((byte)0);MemberInfo memberInfo = new MemberInfo();memberInfo.setId(2);memberInfo.setAge((byte)25);memberInfo.setNickname("keke");memberInfo.setRealname("童可可");if(memberService.registerMember(member, memberInfo)){LOG.info("##用户注册成功");}else{LOG.info("##用户注册失败");}}
}

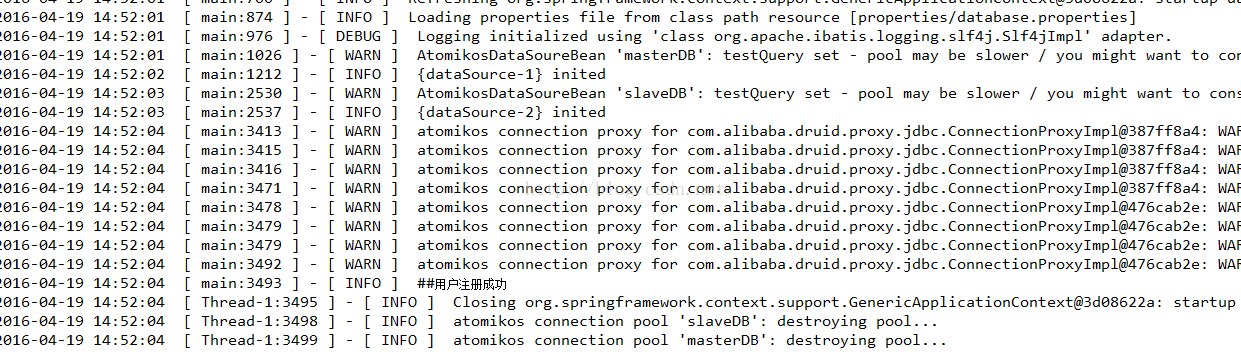

效果图：

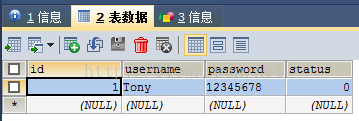

执行前，master数据库：

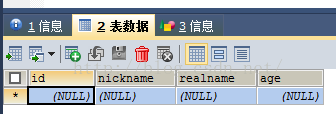

执行前，slave数据库：

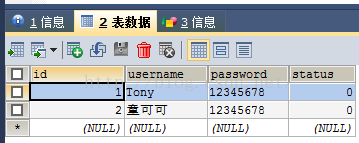

执行后，master数据库：

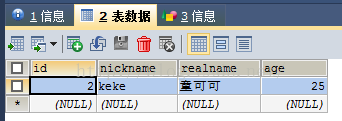

执行后，slave数据库：

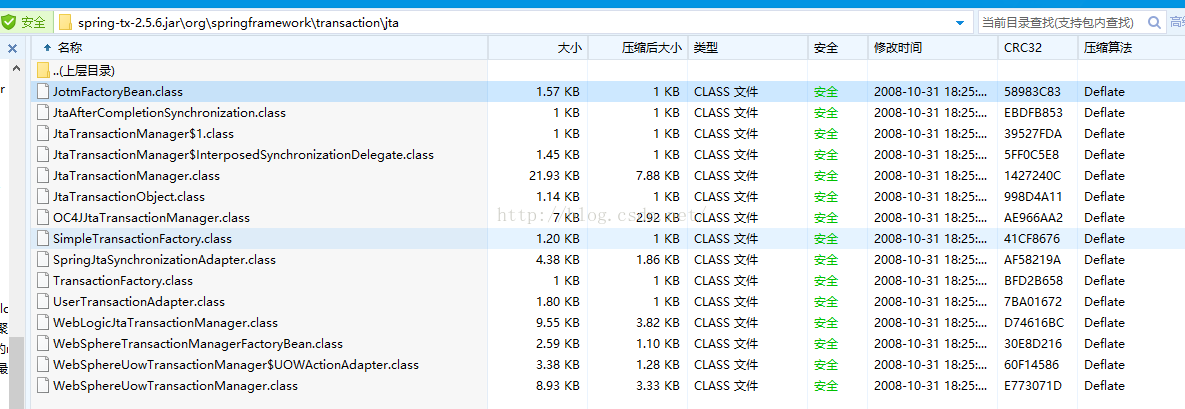

spring-tx-2.5.6.jar和spring-tx-3.0.0.RELEASE.jar目录：
jta.properties启动参数：
# SAMPLE PROPERTIES FILE FOR THE TRANSACTION SERVICE
# THIS FILE ILLUSTRATES THE DIFFERENT SETTINGS FOR THE TRANSACTION MANAGER
# UNCOMMENT THE ASSIGNMENTS TO OVERRIDE DEFAULT VALUES;# Required: factory implementation class of the transaction core.
# NOTE: there is no default for this, so it MUST be specified!
#
com.atomikos.icatch.service=com.atomikos.icatch.standalone.UserTransactionServiceFactory# Set base name of file where messages are output
# (also known as the 'console file').
#
com.atomikos.icatch.console_file_name = tm.out# Size limit (in bytes) for the console file;
# negative means unlimited.
#
# com.atomikos.icatch.console_file_limit=-1# For size-limited console files, this option
# specifies a number of rotating files to
# maintain.
#
# com.atomikos.icatch.console_file_count=1# Set the number of log writes between checkpoints
#
# com.atomikos.icatch.checkpoint_interval=500# Set output directory where console file and other files are to be put
# make sure this directory exists!
#
# com.atomikos.icatch.output_dir = ./# Set directory of log files; make sure this directory exists!
#
# com.atomikos.icatch.log_base_dir = ./# Set base name of log file
# this name will be used as the first part of
# the system-generated log file name
#
com.atomikos.icatch.log_base_name = tmlog# Set the max number of active local transactions
# or -1 for unlimited.
#
# com.atomikos.icatch.max_actives = 50# Set the default timeout (in milliseconds) for local transactions
#
# com.atomikos.icatch.default_jta_timeout = 10000# Set the max timeout (in milliseconds) for local transactions
#
# com.atomikos.icatch.max_timeout = 300000# The globally unique name of this transaction manager process
# override this value with a globally unique name
#
com.atomikos.icatch.tm_unique_name = tm# Do we want to use parallel subtransactions? JTA's default
# is NO for J2EE compatibility
#
# com.atomikos.icatch.serial_jta_transactions=true# If you want to do explicit resource registration then
# you need to set this value to false.
#
# com.atomikos.icatch.automatic_resource_registration=true # Set this to WARN, INFO or DEBUG to control the granularity
# of output to the console file.
#
com.atomikos.icatch.console_log_level=INFO# Do you want transaction logging to be enabled or not?
# If set to false, then no logging overhead will be done
# at the risk of losing data after restart or crash.
#
# com.atomikos.icatch.enable_logging=true# Should two-phase commit be done in (multi-)threaded mode or not?
# Set this to false if you want commits to be ordered according
# to the order in which resources are added to the transaction.
#
# NOTE: threads are reused on JDK 1.5 or higher.
# For JDK 1.4, thread reuse is enabled as soon as the
# concurrent backport is in the classpath - see
# http://mirrors.ibiblio.org/pub/mirrors/maven2/backport-util-concurrent/backport-util-concurrent/
#
# com.atomikos.icatch.threaded_2pc=false# Should shutdown of the VM trigger shutdown of the transaction core too?
#
# com.atomikos.icatch.force_shutdown_on_vm_exit=false分布式事务操作之Spring+JTA可参照: http://www.cnblogs.com/wangyong/p/4174326.html
Atomikos 中文说明文档：http://blog.csdn.net/sun8288/article/details/8674016
源代码：Spring多数据源分布式事务管理
