MQ - RabbitMQ - 4种Exchange类型

本文主要是介绍MQ - RabbitMQ - 4种Exchange类型，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

但在具体的使用中，我们还需知道exchange的类型，因为不同的类型对应不同的队列和路由规则。

在rabbitmq中，exchange有4个类型：direct，topic，fanout，header。

direct exchange

此类型的exchange路由规则很简单：

exchange在和queue进行binding时会设置routingkey

channel.QueueBind(queue: "create_pdf_queue",exchange: "pdf_events",routingKey: "pdf_create",arguments: null);

然后我们在将消息发送到exchange时会设置对应的routingkey：

channel.BasicPublish(exchange: "pdf_events",routingKey: "pdf_create",basicProperties: properties,body: body);

在direct类型的exchange中，只有这两个routingkey完全相同，exchange才会选择对应的binging进行消息路由。

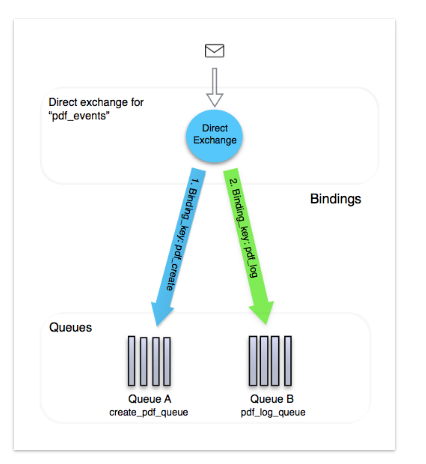

具体的流程如下：

通过代码可以会理解好一点：

var factory = new ConnectionFactory() { HostName = "localhost" };
using (var connection = factory.CreateConnection())
using (var channel = connection.CreateModel())
{// Direct类型的exchange, 名称 pdf_eventschannel.ExchangeDeclare(exchange: "pdf_events",type: ExchangeType.Direct,durable: true,autoDelete: false,arguments: null);// 创建create_pdf_queue队列channel.QueueDeclare(queue: "create_pdf_queue",durable: true,exclusive: false,autoDelete: false,arguments: null);//创建 pdf_log_queue队列channel.QueueDeclare(queue: "pdf_log_queue",durable: true,exclusive: false,autoDelete: false,arguments: null);//绑定 pdf_events --> create_pdf_queue 使用routingkey:pdf_createchannel.QueueBind(queue: "create_pdf_queue",exchange: "pdf_events",routingKey: "pdf_create",arguments: null);//绑定 pdf_events --> pdf_log_queue 使用routingkey:pdf_logchannel.QueueBind(queue: "pdf_log_queue",exchange: "pdf_events",routingKey: "pdf_log",arguments: null);var message = "Demo some pdf creating...";var body = Encoding.UTF8.GetBytes(message);var properties = channel.CreateBasicProperties();properties.Persistent = true;//发送消息到exchange :pdf_events ,使用routingkey: pdf_create//通过binding routinekey的比较，次消息会路由到队列 create_pdf_queuechannel.BasicPublish(exchange: "pdf_events",routingKey: "pdf_create",basicProperties: properties,body: body);message = "pdf loging ...";body = Encoding.UTF8.GetBytes(message);properties = channel.CreateBasicProperties();properties.Persistent = true;//发送消息到exchange :pdf_events ,使用routingkey: pdf_log//通过binding routinekey的比较，次消息会路由到队列 pdf_log_queuechannel.BasicPublish(exchange: "pdf_events",routingKey: "pdf_log",basicProperties: properties,body: body);}

topic exchange

此类型exchange和上面的direct类型差不多，但direct类型要求routingkey完全相等，这里的routingkey可以有通配符：'*','#'.

其中'*'表示匹配一个单词， '#'则表示匹配没有或者多个单词

如上图第一个binding：

exchange: agreements
queue A: berlin_agreements
binding routingkey: agreements.eu.berlin.#

第二个binding:

exchange: agreements
queue B: all_agreements
binding routingkey: agreements.#

第三个binding：

exchange: agreements
queue c: headstore_agreements
binding routingkey: agreements.eu.*.headstore

所以如果我们消息的routingkey为agreements.eu.berlin那么符合第一和第二个binding，但最后一个不符合，具体的代码如下：

var factory = new ConnectionFactory() { HostName = "localhost" };
using (var connection = factory.CreateConnection())
using (var channel = connection.CreateModel())
{// Topic类型的exchange, 名称 agreementschannel.ExchangeDeclare(exchange: "agreements",type: ExchangeType.Topic,durable: true,autoDelete: false,arguments: null);// 创建berlin_agreements队列channel.QueueDeclare(queue: "berlin_agreements",durable: true,exclusive: false,autoDelete: false,arguments: null);//创建 all_agreements 队列channel.QueueDeclare(queue: "all_agreements",durable: true,exclusive: false,autoDelete: false,arguments: null);//创建 headstore_agreements 队列channel.QueueDeclare(queue: "headstore_agreements",durable: true,exclusive: false,autoDelete: false,arguments: null);//绑定 agreements --> berlin_agreements 使用routingkey:agreements.eu.berlin.#channel.QueueBind(queue: "berlin_agreements",exchange: "agreements",routingKey: "agreements.eu.berlin.#",arguments: null);//绑定 agreements --> all_agreements 使用routingkey:agreements.#channel.QueueBind(queue: "all_agreements",exchange: "agreements",routingKey: "agreements.#",arguments: null);//绑定 agreements --> headstore_agreements 使用routingkey:agreements.eu.*.headstorechannel.QueueBind(queue: "headstore_agreements",exchange: "agreements",routingKey: "agreements.eu.*.headstore",arguments: null);var message = "hello world";var body = Encoding.UTF8.GetBytes(message);var properties = channel.CreateBasicProperties();properties.Persistent = true;//发送消息到exchange :agreements ,使用routingkey: agreements.eu.berlin//agreements.eu.berlin 匹配  agreements.eu.berlin.# 和agreements.#//agreements.eu.berlin 不匹配  agreements.eu.*.headstore//最终次消息会路由到队里：berlin_agreements（agreements.eu.berlin.#） 和 all_agreements（agreements.#）channel.BasicPublish(exchange: "agreements",routingKey: "agreements.eu.berlin",basicProperties: properties,body: body);}

fanout exchange

此exchange的路由规则很简单直接将消息路由到所有绑定的队列中，无须对消息的routingkey进行匹配操作。

header exchange

此类型的exchange和以上三个都不一样，其路由的规则是根据header来判断，其中的header就是以下方法的arguments参数：

Dictionary<string, object> aHeader = new Dictionary<string, object>();
aHeader.Add("format", "pdf");
aHeader.Add("type", "report");
aHeader.Add("x-match", "all");
channel.QueueBind(queue: "queue.A",exchange: "agreements",routingKey: string.Empty,arguments: aHeader);

其中的x-match为特殊的header，可以为all则表示要匹配所有的header，如果为any则表示只要匹配其中的一个header即可。

在发布消息的时候就需要传入header值：

var properties = channel.CreateBasicProperties();
properties.Persistent = true;
Dictionary<string, object> mHeader1 = new Dictionary<string, object>();
mHeader1.Add("format", "pdf");
mHeader1.Add("type", "report");
properties.Headers = mHeader1;

具体的规则可以看以下代码：

var factory = new ConnectionFactory() { HostName = "localhost" };
using (var connection = factory.CreateConnection())
using (var channel = connection.CreateModel())
{// Headers类型的exchange, 名称 agreementschannel.ExchangeDeclare(exchange: "agreements",type: ExchangeType.Headers,durable: true,autoDelete: false,arguments: null);// 创建queue.A队列channel.QueueDeclare(queue: "queue.A", durable: true, exclusive: false, autoDelete: false, arguments: null);//创建 queue.B 队列channel.QueueDeclare(queue: "queue.B", durable: true, exclusive: false, autoDelete: false, arguments: null);//创建 queue.C 队列channel.QueueDeclare(queue: "queue.C", durable: true, exclusive: false, autoDelete: false, arguments: null);//绑定 agreements --> queue.A 使用arguments (format=pdf, type=report, x-match=all)Dictionary<string, object> aHeader = new Dictionary<string, object>();aHeader.Add("format", "pdf");aHeader.Add("type", "report");aHeader.Add("x-match", "all");channel.QueueBind(queue: "queue.A",exchange: "agreements",routingKey: string.Empty,arguments: aHeader);//绑定 agreements --> queue.B 使用arguments (format=pdf, type=log, x-match=any)Dictionary<string, object> bHeader = new Dictionary<string, object>();bHeader.Add("format", "pdf");bHeader.Add("type", "log");bHeader.Add("x-match", "any");channel.QueueBind(queue: "queue.B",exchange: "agreements",routingKey: string.Empty,arguments: bHeader);//绑定 agreements --> queue.C 使用arguments (format=zip, type=report, x-match=all)Dictionary<string, object> cHeader = new Dictionary<string, object>();cHeader.Add("format", "zip");cHeader.Add("type", "report");cHeader.Add("x-match", "all");channel.QueueBind(queue: "queue.C",exchange: "agreements",routingKey: string.Empty,arguments: cHeader);string message1 = "hello world";var body = Encoding.UTF8.GetBytes(message1);var properties = channel.CreateBasicProperties();properties.Persistent = true;Dictionary<string, object> mHeader1 = new Dictionary<string, object>();mHeader1.Add("format", "pdf");mHeader1.Add("type", "report");properties.Headers = mHeader1;//此消息路由到 queue.A 和 queue.B//queue.A 的binding (format=pdf, type=report, x-match=all)//queue.B 的binding (format = pdf, type = log, x - match = any)channel.BasicPublish(exchange: "agreements",routingKey: string.Empty,basicProperties: properties,body: body);string message2 = "hello world";body = Encoding.UTF8.GetBytes(message2);properties = channel.CreateBasicProperties();properties.Persistent = true;Dictionary<string, object> mHeader2 = new Dictionary<string, object>();mHeader2.Add("type", "log");properties.Headers = mHeader2;//x-match 配置queue.B //queue.B 的binding (format = pdf, type = log, x-match = any)channel.BasicPublish(exchange: "agreements",routingKey: string.Empty,basicProperties: properties,body: body);string message3= "hello world";body = Encoding.UTF8.GetBytes(message3);properties = channel.CreateBasicProperties();properties.Persistent = true;Dictionary<string, object> mHeader3 = new Dictionary<string, object>();mHeader3.Add("format", "zip");properties.Headers = mHeader3;//配置失败，不会被路由channel.BasicPublish(exchange: "agreements",routingKey: string.Empty,basicProperties: properties,body: body);}
