前言

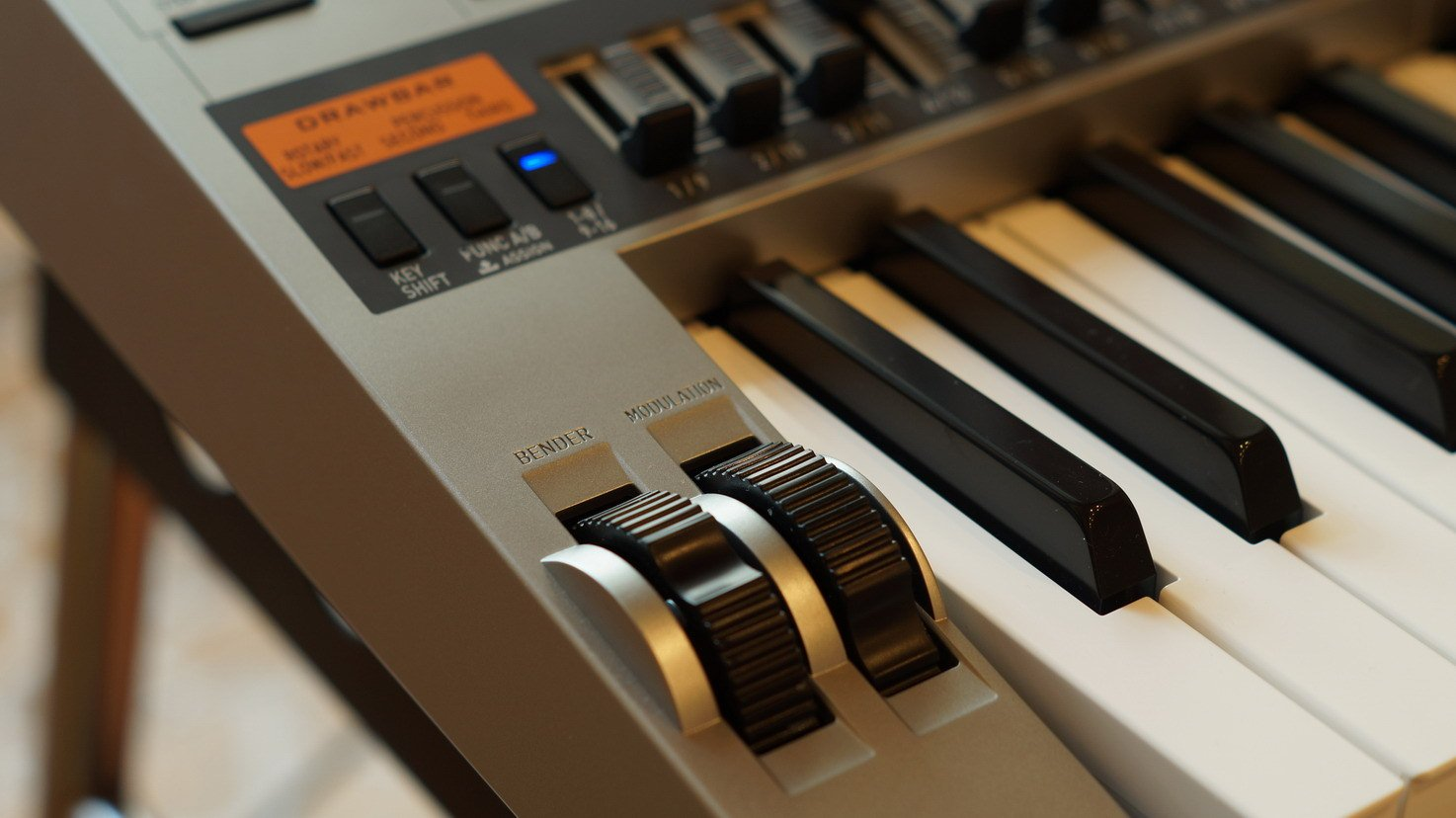

弯音轮,是在MIDI键盘或专业电子琴一旁安装的一个装置(如下图)。
通过前后拨动滚轮,可以实现弯音和颤音的效果。这对于追求特殊电音效果的作曲者来说是必不可少的,而这两个技巧也是吉他等乐器演奏时十分常用的技巧,故在编程中学会更加自然和协调的模拟弯音和颤音效果,是模拟吉他等乐器时必不可少的。
再谈Message
我们第一篇文章已经简单讲过Message类是MIDI编曲中最为重要的概念,地位和作用相当于人体的细胞。
再次参考 Mido官方文档中的Message Type章节 ,我们可以看到在所有的Message种类中有pitchwheel,它便是用于模拟弯音轮效果的一种消息类别,也是实现滑音和颤音的关键。
Pitchwheel类Message的基本格式如下:
Message('pitchwheel', pitch, time, channel)
其中time和channel的意义同之前相同,而pitch参数是一个区间为-8192到8192的整数,用于表示音高“弯曲”的程度,取正数时趋向于高音,取负数时趋向于低音。pitch取3000的时候效果是“弯曲”一个半音。
若要实现完整的滑音过程,我们还需要Aftertouch这个类型的Message类型,其基本格式如下:
Message('aftertouch', time, channel, ...)
这种Message是用于在音符按下且未结束的时候改变某些属性,比如音量和频道等,在此我们仅仅用它来维持我们的音高。
编程实现
我们的目标是通过Pitchwheel这一种Message类型实现两种效果——滑音和颤音,故我们对这两种效果分别编码,将相关的代码添加到改名后的 实践(一)的play_note函数——add_note函数中:
def add_note(note, length, track, base_num=0, delay=0, velocity=1.0, channel=0, pitch_type=0, tremble_setting=None, bend_setting=None):bpm = get_bpm(track)meta_time = 60 * 60 * 10 / bpmmajor_notes = [0, 2, 2, 1, 2, 2, 2, 1]base_note = 60if pitch_type == 0: # No Pitch Wheel Messagetrack.append(Message('note_on', note=base_note + base_num*12 + sum(major_notes[0:note]), velocity=round(64*velocity), time=round(delay*meta_time), channel=channel))track.append(Message('note_off', note=base_note + base_num*12 + sum(major_notes[0:note]), velocity=round(64*velocity), time=round(meta_time*length), channel=channel))elif pitch_type == 1: # Trembletry:pitch = tremble_setting['pitch']wheel_times = tremble_setting['wheel_times']track.append(Message('note_on', note=base_note + base_num * 12 + sum(major_notes[0:note]),velocity=round(64 * velocity),time=round(delay * meta_time), channel=channel))for i in range(wheel_times):track.append(Message('pitchwheel', pitch=pitch, time=round(meta_time * length / (2 * wheel_times)),channel=channel))track.append(Message('pitchwheel', pitch=0, time=0, channel=channel))track.append(Message('pitchwheel', pitch=-pitch, time=round(meta_time * length / (2 * wheel_times)),channel=channel))track.append(Message('pitchwheel', pitch=0, time=0, channel=channel))track.append(Message('note_off', note=base_note + base_num * 12 + sum(major_notes[0:note]),velocity=round(64 * velocity), time=0, channel=channel))except:print(traceback.format_exc())elif pitch_type == 2: # Bendtry:pitch = bend_setting['pitch']PASDA = bend_setting['PASDA'] # Prepare-Attack-Sustain-Decay-Aftermath (Taken the notion of ADSR)prepare_rate = PASDA[0] / sum(PASDA)attack_rate = PASDA[1] / sum(PASDA)sustain_rate = PASDA[2] / sum(PASDA)decay_rate = PASDA[3] / sum(PASDA)aftermath_rate = PASDA[4] / sum(PASDA)track.append(Message('note_on', note=base_note + base_num * 12 + sum(major_notes[0:note]),velocity=round(64 * velocity), time=round(delay * meta_time), channel=channel))track.append(Message('aftertouch', time=round(meta_time * length * prepare_rate), channel=channel))track.append(Message('pitchwheel', pitch=pitch, time=round(meta_time * length * attack_rate), channel=channel))track.append(Message('aftertouch', time=round(meta_time * length * sustain_rate), channel=channel))track.append(Message('pitchwheel', pitch=0, time=round(meta_time * length * decay_rate), channel=channel))track.append(Message('note_off', note=base_note + base_num * 12 + sum(major_notes[0:note]),velocity=round(64 * velocity), time=round(meta_time * length * aftermath_rate), channel=channel))except:print(traceback.format_exc())
根据pitch_type的值,我们将函数分为三部分:
- pitch_type为0,代表没有附加效果,同之前的play_note效果一样。
- pitch_type为1,代表添加颤音效果,即吉他中的揉弦。产生这一效果的两个参数pitch和wheel_time通过tremble_setting传入,分别表示颤音的幅度和颤音的次数。根据我的实践来看,一个全音符跟随3至4次颤音是比较自然的;而pitch的赋值也应适中,在1000左右比较合适,太小则看不出效果,太大则会跳动到另一个音符,很不自然。
- pitch_type为2,代表滑音效果,即吉他中的推弦。由于这一效果的变化十分多样,故我参考电子合成音乐中的 ADSR(Attack Decay Sustain Release) 属性,自己设计了一个 PASDA(Prepare - Attack - Sustain - Decay - Aftermath) 属性,即 初始音 - 向目标音行进过程中 - 滑到目标音后保持 - 向初始音行进过程中 - 初始音,这样就可以比较好地表示滑音的属性了,可以参考下图来进行理解:
根据PASDA不同阶段所占比例的大小,我们就能很好地构建出心怡的滑音效果。
之后我们就可以对原始的音乐进行改进:
def verse(track):add_note(1, 0.5, track) # 小add_note(1, 0.5, track, pitch_type=2, bend_setting={'pitch': 6000, 'PASDA': [0.1, 0.3, 2, 0.3, 0]}) # 时add_note(1, 1.5, track, pitch_type=1, tremble_setting={'pitch': 800, 'wheel_times': 10}) # 候add_note(7, 0.25, track, -1) # 妈add_note(6, 0.25, track, -1) # 妈add_note(5, 0.5, track, -1, channel=1) # 对add_note(2, 0.5, track, channel=1, pitch_type=2, bend_setting={'pitch': 6000, 'PASDA': [0.1, 0.8, 2, 0, 0]}) # 我add_note(3, 2, track, channel=1, pitch_type=1, tremble_setting={'pitch': 640, 'wheel_times': 8}) # 讲add_note(3, 0.5, track) # 大add_note(3, 0.5, track, pitch_type=2, bend_setting={'pitch': 3000, 'PASDA': [0.1, 0.8, 2, 0.3, 0]})add_note(3, 1.5, track, pitch_type=1, tremble_setting={'pitch': 400, 'wheel_times': 6}) # 海add_note(2, 0.25, track) # 就add_note(1, 0.25, track) # 是add_note(6, 0.5, track, -1, channel=1) # 我add_note(1, 0.5, track, channel=1, pitch_type=2, bend_setting={'pitch': 6000, 'PASDA': [0.2, 0.8, 2, 0, 0]}) # 故add_note(2, 2, track, channel=1, pitch_type=1, tremble_setting={'pitch': 600, 'wheel_times': 8}) # 乡add_note(7, 0.5, track, -1) # 海add_note(1, 0.5, track)add_note(7, 1.5, track, -1, tremble_setting={'pitch': 500, 'wheel_times': 6}) # 边add_note(6, 0.25, track, -1)add_note(5, 0.25, track, -1)add_note(5, 0.5, track, -1, channel=1) # 出add_note(1, 0.5, track, channel=1, pitch_type=2, bend_setting={'pitch': 6000, 'PASDA': [0.2, 1.5, 3, 0, 0]})add_note(2, 2, track, channel=1, pitch_type=1, tremble_setting={'pitch': 400, 'wheel_times': 8}) # 生add_note(3, 1.5, track, pitch_type=2, bend_setting={'pitch': 3000, 'PASDA': [0, 0.3, 3, 0, 0]}) # 海add_note(3, 0.5, track) # 里add_note(1, 0.5, track, channel=1) # 成add_note(6, 0.5, track, -1, channel=1)add_note(1, 3, track, channel=1, pitch_type=1, tremble_setting={'pitch': 800, 'wheel_times': 10}) # 长
完整代码见 Github
参考资料
- MIDI Tutorial
- ADSR - Wikipedia
