SharePoint 2013 显示用户Lync是否在线（集成Lync）

2024-04-22 09:32
文章标签 显示 是否 用户 集成 在线 sharepoint 2013 lync

本文主要是介绍SharePoint 2013 显示用户Lync是否在线（集成Lync），希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

本文讲述如何在SharePoint 2013 中显示用户Lync的状态（是否在线等）。

一共五种显示模式：

显示模式Lync的状态用户名用户照片
DefaultRenderYesYesNo
WithPictureYesYesYes
WithPictureDetailsYesYesYes
PictureOnlyYesNoYes
PresenceOnlyYesNoNo

代码实现方式如下(注意替换邮件地址和userpictureUrl，按邮件地址确定用户)：

1. DefaultRender 模式

[html] view plain copy print ?
  1. <span>
  2. <spanclass='ms-imnSpan'>
  3.   <ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink ms-spimn-presenceLink'>
  4.    <spanclass='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'>
  5.     <imgname='imnmark'title=''ShowOfflinePawn='1'class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32'src=    '/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_1,ty    pe=sip'/>
  6.    </span>
  7.   </a>
  8. </span>
  9. <span>
  10. <a href='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'>
  11. <imgname='imnmark'title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='Us  er Presence'sip='test@hotmail.com'id='imn_2,type=sip'/></a>Raghavendra Shanbhag
  12. </span>
  13. </span>
<span><span class='ms-imnSpan'><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink ms-spimn-presenceLink' ><span class='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><img name='imnmark' title='' ShowOfflinePawn='1' class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32' src=    '/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_1,ty    pe=sip' /></span></a></span>
<span><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'>
<img name='imnmark' title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='Us  er Presence' sip='test@hotmail.com' id='imn_2,type=sip' /></a>Raghavendra Shanbhag
</span>
</span>

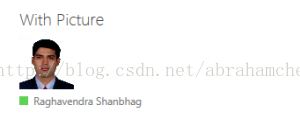

2. WithPicture 模式

[html] view plain copy print ?
  1. <div>
  2. <div>
  3.     <span>
  4.        <ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'><imgname='imnmark'       title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence' s      ip='test@hotmail.com'id='imn_1,type=sip'/></a>
  5.    <span>
  6.    <imgstyle="width:62px; height:62px; border:none"src="yourpictureUrl"alt=" Ram"/>
  7.    </span>
  8.   </span></span>
  9. </div>
  10. <divclass="ms-floatLeft ms-descriptiontext"><spanclass="ms-verticalAlignTop ms-noWrap ms-displayInlineBlock">
  11.     <spanclass='ms-imnSpan'><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink ms-spimn-presenceLink'><spanclass='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><imgname='imnmark'title=''ShowOfflinePawn='1'class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_2,type=sip'/></span></a></span><spanclass="ms-noWrap ms-imnSpan"><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'><imgname='imnmark'title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_3,type=sip'/></a>Ram</span>
  12. </span>
  13. </div>
  14. </div>
<div>
<div><span><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'><img name='imnmark'        title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' s       ip='test@hotmail.com' id='imn_1,type=sip' /></a><span><img style="width:62px; height:62px; border:none" src="yourpictureUrl" alt=" Ram" /></span></span></span>
</div>
<div class="ms-floatLeft ms-descriptiontext"><span class="ms-verticalAlignTop ms-noWrap ms-displayInlineBlock"><span class='ms-imnSpan'><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink ms-spimn-presenceLink' ><span class='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><img name='imnmark' title='' ShowOfflinePawn='1' class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_2,type=sip' /></span></a></span><span class="ms-noWrap ms-imnSpan"><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'><img name='imnmark' title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_3,type=sip' /></a>Ram</span>
</span>
</div>
</div>

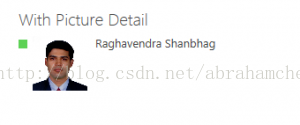

3. WithPictureDetails 模式

[html] view plain copy print ?
  1. <div>
  2. <divclass="ms-tableRow">
  3. <div>
  4.   <spanclass='ms-imnSpan'>
  5.   <ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink ms-spimn-presenceLink'>
  6.    <spanclass='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><imgname='imnmark'title='' ShowOfflinePaw  n='1'class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32'src='/_layouts/15/images/spimn.png?rev=23'alt='   User Presence'sip='test@hotmail.com'id='imn_661,type=sip'/></span>
  7.   </a>
  8.   </span></span>
  9. </div>
  10. <divclass="ms-tableCell ms-verticalAlignTop">
  11. <divclass="ms-peopleux-userImgDiv"><spanclass="ms-imnSpan"><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'><imgname='imnmark'title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_3452,type=sip'/></a><span><imgstyle="width:62px; height:62px; border:none"src="userpictureUrl"alt=" Ram"/></span></span></span></div></div><divclass="ms-tableCell ms-peopleux-userdetails ms-noList"><ulstyle="max-width:150px"><li><divclass="ms-noWrap"><span><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'><imgname='imnmark'title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_34523,type=sip'/></a>Raghavendra Shanbhag</span></div></li></ul></div>
  12. </div>
  13. </div>
<div>
<div class="ms-tableRow"><div><span class='ms-imnSpan'><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink ms-spimn-presenceLink' ><span class='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><img name='imnmark' title='' ShowOfflinePaw   n='1' class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32' src='/_layouts/15/images/spimn.png?rev=23' alt='   User Presence' sip='test@hotmail.com' id='imn_661,type=sip' /></span></a></span></span>
</div>
<div class="ms-tableCell ms-verticalAlignTop">
<div class="ms-peopleux-userImgDiv"><span class="ms-imnSpan"><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'><img name='imnmark' title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_3452,type=sip' /></a><span><img style="width:62px; height:62px; border:none" src="userpictureUrl" alt=" Ram" /></span></span></span></div></div><div class="ms-tableCell ms-peopleux-userdetails ms-noList"><ul style="max-width:150px"><li><div class="ms-noWrap"><span><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'><img name='imnmark' title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_34523,type=sip' /></a>Raghavendra Shanbhag</span></div></li></ul></div>
</div>
</div>

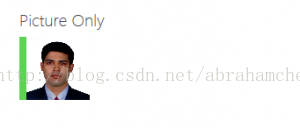

4. PictureOnly 模式

[html] view plain copy print ?
  1. <div>
  2. <div>
  3. <divclass="ms-tableCell">
  4.   <spanclass='ms-imnSpan'><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink ms-spimn-prese  nceLink'><spanclass='ms-spimn-presenceWrapper ms-spimn-imgSize-8x72'><imgname='imnmark'title=''ShowOfflinePawn=  '1'class='ms-spimn-img ms-spimn-presence-disconnected-8x72x32'src='/_layouts/15/images/spimn.png?rev=23'alt='User   Presence'sip='test@hotmail.com'id='imn_1,type=sip'/></span></a></span></span></div>
  5. <divclass="ms-tableCell ms-verticalAlignTop">
  6. <divclass="ms-peopleux-userImgDiv"><spanclass="ms-imnSpan"><ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink'tabIndex='-1'><imgname='imnmark'title=''ShowOfflinePawn='1'class=' ms-hide'src='/_layouts/15/images/spimn.png?rev=23'alt='User Presence'sip='test@hotmail.com'id='imn_2,type=sip'/></a><spanclass="ms-peopleux-imgUserLink"><spanclass="ms-peopleux-userImgWrapper"style="width:72px; height:72px"><imgstyle="min-width:72px; min-height:72px; clip:rect(0px, 72px, 72px, 0px); max-width:72px"src="userpictureurl"alt=" Ram"/></span></span></span></div>
  7. </div>
  8. </div>
  9. </div>
<div>
<div>
<div class="ms-tableCell"><span class='ms-imnSpan'><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink ms-spimn-prese  nceLink' ><span class='ms-spimn-presenceWrapper ms-spimn-imgSize-8x72'><img name='imnmark' title='' ShowOfflinePawn=  '1' class='ms-spimn-img ms-spimn-presence-disconnected-8x72x32' src='/_layouts/15/images/spimn.png?rev=23' alt='User   Presence' sip='test@hotmail.com' id='imn_1,type=sip' /></span></a></span></span></div>
<div class="ms-tableCell ms-verticalAlignTop">
<div class="ms-peopleux-userImgDiv"><span class="ms-imnSpan"><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink' tabIndex='-1'><img name='imnmark' title='' ShowOfflinePawn='1' class=' ms-hide' src='/_layouts/15/images/spimn.png?rev=23' alt='User Presence' sip='test@hotmail.com' id='imn_2,type=sip' /></a><span class="ms-peopleux-imgUserLink"><span class="ms-peopleux-userImgWrapper" style="width:72px; height:72px"><img style="min-width:72px; min-height:72px; clip:rect(0px, 72px, 72px, 0px); max-width:72px" src="userpictureurl" alt=" Ram" /></span></span></span></div>
</div>
</div>
</div>

5. PresenceOnly 模式:

[html] view plain copy print ?
  1. <spanclass='ms-imnSpan'>
  2.    <ahref='#'onclick='IMNImageOnClick(event);return false;'class='ms-imnlink ms-spimn-presenceLink'>
  3.     <spanclass='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><imgname='imnmark'title='' ShowOfflinePa   wn='1'class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32'src='/_layouts/15/images/spimn.png?rev=23'alt    ='User Presence'sip='test@hotmail.com'id='imn_1,type=sip'/>
  4.    </span>
  5.   </a>
  6. </span>
<span class='ms-imnSpan'><a href='#' οnclick='IMNImageOnClick(event);return false;' class='ms-imnlink ms-spimn-presenceLink' ><span class='ms-spimn-presenceWrapper ms-imnImg ms-spimn-imgSize-10x10'><img name='imnmark' title='' ShowOfflinePa    wn='1' class='ms-spimn-img ms-spimn-presence-disconnected-10x10x32' src='/_layouts/15/images/spimn.png?rev=23' alt    ='User Presence' sip='test@hotmail.com' id='imn_1,type=sip' /></span></a>
</span>

原文来自：http://blog.csdn.net/abrahamcheng/article/details/9990355

http://www.sharepointcolumn.com/lync-presence-indicators-code-snippets-in-sharepoint-2013/

http://www.sharepointcolumn.com/lync-presence-indicators-in-sharepoint-2013/

这篇关于SharePoint 2013 显示用户Lync是否在线（集成Lync）的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！


http://www.chinasem.cn/article/925413。
