Android Binder框架实现之Native层getService详解之请求的处理

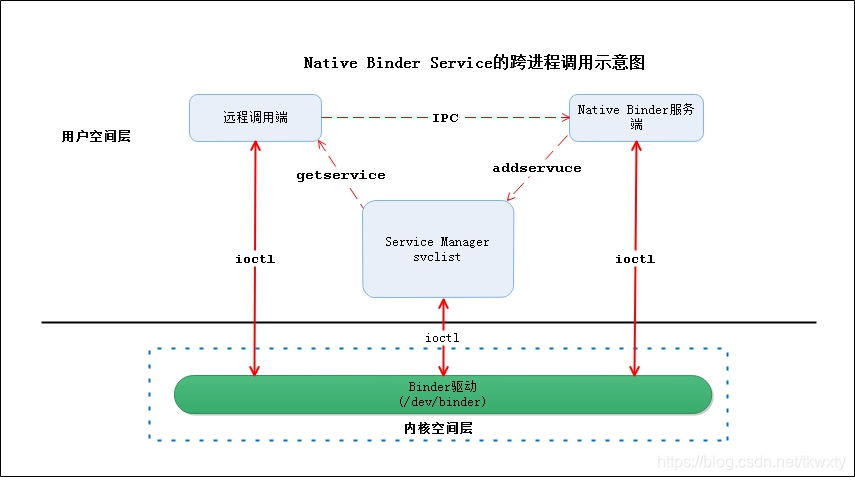

2 返回binder_loop()

void binder_loop(struct binder_state *bs, binder_handler func)
{...for (;;) {bwr.read_size = sizeof(readbuf);bwr.read_consumed = 0;bwr.read_buffer = (uintptr_t) readbuf;//向Kernel中发送消息(先写后读)//先将消息传递给Kernel，然后再从Kernel读取消息反馈res = ioctl(bs->fd, BINDER_WRITE_READ, &bwr);...//接续读取的消息反馈res = binder_parse(bs, 0, (uintptr_t) readbuf, bwr.read_consumed, func);...}
}

代码在frameworks/native/cmds/servicemanager/binder.c中,此时ServiceManager从Binder驱动层返回应用层，Binder驱动共反馈了BR_NOOP和BR_TRANSACTION两个指令给Service Manager守护进程。BR_NOOP什么实质性的工作也不会做，在下面的binder_parse()我们直接分析BR_TRANSACTION的处理情况。

3 binder_parse()

int binder_parse(struct binder_state *bs, struct binder_io *bio,uintptr_t ptr, size_t size, binder_handler func)
{int r = 1;uintptr_t end = ptr + (uintptr_t) size;while (ptr < end) {uint32_t cmd = *(uint32_t *) ptr;ptr += sizeof(uint32_t);switch(cmd) {case BR_NOOP:break;...case BR_TRANSACTION: {struct binder_transaction_data *txn = (struct binder_transaction_data *) ptr;if ((end - ptr) < sizeof(*txn)) {ALOGE("parse: txn too small!\n");return -1;}binder_dump_txn(txn);if (func) {unsigned rdata[256/4];struct binder_io msg;//用户保存"Binder驱动反馈的信息"struct binder_io reply;//用来保存"回复给Binder驱动的信息"int res;//初始化replaybio_init(&reply, rdata, sizeof(rdata), 4);//根据txn(Binder驱动反馈的信息)初始化msgbio_init_from_txn(&msg, txn);//消息处理，此处是一个函数指针调用，最后跳转到svcmgr_handlerres = func(bs, txn, &msg, &reply);if (txn->flags & TF_ONE_WAY) {binder_free_buffer(bs, txn->data.ptr.buffer);} else {//反馈消息给Binder驱动binder_send_reply(bs, &reply, txn->data.ptr.buffer, res);}}ptr += sizeof(*txn);break;}...}}return r;
}

这里只关注BR_TRANSACTION分支。 首先，用bio_init()初始化reply。然后通过bio_init_from_txn()初始化msg。接着，是通过func函数指针对数据进行处理，func指向svcmgr_handler。处理完毕，再通过binder_send_reply()填写反馈信息给Binder驱动。
这里的大部分内容在Android Binder机制(七) addService详解之请求的处理中都介绍过，这里重点关注svcmgr_handler()处理getService请求的流程。

4 svcmgr_handler

int svcmgr_handler(struct binder_state *bs,struct binder_transaction_data *txn,struct binder_io *msg,struct binder_io *reply)
{...//数据有效性检测(数据头)if ((len != (sizeof(svcmgr_id) / 2)) ||memcmp(svcmgr_id, s, sizeof(svcmgr_id))) {...}...switch(txn->code) {case SVC_MGR_GET_SERVICE:case SVC_MGR_CHECK_SERVICE:s = bio_get_string16(msg, &len);if (s == NULL) {return -1;}handle = do_find_service(s, len, txn->sender_euid, txn->sender_pid);if (!handle)break;bio_put_ref(reply, handle);//参见章节6return 0;...}bio_put_uint32(reply, 0);return 0;
}

该代码在frameworks/native/cmds/servicemanager/service_manager.c中。svcmgr_handler()首先读取出getService请求的消息头，进行有效性检测。然后，取出请求的编码；这里请求编码对应是SVC_MGR_CHECK_SERVICE。接着，便进入对应的switch分支。
(1) 通过bio_get_string16()获取请求的IBinder对象的名称，即s=“media.player”。
(2) 然后，通过do_find_service()查找名称为s的IBinder对象。
让我们接着继续分析do_find_service

5 do_find_service

struct svcinfo *find_svc(const uint16_t *s16, size_t len)
{struct svcinfo *si;for (si = svclist; si; si = si->next) {if ((len == si->len) &&!memcmp(s16, si->name, len * sizeof(uint16_t))) {return si;}}return NULL;
}uint32_t do_find_service(const uint16_t *s, size_t len, uid_t uid, pid_t spid)
{struct svcinfo *si = find_svc(s, len);if (!si || !si->handle) {return 0;}if (!si->allow_isolated) {// If this service doesn't allow access from isolated processes,// then check the uid to see if it is isolated.uid_t appid = uid % AID_USER;if (appid >= AID_ISOLATED_START && appid <= AID_ISOLATED_END) {return 0;}}if (!svc_can_find(s, len, spid, uid)) {return 0;}return si->handle;
}

分步解读一下该源码：
(1) do_find_service()会调用find_svc()进行查找。在find_svc()中，会在svclist链表中查找是否有名称等于"media.player"的svcinfo对象。很显然，在Android Binder机制(六) addService详解02之 请求的处理中，已经将MediaPlayerService注册到svclist中，而MediaPlayerService的名称就是"media.player"。
(2) find_svc()找到svcinfo对象后返回到do_find_service()中。此时，if (si && si->ptr)为true，返回si->ptr。这里的si->ptr就是MediaPlayerService在Binder驱动中的Binder引用的描述。根据该引用描述，就能找到对应的MediaPlayerService对象。

随后，在成功获取Binder引用的描述之后，svcmgr_handler()会调用bio_put_ref()将该引用信息写入到binder_object中。

6 bio_put_ref()

继续章节4 svcmgr_handler的bio_put_ref()，看看它又做了什么：

void bio_put_ref(struct binder_io *bio, uint32_t handle)
{struct flat_binder_object *obj;//此时显然handle不为0if (handle)obj = bio_alloc_obj(bio);elseobj = bio_alloc(bio, sizeof(*obj));if (!obj)return;obj->flags = 0x7f | FLAT_BINDER_FLAG_ACCEPTS_FDS;//类型obj->type = BINDER_TYPE_HANDLE;//地址obj->handle = handle;obj->cookie = 0;
}

bio_put_ref()会将获取到的Binder引用描述打包到结构体flat_binder_object 中，关于flat_binder_object 可以参见Android Binder机制(二) Binder中的数据结构，Binder驱动在收到个数据之后，就能对flat_binder_object进行解析处理。

在bio_put_ref()将数据打包到reply中之后，svcmgr_handle会调用binder_send_reply()将数据和指令整合到一起。

7 binder_send_reply()

void binder_send_reply(struct binder_state *bs,struct binder_io *reply,binder_uintptr_t buffer_to_free,int status)
{struct {uint32_t cmd_free;binder_uintptr_t buffer;uint32_t cmd_reply;struct binder_transaction_data txn;} __attribute__((packed)) data;data.cmd_free = BC_FREE_BUFFER;data.buffer = buffer_to_free;data.cmd_reply = BC_REPLY;data.txn.target.ptr = 0;data.txn.cookie = 0;data.txn.code = 0;if (status) {...} else {data.txn.flags = 0;data.txn.data_size = reply->data - reply->data0;data.txn.offsets_size = ((char*) reply->offs) - ((char*) reply->offs0);data.txn.data.ptr.buffer = (uintptr_t)reply->data0;data.txn.data.ptr.offsets = (uintptr_t)reply->offs0;}binder_write(bs, &data, sizeof(data));
}

binder_send_reply()在Android Binder机制(二) Binder中的数据结构已经介绍过。它共打包了两个指令：BC_FREE_BUFFER和BC_REPLY。在函数最后，它调用binder_write()和Binder驱动交互。

7.1 binder_write()

int binder_write(struct binder_state *bs, void *data, size_t len)
{struct binder_write_read bwr;int res;bwr.write_size = len;			//数据长度bwr.write_consumed = 0;bwr.write_buffer = (uintptr_t) data;	// 数据是BINDER_WRITE_READbwr.read_size = 0;bwr.read_consumed = 0;bwr.read_buffer = 0;res = ioctl(bs->fd, BINDER_WRITE_READ, &bwr);if (res < 0) {fprintf(stderr,"binder_write: ioctl failed (%s)\n",strerror(errno));}return res;
}

binder_write()会将数据封装到binder_write_read的变量bwr中；其中，bwr.read_size=0，而bwr.write_size>0。接着，便通过ioctl(,BINDER_WRITE_READ,)和Binder驱动交互，将数据反馈给Binder驱动。

再次回到Binder驱动的binder_ioctl()对应的BINDER_WRITE_READ分支中。此时，由于bwr.read_size=0，而bwr.write_size>0；因此，Binder驱动只调用binder_thread_write进行写操作，而不会进行读。

8 binder_send_reply()

   兜兜转转又回到了Binder驱动层，我想有了前面知识的铺垫大家应该对BInder里面一时用户层一时内核层，不会感到陌生了，下面让我们一起重返内核层分析，我们来了。

8.1 binder_thread_write()

static int binder_thread_write(struct binder_proc *proc,struct binder_thread *thread,binder_uintptr_t binder_buffer, size_t size,binder_size_t *consumed)
{uint32_t cmd;void __user *buffer = (void __user *)(uintptr_t)binder_buffer;void __user *ptr = buffer + *consumed;void __user *end = buffer + size;// 读取binder_write_read.write_buffer中的内容。// 每次读取32bit(即4个字节)while (ptr < end && thread->return_error == BR_OK) {if (get_user(cmd, (uint32_t __user *)ptr))return -EFAULT;ptr += sizeof(uint32_t);...switch (cmd) {case BC_FREE_BUFFER: {binder_uintptr_t data_ptr;struct binder_buffer *buffer;// 获取要释放的内存地址if (get_user(data_ptr, (binder_uintptr_t __user *)ptr))return -EFAULT;ptr += sizeof(binder_uintptr_t);// 根据用户空间地址，得到进程空间地址；// 再根据进程空间地址，在proc->allocated_buffers红黑树中进行查找该地址对应的binder_buffer对象。buffer = binder_buffer_lookup(proc, data_ptr);...// 释放内存trace_binder_transaction_buffer_release(buffer);binder_transaction_buffer_release(proc, buffer, NULL);binder_free_buf(proc, buffer);break;}case BC_TRANSACTION:case BC_REPLY: {struct binder_transaction_data tr;if (copy_from_user(&tr, ptr, sizeof(tr)))return -EFAULT;ptr += sizeof(tr);binder_transaction(proc, thread, &tr, cmd == BC_REPLY);break;break;}...}// 更新bwr.write_consumed的值*consumed = ptr - buffer;}return 0;
}

8.2 binder_transaction()

static void binder_transaction(struct binder_proc *proc,struct binder_thread *thread,struct binder_transaction_data *tr, int reply)
{struct binder_transaction *t;struct binder_work *tcomplete;binder_size_t *offp, *off_end;binder_size_t off_min;struct binder_proc *target_proc;struct binder_thread *target_thread = NULL;struct binder_node *target_node = NULL;struct list_head *target_list;wait_queue_head_t *target_wait;struct binder_transaction *in_reply_to = NULL;struct binder_transaction_log_entry *e;uint32_t return_error;...if (reply) {//事务栈in_reply_to = thread->transaction_stack;...//设置优先级binder_set_nice(in_reply_to->saved_priority);...thread->transaction_stack = in_reply_to->to_parent;//发起请求的线程，即MediaPlayer所在线程//from的值，是MediaPlayer发起请求时所在binder_transaction()中赋值的。target_thread = in_reply_to->from;...//MediaPlayer对应的进程target_proc = target_thread->proc;} else {...}if (target_thread) {e->to_thread = target_thread->pid;target_list = &target_thread->todo;target_wait = &target_thread->wait;} else {...}e->to_proc = target_proc->pid;// 分配一个待处理的事务t，t是binder事务(binder_transaction对象)t = kzalloc(sizeof(*t), GFP_KERNEL);if (t == NULL) {return_error = BR_FAILED_REPLY;goto err_alloc_t_failed;}// 分配一个待完成的工作tcomplete，tcomplete是binder_work对象。tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);if (tcomplete == NULL) {return_error = BR_FAILED_REPLY;goto err_alloc_tcomplete_failed;}binder_stats_created(BINDER_STAT_TRANSACTION_COMPLETE);t->debug_id = ++binder_last_id;e->debug_id = t->debug_id;if (!reply && !(tr->flags & TF_ONE_WAY))t->from = thread;elset->from = NULL;// 下面的一些赋值是初始化事务tt->sender_euid = proc->tsk->cred->euid;// 事务将交给target_proc进程进行处理t->to_proc = target_proc;// 事务将交给target_thread线程进行处理t->to_thread = target_thread;//事务编码t->code = tr->code;//事务标志t->flags = tr->flags;//事务优先级t->priority = task_nice(current);//分配空间t->buffer = binder_alloc_buf(target_proc, tr->data_size,tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));if (t->buffer == NULL) {return_error = BR_FAILED_REPLY;goto err_binder_alloc_buf_failed;}t->buffer->allow_user_free = 0;t->buffer->debug_id = t->debug_id;//保存事务t->buffer->transaction = t;t->buffer->target_node = target_node;trace_binder_transaction_alloc_buf(t->buffer);if (target_node)binder_inc_node(target_node, 1, 0, NULL);offp = (binder_size_t *)(t->buffer->data +ALIGN(tr->data_size, sizeof(void *)));// 将"用户传入的数据"保存到事务中if (copy_from_user(t->buffer->data, (const void __user *)(uintptr_t)tr->data.ptr.buffer, tr->data_size)) {...}// 将"用户传入的数据偏移地址"保存到事务中if (copy_from_user(offp, (const void __user *)(uintptr_t)tr->data.ptr.offsets, tr->offsets_size)) {...}...off_end = (void *)offp + tr->offsets_size;off_min = 0;//flat_binder_object对象读取出来// 这里就是Service Manager中反馈的MediaPlayerService代理对象。for (; offp < off_end; offp++) {struct flat_binder_object *fp;...fp = (struct flat_binder_object *)(t->buffer->data + *offp);off_min = *offp + sizeof(struct flat_binder_object);switch (fp->type) {case BINDER_TYPE_HANDLE:case BINDER_TYPE_WEAK_HANDLE: {// 根据handle获取对应的Binder引用，即得到MediaPlayerService的Binder引用struct binder_ref *ref = binder_get_ref(proc, fp->handle,fp->type == BINDER_TYPE_HANDLE);if (ref == NULL) {..}...// ref->node->proc是MediaPlayerService的进程上下文环境，// 而target_proc是MediaPlayer的进程上下文环境if (ref->node->proc == target_proc) {...} else {struct binder_ref *new_ref;// 在MediaPlayer进程中引用"MediaPlayerService"。// 表现为，执行binder_get_ref_for_node()会，会先在MediaPlayer进程中查找是否存在MediaPlayerService对应的Binder引用；// 很显然是不存在的。于是，并新建MediaPlayerService对应的Binder引用，并将其添加到MediaPlayer的Binder引用红黑树中。new_ref = binder_get_ref_for_node(target_proc, ref->node);if (new_ref == NULL) {...}fp->binder = 0;// 将new_ref的引用描述复制给fp->handle。fp->handle = new_ref->desc;fp->cookie = 0;binder_inc_ref(new_ref, fp->type == BINDER_TYPE_HANDLE, NULL);...}} break;...}if (reply) {binder_pop_transaction(target_thread, in_reply_to);} else if (!(t->flags & TF_ONE_WAY)) {...} else {...}//设置事务的类型为BINDER_WORK_TRANSACTIONt->work.type = BINDER_WORK_TRANSACTION;//将事务添加到target_list队列中，即target_list的待处理事务中list_add_tail(&t->work.entry, target_list);//设置待完成工作的类型为BINDER_WORK_TRANSACTION_COMPLETEtcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;//将待完成工作添加到thread->todo队列中，即当前线程的待完成工作中。list_add_tail(&tcomplete->entry, &thread->todo);if (target_wait)wake_up_interruptible(target_wait);return;...
}

此时的入参reply为1，我们只关注reply的部分内容：
(1) 此反馈最终是要回复给MediaPlayer的。因此，target_thread被赋值为MediaPlayer所在的线程，target_proc则是MediaPlayer对应的进程，target_node为null。
(2) 这里，先看看for循环里面的内容，取出BR_REPLY指令所发送的数据，然后获取数据中的flat_binder_object变量fp。因为fp->type为BINDER_TYPE_HANDLE，因此进入BINDER_TYPE_HANDLE对应的分支。接着，通过binder_get_ref()获取MediaPlayerService对应的Binder引用；很明显，能够正常获取到MediaPlayerService的Binder引用。因为在MediaPlayerService调用addService请求时，已经创建了它的Binder引用。 binder_get_ref_for_node()的作用是在MediaPlayer进程上下文中添加"MediaPlayerService对应的Binder引用"。这样，后面就可以根据该Binder引用一步步的获取MediaPlayerService对象。 最后，将Binder引用的描述赋值给fp->handle。
(3) 此时，Service Manager已经处理了getService请求。便调用binder_pop_transaction(target_thread, in_reply_to)将事务从"target_thread的事务栈"中删除，即从MediaPlayer线程的事务栈中删除该事务。
(4) 新建的"待处理事务t"的type为设为BINDER_WORK_TRANSACTION后，会被添加到MediaPlayer的待处理事务队列中。
(5) 此时，Service Manager已经处理了getService请求，而Binder驱动在等待它的回复。于是，将一个BINDER_WORK_TRANSACTION_COMPLETE类型的"待完成工作tcomplete"(作为回复)添加到当前线程(即，Service Manager线程)的待处理事务队列中。
(6) 最后，调用wake_up_interruptible()唤醒MediaPlayer。MediaPlayer被唤醒后，会对事务BINDER_WORK_TRANSACTION进行处理。

写在最后

   OK，getService到现在为止，还有两个待处理事务，分别是：
(1) ServiceManager待处理事务列表中有个BINDER_WORK_TRANSACTION_COMPLETE类型的事务
(2) MediaPlayer待处理事务列表中有个BINDER_WORK_TRANSACTION事务。

关于BINDER_WORK_TRANSACTION_COMPLETE事务，它是用来告诉ServiceManager，ServiceManager的反馈信息已经处理完毕。下一篇文章，就说说MediaPlayer被唤醒后，执行BINDER_WORK_TRANSACTION的流程。欢迎在接下来的篇章中随我，继续探索Binder得奥秘。
