领域驱动DDD之供应链多渠道（华泊、唯品、京东等等）地址库匹配下单地址校验下单流程

绝大多数项目都需要涉及到地址库，我曾经负责过的电商系统，各个渠道（中间商，包括唯品、华泊渠道 ）的地址库数据是不一样，比如相同地址的中文不同，或者地址编码不同，为了能够正常下单，我们建立了地址库并且通过"渠道ID"的方式去映射对应的地址，我们的地址库是TBL地址库，唯品的地址库是VIP地址库，华泊的地址库是HUABO地址库。

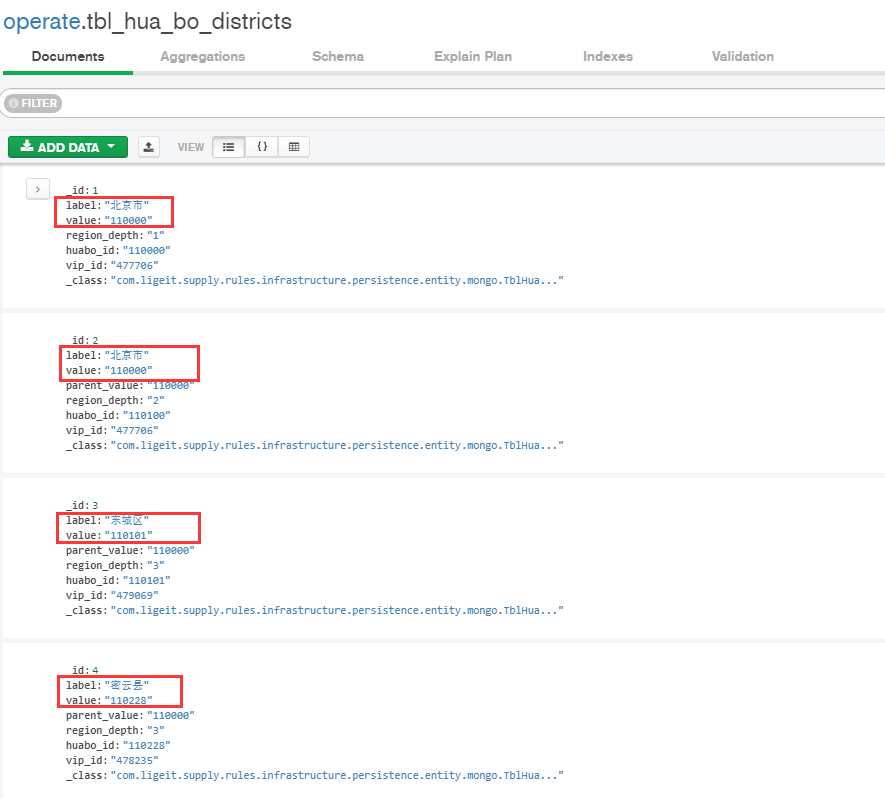

tbl_hua_bo_districts是TBL地址库的表名，项目的线上数据库使用的是Mongodb。

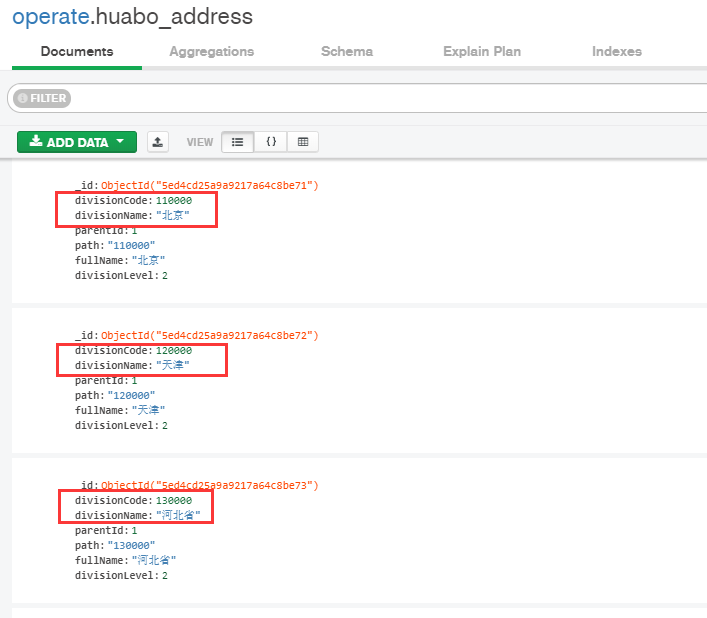

huabo_address是华泊HUABO地址库的表名。

为了匹配这些数据库的地址数据，设计抽象地址适配器类AbstractAddressPathInfo 作为地址领域类。

这个类是处理地址数据的精髓，基于最短距离的算法，去计算最匹配的地址。注意，基于规则的算法是不适用的。

import lombok.Data;import java.util.*;
import java.util.stream.Collectors;/*** @author linzihao* 路径节点抽象类* 用于比对地址库*/
@Data
public abstract class AbstractAddressPathInfo {private AbstractAddressPathInfo parent;private List<AbstractAddressPathInfo> pathInfoList = null;/*** 缓存计算得到的全路径*/private String fullPath;/*** 对于编码不同的地址库，* mongodb的id要跟mysql的id保持一致。** @return*/public abstract Long getId();public abstract void setId(Long id);public abstract String getPlaceName();public abstract void setPlaceName(String placeName);public abstract Long getPlaceCode();public abstract void setPlaceCode(Long placeCode);public abstract Long getParentCode();public abstract void setParentCode(Long parentCode);public synchronized List<AbstractAddressPathInfo> getPath() {if (this.pathInfoList == null) {this.pathInfoList = new Vector<>();AbstractAddressPathInfo p = this;while (p != null) {//头部插入this.pathInfoList.add(0, p);p = p.getParent();}return this.pathInfoList;}return this.pathInfoList;}public String generateFullPath() {this.setFullPath(getPath().stream().map(AbstractAddressPathInfo::getPlaceName).collect(Collectors.joining()));return this.getFullPath();}public static String toString(AbstractAddressPathInfo abstractAddressPathInfo) {return abstractAddressPathInfo.getPath().stream().map(p -> p.getPlaceName() + ":" + p.getPlaceCode()).collect(Collectors.joining(","));}/*** 通用距离计算方法。* 所有地址库比对都用这个算法** @param district* @param huaboAddress* @return*/public static double calculateDistance(AbstractAddressPathInfo district,AbstractAddressPathInfo huaboAddress) {List<AbstractAddressPathInfo> disList = district.getPath().stream().sorted(Comparator.comparing(AbstractAddressPathInfo::getPlaceCode)).collect(Collectors.toList());List<AbstractAddressPathInfo> huaboPath = huaboAddress.getPath();String TAGS[] = new String[]{"省", "市", "区", "镇", "乡", "村", "县", "街道"};//计算长度,尽可能匹配更长的地址//  double distance = Math.abs(disList.size() - huaboPath.size()) * Math.pow(8, disList.size() + 5);double factor = 8;double base = Math.pow(factor, 5);double distance = Math.abs(disList.size() - huaboPath.size());//比较最后一个名称String disLastName = disList.get(disList.size() - 1).getPlaceName();String huaboLastName = huaboPath.get(huaboPath.size() - 1).getPlaceName();for (String tag : TAGS) {disLastName = disLastName.replace(tag, "");huaboLastName = huaboLastName.replace(tag, "");}double lastNameSim = new StrSimilarity(disLastName, huaboLastName).sim();distance -= lastNameSim * base * Math.pow(factor, disList.size()) * Math.pow(Math.E, -distance);//计算相同的路径节点数List<Long> huaboCodes = huaboPath.stream().map(AbstractAddressPathInfo::getPlaceCode).collect(Collectors.toList());for (int i = 0; i < disList.size(); i++) {if (huaboCodes.contains(disList.get(i).getPlaceCode())) {distance -= base * Math.pow(factor, disList.size() - i);}}//计算地理名字匹配度for (int i = 0; i < disList.size(); i++) {String placeName = disList.get(i).getPlaceName();for (AbstractAddressPathInfo huaboPathInfo : huaboPath) {boolean flag = false;for (String tag : TAGS) {if (placeName.contains(tag) && huaboPathInfo.getPlaceName().contains(tag)) {double nodeSim = new StrSimilarity(placeName, huaboPathInfo.getPlaceName()).sim();distance -= nodeSim * base * Math.pow(factor, disList.size() - i);flag = true;break;}}if (flag) {break;}}}return distance;}public static <T extends AbstractAddressPathInfo> Map<Long, T> generatePathInfo(Map<Long, T> allMap) {Map<Long, List<T>> disPathMap = allMap.values().parallelStream().collect(Collectors.groupingByConcurrent(p -> p.getPlaceCode()));//路径//Map<Long, DistrictPathInfoAdapter> disPaths = new ConcurrentHashMap<>();allMap.values().forEach(dis -> {T p = dis;while (p != null && p.getParentCode() != null && disPathMap.get(p.getParentCode()) != null) {System.err.println("1------dis.code=" + dis.getPlaceCode() + ",p.code=" + p.getPlaceCode() + ",p.parentCode=" + p.getParentCode() + "");T curr = p;p = disPathMap.get(p.getParentCode()).stream()//.peek(j->System.err.println(j.getPlaceCode()==null?"j.getValue() is NUll!":""+j.getPlaceCode())).filter(i -> !i.getPlaceCode().equals(curr.getPlaceCode())).findAny().orElse(null);curr.setParent(p);}});return allMap;}public boolean contains(AbstractAddressPathInfo other) {List<AbstractAddressPathInfo> otherPath = other.getPath();List<AbstractAddressPathInfo> thisPath = this.getPath();if (otherPath.size() < thisPath.size()) {for (int i = 0; i < otherPath.size(); i++) {if (!thisPath.get(i).getPlaceCode().equals(otherPath.get(i).getPlaceCode())&& !thisPath.get(i).getPlaceName().equals(otherPath.get(i).getPlaceName())) {return false;}}return true;}return false;}public static void main(String[] args) {System.err.println(Math.pow(2, 5));}}

为各个渠道实现具体的适配器类，实现TBL适配器类。

/*** @author linzihao* 路径节点适配器类* 用于比对地址库数据*/
public class DistrictPathInfoAdapter extends AbstractAddressPathInfo {private DistrictsCopy1 districtsCopy1;public DistrictPathInfoAdapter(DistrictsCopy1 districtsCopy1) {this.districtsCopy1 = districtsCopy1;}public DistrictsCopy1 getDistrictsCopy1() {return districtsCopy1;}public void setDistrictsCopy1(DistrictsCopy1 districtsCopy1) {this.districtsCopy1 = districtsCopy1;}@Overridepublic Long getId() {return districtsCopy1.getId();}@Overridepublic void setId(Long id) {this.districtsCopy1.setId(id);}@Overridepublic String getPlaceName() {return districtsCopy1.getLabel();}@Overridepublic void setPlaceName(String placeName) {districtsCopy1.setLabel(placeName);}@Overridepublic Long getPlaceCode() {return Long.parseLong(districtsCopy1.getValue());}@Overridepublic void setPlaceCode(Long placeCode) {districtsCopy1.setValue(placeCode + "");}@Overridepublic Long getParentCode() {//Optional.ofNullable(districtsCopy1.getParentValue()).orElse()return StringUtils.isEmpty(districtsCopy1.getParentValue()) ? null : Long.parseLong(districtsCopy1.getParentValue());}@Overridepublic void setParentCode(Long parentId) {districtsCopy1.setParentValue(StringUtils.isEmpty(districtsCopy1.getParentValue()) ? null : districtsCopy1.getParentValue());}}

为华泊渠道实现HUABO地址的适配器类。

import com.ligeit.supply.rules.infrastructure.persistence.entity.HuaboAddressCopy1;/*** @author linzihao* 路径节点适配器类* 用于比对地址库数据*/
public class HuaboPathInfoAdapter extends AbstractAddressPathInfo {private HuaboAddressCopy1 huaboAddressCopy1;public HuaboPathInfoAdapter(HuaboAddressCopy1 huaboAddressCopy1) {this.huaboAddressCopy1 = huaboAddressCopy1;}public HuaboAddressCopy1 getHuaboAddressCopy1() {return huaboAddressCopy1;}public void setHuaboAddressCopy1(HuaboAddressCopy1 huaboAddressCopy1) {this.huaboAddressCopy1 = huaboAddressCopy1;}@Overridepublic Long getId() {return huaboAddressCopy1.getId();}@Overridepublic void setId(Long id) {huaboAddressCopy1.setId(id);}@Overridepublic String getPlaceName() {return huaboAddressCopy1.getDivisionName();}@Overridepublic void setPlaceName(String placeName) {huaboAddressCopy1.setDivisionName(placeName);}@Overridepublic Long getPlaceCode() {return huaboAddressCopy1.getId();}@Overridepublic void setPlaceCode(Long placeCode) {huaboAddressCopy1.setId(placeCode);}@Overridepublic Long getParentCode() {return huaboAddressCopy1.getParentId();}@Overridepublic void setParentCode(Long parentId) {huaboAddressCopy1.setParentId(parentId);}
}

为唯品渠道实现VIP地址的适配器类。

/*** @author linzihao* 路径节点适配器类* 用于比对地址库数据*/
public class VipPathInfoAdapter extends AbstractAddressPathInfo {private VipAddress vopAddress;public VipPathInfoAdapter(VipAddress vopAddress) {this.vopAddress = vopAddress;}public VipAddress getVopAddress() {return vopAddress;}public void setVopAddress(VipAddress vopAddress) {this.vopAddress = vopAddress;}@Overridepublic Long getId() {return vopAddress.getId();}@Overridepublic void setId(Long id) {vopAddress.setId(id);}@Overridepublic String getPlaceName() {return vopAddress.getAreaName();}@Overridepublic void setPlaceName(String placeName) {vopAddress.setAreaName(placeName);}@Overridepublic Long getPlaceCode() {return Long.parseLong(vopAddress.getAreaCode());}@Overridepublic void setPlaceCode(Long placeCode) {vopAddress.setAreaCode(placeCode + "");}@Overridepublic Long getParentCode() {//Optional.ofNullable(districtsCopy1.getParentValue()).orElse()return StringUtils.isEmpty(vopAddress.getParent()) ? null : Long.parseLong(vopAddress.getParent());}@Overridepublic void setParentCode(Long parentId) {vopAddress.setParent(StringUtils.isEmpty(vopAddress.getParent()) ? null : vopAddress.getParent());}
}

计算字符串的相似度算法，主要用于计算地址的名称相似度。

import java.util.HashMap;
import java.util.Map;
import java.util.Set;/*** @author linzihao* 计算两个字符串的相似度*/
public class StrSimilarity {Map<Character, int[]> vectorMap = new HashMap<Character, int[]>();int[] tempArray = null;public StrSimilarity(String source, String target) {for (Character sch : source.toCharArray()) {if (vectorMap.containsKey(sch)) {vectorMap.get(sch)[0]++;}//用将字符转化为向量else {tempArray = new int[2];tempArray[0] = 1;tempArray[1] = 0;vectorMap.put(sch, tempArray);}}for (Character tch : target.toCharArray()) {if (vectorMap.containsKey(tch)) {vectorMap.get(tch)[1]++;}//用将字符转化为向量else {tempArray = new int[2];tempArray[0] = 0;tempArray[1] = 1;vectorMap.put(tch, tempArray);}}}// 求余弦相似度public double sim() {double result = 0;result = pointMulti(vectorMap) / sqrtMulti(vectorMap);return result;}// 求平方和private double squares(Map<Character, int[]> paramMap) {double result1 = 0;double result2 = 0;Set<Character> keySet = paramMap.keySet();for (Character character : keySet) {int temp[] = paramMap.get(character);result1 += (temp[0] * temp[0]);result2 += (temp[1] * temp[1]);}return result1 * result2;}// 点乘法private double pointMulti(Map<Character, int[]> paramMap) {double result = 0;Set<Character> keySet = paramMap.keySet();for (Character character : keySet) {int temp[] = paramMap.get(character);result += (temp[0] * temp[1]);}return result;}private double sqrtMulti(Map<Character, int[]> paramMap) {double result = 0;result = squares(paramMap);result = Math.sqrt(result);return result;}public static void main(String[] args) {String s1 = "我是中国人";String s3 = "中国人";String s4 = "我是中国人";String s2 = "66666";StrSimilarity t2 = new StrSimilarity(s1, s2);StrSimilarity t4 = new StrSimilarity(s1, s4);StrSimilarity t3 = new StrSimilarity(s1, s3);System.out.println("==相似度===" + t2.sim());System.out.println("==相似度===" + t4.sim());System.out.println("==相似度===" + t3.sim());}
}

开发环境用的是mysql，通过Mybatics框架从mysql生成的地址Entity。

Mybatics框架生成的TBL地址Entity。

import java.io.Serializable;
import java.util.Date;
import javax.annotation.Generated;public class DistrictsCopy1 implements Serializable {@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long id;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String label;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String value;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String parentValue;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String regionDepth;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Date createdAt;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Date updatedAt;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long huaboId;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long vopId;@Generated("org.mybatis.generator.api.MyBatisGenerator")private static final long serialVersionUID = 1L;@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getId() {return id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setId(Long id) {this.id = id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getLabel() {return label;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setLabel(String label) {this.label = label == null ? null : label.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getValue() {return value;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setValue(String value) {this.value = value == null ? null : value.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getParentValue() {return parentValue;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setParentValue(String parentValue) {this.parentValue = parentValue == null ? null : parentValue.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getRegionDepth() {return regionDepth;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setRegionDepth(String regionDepth) {this.regionDepth = regionDepth == null ? null : regionDepth.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Date getCreatedAt() {return createdAt;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setCreatedAt(Date createdAt) {this.createdAt = createdAt;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Date getUpdatedAt() {return updatedAt;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setUpdatedAt(Date updatedAt) {this.updatedAt = updatedAt;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getHuaboId() {return huaboId;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setHuaboId(Long huaboId) {this.huaboId = huaboId;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getVopId() {return vopId;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setVopId(Long vopId) {this.vopId = vopId;}
}

Mybatics框架生成的华泊地址Entity。

import java.io.Serializable;
import javax.annotation.Generated;public class HuaboAddressCopy1 implements Serializable {@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long id;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String divisionName;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long parentId;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String path;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String fullName;@Generated("org.mybatis.generator.api.MyBatisGenerator")private Integer divisionlevel;@Generated("org.mybatis.generator.api.MyBatisGenerator")private static final long serialVersionUID = 1L;@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getId() {return id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setId(Long id) {this.id = id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getDivisionName() {return divisionName;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setDivisionName(String divisionName) {this.divisionName = divisionName == null ? null : divisionName.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getParentId() {return parentId;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setParentId(Long parentId) {this.parentId = parentId;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getPath() {return path;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setPath(String path) {this.path = path == null ? null : path.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getFullName() {return fullName;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setFullName(String fullName) {this.fullName = fullName == null ? null : fullName.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public Integer getDivisionlevel() {return divisionlevel;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setDivisionlevel(Integer divisionlevel) {this.divisionlevel = divisionlevel;}
}

Mybatics框架生成的唯品VIP地址Entity。

import java.io.Serializable;
import javax.annotation.Generated;public class VipAddress implements Serializable {@Generated("org.mybatis.generator.api.MyBatisGenerator")private Long id;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String areaCode;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String areaName;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String parent;@Generated("org.mybatis.generator.api.MyBatisGenerator")private String fullPath;@Generated("org.mybatis.generator.api.MyBatisGenerator")private static final long serialVersionUID = 1L;@Generated("org.mybatis.generator.api.MyBatisGenerator")public Long getId() {return id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setId(Long id) {this.id = id;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getAreaCode() {return areaCode;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setAreaCode(String areaCode) {this.areaCode = areaCode == null ? null : areaCode.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getAreaName() {return areaName;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setAreaName(String areaName) {this.areaName = areaName == null ? null : areaName.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getParent() {return parent;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setParent(String parent) {this.parent = parent == null ? null : parent.trim();}@Generated("org.mybatis.generator.api.MyBatisGenerator")public String getFullPath() {return fullPath;}@Generated("org.mybatis.generator.api.MyBatisGenerator")public void setFullPath(String fullPath) {this.fullPath = fullPath == null ? null : fullPath.trim();}
}

TBL地址库通过huabo_id与HUABO地址库建立映射的服务类实现。

/*** huabo地址库匹配** @author linzihao*/
@Service
public class HuaboAddressServiceImpl {{System.setProperty("java.util.concurrent.ForkJoinPool.common.parallelism",Runtime.getRuntime().availableProcessors() * 3 + "");}@Autowiredprivate DistrictsCopy1Mapper districtsMapper;@Autowiredprivate HuaboAddressCopy1Mapper huaboAddressMapper;@Autowiredprivate DistrictsMapper oldDistrictMapper;@Autowiredprivate MongoTemplate mongoTemplate;public Map<Long, DistrictPathInfoAdapter> getAllDistricts() {return districtsMapper.select(SelectDSLCompleter.allRows()).parallelStream().map(p -> new DistrictPathInfoAdapter(p)).collect(Collectors.toConcurrentMap(DistrictPathInfoAdapter::getId, Function.identity()));}public Map<Long, HuaboPathInfoAdapter> getAllHuaboAddress() {return huaboAddressMapper.select(SelectDSLCompleter.allRows()).parallelStream().map(p -> {HuaboPathInfoAdapter huaboPathInfoAdapter = new HuaboPathInfoAdapter(p);if (huaboPathInfoAdapter.getParentCode().longValue() == 1L) {huaboPathInfoAdapter.setParentCode(null);}return huaboPathInfoAdapter;}).collect(Collectors.toConcurrentMap(HuaboPathInfoAdapter::getId, Function.identity()));}public void resetAllDistricts(Map<Long, DistrictsCopy1> allDistrictsCopyMap) {allDistrictsCopyMap.values().parallelStream().forEach(districtsCopy1 -> {districtsCopy1.setHuaboId(null);districtsMapper.updateByPrimaryKey(districtsCopy1);});}private Map<Long, DistrictPathInfoAdapter> updateBatchByValueAndDepth(Map<Long, DistrictPathInfoAdapter> allDistrictsCopyMap, Map<Long, HuaboPathInfoAdapter> allHubboAddressCopy1Map) {Map<Long, DistrictPathInfoAdapter> treatedMap = new ConcurrentHashMap<>();//Map<Long, DistrictsCopy1> allDistrictsCopyMap = getAllDistricts();Map<Integer, List<HuaboPathInfoAdapter>> huaboAddressCopyMap = allHubboAddressCopy1Map.values().parallelStream().collect(Collectors.groupingByConcurrent(p -> p.getHuaboAddressCopy1().getDivisionlevel()));allDistrictsCopyMap.values().parallelStream().forEach(dis -> {huaboAddressCopyMap.get(Integer.parseInt(dis.getDistrictsCopy1().getRegionDepth()) + 1).parallelStream().filter(huabo -> huabo.getId().equals(dis.getPlaceCode())).findAny().ifPresent(huabo -> {dis.getDistrictsCopy1().setHuaboId(huabo.getId());districtsMapper.updateByPrimaryKey(dis.getDistrictsCopy1());treatedMap.putIfAbsent(dis.getId(), dis);});});//districtsMapper.updateBatch(getAllDistricts().values().stream().collect(Collectors.toList()));Map<Long, DistrictPathInfoAdapter> unTreatedMap = new ConcurrentHashMap<>();allDistrictsCopyMap.forEach((k, v) -> {if (!treatedMap.containsKey(k)) {unTreatedMap.putIfAbsent(k, v);}});return unTreatedMap;}/*** 计算距离最小值，返回HuaboID** @param districtPath          从当前路径节点开始的所有上层路径节点* @param huaboAddressCopy1List 所有huabo地址* @return 距离*/private Long getMinDistance(DistrictPathInfoAdapter districtPath, List<HuaboPathInfoAdapter> huaboAddressCopy1List) {return huaboAddressCopy1List.parallelStream().min(Comparator.comparing(huabo -> AbstractAddressPathInfo.calculateDistance(districtPath, huabo))).map(huaboAddressCopy1 -> huaboAddressCopy1.getId()).orElse(null);}private void updateBatchByPath(Map<Long, DistrictPathInfoAdapter> allDistrictsCopyMap,Map<Long, HuaboPathInfoAdapter> allHubboAddressCopy1Map,Map<Long, DistrictPathInfoAdapter> untreatedMap) {//路径Map<Long, DistrictPathInfoAdapter> disPathMap = AbstractAddressPathInfo.generatePathInfo(allDistrictsCopyMap);Map<Long, HuaboPathInfoAdapter> huaboPathMap = AbstractAddressPathInfo.generatePathInfo(allHubboAddressCopy1Map);//debug2(disPathMap);//untreatedMap.values().parallelStream().forEach(dis -> {//allDistrictsCopyMap.get(dis.getId()).setHuaboId(huaboId);Long huaboId = getMinDistance(dis, huaboPathMap.values().parallelStream().collect(Collectors.toList()));if (huaboId != null) {dis.getDistrictsCopy1().setHuaboId(huaboId);districtsMapper.updateByPrimaryKey(dis.getDistrictsCopy1());}});//districtsMapper.updateBatch(getAllDistricts().values().stream().collect(Collectors.toList()));}public void updateBatch() {Map<Long, DistrictPathInfoAdapter> allDistricts = getAllDistricts();Map<Long, HuaboPathInfoAdapter> allHuaboAddress = getAllHuaboAddress();Map<Long, DistrictPathInfoAdapter> unTreatedMap = updateBatchByValueAndDepth(allDistricts, allHuaboAddress);//测试//debug(unTreatedMap);updateBatchByPath(allDistricts, allHuaboAddress, unTreatedMap);}public void saveToMongo() {mongoTemplate.dropCollection(TblHuaBoDistricts.class);Map<Long, DistrictPathInfoAdapter> allDistricts = getAllDistricts();allDistricts.values().parallelStream().forEach(districtPathInfo -> {TblHuaBoDistricts tblHuaBoDistricts = new TblHuaBoDistricts();tblHuaBoDistricts.setHuaboId(districtPathInfo.getDistrictsCopy1().getHuaboId() + "");tblHuaBoDistricts.setLabel(districtPathInfo.getDistrictsCopy1().getLabel());tblHuaBoDistricts.setParentValue(districtPathInfo.getDistrictsCopy1().getParentValue());tblHuaBoDistricts.setRegionDepth(districtPathInfo.getDistrictsCopy1().getRegionDepth());tblHuaBoDistricts.setTblId(districtPathInfo.getDistrictsCopy1().getId());tblHuaBoDistricts.setValue(districtPathInfo.getDistrictsCopy1().getValue());tblHuaBoDistricts.setVipId(districtPathInfo.getDistrictsCopy1().getVopId() + "");mongoTemplate.save(tblHuaBoDistricts);});}//public void saveToMongoNewData() {mongoTemplate.dropCollection(TblHuaBoDistrictsNewData.class);List<DistrictsCopy1> districtsCopy1s = districtsMapper.select(SelectDSLCompleter.allRows()).parallelStream().collect(Collectors.toList());districtsCopy1s.parallelStream().forEach(districtPathInfo -> {TblHuaBoDistrictsNewData tblHuaBoDistricts = new TblHuaBoDistrictsNewData();tblHuaBoDistricts.setHuaboId(districtPathInfo.getHuaboId() + "");tblHuaBoDistricts.setLabel(districtPathInfo.getLabel());tblHuaBoDistricts.setParentValue(districtPathInfo.getParentValue());tblHuaBoDistricts.setRegionDepth(districtPathInfo.getRegionDepth());tblHuaBoDistricts.setTblId(districtPathInfo.getId());tblHuaBoDistricts.setVipId(StringUtils.isEmpty(districtPathInfo.getVopId()) ?null : String.valueOf(districtPathInfo.getVopId()));tblHuaBoDistricts.setValue(districtPathInfo.getValue());mongoTemplate.save(tblHuaBoDistricts);});}public void debug(Map<Long, DistrictPathInfoAdapter> unTreatedMap) {//测试Path recordPath = Paths.get("C:\\Users\\Administrator\\Desktop\\records.txt");List<String> recordLines = new ArrayList<>();for (DistrictPathInfoAdapter value : unTreatedMap.values()) {recordLines.add("id:" + value.getId()+ " label:" + value.getPlaceName()+ " value:" + value.getPlaceCode()+ " parentValue:" + value.getParentCode()+ " regionDepth:" + value.getDistrictsCopy1().getRegionDepth()+ " huaboId:" + value.getDistrictsCopy1().getHuaboId());}try {if (Files.notExists(recordPath)) {Files.createDirectories(recordPath.getParent());Files.createFile(recordPath);}Files.write(recordPath, recordLines, StandardOpenOption.TRUNCATE_EXISTING, StandardOpenOption.WRITE);} catch (IOException exception) {exception.printStackTrace();}}public void debug2(Map<Long, DistrictPathInfoAdapter> disPathMap) {Path recordPath = Paths.get("../test/pathTest.txt");try {if (Files.notExists(recordPath)) {Files.createDirectories(recordPath.getParent());Files.createFile(recordPath);}Files.write(recordPath, disPathMap.values().parallelStream().map(p -> p.getDistrictsCopy1().toString()).collect(Collectors.toSet()), StandardOpenOption.TRUNCATE_EXISTING, StandardOpenOption.WRITE);} catch (IOException exception) {exception.printStackTrace();}}}

TBL地址库通过vip_id与唯品VIP地址库建立映射的服务类实现。

import com.ligeit.supply.rules.biz.domain.model.address.AbstractAddressPathInfo;
import com.ligeit.supply.rules.biz.domain.model.address.DistrictPathInfoAdapter;
import com.ligeit.supply.rules.biz.domain.model.address.VipPathInfoAdapter;
import com.ligeit.supply.rules.infrastructure.persistence.entity.DistrictsCopy1Tmp;
import com.ligeit.supply.rules.infrastructure.persistence.entity.VipAddress;
import com.ligeit.supply.rules.infrastructure.persistence.entity.mongo.VipDocumentAddress;
import com.ligeit.supply.rules.infrastructure.persistence.mapper.DistrictsCopy1Mapper;
import com.ligeit.supply.rules.infrastructure.persistence.mapper.DistrictsCopy1TmpMapper;
import com.ligeit.supply.rules.infrastructure.persistence.mapper.VipAddressMapper;
import com.vip.osp.sdk.context.InvocationContext;
import com.vip.wpc.ospservice.channel.vo.WpcChannelAddressInfoVO;
import com.vip.wpc.ospservice.channel.vo.WpcChannelSelectAddressVO;
import com.vip.wpc.ospservice.vop.WpcVopOspServiceHelper;
import com.vip.wpc.ospservice.vop.request.WpcAddressSelectRequest;
import org.mybatis.dynamic.sql.delete.DeleteDSLCompleter;
import org.mybatis.dynamic.sql.select.SelectDSLCompleter;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.mongodb.core.MongoTemplate;
import org.springframework.stereotype.Service;import java.util.Comparator;
import java.util.List;
import java.util.Map;
import java.util.Vector;
import java.util.function.Function;
import java.util.stream.Collectors;/*** 唯代购地址库匹配** @author linzihao*/
@Service
public class VipAddressServiceImpl {{System.setProperty("java.util.concurrent.ForkJoinPool.common.parallelism", Runtime.getRuntime().availableProcessors() * 5 + "");}@Autowiredprivate DistrictsCopy1Mapper districtsMapper;@Autowiredprivate DistrictsCopy1TmpMapper districtsCopy1TmpMapper;@Autowiredprivate VipAddressMapper vipAddressMapper;@Autowiredprivate MongoTemplate mongoTemplate;private WpcVopOspServiceHelper.WpcVopOspServiceClient getWebClient() {WpcVopOspServiceHelper.WpcVopOspServiceClient client = new WpcVopOspServiceHelper.WpcVopOspServiceClient();InvocationContext invocationContext = InvocationContext.Factory.getInstance();invocationContext.setAppKey("a7c44686");invocationContext.setAppSecret("E1C46F81E4A52008402DD6CCEE831CEE");invocationContext.setAppURL("https://gw.vipapis.com/");invocationContext.setLanguage("zh");return client;}public WpcChannelSelectAddressVO requestAddress(String areaCode) {try {WpcVopOspServiceHelper.WpcVopOspServiceClient client = getWebClient();WpcAddressSelectRequest request1 = new WpcAddressSelectRequest();request1.setVopChannelId("a7c44686");request1.setUserNumber("80015553");if (areaCode != null && !areaCode.isEmpty()) {request1.setAreaCode(areaCode);}return client.selectAddress(request1);} catch (com.vip.osp.sdk.exception.OspException e) {e.printStackTrace();}return null;}private VipAddress compose(WpcChannelSelectAddressVO vo, String parentAreaCode) {WpcChannelAddressInfoVO info = vo.getInfo();VipAddress vopAddress = new VipAddress();vopAddress.setAreaName(info.getAreaName());vopAddress.setAreaCode(info.getAreaCode());vopAddress.setParent(parentAreaCode);return vopAddress;}private void saveAddress(WpcChannelSelectAddressVO vo, String parentAreaCode) {vipAddressMapper.insert(compose(vo, parentAreaCode));}private void viewNode(String parent, String currNode) {WpcChannelSelectAddressVO vo = requestAddress(currNode);saveAddress(vo, parent);List<WpcChannelAddressInfoVO> childList = vo.getChildList();if (childList != null && !childList.isEmpty()) {childList.parallelStream().forEach(childAddresss -> {viewNode(vo.getInfo().getAreaCode(), childAddresss.getAreaCode());});}}private List<VipAddress> handle(String parent, String currNode) {List<VipAddress> vopAddressesList = new Vector<>();WpcChannelSelectAddressVO vo = requestAddress(currNode);if (vo == null) {return vopAddressesList;}//saveAddress(vo, parent);vopAddressesList.add(compose(vo, parent));List<WpcChannelAddressInfoVO> childList = vo.getChildList();if (childList != null && !childList.isEmpty()) {childList.parallelStream().forEach(childAddresss -> {vopAddressesList.addAll(handle(vo.getInfo().getAreaCode(), childAddresss.getAreaCode()));});}System.out.println("return list ok!");return vopAddressesList;}private void fullPath() {Map<Long, VipPathInfoAdapter> vopPathMap = AbstractAddressPathInfo.generatePathInfo(getAllVopAddress());vopPathMap.values().parallelStream().forEach(address -> {VipAddress vopAddress = address.getVopAddress();vopAddress.setFullPath(address.getPath().stream().map(AbstractAddressPathInfo::getPlaceName).collect(Collectors.joining(",")));vipAddressMapper.updateByPrimaryKey(vopAddress);});}/*** 深度遍历树结构并且保存*/public void saveAllAddress() {vipAddressMapper.delete(DeleteDSLCompleter.allRows());List<VipAddress> vopAddresses = handle(null, null);vopAddresses.parallelStream().forEach(vop -> {vipAddressMapper.insert(vop);});fullPath();}/*** 深度遍历树结构并且保存*/public void saveAllAddress2() {vipAddressMapper.delete(DeleteDSLCompleter.allRows());viewNode(null, null);fullPath();}public Map<Long, DistrictPathInfoAdapter> getAllDistricts() {return districtsMapper.select(SelectDSLCompleter.allRows()).parallelStream().map(p -> new DistrictPathInfoAdapter(p)).collect(Collectors.toConcurrentMap(DistrictPathInfoAdapter::getId, Function.identity()));}public Map<Long, VipPathInfoAdapter> getAllVopAddress() {return vipAddressMapper.select(SelectDSLCompleter.allRows()).parallelStream().map(p -> new VipPathInfoAdapter(p)).collect(Collectors.toConcurrentMap(VipPathInfoAdapter::getId, Function.identity()));}private void setRelation(Map<Long, DistrictPathInfoAdapter> allDistrictsMap,Map<Long, VipPathInfoAdapter> allVopAddressMap) {Map<Long, DistrictPathInfoAdapter> disPathMap = AbstractAddressPathInfo.generatePathInfo(allDistrictsMap);Map<Long, VipPathInfoAdapter> vopPathMap = AbstractAddressPathInfo.generatePathInfo(allVopAddressMap);//Map<Long, Map<Long, PathInfo>> disMap = new ConcurrentHashMap<>();//Map<Long, Map<Long, PathInfo>> vopMap = new ConcurrentHashMap<>();//第一阶段，先把完全匹配的找出来//第二阶段，计算距离disPathMap.values().parallelStream().forEach(dis -> {Long vipId = vopPathMap.values().parallelStream().min(Comparator.comparing(vop -> AbstractAddressPathInfo.calculateDistance(dis, vop))).map(VipPathInfoAdapter::getId).orElse(0L);dis.getDistrictsCopy1().setVopId(vipId);districtsMapper.updateByPrimaryKey(dis.getDistrictsCopy1());});}public void updateBatch() {Map<Long, DistrictPathInfoAdapter> allDistricts = getAllDistricts();Map<Long, VipPathInfoAdapter> allVopAddress = getAllVopAddress();setRelation(allDistricts, allVopAddress);}public void saveToMongoDB() {mongoTemplate.dropCollection(VipDocumentAddress.class);Map<Long, VipPathInfoAdapter> allVopAddress = getAllVopAddress();allVopAddress.values().parallelStream().forEach(p -> {VipDocumentAddress vipDocumentAddress = new VipDocumentAddress();vipDocumentAddress.setVid(p.getId());vipDocumentAddress.setAreaCode(p.getPlaceCode() + "");vipDocumentAddress.setAreaName(p.getPlaceName());vipDocumentAddress.setFullPath(p.getVopAddress().getFullPath());vipDocumentAddress.setParent(p.getVopAddress().getParent());mongoTemplate.save(vipDocumentAddress);});}public void saveToDB(List<DistrictPathInfoAdapter> toSave) {List<DistrictsCopy1Tmp> list = districtsCopy1TmpMapper.select(SelectDSLCompleter.allRows());list.parallelStream().forEach(p -> districtsCopy1TmpMapper.deleteByPrimaryKey(p.getId()));toSave.stream().forEach(p -> {DistrictsCopy1Tmp districtsCopy1Tmp = new DistrictsCopy1Tmp();BeanUtils.copyProperties(p.getDistrictsCopy1(), districtsCopy1Tmp);districtsCopy1TmpMapper.insert(districtsCopy1Tmp);});}public static void main(String[] args) {}}

执行代码建立TBL地址库和各个渠道的映射。

import com.ligeit.supply.rules.biz.external.api.vip.VipAddressExternal;
import com.ligeit.supply.rules.biz.service.impl.HuaboAddressServiceImpl;
import org.junit.jupiter.api.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.test.context.testng.AbstractTestNGSpringContextTests;/*** @author linzihao*/@RunWith(SpringRunner.class)
@SpringBootTest(classes = {DataRulesApplication.class})
@EnableAutoConfiguration
public class HuaboAddresssTest extends AbstractTestNGSpringContextTests {{System.setProperty("java.util.concurrent.ForkJoinPool.common.parallelism", (Runtime.getRuntime().availableProcessors() * 3) + "");}@Autowiredprivate HuaboAddressServiceImpl addressService;@AutowiredVipAddressExternal vipAddressExternal;@Testpublic void queryState() {long startTime = System.currentTimeMillis();addressService.updateBatch();addressService.saveToMongo();long endTime = System.currentTimeMillis();System.out.println("执行时间:" + (endTime - startTime));}}

import com.ligeit.supply.rules.biz.external.api.vip.VipAddressExternal;
import com.ligeit.supply.rules.biz.external.api.vip.VipOrderExternal;
import com.ligeit.supply.rules.biz.service.impl.HuaboAddressServiceImpl;
import com.ligeit.supply.rules.biz.service.impl.OrderServiceImpl;
import com.ligeit.supply.rules.biz.service.impl.VipAddressMatcherServiceImpl;
import com.ligeit.supply.rules.biz.service.impl.VipAddressServiceImpl;
import com.ligeit.supply.rules.infrastructure.persistence.mapper.DistrictsCopy1TmpMapper;
import org.junit.jupiter.api.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.test.context.testng.AbstractTestNGSpringContextTests;/*** @author linzihao*/
@RunWith(SpringRunner.class)
@SpringBootTest(classes = {DataRulesApplication.class})
@EnableAutoConfiguration
public class VipAddressTest extends AbstractTestNGSpringContextTests {{System.setProperty("java.util.concurrent.ForkJoinPool.common.parallelism", (Runtime.getRuntime().availableProcessors() * 5) + "");}@AutowiredVipAddressServiceImpl vipAddressService;@AutowiredVipApiServiceTest vopApiService;@AutowiredVipAddressExternal vipAddressExternal;@AutowiredVipAddressMatcherServiceImpl vipAddressMatcherService;@AutowiredVipOrderExternal vipOrderExternal;@AutowiredHuaboAddressServiceImpl tblAddressService;@AutowiredDistrictsCopy1TmpMapper districtsCopy1TmpMapper;@AutowiredOrderServiceImpl orderService;@Testpublic void queryState() {long round1 = 0L;long round2 = 0L;long round3 = 0L;long round4 = 0L;long startTime = System.currentTimeMillis();//vipAddressService.saveAllAddress();long endTime = System.currentTimeMillis();round1 = endTime - startTime;startTime = System.currentTimeMillis();vipAddressService.saveAllAddress2();endTime = System.currentTimeMillis();round2 = endTime - startTime;startTime = System.currentTimeMillis();vipAddressService.updateBatch();endTime = System.currentTimeMillis();round3 = endTime - startTime;System.out.println("saveAllAddress1执行时间:" + (round1 / 1000) + "秒");System.out.println("saveAllAddress2执行时间:" + (round2 / 1000) + "秒");System.err.println("比较保存到数据库的算法快慢：" + (round1 > round2 ? "round1" : "round2"));System.out.println("绑定地址库关系的时间" + (round3 / 1000) + "秒");//14072秒startTime = System.currentTimeMillis();vipAddressService.saveToMongoDB();endTime = System.currentTimeMillis();round4 = endTime - startTime;System.out.println("插入mongodb的时间" + (round4 / 1000) + "秒");}}
