概念
特点
- seek(long poisitiuion):poisition必须是记录的边界,否则调用next()方法时会报错
- sync(long poisition):Poisition可以不是记录的边界,如果不是边界,会定位到下一个同步点,如果Poisition之后没有同步点了,会跳转到文件的结尾位置
状态
SequenceFile 有三种压缩态:
- Uncompressed – 未进行压缩的状
- record compressed - 对每一条记录的value值进行了压缩(文件头中包含上使用哪种压缩算法的信息)
- block compressed – 当数据量达到一定大小后,将停止写入进行整体压缩,整体压缩的方法是把所有的keylength,key,vlength,value 分别合在一起进行整体压缩,块的压缩效率要比记录的压缩效率高
格式
每一个SequenceFile都包含一个“头”(header)。Header包含了以下几部分。
1.SEQ三个字母的byte数组
2.Version number的byte,目前为数字3的byte
3.Key和Value的类名
4.压缩相关的信息
5.其他用户定义的元数据
6.同步标记,sync marker

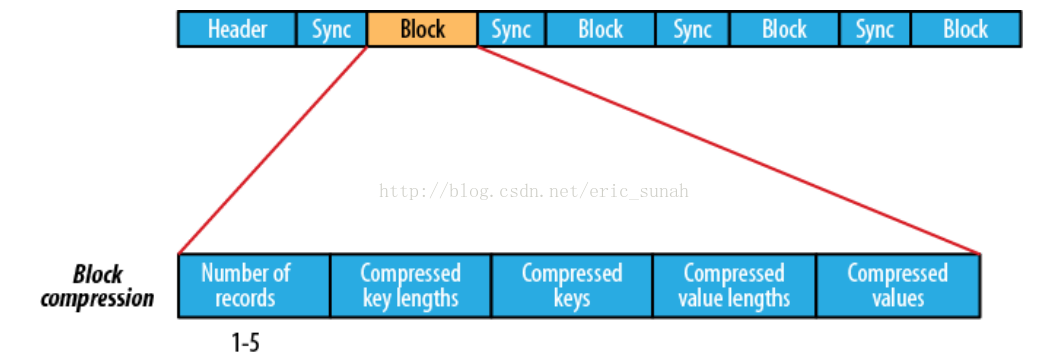

对于每一条记录(K-V),其内部格式根据是否压缩而不同。SequenceFile的压缩方式有两种,“记录压缩”(record compression)和“块压缩”(block compression)。如果是记录压缩,则只压缩Value的值。如果是块压缩,则将多条记录一并压缩,包括Key和Value。具体格式如下面两图所示:
扩展实现
- MapFile 一个key-value 对应的查找数据结构,由数据文件/data 和索引文件 /index 组成,数据文件中包含所有需要存储的key-value对,按key的顺序排列。索引文件包含一部分key值,用以指向数据文件的关键位置
- SetFile – 基于 MapFile 实现的,他只有key,value为不可变的数据。
- ArrayFile – 也是基于 MapFile 实现,他就像我们使用的数组一样,key值为序列化的数字。
- BloomMapFile – 他在 MapFile 的基础上增加了一个 /bloom 文件,包含的是二进制的过滤表,在每一次写操作完成时,会更新这个过滤表。
操作
package com.eric.hadoop.io.sequencefile;
import java.io.IOException;
import java.net.URI;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IOUtils;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.SequenceFile;
import org.apache.hadoop.io.Text;
/*** @author Eric.sunah 2014年12月10日**/
public class SequenceFileDemo {private static final String OPERA_FILE = "./output.seq";/*** 随便从网上截取的一段文本*/private static String[] testArray = { "<plugin> "," <groupId>org.apache.avro</groupId> "," <artifactId>avro-maven-plugin</artifactId> "," <version>1.7.7</version> "," <executions> "," <execution> "," <phase>generate-sources</phase> "," <goals> "," <goal>schema</goal> "," </goals> "," <configuration> "," <sourceDirectory>${project.basedir}/src/main/avro/</sourceDirectory> "," <outputDirectory>${project.basedir}/src/main/java/</outputDirectory> "," </configuration> "," </execution> "," </executions> ","</plugin> ","<plugin> "," <groupId>org.apache.maven.plugins</groupId> "," <artifactId>maven-compiler-plugin</artifactId> "," <configuration> "," <source>1.6</source> "," <target>1.6</target> "," </configuration> ", "</plugin>"};public static void main(String[] args) throws IOException {writeSequenceFile(OPERA_FILE);readSequenceFile(OPERA_FILE);}private static void readSequenceFile(String inputFile) throws IOException {Configuration config = new Configuration();Path path = new Path(inputFile);SequenceFile.Reader reader = null;try {FileSystem fs = FileSystem.get(URI.create(inputFile), config);reader = new SequenceFile.Reader(fs, path, config);IntWritable key = new IntWritable();Text value = new Text();long posion = reader.getPosition();// reader.next()返回非空的话表示正在读,如果返回null表示已经读到文件结尾的地方while (reader.next(key, value)) {//打印同步点的位置信息String syncMark = reader.syncSeen() ? "*" : "";System.out.printf("[%s\t%s]\t%s\t%s\n", posion, syncMark, key, value);posion = reader.getPosition();}} finally {IOUtils.closeStream(reader);}}/*** 写Sequence File 文件** @param outputFile* @throws IOException*/private static void writeSequenceFile(String outputFile) throws IOException {Configuration config = new Configuration();Path path = new Path(outputFile);IntWritable key = new IntWritable();Text value = new Text();SequenceFile.Writer writer = null;try {FileSystem fs = FileSystem.get(URI.create(outputFile), config);writer = SequenceFile.createWriter(fs, config, path, key.getClass(), value.getClass());for (int i = 1; i < 2000; i++) {key.set(2000 - i);value.set(testArray[i % testArray.length]);System.out.printf("[%s]\t%s\t%s\n", writer.getLength() + "", key, value);// 通过Append方法进行写操作writer.append(key, value);}} finally {IOUtils.closeStream(writer);}}
}
