系统分析与设计HW5

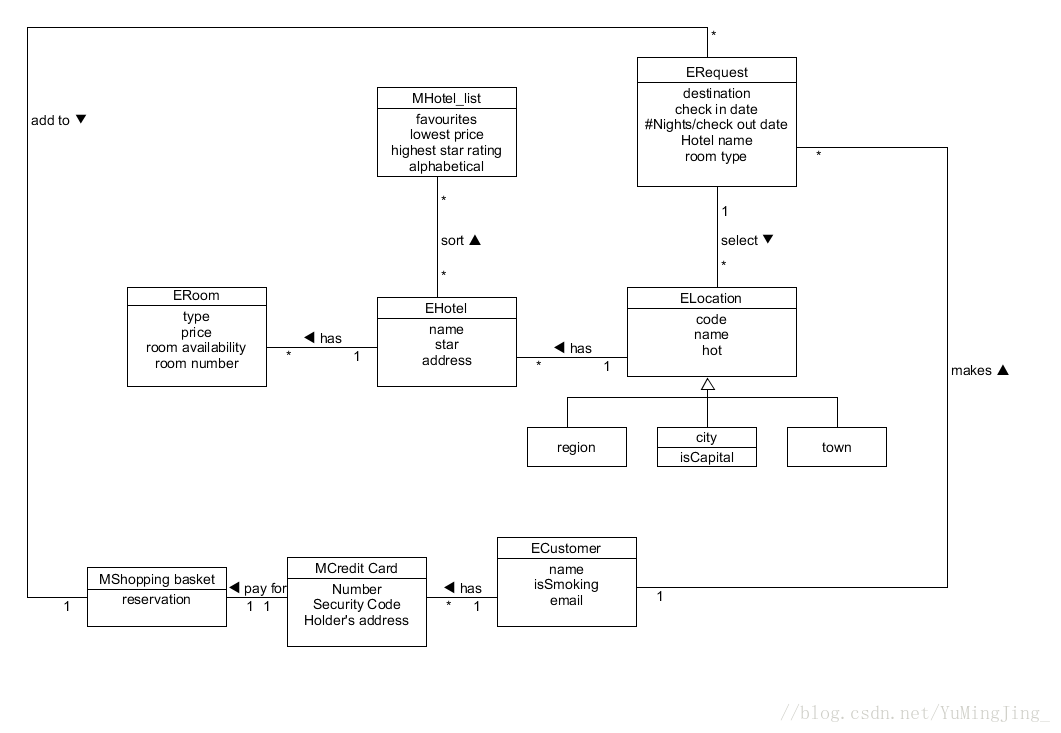

a. 阅读 Asg_RH 文档，按用例构建领域模型。

b.数据库建模(E-R 模型)
1.按 Task 3 要求，给出系统的 E-R 模型（数据逻辑模型）

2.导出 Mysql 物理数据库的脚本

/*==============================================================*/
/* DBMS name:      Sybase SQL Anywhere 12                       */
/* Created on:     2018/4/29 0:37:12                            */
/*==============================================================*/if exists(select 1 from sys.sysforeignkey where role='FK_HOTEL_REFERENCE_LOCATION') thenalter table Hoteldelete foreign key FK_HOTEL_REFERENCE_LOCATION
end if;if exists(select 1 from sys.sysforeignkey where role='FK_RESERVAT_REFERENCE_CUSTOMER') thenalter table Reservationdelete foreign key FK_RESERVAT_REFERENCE_CUSTOMER
end if;if exists(select 1 from sys.sysforeignkey where role='FK_RESERVAT_REFERENCE_HOTEL') thenalter table Reservationdelete foreign key FK_RESERVAT_REFERENCE_HOTEL
end if;if exists(select 1 from sys.sysforeignkey where role='FK_RESERVAT_REFERENCE_ROOM') thenalter table Reservationdelete foreign key FK_RESERVAT_REFERENCE_ROOM
end if;if exists(select 1 from sys.sysforeignkey where role='FK_ROOM_REFERENCE_HOTEL') thenalter table Roomdelete foreign key FK_ROOM_REFERENCE_HOTEL
end if;drop table if exists Customer;drop table if exists Hotel;drop table if exists Location;drop table if exists Reservation;drop table if exists Room;/*==============================================================*/
/* Table: Customer                                              */
/*==============================================================*/
create table Customer
(name                 long varchar                   not null,email                long varchar                   null,isSmoking            char                           null,Customer_ID          int                            not null,constraint PK_CUSTOMER primary key clustered (Customer_ID)
);/*==============================================================*/
/* Table: Hotel                                                 */
/*==============================================================*/
create table Hotel
(name                 long varchar                   not null,star                 int                            null,address              long varchar                   null,hotel_ID             int                            not null,"city code"          int                            null,constraint PK_HOTEL primary key clustered (hotel_ID)
);/*==============================================================*/
/* Table: Location                                              */
/*==============================================================*/
create table Location
(code                 int                            not null,name                 char                           null,hot                  int                            null,constraint PK_LOCATION primary key clustered (code)
);/*==============================================================*/
/* Table: Reservation                                           */
/*==============================================================*/
create table Reservation
(reservation_ID       int                            not null,Customer_ID          int                            null,hotel_ID             int                            null,RoomID               int                            null,"in date"            date                           null,"out date"           date                           null,constraint PK_RESERVATION primary key clustered (reservation_ID)
);/*==============================================================*/
/* Table: Room                                                  */
/*==============================================================*/
create table Room
(RoomID               int                            not null,hotel_ID             int                            null,price                double                         null,availability         char                           null,type                 long varchar                   null,constraint PK_ROOM primary key clustered (RoomID)
);alter table Hoteladd constraint FK_HOTEL_REFERENCE_LOCATION foreign key ("city code")references Location (code)on update restricton delete restrict;alter table Reservationadd constraint FK_RESERVAT_REFERENCE_CUSTOMER foreign key (Customer_ID)references Customer (Customer_ID)on update restricton delete restrict;alter table Reservationadd constraint FK_RESERVAT_REFERENCE_HOTEL foreign key (hotel_ID)references Hotel (hotel_ID)on update restricton delete restrict;alter table Reservationadd constraint FK_RESERVAT_REFERENCE_ROOM foreign key (RoomID)references Room (RoomID)on update restricton delete restrict;alter table Roomadd constraint FK_ROOM_REFERENCE_HOTEL foreign key (hotel_ID)references Hotel (hotel_ID)on update restricton delete restrict;

3.简单叙说 数据库逻辑模型 与 领域模型 的异同
领域模型阐述领域中的概念类或词汇，通俗的说，概念类是思想，事物或对象。领域模型不是数据模型（通过对数据模型的定义来表示存储于某处的持久性数据），所以在领域模型内，并不会排除需求中没有明确记录其相关信息的类（这是对关系数据库进行数据建模的常见标准，但与领域建模无关），也不会排除没有属性的概念类，例如，没有属性的概念类是合法的，或者在领域内充当纯行为角色而不是信息角色的概念类也是有效的。
