系统分析与设计第五次作业

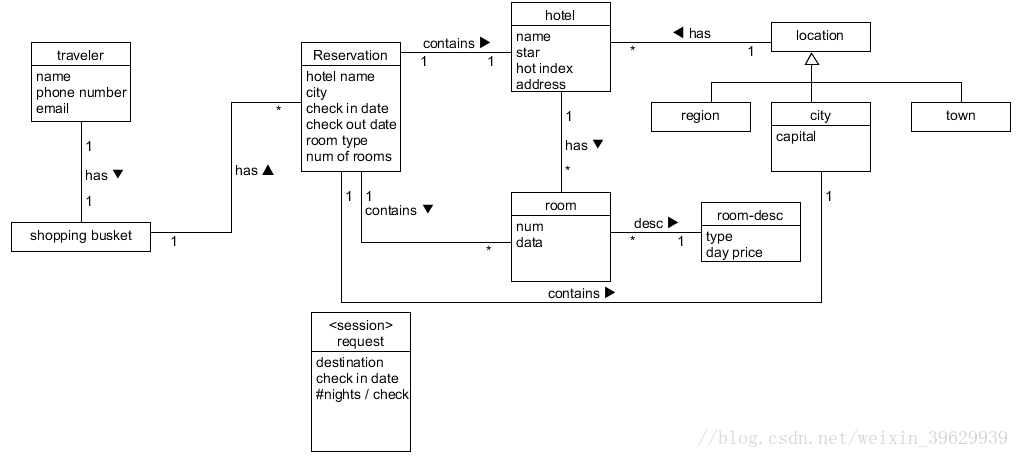

• a. 阅读 Asg_RH 文档，按用例构建领域模型。

  • 按 Task2 要求，请使用工具 UMLet，截图格式务必是 png 并控制尺寸

• b. 数据库建模(E-R 模型)

  • 按 Task 3 要求，给出系统的 E-R 模型（数据逻辑模型）

  • 导出 Mysql 物理数据库的脚本

drop table if exists Customer;drop table if exists hotel;drop table if exists location;drop table if exists request;drop table if exists reservation;drop table if exists room;drop table if exists "room-desc";drop table if exists "shopping-busket";/*==============================================================*/
/* Table: Customer                                              */
/*==============================================================*/
create table Customer
(name                 text                           null,"phone number"       text                           null,email                text                           null,id                   integer                        not null,constraint PK_CUSTOMER primary key clustered (id)
);/*==============================================================*/
/* Table: hotel                                                 */
/*==============================================================*/
create table hotel
(name                 text                           not null,star                 binary                         null,"hot index"          integer                        null,address              text                           null,constraint PK_HOTEL primary key clustered (name)
);/*==============================================================*/
/* Table: location                                              */
/*==============================================================*/
create table location
(id                   integer                        null,region               text                           null,city                 text                           null,town                 text                           null
);/*==============================================================*/
/* Table: request                                               */
/*==============================================================*/
create table request
(id                   integer                        not null,"customer id"        integer                        null,destination          text                           null,"check out date"     date                           null,"number of night"    integer                        null,constraint PK_REQUEST primary key clustered (id)
);/*==============================================================*/
/* Table: reservation                                           */
/*==============================================================*/
create table reservation
(id                   integer                        not null,"hotel name"         text                           null,city                 text                           null,"check in date"      date                           null,"check out date"     date                           null,"room type"          text                           null,"number of rooms"    integer                        null,constraint PK_RESERVATION primary key clustered (id)
);/*==============================================================*/
/* Table: room                                                  */
/*==============================================================*/
create table room
(id                   integer                        not null,num                  integer                        null,data                 integer                        null,constraint PK_ROOM primary key clustered (id)
);/*==============================================================*/
/* Table: "room-desc"                                           */
/*==============================================================*/
create table "room-desc"
(type                 text                           not null,"day price"          float                          null,"room id"            integer                        null,constraint "PK_ROOM-DESC" primary key clustered (type)
);/*==============================================================*/
/* Table: "shopping-busket"                                     */
/*==============================================================*/
create table "shopping-busket"
(id                   integer                        not null,"customer id"        integer                        null,"reservation id"     integer                        null,constraint "PK_SHOPPING-BUSKET" primary key clustered (id)
);alter table requestadd constraint FK_REQUEST_REFERENCE_CUSTOMER foreign key ("customer id")references Customer (id)on update restricton delete restrict;alter table reservationadd constraint FK_RESERVAT_REFERENCE_HOTEL foreign key ("hotel name")references hotel (name)on update restricton delete restrict;alter table reservationadd constraint "FK_RESERVAT_REFERENCE_ROOM-DES" foreign key ("room type")references "room-desc" (type)on update restricton delete restrict;alter table "room-desc"add constraint "FK_ROOM-DES_REFERENCE_ROOM" foreign key ("room id")references room (id)on update restricton delete restrict;alter table "shopping-busket"add constraint FK_SHOPPING_REFERENCE_CUSTOMER foreign key ("customer id")references Customer (id)on update restricton delete restrict;alter table "shopping-busket"add constraint FK_SHOPPING_REFERENCE_RESERVAT foreign key ("reservation id")references reservation (id)on update restricton delete restrict;

• 简单叙说 数据库逻辑模型 与 领域模型 的异同

  • 相同点：两种模型都是描述实体、实体拥有的属性以及实体之间的关系。
  • 不同点：领域建模更加注重的是业务领域的内容，表达能力更强；而数据库逻辑模型更加具体，描述了属性的类型、表的主键、表之间的约束等问题。
