深圳大学数据库实验四 基于Django框架实现

更好的阅读体验

Using mysql and php to implement the Leasing Luxury Database system

具体文档

界面效果

模板源自Appseed 的 Datta Able Django

GitHub地址：https://github.com/Misaka-9982-coder/Django_db_crud
如果喜欢这个项目的话，欢迎为我的GitHub仓库点个star，你的支持是对我最大的鼓励~

如何运行

在setting.py中修改默认数据库

DATABASES = {'default': {'ENGINE': 'django.db.backends.mysql','NAME': '数据库名称','USER': '用户名','PASSWORD': '密码','HOST': 'localhost','PORT': '3306',}
}

在命令行中输入以下命令

# 安装 mysql 驱动
sudo pip3 install pymysql
# 安装 simpleui
sudo pip3 install django-simpleui

加载lab4.sql文件中的存储过程触发器导入数据库

配置Django环境

$ pip install virtualenv
$
$ # Virtualenv modules installation (Unix based systems)
$ virtualenv env
$ source env/bin/activate
$
$ # Virtualenv modules installation (Windows based systems)
$ # virtualenv env
$ # .\env\Scripts\activate
$
$ pip3 install -r requirements.txt
$
$ # Create tables
$ python manage.py makemigrations
$ python manage.py migrate
$
$ # Start the application (development mode)
$ python manage.py runserver # default port 8000
$
$ # Start the app - custom port
$ # python manage.py runserver 0.0.0.0:<your_port>
$
$ # Access the web app in browser: http://127.0.0.1:8000/

数据表设计

designer ( id, name, price)

bag ( id, designer_id, type, color, already_rented )

customer ( id, phone#, address, name, email, card#, gender)

lease ( id, bag_id, customer_id, start_date, back_date, insure_or_not )

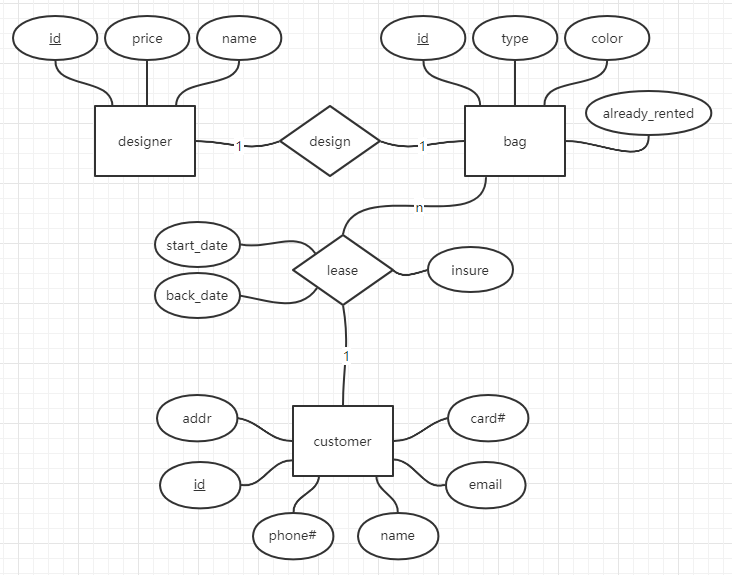

ER图 如下：

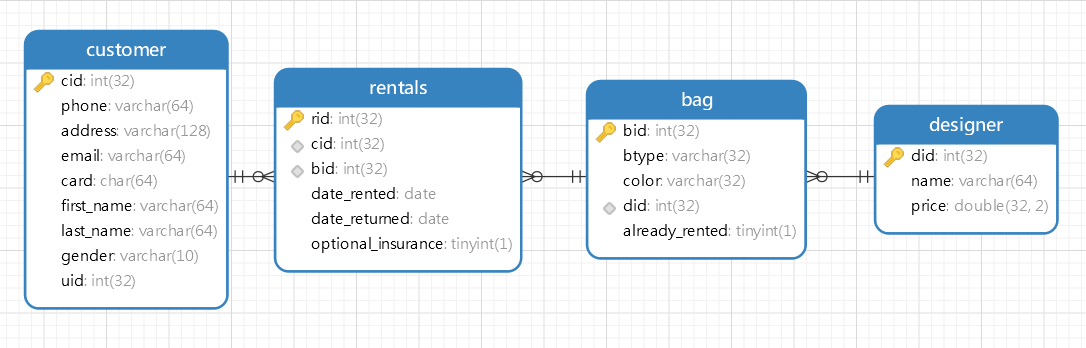

Navicat 模型图如下：

需求及功能 ：

1. 通过设计师名字 检索出该设计师设计过多少包
2. 查询每个客户每个客户所有手袋的租赁时间。
3. 编写一个程序来计算和列出每个顾客的消费金额。放映这个包租出去的天数
4. 添加出租信息的表和包表，租用日期是当前时间
5. 包被退回的时候，显示出租的总时长和总金额，包可以再次被出租
6. 为所有异常设计并显示适当的消息

存储过程设计

 --返回所有表的表名
show_all_tables()				--传入表名，返回指定表的数据
show_table(tableName) 			--传入表名，返回指定表的表头字段
show_columns_from_table(tableName)--获取所有客户id
get_customers_id()	--获取所有设计师名字
get_designers_name()				 --传入设计师名字，获取指定设计师设计的背包
bag_by_designer(designer)			--按照客户租赁所有包包的总天数排序显示客户
best_customers()					    --传入用户id，根据用户id计算用户每个租赁交易应支付金额
report_customer_amount(customer_id)	--传入用户id，根据用户id计算用户所有租赁交易应支付总额
report_customer_totalCost(customer_id)--传入用户id，包包id，是否支付保险，租用天数，添加一笔租赁交易
add_rentals(customerId, bagId, optionalInsurance, daysOfRent)--传入包包类型，颜色，设计者，添加一个可以租赁的包包
add_bag(bagType, bagColor, bagDesigner)--传入设计师的名字， 每个包包的价格， 添加一个设计师
add_designer(dname, price)		--传入客户姓氏，名字, 地址，电话号码，邮箱地址，信用卡号码，性别
add_customer(lname,fname, addr, pnum ,email, cnum, gender).....
详见 lab4.sql 文件

触发器设计

returnBag
-- 退回包包的时候，该包包的状态应该恢复可以租借
-- 在触发器中设置 totalDays 记录总租借日期 ， bill 记录总的账单金额
-- 退回包包的时候 通过调用select @totalDays, @bill 来获取这两个值

功能设计

1. 通过设计师名字 检索出该设计师设计过多少包

在数据库中设置好存储过程

/*存储过程创建显示每个设计师设计了多少包传入参数  designer  为该设计师名字
*/
delimiter //
create procedure bag_by_designer(in designer varchar(30))
beginselect btype as 'Name', color as 'Color', d.name as 'Manufacturer' from bag as bleft join designer as don b.did = d.didwhere d.name = designer;
end //
delimiter;

在 urls.py 文件中设置好路由

path('bag_views', views.bag_views, name="bags_views"),

在views.py文件中定义好 bag_views 函数

def bag_views(request):# 记录信息， 返回前端msg = Nonesuccess = Trueif request.method == "GET":# 获取设计师 姓名name = request.GET.get('designer_name')cur = connection.cursor()# 获取所有设计师姓名cur.callproc('get_designers_name')data = cur.fetchall()# 将所有设计师姓名存进元组names = []for da in data:names.append(da[0])if name is not None:# 该姓名存在if name in names:success = Trueelse:success = Falseif success:# 执行存储过程，获取该设计师所有的包包cur2 = connection.cursor()cur2.callproc('bag_by_designer', (name,))objss = cur2.fetchall()msg = name + "'s bags are all here"else:msg = "Designer " + name + " doesn't exits"return render(request, 'home/bag_views.html', locals())

创建如下前端页面：

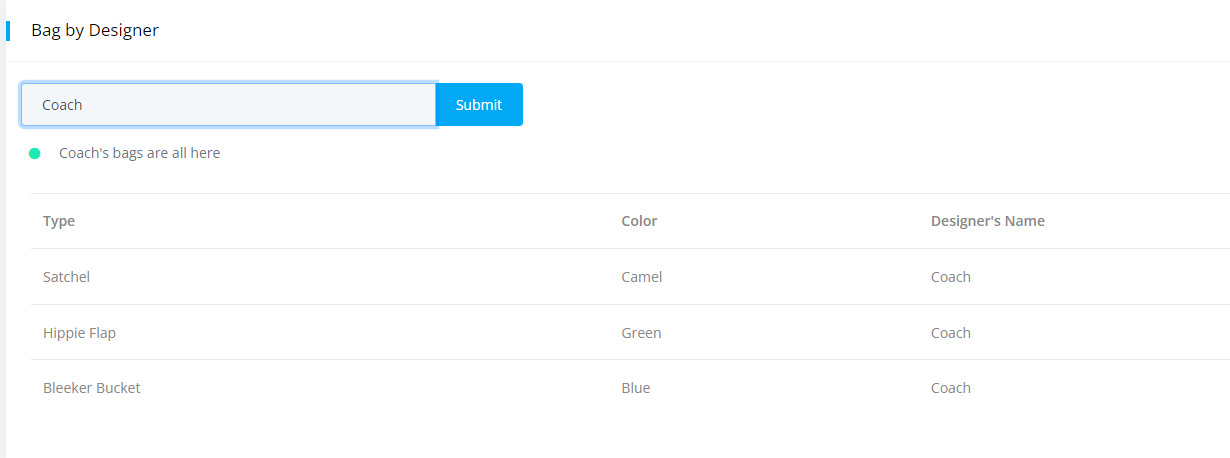

输入设计师 Coach 的名字，得如下结果：

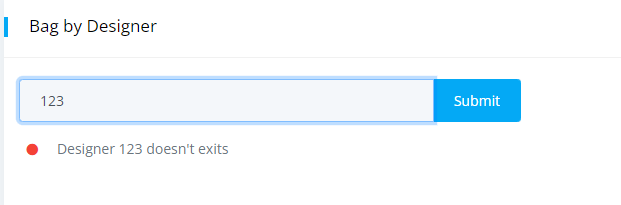

异常测试：

输入客户 id 查询每个客户每个客户所有手袋的租赁时间。

在数据库中设置好存储过程

/*存储过程创建 按照所有交易总租赁奢侈包总天数排序 显示客户
*/
delimiter //
create procedure best_customers()
begin select last_name as 'Last Name',first_name as 'First Name',address as 'Address',phone as 'Telephone',ifnull(sum(datediff( date_returned, date_rented)), 0) as 'Total Length of Rentals' from customer as c left join rentals as r on c.cid = r.cid group by c.cid order by `Total Length of Rentals` desc;
end //
delimiter;

在 urls.py 文件中设置好路由

path('best_customer', views.best_customer, name="best_customer"),

在views.py文件中定义好 best_customer 函数

def best_customer(request):# 调用存储过程，返回前端cur = connection.cursor()cur.callproc("best_customers")datas = cur.fetchall()return render(request, 'home/best_customer.html', locals())

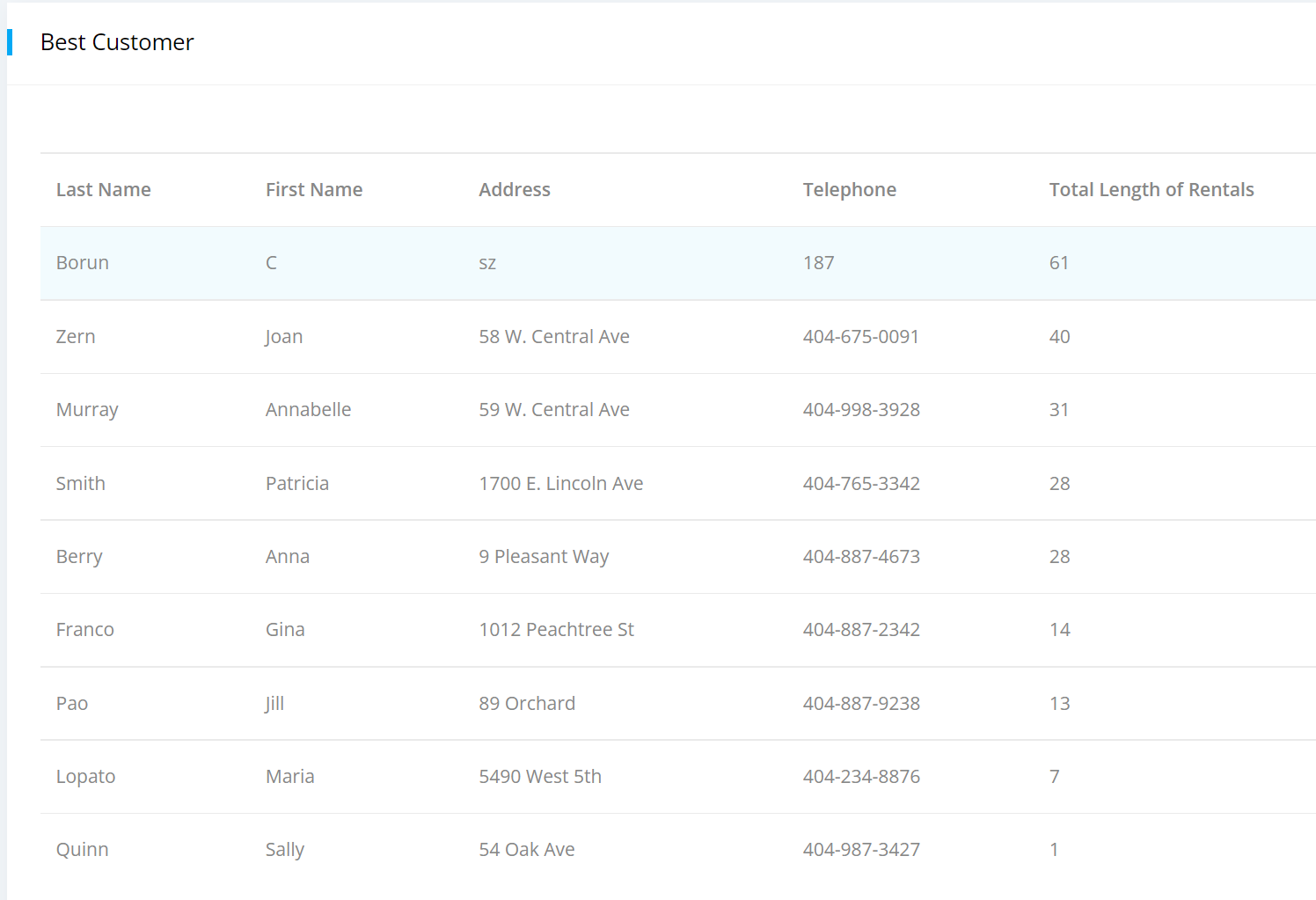

创建如下前端页面

编写一个程序来计算和列出每个顾客的消费金额。放映这个包租出去的天数

在数据库中设置好存储过程

/*存储过程按照用户 id 计算 用户每个租赁交易应支付 账单金额 从大到小排序传入参数为用户 id
*/
delimiter //
create procedure report_customer_amount(in customer_id int(32))
beginselect c.last_name as 'Last Name',c.first_name as 'First Name',d.name as 'Manufacturer',b.btype as 'Name',datediff( r.date_returned, r.date_rented) as 'totalDays',(d.price + r.optional_insurance) * datediff( r.date_returned, r.date_rented) as 'Cost'from rentals as r left join customer as c on r.cid = c.cid left join bag as b on r.bid = b.bid left join designer as d on d.did = b.did where r.cid = customer_idorder by Cost desc;end //
delimiter;-- call report_customer_amount(17);/*存储过程按照用户 id 计算 用户所有租赁交易应支付 账单金额 传入参数为用户 id
*/
delimiter //
create procedure report_customer_totalCost(in customer_id int(32))
beginselect c.last_name as 'Last Name',c.first_name as 'First Name',sum((d.price + r.optional_insurance) * datediff( r.date_returned, r.date_rented)) as totalCostfrom rentals as r left join customer as c on r.cid = c.cid left join bag as b on r.bid = b.bid left join designer as d on d.did = b.did where r.cid = customer_id;
end //
delimiter;

在 urls.py 文件中设置好路由

path('customers_amount', views.customers_amount, name="customers_amount"),

在views.py文件中定义好 customers_amount 函数

@login_required(login_url="/login/")
def customers_amount(request):msg = Nonesuccess = Trueif request.method == "GET":# 获取前端输入的用户 idcustomer_id = request.GET.get('customer_id')if customer_id is not None: # 输入的 id 为 str 类， 应该强制类型转换id = int(customer_id)# 执行存储过程， 获取所有的 用户 idcur = connection.cursor()cur.callproc('get_customers_id')data = cur.fetchall()cur.close()# 将所有用户 id 存进元组ids = []for da in data:ids.append(da[0])if id is not None:if id in ids:# 这个用户 id 存在success = Trueelse:success = Falseif success:cur2 = connection.cursor()cur3 = connection.cursor()# 获取该用户所有租赁信息cur2.callproc('report_customer_amount', (id,))# 获取该用户所有租赁账单总金额cur3.callproc('report_customer_totalCost', (id,))amounts = cur2.fetchall()totalCosts = cur3.fetchall()cur2.close()cur3.close()cost = totalCosts[0][2]msg = "The customer whose id is " + customer_id + "'s bill"else:msg = "The customer whose id is " + customer_id + " doesn't exits"return render(request, 'home/customers_amount.html', locals())

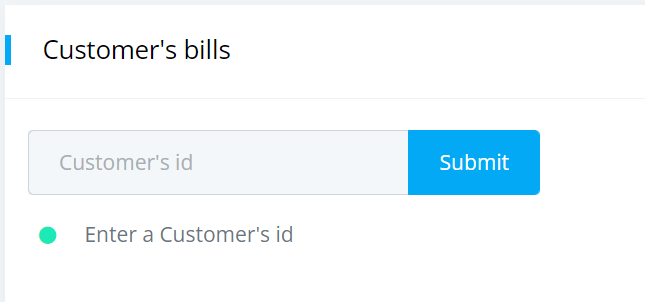

创建如下前端页面：

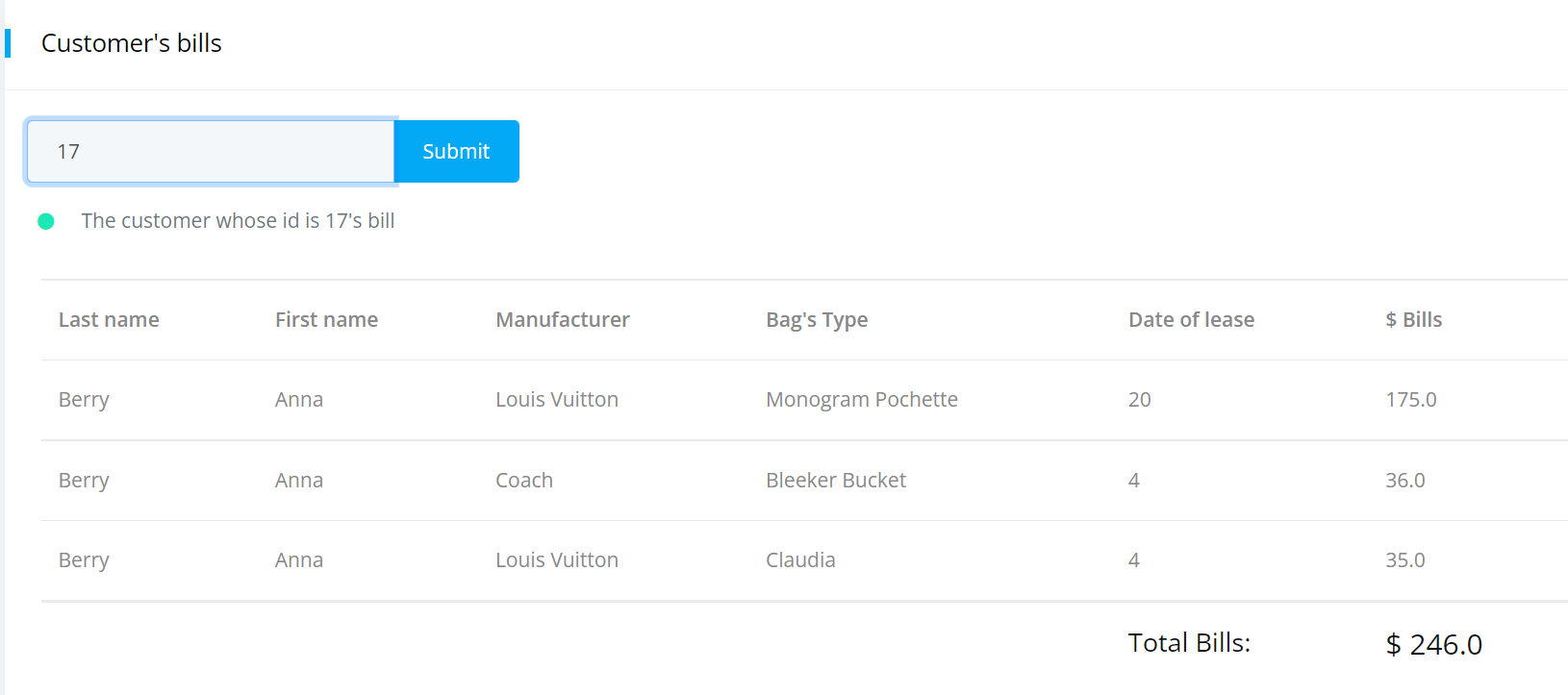

输入客户id，得如下结果

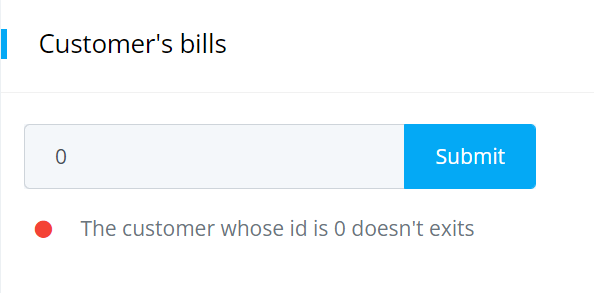

异常情况测试

添加包

存储过程

/*存储过程新建一个奢侈品背包传入参数为  包的类型， 包的颜色， 包的设计者
*/
delimiter //
create procedure add_bag(bagType varchar(30), bagColor varchar(10), bagDesigner varchar(30))
begininsert into bag( btype, color, did) values ( bagType, bagColor, (select did from designerwhere name = bagDesigner));
end //
delimiter;

在 urls.py 文件中设置好路由

path('add_bag', views.add_bag, name="add_bag"),

在views.py文件中定义好 add_bag 函数

@login_required(login_url="/login/")
def add_bag(request):msg = Noneflag = Truesuccess = Trueif request.method == "POST":# 获取前端输入的包包 信息bname = request.POST.get('bag_name')bcolor = request.POST.get('bag_color')dname = request.POST.get('designer_name')bprice = request.POST.get('price_per_day')try:# 将价格转为 浮点数dprice = float(bprice)except:msg = "please enter a current number"success = Falseif success:# 获取所有设计师名字cur = connection.cursor()cur.callproc('get_designers_name')data = cur.fetchall()cur.close()d_names = []for i in data:d_names.append(i[0])cur = connection.cursor()if dname in d_names:# 该设计师 存在cur.callproc('get_designer_price', (dname,),)data = cur.fetchall()price = data[0][0]# 价格不公道if dprice != price:msg = "The price is not equal to this designer's price"flag = Falseelse:# 设计师不存在， 添加一个设计师cur.callproc('add_designer', (dname, dprice),)cur.close()if flag:# 添加包包cur = connection.cursor()cur.callproc("add_bag", (bname, bcolor, dname))cur.close()msg = 'Success - please <a href="/">return</a>.'return render(request, 'home/add_bag.html', locals())

创建如下前端页面

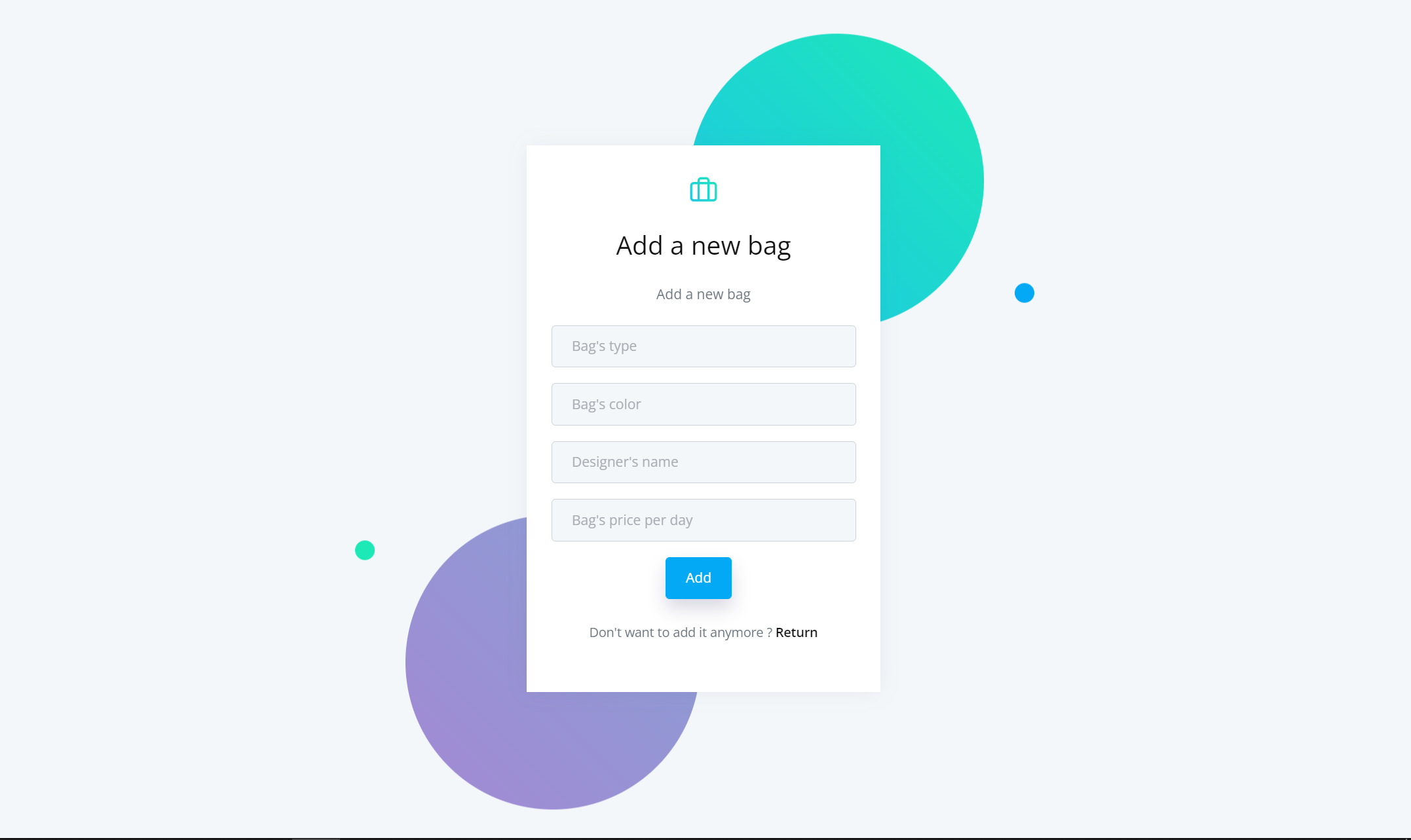

添加包包

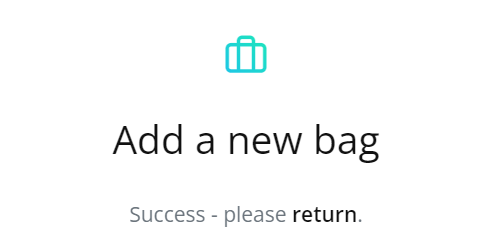

添加成功

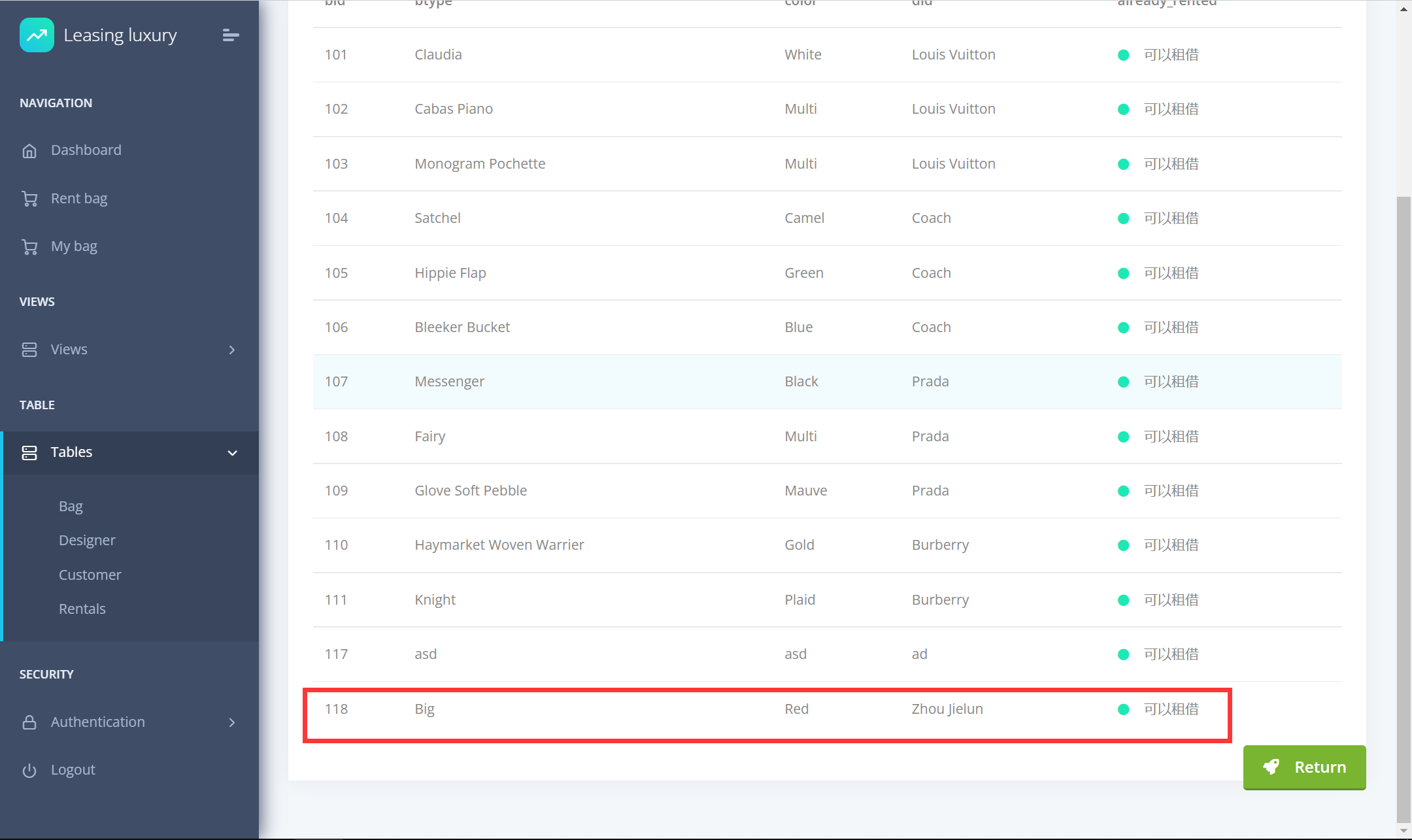

在包包表格中可以看到如下信息

添加出租信息的表，租用日期是当前时间

包被退回的时候，显示出租的总时长和总金额，包可以再次被出租

存储过程

/*存储过程创建租赁交易记录传入参数为用户 id， 奢侈品 id， 是否支付保险， 租赁天数
*/
delimiter //
create  procedure add_rentals(customerId int(32), bagId int(32), optionalInsurance tinyint(1), daysOfRent int(10))
begininsert into rentals(cid, bid, date_rented, date_returned, optional_insurance) values (customerId, bagId, curdate(), curdate() + daysOfRent, optionalInsurance);update bag set already_rented = 1 where bid = bagId;
end //
delimiter;

在 urls.py 文件中设置好路由

path('rent_bag', views.rent_bag, name="rent_bag"),
path('mybag', views.mybag, name="mybag"),

在views.py文件中定义好 rent_bag、mybag 函数

@login_required(login_url="/login/")
def rent_bag(request):msg = Nonesuccess = Trueflag = True# bag 属性名data = Bag._meta.fieldscolumns = [data[i].name for i in range(len(data))]# 获取所有包objs = Bag.objects.all()# 当前 user iduid = request.user.id# 获取 uid 对应的 customer 表信息customer = Customer.objects.filter(uid = uid).first()if customer is None: # 当前用户 没有补充个人信息flag = Falsemsg = 'Please improve your personal information - <a href="/customer_register"> Profile </a>'success = Falseif flag:# 获取 cid cid = customer.cidif request.method == "POST":# 获取前端返回的 信息bagid = request.POST.get("bag_id")days = request.POST.get("days")insurance = request.POST.get("insurance")cur = connection.cursor()try:# 添加租赁信息 cur.callproc('add_rentals', (cid, bagid, insurance, days),)msg = "Rent bag: " + bagid + " Success"except:# 存储过程执行可能会遇到些问题，为解决msg = "Please enter how many days you want to rent"success = Falsereturn render(request, 'home/rent_bag.html', locals())@login_required(login_url="/login/")
def mybag(request):msg = Nonesuccess = True# 获取 已经租出去的 包包bags = Bag.objects.filter(already_rented = 1)bids = []for bag in bags:bids.append(bag.bid)# uid uid = request.user.id# 当前 user 的 customer 信息customer = Customer.objects.filter(uid = uid).first()cid = customer.cidif customer is None:# 当前用户未补充个人信息msg = 'Please improve your personal information - <a href="/customer_register"> Profile </a>'return render(request, 'home/page-404.html', locals())else:# 获取 被租出的包的信息rentals = Rentals.objects.filter(bid__in=bids)# 按照 归还日期从大到小排序rents = list(rentals.filter(cid = cid).order_by("-date_returned"))ids = []bids = []# 对租赁账单信息去重， 只保留归还日期最新的for rent in rents:if rent.bid.bid not in bids:bids.append(rent.bid.bid)ids.append(rent.bid)if request.method == "POST":# 获取要归还的包包的 bidbid = request.POST.get("bag_id")    # 获取对应账单的信息rids = list(rentals.filter(cid = cid, bid = bid).order_by("-date_returned"))rid = rids[0].ridcur = connection.cursor()# ids 元组中存在的 归还的 bid 删去for id in ids:print(id)if id.bid == int(bid):ids.remove(id)cur.callproc("turnBack", (rid,),)# 获取触发器返回的信息            data = cur.fetchall()cur.close()days = data[0][0]bill = data[0][1]msg = datamsg = "The bag id : " + str(bid) + ", total days you rent it : " + str(days) + ", the bill you should pay : $" + str(bill)return render(request, 'home/mybag.html', locals())

触发器

/*触发器创建会话变量 totalDays，billtotalDays   记录总的租赁天数bill        记录租赁期间应付账单金额update      语句更新包的租赁状态退回包包后可以通过执行 select 语句获取会话变量的值
*/
delimiter //
create trigger returnBag after update on rentals for each row
begin declare pricePerday double(10,2);set @totalDays = 0;set @bill = 0.00;if new.date_returned then select price into pricePerday from bag as b, designer dwhere b.bid = new.bidand b.did = d.did;select datediff(new.date_returned, new.date_rented) into @totalDays;select (pricePerday + new.optional_insurance) * @totalDays into @bill;end if;update bag set already_rented = false where bid = new.bid;
end //
delimiter;

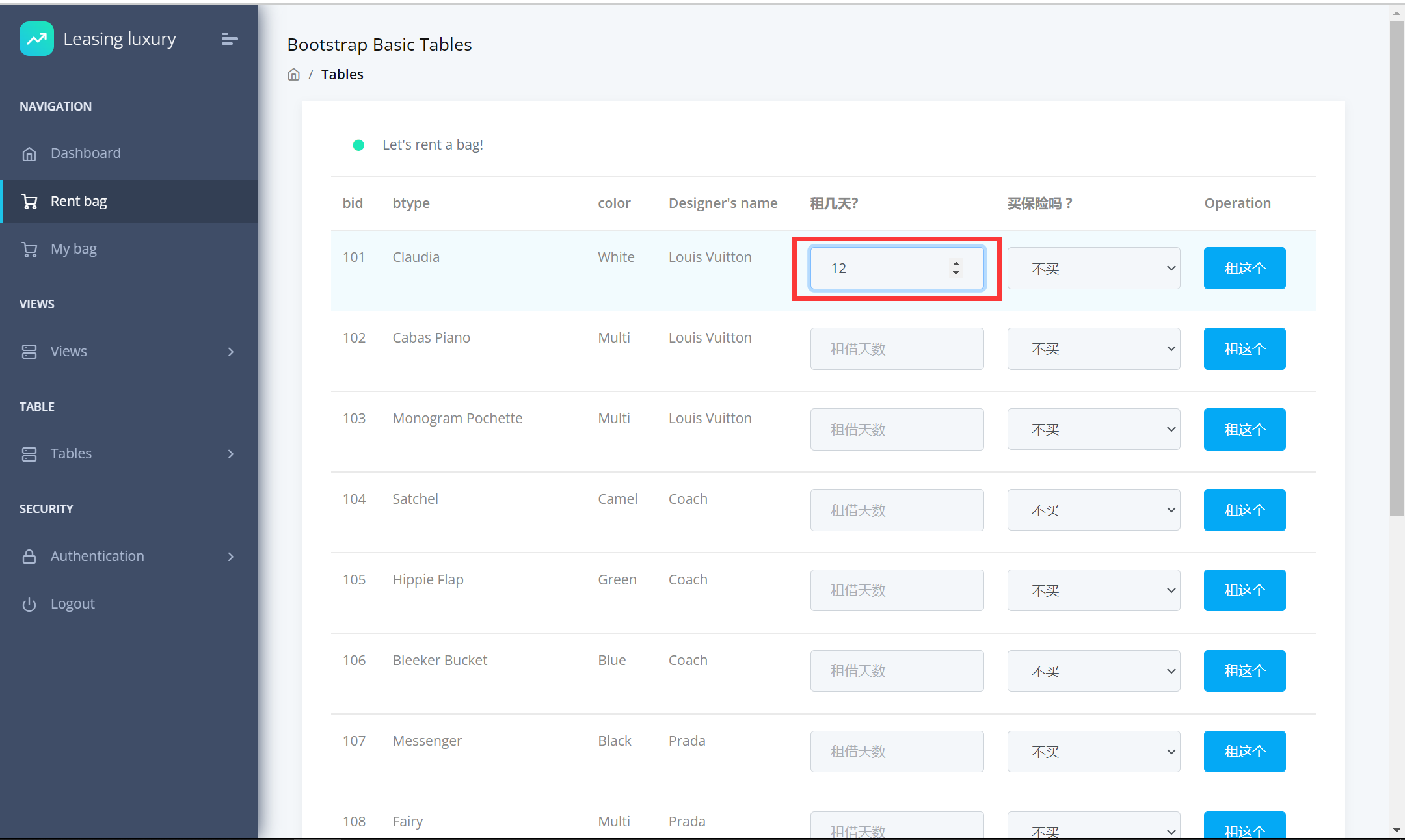

租包

成功

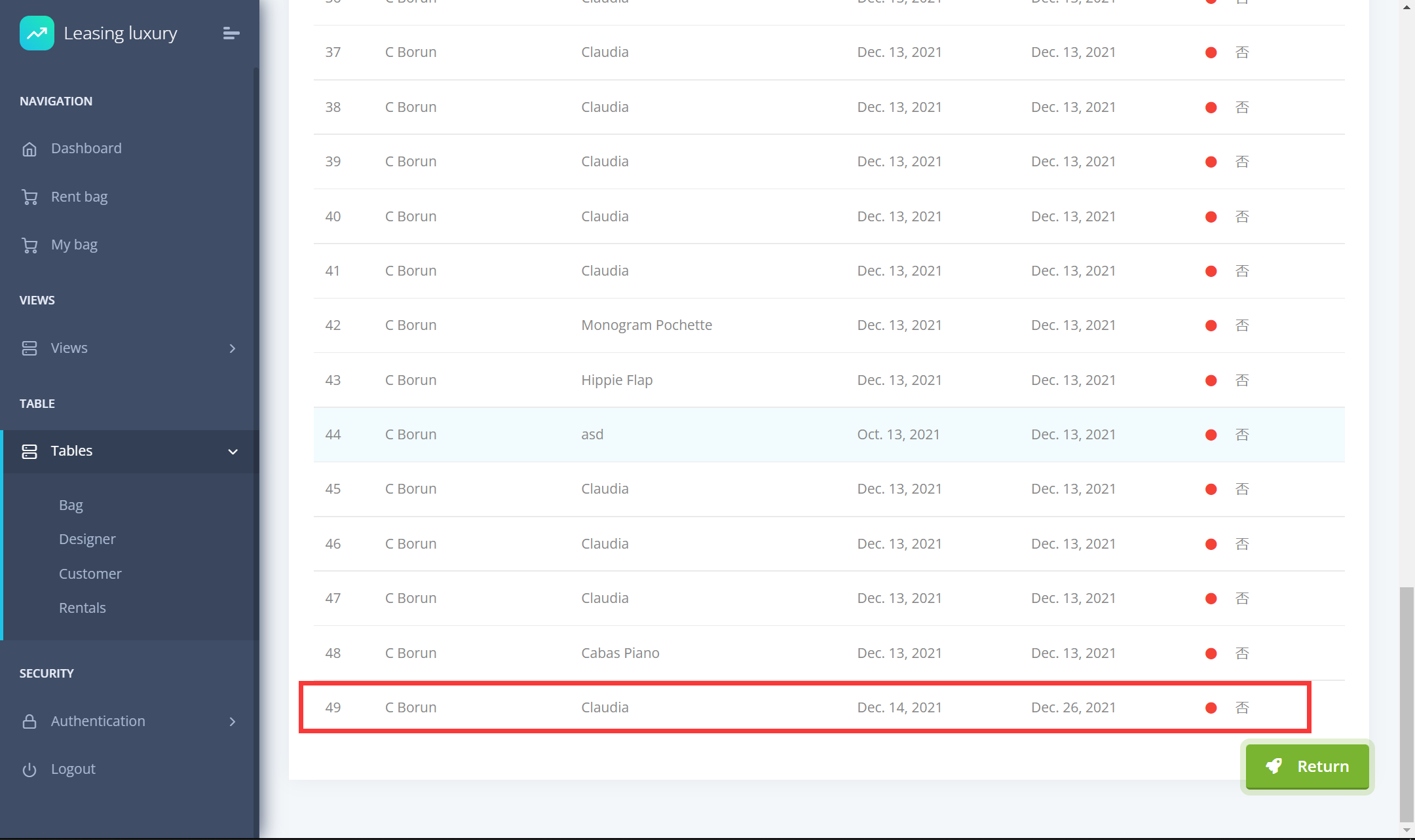

租赁账单信息

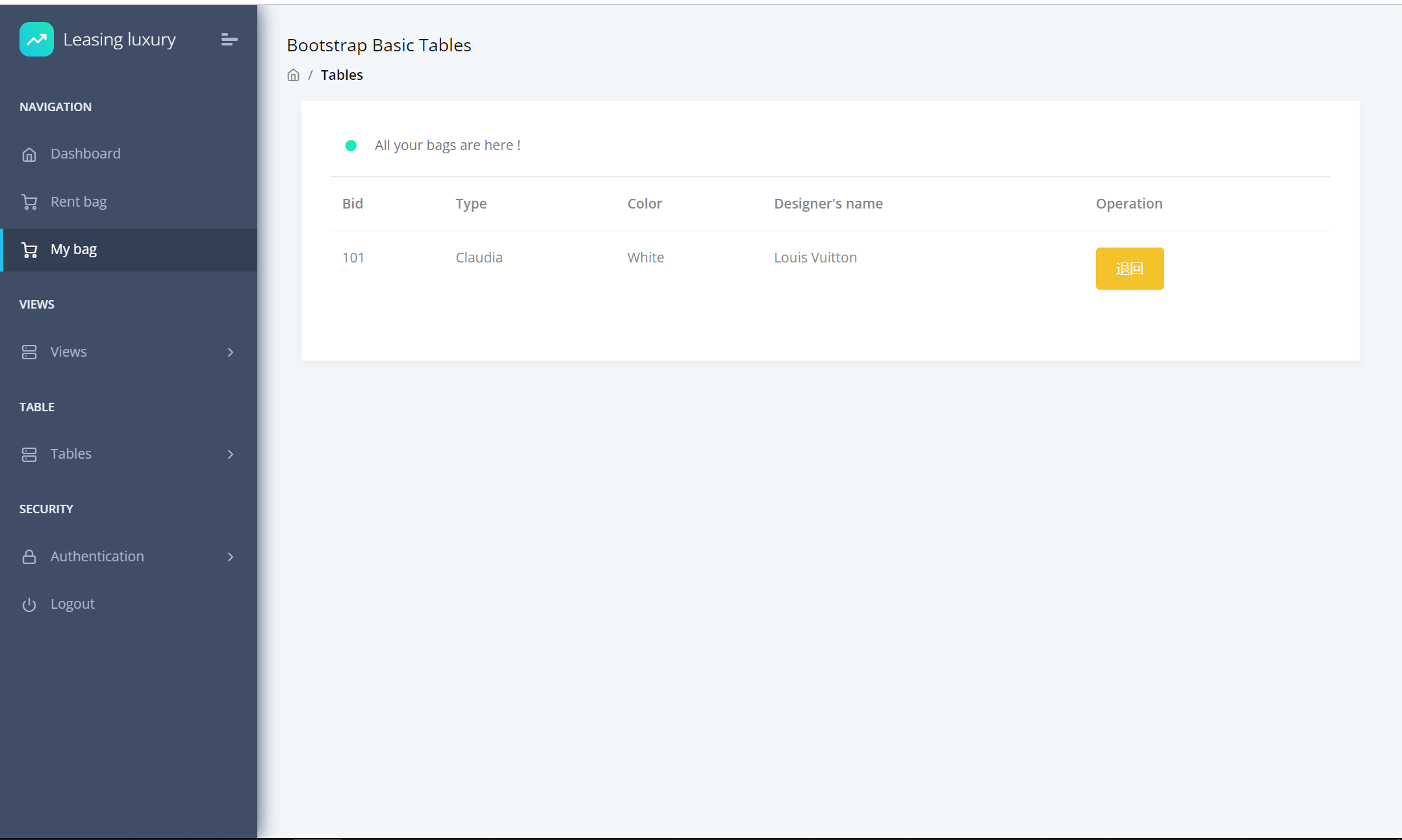

个人已租包包信息

退回，且退回成功

其余功能模块不再赘述~
