SSM项目配置bean、整合MyBatis的xml文件（itheima），别诧异，架构怎么越来越倒退了...

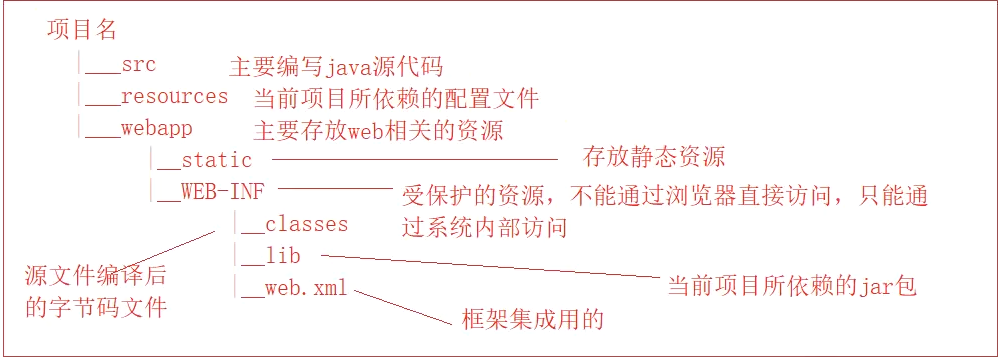

非maven工程，工程架构图如下

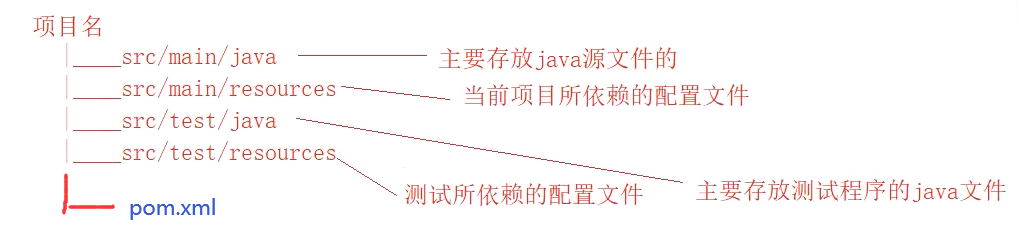

 maven工程一般结构

applicationContext.xml

别诧异，维护旧项目，新增需求需要了解SSM项目...

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:tx="http://www.springframework.org/schema/tx"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd"><!--主程序对应的配置文件--><!--开启bean注解扫描--><context:component-scan base-package="com.itheima"><context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/></context:component-scan><!--开启注解式事务--><tx:annotation-driven transaction-manager="txManager"/><!--加载properties文件--><context:property-placeholder location="classpath*:jdbc.properties"/><!--数据源--><bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"><property name="driverClassName" value="${jdbc.driver}"/><property name="url" value="${jdbc.url}"/><property name="username" value="${jdbc.username}"/><property name="password" value="${jdbc.password}"/></bean><!--整合mybatis到spring中--><bean class="org.mybatis.spring.SqlSessionFactoryBean"><property name="dataSource" ref="dataSource"/><property name="typeAliasesPackage" value="com.itheima.domain"/><!--分页插件--><property name="plugins"><array><bean class="com.github.pagehelper.PageInterceptor"><property name="properties"><props><prop key="helperDialect">mysql</prop><prop key="reasonable">true</prop></props></property></bean></array></property></bean><!--映射扫描--><bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"><property name="basePackage" value="com.itheima.dao"/></bean><!--事务管理器--><bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"><property name="dataSource" ref="dataSource"/></bean></beans>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"><mvc:annotation-driven/><context:component-scan base-package="com.itheima.controller"/></beans>

如何转变成maven项目呢？

示例service层拆分

service层src下的resource配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:context="http://www.springframework.org/schema/context"xmlns:tx="http://www.springframework.org/schema/tx"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd"><!--开启bean注解扫描--><context:component-scan base-package="com.itheima"/><!--开启注解式事务--><tx:annotation-driven transaction-manager="txManager"/><!--事务管理器--><bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"><property name="dataSource" ref="dataSource"/></bean></beans>

pom.xml贴一下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.itheima</groupId><artifactId>ssm_service</artifactId><version>1.0-SNAPSHOT</version><properties><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><maven.compiler.source>1.8</maven.compiler.source><maven.compiler.target>1.8</maven.compiler.target></properties><dependencies><!--导入资源文件dao--><dependency><groupId>com.itheima</groupId><artifactId>ssm_dao</artifactId><version>1.0-SNAPSHOT</version></dependency><!--spring环境--><!--spring环境--><!--spring环境--><dependency><groupId>org.springframework</groupId><artifactId>spring-context</artifactId><version>5.1.9.RELEASE</version></dependency><!--其他组件--><!--其他组件--><!--其他组件--><!--junit单元测试--><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>4.12</version></dependency><!--spring整合junit--><dependency><groupId>org.springframework</groupId><artifactId>spring-test</artifactId><version>5.1.9.RELEASE</version></dependency></dependencies></project>
