背景介绍
本系列通过学习SpringStateMachine中附带的10余个Sample来学习SpringStateMachine中的各个概念和用法。项目是使用的分支为2.2.0.RELEASE[1]。项目参考文档也是2.2.0.RELEASE[1]。
TURN STILE简介

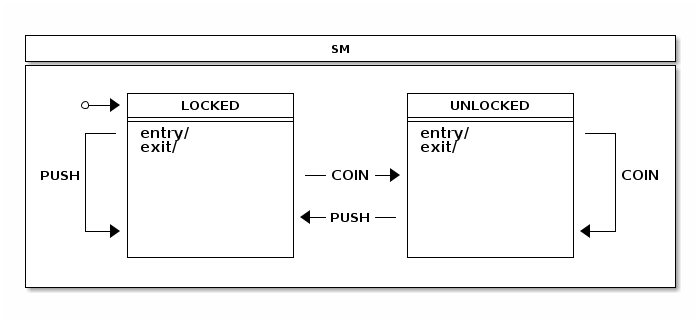

turnstile是对体育场入口或地铁入口的旋转栅门构建的状态机。
状态机的两种状态:
- LOCKED
- UNLOCKED
状态机的两种事件
- COIN
- PUSH
触发相应事件后发生状态转换。
TURN STILE 依赖
项目在实现上述功能时,需要依赖springshell,官方给出的demo[4]使用了spring-shell1.2,本文将其改为spring-shell 2.0.0.RELEASE。
<dependency><groupId>org.springframework.statemachine</groupId><artifactId>spring-statemachine-core</artifactId><version>2.2.0.RELEASE</version></dependency><dependency><groupId>org.springframework.shell</groupId><artifactId>spring-shell-starter</artifactId><version>2.0.0.RELEASE</version></dependency>
TURN STILE 实现
为了实现本例,我们需要描述状态及其转换。首先定义状态与事件枚举类型。
状态枚举类型:
public enum States {LOCKED, UNLOCKED
}
使状态发生变化的事件枚举类型:
public enum Events {COIN, PUSH
}
接着我们配置状态与转换。
package springboot.statemachine.example.turnstile.demo;import org.springframework.context.annotation.Configuration;
import org.springframework.statemachine.config.EnableStateMachine;
import org.springframework.statemachine.config.EnumStateMachineConfigurerAdapter;
import org.springframework.statemachine.config.builders.StateMachineStateConfigurer;
import org.springframework.statemachine.config.builders.StateMachineTransitionConfigurer;import java.util.EnumSet;@Configuration
@EnableStateMachine
public class StateMachineConfigextends EnumStateMachineConfigurerAdapter<States, Events> {@Overridepublic void configure(StateMachineStateConfigurer<States, Events> states)throws Exception {states.withStates().initial(States.LOCKED).states(EnumSet.allOf(States.class));}@Overridepublic void configure(StateMachineTransitionConfigurer<States, Events> transitions)throws Exception {transitions.withExternal().source(States.LOCKED).target(States.UNLOCKED).event(Events.COIN).and().withExternal().source(States.UNLOCKED).target(States.LOCKED).event(Events.PUSH);}}
在配置状态与转换时用到如下的注解与类:
- @Configuration
- @EnableStateMachine
- EnumStateMachineConfigurerAdapter
代码继承EnumStateMachineConfigurerAdapter类,并覆盖两个configure方法,在这两个方法中分别来配置转换与状态列表同时指定好初始状态。
随后在创建的类上增加@EnableStateMachine与@Configuration注解,通过这些创建状态机实例,系统随后会检测是否使用了adapter类,并在运行时根据这些配置修改状态机。
statemachine中有三种形式的转换(transition)external, internal, local。
这里我们使用了withExternal,返回一个ExternalTransitionConfigurer来完成转换的配置。target方法指定了目标状态,source指定了源状态,event指定了使状态发生变更的事件。
最后是命令实现。这里对StateMachineCommands官方demo[5]进行了小修改。最后通过stateMachine的sendEvent方法发送事件,使状态机状态发生变化。
import org.springframework.shell.standard.ShellComponent;
import org.springframework.shell.standard.ShellMethod;
import springboot.statemachine.example.AbstractStateMachineCommands;@ShellComponent
public class StateMachineCommands extends AbstractStateMachineCommands<States, Events> {@ShellMethod(key = "sm event", value = "Sends an event to a state machine")public String event(Events event) {getStateMachine().sendEvent(event);return "Event " + event + " send";}
}
此外将官方AbstractStateMachineCommands[6]中打印turn stile字符图形的部分去掉了。
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.shell.standard.ShellMethod;
import org.springframework.statemachine.StateMachine;
import org.springframework.statemachine.state.State;
import org.springframework.util.StringUtils;import java.util.Iterator;
import java.util.Map.Entry;
import java.util.Set;public class AbstractStateMachineCommands<S, E>{@Autowiredprivate StateMachine<S, E> stateMachine;protected StateMachine<S, E> getStateMachine() {return stateMachine;}@ShellMethod(key = "sm state", value = "Prints current state")public String state() {State<S, E> state = stateMachine.getState();if (state != null) {return StringUtils.collectionToCommaDelimitedString(state.getIds());} else {return "No state";}}@ShellMethod(key = "sm start", value = "Start a state machine")public String start() {stateMachine.start();return "State machine started";}@ShellMethod(key = "sm stop", value = "Stop a state machine")public String stop() {stateMachine.stop();return "State machine stopped";}@ShellMethod(key = "sm variables", value = "Prints extended state variables")public String variables() {StringBuilder buf = new StringBuilder();Set<Entry<Object, Object>> entrySet = stateMachine.getExtendedState().getVariables().entrySet();Iterator<Entry<Object, Object>> iterator = entrySet.iterator();if (entrySet.size() > 0) {while (iterator.hasNext()) {Entry<Object, Object> e = iterator.next();buf.append(e.getKey() + "=" + e.getValue());if (iterator.hasNext()) {buf.append("\n");}}} else {buf.append("No variables");}return buf.toString();}}
验证
发送不同的命令触发事件,并查看状态机当前状态,发现状态正确发生变化。
State machine started
shell:>sm event COIN
Event COIN send
shell:>sm event PUSH
Event PUSH send
shell:>sm start
State machine started
shell:>sm state
LOCKED
shell:>sm event COIN
Event COIN send
shell:>sm state
UNLOCKED
shell:>sm event PUSH
Event PUSH send
shell:>sm state
LOCKED
shell:>sm event PUSH
Event PUSH send
shell:>sm state
LOCKED
shell:>sm state COIN
LOCKED
shell:>sm state
LOCKED
shell:>sm start
State machine started
shell:>sm state
LOCKED
shell:>sm stop
总结
通过turnstile这个例子学习了基础的概念及相关配置。通过
- @Configuration,
- @EnableStateMachine,
- EnumStateMachineConfigurerAdapter
完成配置及创建单实例。实现触发事件使状态机当前状态发生变化,从源状态到目标状态变化。
参考
[1]2.2.0.RELEASE source,https://github.com/spring-projects/spring-statemachine/blob/2.2.0.RELEASE/
[2]2.2.0.RELEASE/reference,https://docs.spring.io/spring-statemachine/docs/2.2.0.RELEASE/reference
[3]turnstile,https://docs.spring.io/spring-statemachine/docs/2.2.0.RELEASE/reference/#statemachine-examples-turnstile
[4]turnstile demo,https://github.com/spring-projects/spring-statemachine/tree/2.2.0.RELEASE/spring-statemachine-samples/turnstile/src/main/java/demo/turnstile
[5]StateMachineCommands,https://github.com/spring-projects/spring-statemachine/blob/2.2.0.RELEASE/spring-statemachine-samples/turnstile/src/main/java/demo/turnstile/StateMachineCommands.java
[6]AbstractStateMachineCommands,https://github.com/spring-projects/spring-statemachine/blob/2.2.0.RELEASE/spring-statemachine-samples/src/main/java/demo/AbstractStateMachineCommands.java
