Android 5.1 vold模块ntfs扩展

2023-12-24 12:50
文章标签 模块 android 扩展 ntfs 5.1 vold

本文主要是介绍Android 5.1 vold模块ntfs扩展，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

准备

需要下载ntfs-3g驱动包，并做相应修改，这个网上已经可以下载到修改好的包，本文最后也会附加。

为什么要移植

在Android原生代码中，只支持了FAT格式的挂载，并未支持NTFS格式的存储设备挂载。一般来说，在手机上并不需要实现这种功能，但是在机顶盒上，USB挂载却是必须的。那为了达到这种目的，一种比较便捷的解决办法就是移植现有的驱动以支持当前的系统，NTFS-3G在Android上无疑是一个可以使用的方案。
【疑问】如果我们不移植，有没有办法使用NTFS功能？其实也是可以的，或者说部分可以，我们在源码中进入Kernel目录下去执行Make menuconfig(海思平台在：Hi3796MV100-2015-2-3-CP058\device\hisilicon\bigfish\sdk\source\kernel\linux-3.10.y，Broadcom平台：kernel位于源码根目录下android\kernel\private\97xxx-bcm\linux)，

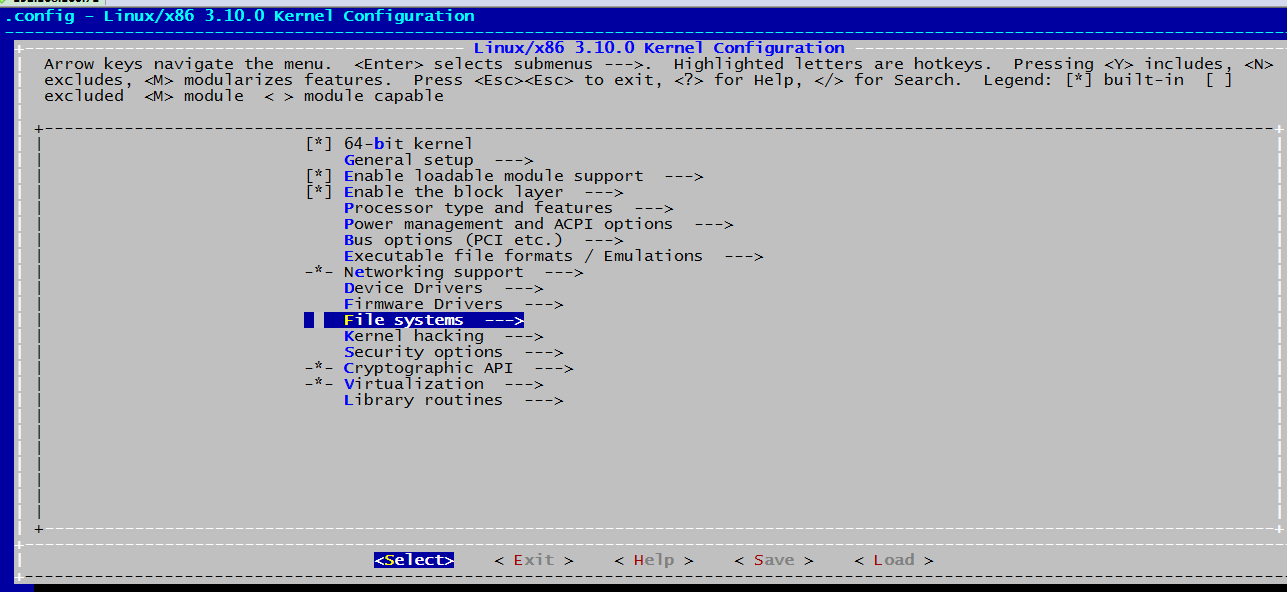

make menuconfig界面如下：
这里写图片描述

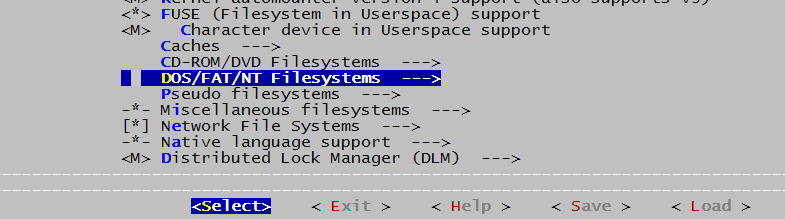

继续：
这里写图片描述
把这些功能打开：
这里写图片描述
然后打开ntfs支持选项，重新编译内核，会生成一个ko文件，将编译的内核文件重新烧写到盒子中，在进入到device目录下去使用Mount命令手动挂在插入的usb节点同样可以达到挂在上的目的，但是这个也只能说试试而已，实际离开串口调试没法用。

移植

我们将下载的这个驱动源码放到Android系统源码的external目录下（Broadcom\android\external\ntfs-3g），然后执行mm编译会生成ntfs-3g和ntfsfix两个bin文件，我们把它拷贝到/system/bin下并修改相应权限重启机顶盒，即可以使用该功能（只是有了驱动基础，具体要实现当U盘挂载，仍然需要修改系统源码，主要是VOLD模块，后面说明）。

1.在Broadcom\android-5.1\system\vold添加Ntfs.h

#ifndef _NTFS_H
#define _NTFS_H#include <unistd.h>class Ntfs {
public:static int check(const char *fsPath);static int doMount(const char *fsPath, const char *mountPoint, bool ro,bool remount, int ownerUid, int ownerGid, int permMask,bool createLost);static int format(const char *fsPath, unsigned int numSectors);
};#endif

2.接着实现头文件：

#include <stdio.h>
#include <stdlib.h>
#include <fcntl.h>
#include <unistd.h>
#include <errno.h>
#include <string.h>
#include <dirent.h>
#include <errno.h>
#include <fcntl.h>#include <sys/types.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <sys/mman.h>
#include <sys/mount.h>#include <linux/kdev_t.h>#define LOG_TAG "Vold"#include <cutils/log.h>
#include <cutils/properties.h>
#include <logwrap/logwrap.h>
#include "Ntfs.h"extern "C" int logwrap(int argc, const char **argv, int background);
extern "C" int mount(const char *, const char *, const char *, unsigned long, const void *);#define NTFS_3G_PATH "/system/bin/ntfs-3g"int Ntfs::check(const char *fsPath) {// no NTFS file system check is performed, always return trueSLOGI("Ntfs filesystem: Skipping fs checks\n");return 0;}int Ntfs::doMount(const char *fsPath, const char *mountPoint,bool ro, bool remount, int ownerUid, int ownerGid,int permMask, bool createLost) {int rc;unsigned long flags;char mountData[255];flags = MS_NODEV | MS_NOEXEC | MS_NOSUID | MS_DIRSYNC;flags |= (ro ? MS_RDONLY : 0);flags |= (remount ? MS_REMOUNT : 0);
#if 0/** Note: This is a temporary hack. If the sampling profiler is enabled,* we make the SD card world-writable so any process can write snapshots.** TODO: Remove this code once we have a drop box in system_server.*/char value[PROPERTY_VALUE_MAX];property_get("persist.sampling_profiler", value, "");if (value[0] == '1') {SLOGW("The SD card is world-writable because the"" 'persist.sampling_profiler' system property is set to '1'.");permMask = 0;}sprintf(mountData,"uid=%d,gid=%d,fmask=%o,dmask=%o,nls=utf8",ownerUid, ownerGid, permMask, permMask);rc = mount(fsPath, mountPoint, "ntfs", flags, "");#else   SLOGE("mount ntfs block by ntfs-3g", fsPath);sprintf(mountData,"uid=%d,gid=%d,fmask=%o,dmask=%o,nls=utf8",ownerUid, ownerGid, permMask, permMask);const char* args[16];       args[0] = NTFS_3G_PATH;args[1] = fsPath;args[2] = mountPoint;args[3] = "-o";args[4] = mountData;args[5] = NULL;rc = logwrap(5, args, 1);
#endifif(rc) {SLOGE("%s appears to be a read only filesystem - retrying mount RO", fsPath);flags |= MS_RDONLY;rc = mount(fsPath, mountPoint, "ntfs", flags, "");}return rc;
}int Ntfs::format(const char *fsPath, unsigned int numSectors) {SLOGE("Format ntfs filesystem not supported\n");errno = EIO;return -1;
}

在上面的代码中，我们指定了ntfs-3g支持文件的目录：#define NTFS_3G_PATH "/system/bin/ntfs-3g"这个在前面已经说过了。
3.在Volume.cpp中添加：#include "Ntfs.h"
修改挂载和卸载的几个函数：

int Volume::mountVol(const char* devName) {//modify by dongqiang add paramdev_t deviceNodes[4];int n, i, rc = 0;char errmsg[255];int flags = getFlags();bool providesAsec = (flags & VOL_PROVIDES_ASEC) != 0;// TODO: handle "bind" style mounts, for emulated storagechar decrypt_state[PROPERTY_VALUE_MAX];char crypto_state[PROPERTY_VALUE_MAX];char encrypt_progress[PROPERTY_VALUE_MAX];property_get("vold.decrypt", decrypt_state, "");property_get("vold.encrypt_progress", encrypt_progress, "");/* Don't try to mount the volumes if we have not yet entered the disk password* or are in the process of encrypting.*/if ((getState() == Volume::State_NoMedia) ||((!strcmp(decrypt_state, "1") || encrypt_progress[0]) && providesAsec)) {snprintf(errmsg, sizeof(errmsg),"Volume %s %s mount failed - no media",getLabel(), getFuseMountpoint());mVm->getBroadcaster()->sendBroadcast(ResponseCode::VolumeMountFailedNoMedia,errmsg, false);errno = ENODEV;return -1;} else if (getState() != Volume::State_Idle) {errno = EBUSY;if (getState() == Volume::State_Pending) {mRetryMount = true;}return -1;}n = getDeviceNodes((dev_t *) &deviceNodes, 4);if (!n) {SLOGE("Failed to get device nodes (%s)\n", strerror(errno));return -1;}/* If we're running encrypted, and the volume is marked as encryptable and nonremovable,* and also marked as providing Asec storage, then we need to decrypt* that partition, and update the volume object to point to it's new decrypted* block device*/property_get("ro.crypto.state", crypto_state, "");if (providesAsec &&((flags & (VOL_NONREMOVABLE | VOL_ENCRYPTABLE))==(VOL_NONREMOVABLE | VOL_ENCRYPTABLE)) &&!strcmp(crypto_state, "encrypted") && !isDecrypted()) {char new_sys_path[MAXPATHLEN];char nodepath[256];int new_major, new_minor;if (n != 1) {/* We only expect one device node returned when mounting encryptable volumes */SLOGE("Too many device nodes returned when mounting %s\n", getMountpoint());return -1;}if (cryptfs_setup_volume(getLabel(), MAJOR(deviceNodes[0]), MINOR(deviceNodes[0]),new_sys_path, sizeof(new_sys_path),&new_major, &new_minor)) {SLOGE("Cannot setup encryption mapping for %s\n", getMountpoint());return -1;}/* We now have the new sysfs path for the decrypted block device, and the* majore and minor numbers for it.  So, create the device, update the* path to the new sysfs path, and continue.*/snprintf(nodepath,sizeof(nodepath), "/dev/block/vold/%d:%d",new_major, new_minor);if (createDeviceNode(nodepath, new_major , new_minor)) {SLOGE("Error making device node '%s' (%s)", nodepath,strerror(errno));}// Todo: Either create sys filename from nodepath, or pass in bogus path so//       vold ignores state changes on this internal device.updateDeviceInfo(nodepath, new_major , new_minor);/* Get the device nodes again, because they just changed */n = getDeviceNodes((dev_t *) &deviceNodes, 4);if (!n) {SLOGE("Failed to get device nodes (%s)\n", strerror(errno));return -1;}}char finalPath[32] = {0x00};//add by dongqiang for (i = 0; i < n; i++) {char devicePath[255];sprintf(devicePath, "/dev/block/vold/%d:%d", /*major(deviceNodes[i])*/g_major,/*minor(deviceNodes[i])*/g_minor);//modify by dongqiang//add by dongqiang begin const char * path_prefix = "/mnt/media_rw/";const size_t len = strlen(path_prefix) + strlen(devName);char * path = new char[len+1];strcpy(path, path_prefix);strcat(path, devName);int errCode = mkdir(path, 0777);if(g_major == 179) {rmdir(path);}memset(finalPath, 0x00, sizeof(finalPath));if(strstr(devicePath, "179") != NULL) {strcpy(finalPath, "/mnt/media_rw/sdcard1/");} else {strcpy(finalPath, path);}delete(path);//add by dongqiang endSLOGI("%s being considered for volume %s\n", devicePath, getLabel());SLOGI("current mountpoint is %s, fuseMountPoint is %s", getMountpoint(), getFuseMountpoint());errno = 0;setState(Volume::State_Checking);
//add by dongqiang beginint permMask = providesAsec ? 0007 : 0002;bool isNtfsFS = true;        bool isFatFs = true;bool isExtFs = true;bool isExfatFs = true;if (isNtfsFS) {   SLOGI("devicePath:%s ,mountpoint:%s\n", devicePath, getMountpoint());if (Ntfs::doMount(devicePath, finalPath, false, false, AID_MEDIA_RW, AID_MEDIA_RW, permMask, true)) { SLOGE("%s failed to mount via NTFS (%s)\n", devicePath, strerror(errno));                isNtfsFS = false;            } else {                isFatFs = false;                isExtFs = false;                isExfatFs = false;            }        }if (isFatFs) { if (Fat::doMount(devicePath, finalPath, false, false, false,                AID_MEDIA_RW, AID_MEDIA_RW, permMask, true)) {                SLOGE("%s failed to mount via VFAT (%s)\n", devicePath, strerror(errno));                isFatFs = false; } else {                isExtFs = false;                isExfatFs = false;            }        }//add by dongqiang end      errno = 0;int gid;extractMetadata(devicePath);if (providesAsec && mountAsecExternal() != 0) {SLOGE("Failed to mount secure area (%s)", strerror(errno));umount(/*getMountpoint()*/finalPath);setState(Volume::State_Idle);return -1;}char service[64];snprintf(service, 64, "fuse_%s", getLabel());property_set("ctl.start", service);setState(Volume::State_Mounted);mCurrentlyMountedKdev = deviceNodes[i];return 0;}SLOGE("Volume %s found no suitable devices for mounting :(\n", getLabel());setState(Volume::State_Idle);return -1;
}
int Volume::doUnmount(const char *path, bool force) {int retries = 10;if (mDebug) {SLOGD("Unmounting {%s}, force = %d", path, force);}while (retries--) {if (!umount(path) || errno == EINVAL || errno == ENOENT) {SLOGI("%s sucessfully unmounted", path);return 0;}int action = 0;if (force) {if (retries == 1) {action = 2; // SIGKILL} else if (retries == 2) {action = 1; // SIGHUP}}SLOGW("Failed to unmount %s (%s, retries %d, action %d)",path, strerror(errno), retries, action);Process::killProcessesWithOpenFiles(path, action);usleep(1000*1000);}errno = EBUSY;SLOGE("Giving up on unmount %s (%s)", path, strerror(errno));return -1;
}

移除挂载函数：

int Volume::unmountVol(bool force, bool revert, const char* devName) {//add the third param by dongqiangint i, rc;int flags = getFlags();bool providesAsec = (flags & VOL_PROVIDES_ASEC) != 0;
/*if (getState() != Volume::State_Mounted) {SLOGE("Volume %s unmount request when not mounted", getLabel());errno = EINVAL;return UNMOUNT_NOT_MOUNTED_ERR;}
*/setState(Volume::State_Unmounting);usleep(1000 * 1000); // Give the framework some time to reactchar service[64];snprintf(service, 64, "fuse_%s", getLabel());property_set("ctl.stop", service);/* Give it a chance to stop.  I wish we had a synchronous way to determine this... */sleep(3);// TODO: determine failure mode if FUSE times outif (providesAsec && doUnmount(Volume::SEC_ASECDIR_EXT, force) != 0) {SLOGE("Failed to unmount secure area on %s (%s)", getMountpoint(), strerror(errno));goto out_mounted;}//add by dongqiang beginif(strstr(devName, "mmcb")) {if (doUnmount(getFuseMountpoint(), force) != 0) {SLOGE("Failed to unmount %s (%s)", getFuseMountpoint(), strerror(errno));goto fail_remount_secure;}const char* path_pre = "/mnt/media_rw/";char* path = new char[strlen(path_pre) + strlen(devName)];strcpy(path, path_pre);strcat(path, devName);rmdir(path);delete(path);} else {const char* path_pre = "/mnt/media_rw/";char* path = new char[strlen(path_pre) + strlen(devName)];strcpy(path, path_pre);strcat(path, devName);if (doUnmount(path, force) != 0) {SLOGE("Failed to unmount %s (%s)", getFuseMountpoint(), strerror(errno));if(path != NULL) {delete(path);}goto fail_remount_secure;}int rtCode = rmdir(path);delete(path);}//add by dongqiang endif(strstr(devName, "mmcb")) {if (doUnmount(getMountpoint(), force) != 0) {SLOGE("Failed to unmount %s (%s)", getMountpoint(), strerror(errno));goto fail_remount_secure;}sleep(3);const char* path_pre = "/mnt/media_rw/";char* path = new char[strlen(path_pre) + strlen(devName)];strcpy(path, path_pre);strcat(path, devName);rmdir(path);delete(path);} else {const char* path_pre = "/mnt/media_rw/";char* path = new char[strlen(path_pre) + strlen(devName)];strcpy(path, path_pre);strcat(path, devName);if (doUnmount(path, force) != 0) {SLOGE("Failed to unmount %s (%s)", getMountpoint(), strerror(errno));if(path != NULL) {delete(path);}goto fail_remount_secure;}if(path != NULL) {rmdir(path);delete(path);}}SLOGI("%s unmounted successfully", getMountpoint());/* If this is an encrypted volume, and we've been asked to undo* the crypto mapping, then revert the dm-crypt mapping, and revert* the device info to the original values.*/if (revert && isDecrypted()) {cryptfs_revert_volume(getLabel());revertDeviceInfo();SLOGI("Encrypted volume %s reverted successfully", getMountpoint());}setUuid(NULL);setUserLabel(NULL);setState(Volume::State_Idle);mCurrentlyMountedKdev = -1;return 0;fail_remount_secure:if (providesAsec && mountAsecExternal() != 0) {SLOGE("Failed to remount secure area (%s)", strerror(errno));goto out_nomedia;}out_mounted:setState(Volume::State_Mounted);return -1;out_nomedia:setState(Volume::State_NoMedia);return -1;
}

如下函数中主要对全局变量g_major和g_minor进行初始化。

int Volume::createDeviceNode(const char *path, int major, int minor) {//add by dongqiang beging_major = major;g_minor = minor;//add by dongqiang endmode_t mode = 0660 | S_IFBLK;dev_t dev = (major << 8) | minor;if (mknod(path, mode, dev) < 0) {if (errno != EEXIST) {return -1;}}return 0;
}

4.在VolumeManager.cpp中做如下修改(2处)：

int VolumeManager::mountVolume(const char *label) {Volume *v = lookupVolume(label);if (!v) {errno = ENOENT;return -1;}return v->mountVol(devName);//modify by dongqiang ---add param
}int VolumeManager::unmountVolume(const char *label, bool force, bool revert) {Volume *v = lookupVolume(label);if (!v) {errno = ENOENT;return -1;}if (v->getState() == Volume::State_NoMedia) {errno = ENODEV;return -1;}if (v->getState() != Volume::State_Mounted) {SLOGW("Attempt to unmount volume which isn't mounted (%d)\n",v->getState());errno = EBUSY;return UNMOUNT_NOT_MOUNTED_ERR;}cleanupAsec(v, force);return v->unmountVol(force, revert, NULL);//add the third param by dongqiang
}

5.在DirectVolume.cpp中修改如下：
①定义全局变量数组char nameForRm[32] = {0x00};
②


int DirectVolume::handleBlockEvent(NetlinkEvent *evt) {const char *dp = evt->findParam("DEVPATH");PathCollection::iterator  it;for (it = mPaths->begin(); it != mPaths->end(); ++it) {if ((*it)->match(dp)) {/* We can handle this disk */int action = evt->getAction();const char *devtype = evt->findParam("DEVTYPE");if (action == NetlinkEvent::NlActionAdd) {int major = atoi(evt->findParam("MAJOR"));int minor = atoi(evt->findParam("MINOR"));char nodepath[255];snprintf(nodepath,sizeof(nodepath), "/dev/block/vold/%d:%d",major, minor);if (createDeviceNode(nodepath, major, minor)) {SLOGE("Error making device node '%s' (%s)", nodepath,strerror(errno));}if (!strcmp(devtype, "disk")) {handleDiskAdded(dp, evt);} else handlePartitionAdded(dp, evt);}/* Send notification iff disk is ready (ie all partitions found) */if (getState() == Volume::State_Idle) {char msg[255];snprintf(msg, sizeof(msg),"Volume %s %s disk inserted (%d:%d)", getLabel(),getFuseMountpoint(), mDiskMajor, mDiskMinor);mVm->getBroadcaster()->sendBroadcast(ResponseCode::VolumeDiskInserted,msg, false);}} else if (action == NetlinkEvent::NlActionRemove) {if (!strcmp(devtype, "disk")) {handleDiskRemoved(dp, evt);} else {handlePartitionRemoved(dp, evt);}} else if (action == NetlinkEvent::NlActionChange) {if (!strcmp(devtype, "disk")) {handleDiskChanged(dp, evt);} else {handlePartitionChanged(dp, evt);}} else {SLOGW("Ignoring non add/remove/change event");}return 0;}}errno = ENODEV;return -1;
}

处理分区添加：

void DirectVolume::handlePartitionAdded(const char *devpath, NetlinkEvent *evt) {int major = atoi(evt->findParam("MAJOR"));int minor = atoi(evt->findParam("MINOR"));int part_num;const char *tmp = evt->findParam("PARTN");if (tmp) {part_num = atoi(tmp);} else {SLOGW("Kernel block uevent missing 'PARTN'");part_num = 1;}if (part_num > MAX_PARTITIONS || part_num < 1) {SLOGE("Invalid 'PARTN' value");return;}if (part_num > mDiskNumParts) {mDiskNumParts = part_num;}if (major != mDiskMajor) {SLOGE("Partition '%s' has a different major than its disk!", devpath);return;}
#ifdef PARTITION_DEBUGSLOGD("Dv:partAdd: part_num = %d, minor = %d\n", part_num, minor);
#endifif (part_num >= MAX_PARTITIONS) {SLOGE("Dv:partAdd: ignoring part_num = %d (max: %d)\n", part_num, MAX_PARTITIONS-1);} else {if ((mPartMinors[part_num - 1] == -1) && mPendingPartCount)mPendingPartCount--;mPartMinors[part_num -1] = minor;}if (!mPendingPartCount) {
#ifdef PARTITION_DEBUGSLOGD("Dv:partAdd: Got all partitions - ready to rock!");
#endifif (getState() != Volume::State_Formatting) {setState(Volume::State_Idle);if (mRetryMount == true) {mRetryMount = false;mountVol(evt->findParam("DEVNAME"));//modify by dongqiang ----add param}}} else {
#ifdef PARTITION_DEBUGSLOGD("Dv:partAdd: pending %d disk", mPendingPartCount);
#endif}
}

处理disk移除：

void DirectVolume::handleDiskRemoved(const char * /*devpath*/,NetlinkEvent *evt) {int major = atoi(evt->findParam("MAJOR"));int minor = atoi(evt->findParam("MINOR"));char msg[255];bool enabled;if (mVm->shareEnabled(getLabel(), "ums", &enabled) == 0 && enabled) {mVm->unshareVolume(getLabel(), "ums");}SLOGD("handleDiskRemoved, volume %s %s disk %d:%d removed\n", getLabel(), getMountpoint(), major, minor);snprintf(msg, sizeof(msg), "Volume %s %s disk removed (%d:%d)",getLabel(), getFuseMountpoint(), major, minor);mVm->getBroadcaster()->sendBroadcast(ResponseCode::VolumeDiskRemoved,msg, false);setState(Volume::State_NoMedia);if(strstr(nameForRm, evt->findParam("DEVNAME"))) {const char * path_prefix = "/mnt/media_rw/";const size_t len = strlen(path_prefix) + strlen(nameForRm);char * path = new char[len+1];strcpy(path, path_prefix);strcat(path, nameForRm);SLOGD("dq>---------handleDiskRemoved-----path to remove: %s, name=%s", path, nameForRm);Volume::unmountVol(true, false, nameForRm);sleep(3);int code = rmdir(path);SLOGD("handleDiskRemoved,  now remove path: %s, error: %s", path, strerror(code));}
}

处理分区移除：

void DirectVolume::handlePartitionRemoved(const char * /*devpath*/,NetlinkEvent *evt) {int major = atoi(evt->findParam("MAJOR"));int minor = atoi(evt->findParam("MINOR"));char msg[255];int state;const char* devName = evt->findParam("DEVNAME");//modify by dongqiang begin const char * path_prefix = "/mnt/media_rw/";const size_t len = strlen(path_prefix) + strlen(devName);char * path = new char[len+1];strcpy(path, path_prefix);strcat(path, devName);memset(nameForRm, 0x00, sizeof(nameForRm));strcpy(nameForRm, devName);if(major == 179) {//179 sdcardSLOGD("Volume %s %s partition %d:%d removed\n", getLabel(), getMountpoint(), major, minor);} else {//usbSLOGD("Volume %s %s partition %d:%d removed\n", getLabel(), /*getMountpoint()*/path, major, minor);}
//modify by dongqiang end /** The framework doesn't need to get notified of* partition removal unless it's mounted. Otherwise* the removal notification will be sent on the Disk* itself*/state = getState();SLOGD("dq------current state: %d",state);if (state != Volume::State_Mounted && state != Volume::State_Shared) {SLOGE("state !=State_Mounted && state != State_Shared");Volume::unmountVol(true, false, devName);sleep(3);int code = rmdir(path);SLOGD("we now remove path: %s, error: %s", path, strerror(code));delete(path);return;}
//add by dongqiang beginif(path != NULL) {delete(path);}
//add by dongqiang end    if ((dev_t) MKDEV(major, minor) == mCurrentlyMountedKdev) {/** Yikes, our mounted partition is going away!*/bool providesAsec = (getFlags() & VOL_PROVIDES_ASEC) != 0;if (providesAsec && mVm->cleanupAsec(this, true)) {SLOGE("Failed to cleanup ASEC - unmount will probably fail!");}snprintf(msg, sizeof(msg), "Volume %s %s bad removal (%d:%d)",getLabel(), getFuseMountpoint(), major, minor);mVm->getBroadcaster()->sendBroadcast(ResponseCode::VolumeBadRemoval,msg, false);if (Volume::unmountVol(true, false, evt->findParam("DEVNAME"))) {//add the third param by dongqiangSLOGE("Failed to unmount volume on bad removal (%s)", strerror(errno));// XXX: At this point we're screwed for now} else {SLOGD("Crisis averted");}} else if (state == Volume::State_Shared) {/* removed during mass storage */snprintf(msg, sizeof(msg), "Volume %s bad removal (%d:%d)",getLabel(), major, minor);mVm->getBroadcaster()->sendBroadcast(ResponseCode::VolumeBadRemoval,msg, false);if (mVm->unshareVolume(getLabel(), "ums")) {SLOGE("Failed to unshare volume on bad removal (%s)",strerror(errno));} else {SLOGD("Crisis averted");}}
}

6.在Volume.h中修改如下：

//modify by dongqiang, add parameter
int mountVol(const char* devName);
//modify by dongqiang
int unmountVol(bool force, bool revert, const char* devName);//add the third param by dongqiang

然后对代码进行重新编译，将生成的vold文件拷贝到/system/bin下运行。

附件

ntfs-3g驱动支持源码：
http://download.csdn.net/detail/foreversunshine/9616676
编译生成的bin文件：
ntfs-3g
http://download.csdn.net/detail/foreversunshine/9616678
ntfsfix
http://download.csdn.net/detail/foreversunshine/9616731
