一、LayoutAnimation

LayoutAnimationController用于为一个layout里面的控件，或者是一个ViewGroup里面的控件设置动画效果，比如listview，recyclerview的item进入动画，可以在XML文件中设置，亦可以在Java代码中设置。

XML中使用

1、在res.anim.slide_right.xml定义一个动画

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"android:interpolator="@android:anim/accelerate_interpolator"><translate
        android:duration="2000"android:fromXDelta="-100%p"android:toXDelta="0" />
</set>

2、在res.anim.list_anim_layout.xml引用刚才的动画

<layoutAnimation xmlns:android="http://schemas.android.com/apk/res/android"android:animation="@anim/slide_right"android:animationOrder="reverse"android:delay="30%" /><!--Android:delay  子类动画时间间隔 （延迟）   70% 也可以是一个浮点数 如“1.2”等--><!--android:animationOrder="random"   子类的显示方式 random表示随机--><!--android:animationOrder 的取值有--><!--normal  0      默认--><!--reverse 1     倒序--><!--random  2     随机--><!--android:animation="@anim/slide_right" 表示孩子显示时的具体动画是什么-->

说明：其中delay的单位为秒；animation为设置动画的文件。animationOrder为进入方式

3、在viewgroup的XML文件中引用layoutAnimation

    <ListView
        android:id="@+id/listview"android:layout_width="match_parent"android:layout_height="match_parent"android:layoutAnimation="@anim/list_anim_layout" />

java代码中使用：

1．同上；
2． 3. 在Acitivty中添加如下代码：

//通过加载XML动画设置文件来创建一个Animation对象；Animation animation=AnimationUtils.loadAnimation(this, R.anim.list_anim);//得到一个LayoutAnimationController对象；LayoutAnimationController lac=new LayoutAnimationController(animation);//设置控件显示的顺序；lac.setOrder(LayoutAnimationController.ORDER_REVERSE);//设置控件显示间隔时间；lac.setDelay(1);//为ListView设置LayoutAnimationController属性；datalist.setLayoutAnimation(lac);

二、Activity的切换效果

public void overridePendingTransition(int enterAnim, int exitAnim) {...}

Android Activity切换动画是指从Activity A 跳转至Activity B的时候，
Activity A 有退出动画exitAnim，
Activity B 有进入动画enterAnim。

overridePendingTransition 方法必须在startActivity()或者 finish()方法的后面。

如:

Intent intent = new Intent(MainActivity.this, MainActivityI.class);
startActivity(intent);
overridePendingTransition(R.anim.in, R.anim.out);

/*** Call immediately after one of the flavors of {@link #startActivity(Intent)}* or {@link #finish} to specify an explicit transition animation to* perform next.** <p>As of {@link android.os.Build.VERSION_CODES#JELLY_BEAN} an alternative* to using this with starting activities is to supply the desired animation* information through a {@link ActivityOptions} bundle to* {@link #startActivity(Intent, Bundle)} or a related function.  This allows* you to specify a custom animation even when starting an activity from* outside the context of the current top activity.** @param enterAnim A resource ID of the animation resource to use for* the incoming activity.  Use 0 for no animation.//enterAnim:用于进入的activity的动画资源ID，设置为0：没有动画。* @param exitAnim A resource ID of the animation resource to use for* the outgoing activity.  Use 0 for no animation.//用于出去的activity的动画资源ID，设置为0：没有动画。*/public void overridePendingTransition(int enterAnim, int exitAnim) {try {ActivityManagerNative.getDefault().overridePendingTransition(mToken, getPackageName(), enterAnim, exitAnim);} catch (RemoteException e) {}}

例子：

in.xml:

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"><translate
        android:duration="4000"android:fromXDelta="100%p"android:toXDelta="0%p"></translate>
</set>

out.xml:

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"><translate
        android:duration="4000"android:fromXDelta="0%p"android:toXDelta="-100%p"></translate>
</set>

java类：

public class MainActivity extends AppCompatActivity {private TextView tv;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);overridePendingTransition(R.anim.in, R.anim.out);
//        overridePendingTransition(R.anim.in, 0);tv = ((TextView) findViewById(R.id.tv));tv.setText("我是MainActivity === 1111111111111111");
//        overridePendingTransition(R.anim.in, R.anim.out);
//        overridePendingTransition(R.anim.in, 0);tv.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {startActivity(new Intent(MainActivity.this, TwoActivity.class));
//                overridePendingTransition(R.anim.in, R.anim.out);
//                overridePendingTransition(R.anim.in, 0);}});}
}

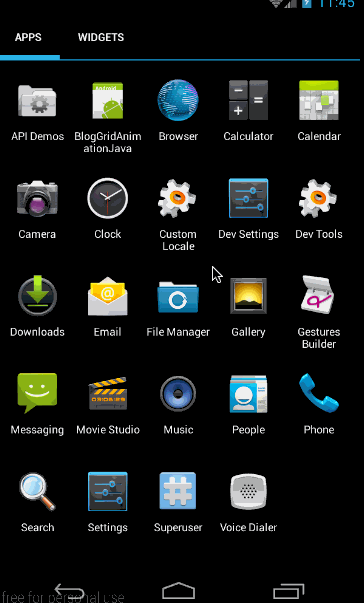

效果图：

Markdown

public class MainActivity extends AppCompatActivity {private TextView tv;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);
//        overridePendingTransition(R.anim.in, R.anim.out);overridePendingTransition(R.anim.in, 0);tv = ((TextView) findViewById(R.id.tv));tv.setText("我是MainActivity === 1111111111111111");
//        overridePendingTransition(R.anim.in, R.anim.out);
//        overridePendingTransition(R.anim.in, 0);tv.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {startActivity(new Intent(MainActivity.this, TwoActivity.class));
//                overridePendingTransition(R.anim.in, R.anim.out);
//                overridePendingTransition(R.anim.in, 0);}});}
}

效果图：
Markdown

public class MainActivity extends AppCompatActivity {private TextView tv;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);
//        overridePendingTransition(R.anim.in, R.anim.out);
//        overridePendingTransition(R.anim.in, 0);tv = ((TextView) findViewById(R.id.tv));tv.setText("我是MainActivity === 1111111111111111");
//        overridePendingTransition(R.anim.in, R.anim.out);
//        overridePendingTransition(R.anim.in, 0);tv.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View v) {startActivity(new Intent(MainActivity.this, TwoActivity.class));overridePendingTransition(R.anim.in, R.anim.out);
//                overridePendingTransition(R.anim.in, 0);}});}
}
