官网: https://help.aliyun.com/document_detail/90754.html?spm=a2c4g.11186623.6.599.771f41d9MaMUqF

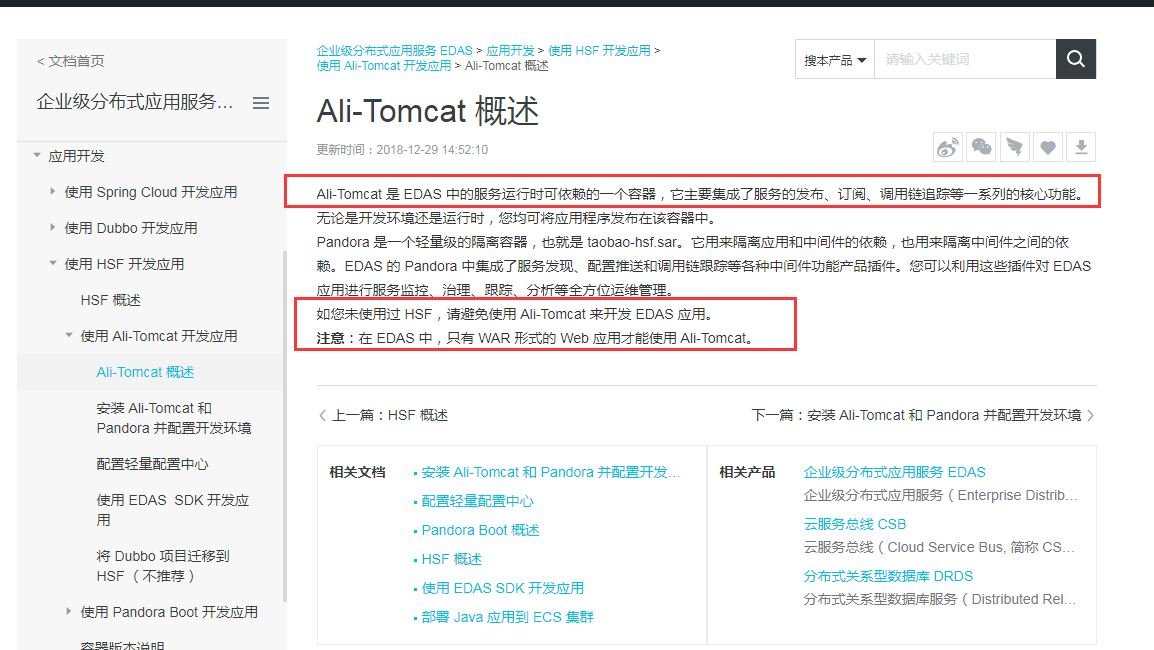

ali-tomcat概述:

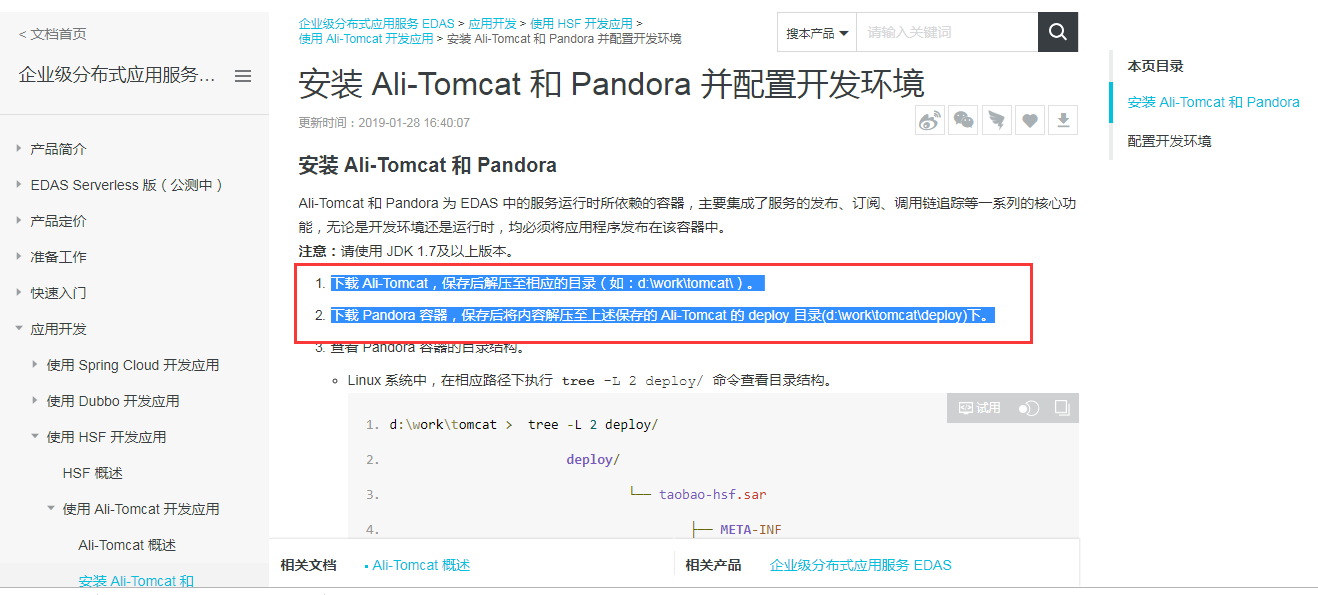

注意:
第二步需要将下载的Pandora容器taobao-hsf.tgz放到/data/ilucky/hsf/taobao-tomcat-7.0.59/deploy目录下，
同时解压缩，最终生成taobao-hsf.sar目录。/data/ilucky/hsf/taobao-tomcat-7.0.59
root@5942:/data/ilucky/hsf/taobao-tomcat-7.0.59# cd deploy/
root@5942:/data/ilucky/hsf/taobao-tomcat-7.0.59/deploy# ls
itemcenter itemcenter.war taobao-hsf.sar taobao-hsf.tgz
root@5942:/data/ilucky/hsf/taobao-tomcat-7.0.59/deploy#

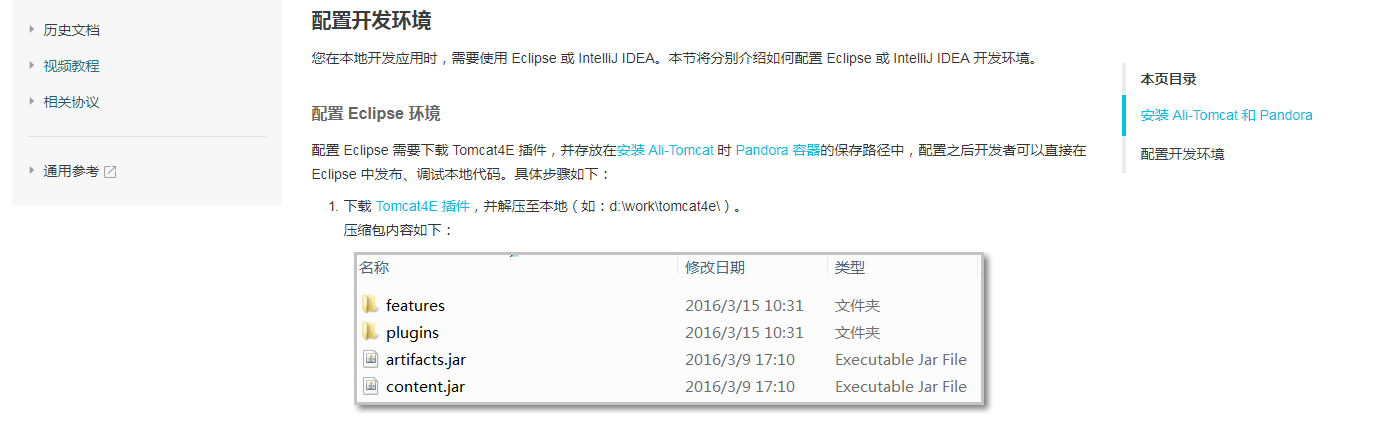

配置开发环境:
配置开发环境，暂时忽略，因为没有开发的需求~

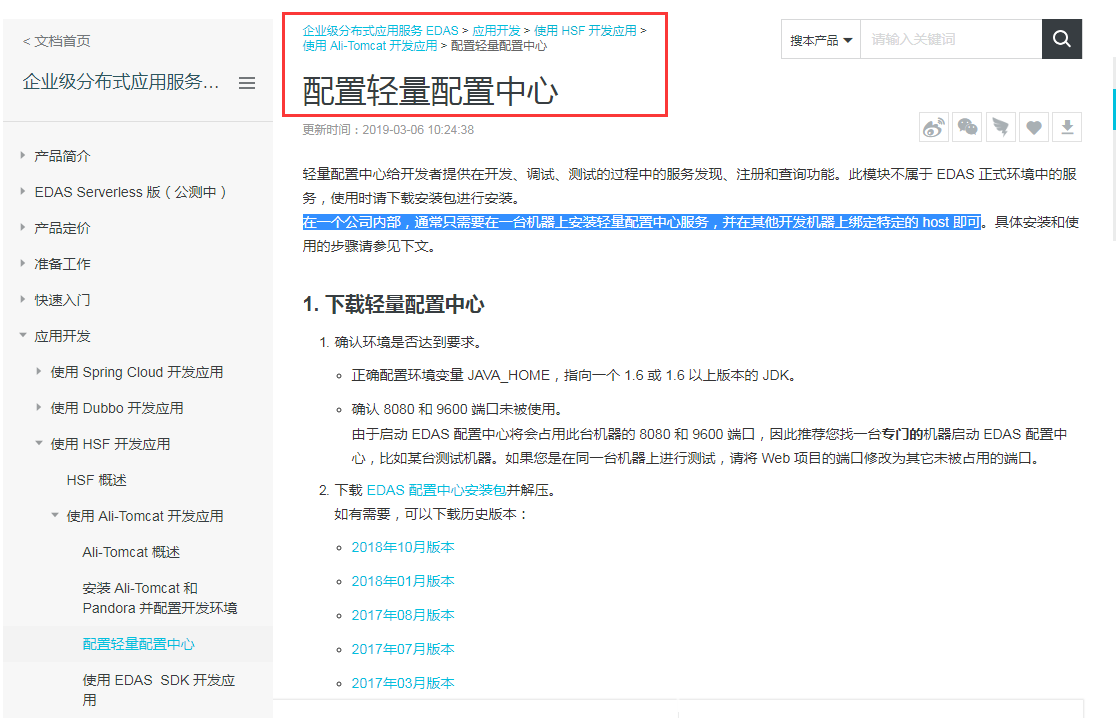

轻量配置中心:

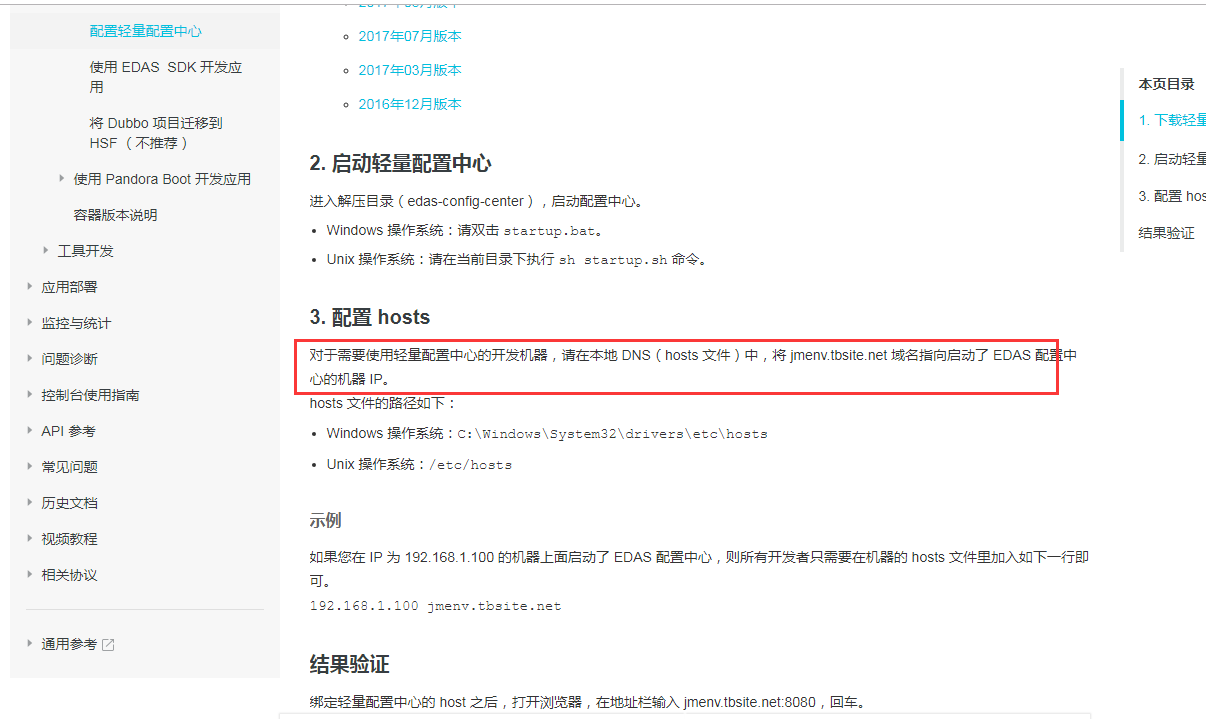

注意: 无论是在需要访问轻量配置中心的机器上，还是consumer & provider所在的机器上都需要配置: 192.168.1.100 jmenv.tbsite.net
如果通过访问http://jmenv.tbsite.net:8080出现如下页面，说明轻量配置中心安装成功。

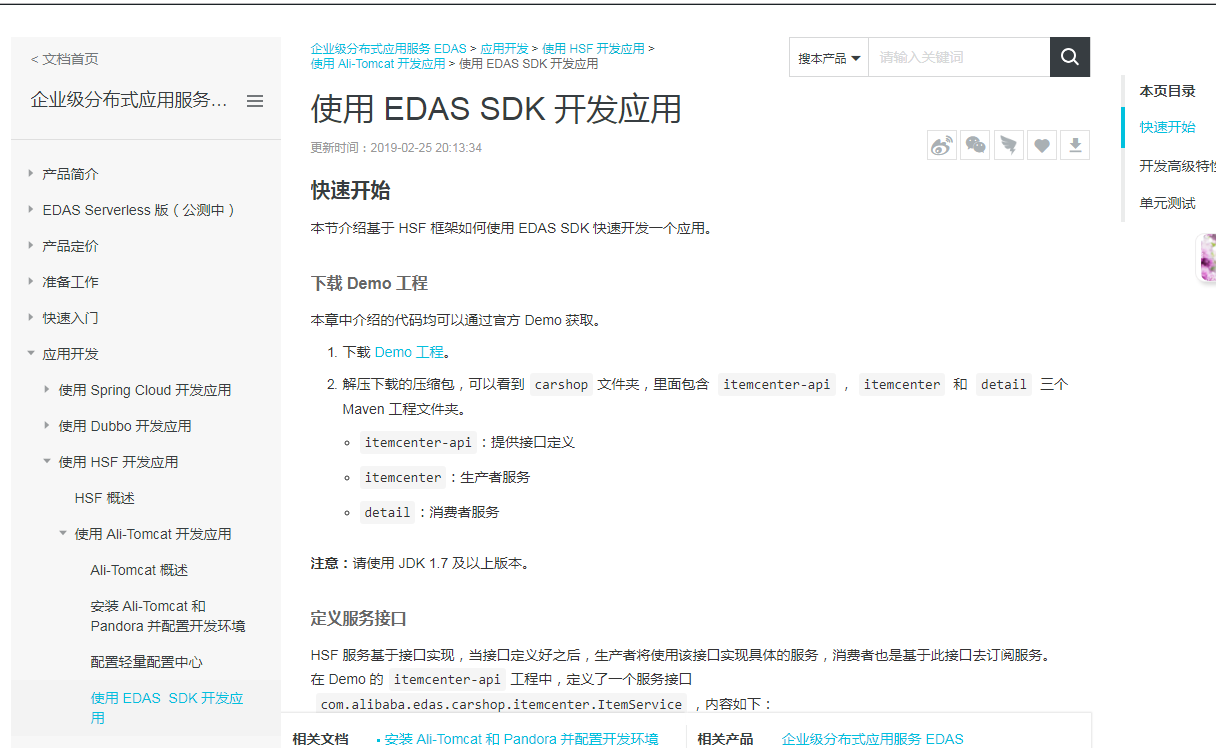

EDSA SDK开发:
https://help.aliyun.com/document_detail/99912.html?spm=a2c4g.11186623.6.602.769f5e31yOvDRS
原始demo 代码内容很简单，如果使用过dubbo，极为类似，一目了然~) 需要注意: carshop下三个项目的角色。
通过查看detail(Consumer服务)代码 ，可以知道这是一个war项目，只包含一个Servlet (测试)和一个Listener。
Listener内容也能很简单: 一个while(true), 即周期性的去访问Provider服务。
package com.alibaba.edas.carshop.detail;import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;import org.springframework.context.ApplicationContext;
import org.springframework.web.context.support.WebApplicationContextUtils;import com.alibaba.edas.carshop.itemcenter.ItemService;/*** Alibaba Group EDAS. http://www.aliyun.com/product/edas*/
public class StartListener implements ServletContextListener{@Overridepublic void contextInitialized( ServletContextEvent sce ) {ApplicationContext ctx = WebApplicationContextUtils.getWebApplicationContext( sce.getServletContext() );final ItemService itemService = ( ItemService ) ctx.getBean( "item" );Thread thread = new Thread( new Runnable() {@Overridepublic void run() {while ( true ) {try {Thread.sleep( 500l );System.out.println( itemService.getItemById( 1111 ) );System.out.println( itemService.getItemByName( "myname is le" ) );} catch ( Throwable e ) {e.printStackTrace();}}}} );thread.start();}@Overridepublic void contextDestroyed( ServletContextEvent sce ) {// TODO Auto-generated method stub}}
通过maven将detail打包, 连同上面的taobao-hsf.sar放到${taobao_ali_tomcat_home}/depoly目录下，启动tomcat服务，则Consuemr部署成功。
注意: Consuemr服务器上需要配置hosts: 10.0.1.224 jmenv.tbsite.net（轻量配置中心所在服务器）
接着看itemcenter (Provider) 服务, Provider服务同样是一个war项目，只包含一个Servlet(用来测试)和Hsf服务的实现类，如下:
package com.alibaba.edas.carshop.itemcenter;import java.util.Random;/*** Alibaba Group EDAS. http://www.aliyun.com/product/edas*/
public class ItemServiceImpl implements ItemService {@Overridepublic Item getItemById( long id ) {Item car = new Item();car.setItemId( 1l );car.setItemName( "Mercedes Benz" );return car;}@Overridepublic Item getItemByName( String name ) {Item car = new Item();car.setItemId( 1l );car.setItemName( "Mercedes Benz" );return car;}
}
通过maven将itemcenter打包, 连同上面的taobao-hsf.sar放到${taobao_ali_tomcat_home}/depoly目录下，启动tomcat服务，则Provider部署成功。
注意:Provider服务器上需要配置hosts: 10.0.1.224 jmenv.tbsite.net（轻量配置中心所在服务器）

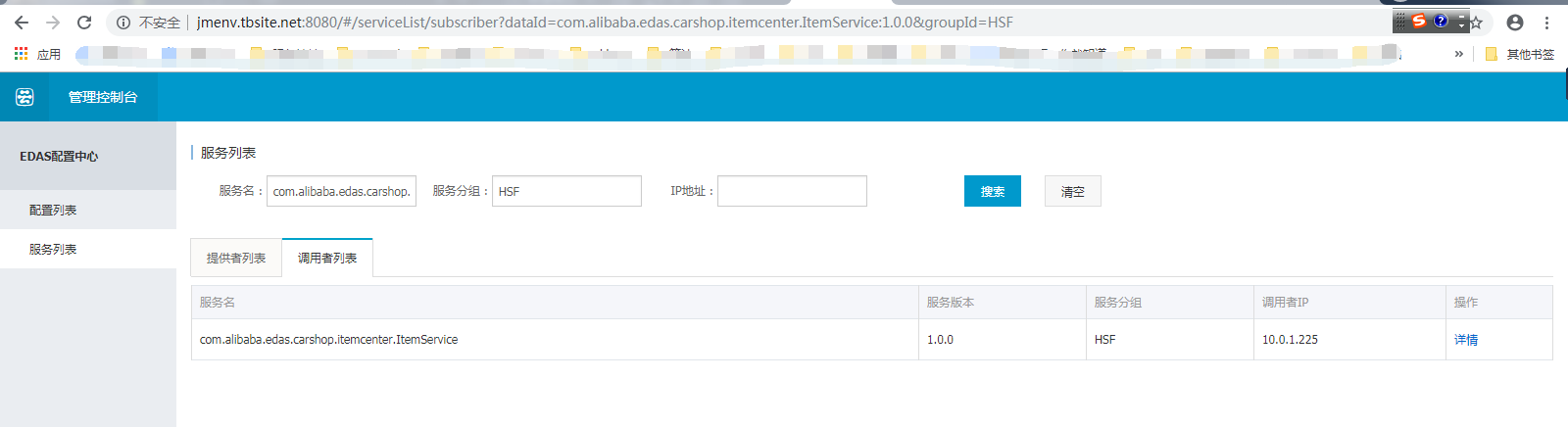

最后观察轻量配置中心的界面上的服务列表(提供者列表和调用者列表)是否准确。同时结合Consumer和Provider日志，看是否有异常信息。
安装使用时遇到的问题:
- 如果启动consumer对应的ali-tomcat服务时，报如下错误，说明没有配置hosts: 10.0.1.224 jmenv.tbsite.net
Sat Mar 09 03:34:10 CST 2019 diamond-client's ModuleClassLoader JM.Log:INFO Set diamond-client log path: /root/logs/diamond-client
java.lang.RuntimeException: fail to get diamond-server serverlist! env:default, not connnect url:http://jmenv.tbsite.net:8080/diamond-server/diamondat com.taobao.diamond.client.impl.ServerListManager.start(ServerListManager.java:79)at com.taobao.diamond.client.impl.DiamondEnv.initServerManager(DiamondEnv.java:1499)at com.taobao.diamond.client.impl.DiamondEnv.<init>(DiamondEnv.java:1531)at com.taobao.diamond.client.impl.DiamondEnvRepo.getDefaultEnv(DiamondEnvRepo.java:96)at com.taobao.diamond.client.impl.DiamondEnvRepo.<clinit>(DiamondEnvRepo.java:127)at com.taobao.diamond.client.Diamond.getConfig(Diamond.java:74)at com.taobao.hsf.diamond.manager.DiamondGovernanceServiceImpl.getConfigSync(DiamondGovernanceServiceImpl.java:65)at com.taobao.hsf.plugins.globalrule.GlobalRuleComponent.init(GlobalRuleComponent.java:63)at com.taobao.hsf.model.ApplicationModel.init(ApplicationModel.java:102)at com.taobao.hsf.model.ApplicationModelFactory.getMainApplicationModel(ApplicationModelFactory.java:230)at com.taobao.hsf.model.ApplicationModelFactory.getCurrentApplication(ApplicationModelFactory.java:158)at com.taobao.hsf.util.HSFServiceContainer.getAppServiceContainer(HSFServiceContainer.java:143)at com.taobao.hsf.util.HSFServiceContainer.getInstance(HSFServiceContainer.java:41)at com.taobao.hsf.common.impl.EnvImpl.<init>(EnvImpl.java:47)at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)at java.lang.reflect.Constructor.newInstance(Constructor.java:422)at java.lang.Class.newInstance(Class.java:442)at com.taobao.hsf.util.ServiceLoaderUtils.newSpiInstance(ServiceLoaderUtils.java:130)at com.taobao.hsf.util.AppServiceContainer.getPrototype(AppServiceContainer.java:480)at com.taobao.hsf.util.AppServiceContainer.getSingleton(AppServiceContainer.java:521)at com.taobao.hsf.util.AppServiceContainer.createInstance(AppServiceContainer.java:433)at com.taobao.hsf.util.AppServiceContainer.findInstances(AppServiceContainer.java:366)at com.taobao.hsf.util.AppServiceContainer.getInstance(AppServiceContainer.java:291)at com.taobao.hsf.util.AppServiceContainer.getInstance(AppServiceContainer.java:182)at com.taobao.hsf.route.component.MachineGroupServiceImpl.<init>(MachineGroupServiceImpl.java:19)at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)at java.lang.reflect.Constructor.newInstance(Constructor.java:422)at java.lang.Class.newInstance(Class.java:442)Caused by: java.lang.NoClassDefFoundError: Could not initialize class com.taobao.diamond.client.impl.DiamondEnvRepo

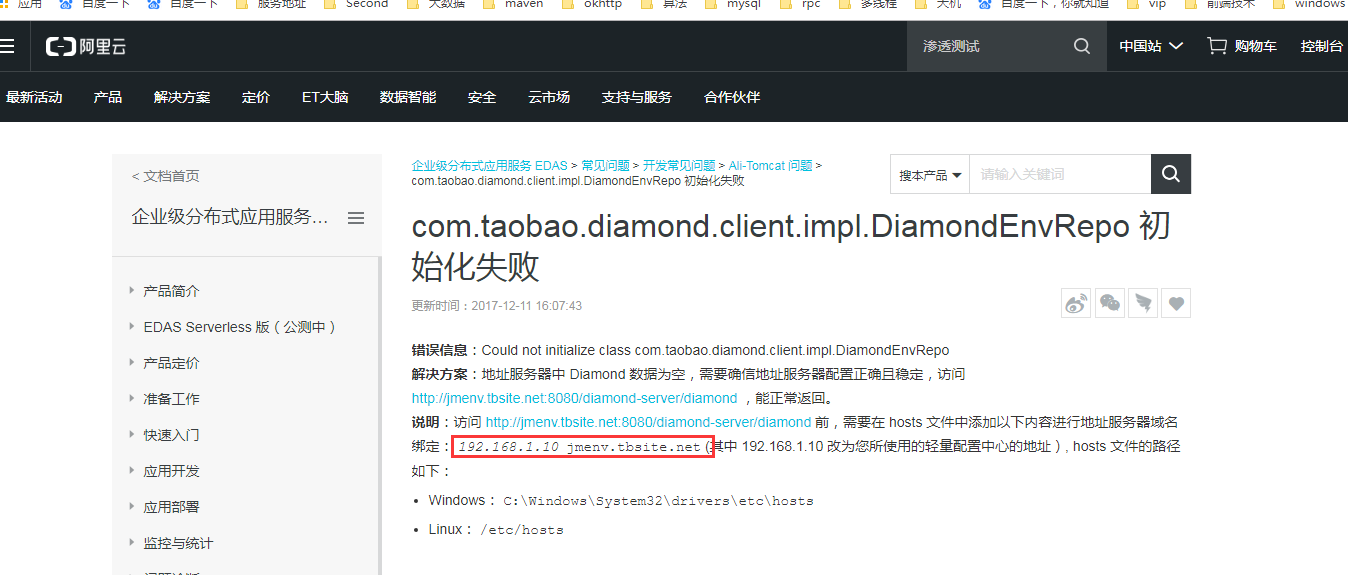

参考: https://help.aliyun.com/knowledge_detail/43931.html?spm=a2c4g.11186631.2.3.666260acELCUyK
2. Proivder服务启动后，一直注册不到轻量配置中心，即在服务列表的提供者列表中看不到。
后来发现，没有将taobao-hsf.sar放到${taobao_ali_tomcat_home}/depoly目录下，所以服务启动后没有去注册。这是一个疏忽，正确的启动日志如下:
Sat Mar 09 08:17:21 UTC 2019 hsf's ModuleClassLoader JM.Log:INFO Set hsf log path: /root/logs/hsf
Sat Mar 09 08:17:22 UTC 2019 diamond-client's ModuleClassLoader JM.Log:INFO Init JM logger with Slf4jLoggerFactory success, diamond-client's ModuleClassLoader
Sat Mar 09 08:17:22 UTC 2019 diamond-client's ModuleClassLoader JM.Log:INFO Log root path: /root/logs/
Sat Mar 09 08:17:22 UTC 2019 diamond-client's ModuleClassLoader JM.Log:INFO Set diamond-client log path: /root/logs/diamond-client
08:17:22.969 [localhost-startStop-1] INFO c.t.d.identify.CredentialWatcher - [] [] [] No credential found
*******************HSF PORT:12202 **************
*************Pandora QOS PORT:12203 **************
*************Tomcat Monitor Port:8006 **************
*******************Sentinel PORT:8719 **************
log4j:WARN No appenders could be found for logger (io.netty.util.internal.logging.InternalLoggerFactory).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.****************************************************************************************** **** Pandora Container **** **** Pandora Host: 0.0.23.54 **** Pandora Version: 2.1.4 **** SAR Version: edas.sar.V3.4.6.dev **** Package Time: 2018-07-06 08:16:55 **** **** Plug-in Modules: 16 **** **** metrics .......................................... 1.7.0 **** edas-assist ...................................... 2.0 **** pandora-qos-service .............................. edas215 **** pandolet ......................................... 1.0.0 **** spas-sdk-client .................................. 1.2.7 **** eagleeye-core .................................... 1.7.4.1-SNAPSHOT **** tddl-driver ...................................... 1.0.5-SNAPSHOT **** vipserver-client ................................. 4.6.8-SNAPSHOT **** diamond-client ................................... 3.8.10 **** spas-sdk-service ................................. 1.2.7 **** config-client .................................... 1.9.6 **** unitrouter ....................................... 1.0.11 **** sentinel-plugin .................................. 2.12.12-edas **** ons-client ....................................... 1.7.1-EagleEye-SNAPSHOT **** hsf .............................................. 2.2.6.1-EDAS **** pandora-framework ................................ 2.0.8 **** **** [WARNING] All these plug-in modules will override maven pom.xml dependencies. **** More: http://gitlab.alibaba-inc.com/middleware-container/pandora/wikis/home **** ******************************************************************************************INFO: spas-client-initializer start
JM.Log:INFO Init JM logger with Log4jLoggerFactory
JM.Log:INFO Log root path: /root/logs/
JM.Log:INFO Set pandora log path: /root/logs/pandora
2019-03-09 08:17:24,061 com.taobao.tomcat.container.context.pandora.PandoraManager startInternal
INFO: Pandora container started.
2019-03-09 08:17:25,062 org.springframework.web.context.ContextLoader initWebApplicationContext
INFO: Root WebApplicationContext: initialization started
2019-03-09 08:17:25,165 org.springframework.context.support.AbstractApplicationContext prepareRefresh
INFO: Refreshing org.springframework.web.context.support.XmlWebApplicationContext@33f5229c: display name [Root WebApplicationContext]; startup date [Sat Mar 09 08:17:25 UTC 2019]; root of context hierarchy
2019-03-09 08:17:25,318 org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
INFO: Loading XML bean definitions from class path resource [hsf-provider-beans.xml]
2019-03-09 08:17:25,716 org.springframework.context.support.AbstractApplicationContext obtainFreshBeanFactory
INFO: Bean factory for application context [org.springframework.web.context.support.XmlWebApplicationContext@33f5229c]: org.springframework.beans.factory.support.DefaultListableBeanFactory@13fcb98a
2019-03-09 08:17:26,168 org.springframework.beans.factory.support.DefaultListableBeanFactory preInstantiateSingletons
INFO: Pre-instantiating singletons in org.springframework.beans.factory.support.DefaultListableBeanFactory@13fcb98a: defining beans [itemService,itemServiceProvider]; root of factory hierarchy
Sat Mar 09 08:17:27 UTC 2019 config-client's ModuleClassLoader JM.Log:INFO Init JM logger with Slf4jLoggerFactory success, config-client's ModuleClassLoader
Sat Mar 09 08:17:27 UTC 2019 config-client's ModuleClassLoader JM.Log:INFO Log root path: /root/logs/
08:17:27.644 [HSF-Framework-ExportRefer-6-thread-1] INFO ConfigClientLogger - [] [] [] JM_CC_LOG_RETAIN_COUNT:6, JM_LOG_FILE_SIZE:200MB
Sat Mar 09 08:17:27 UTC 2019 config-client's ModuleClassLoader JM.Log:INFO Set configclient log path: /root/logs/configclient
2019-03-09 08:17:28,032 org.springframework.web.context.ContextLoader initWebApplicationContext
INFO: Root WebApplicationContext: initialization completed in 2969 ms
2019-03-09 08:17:28,092 org.apache.catalina.startup.HostConfig deployWAR
INFO: Deployment of web application archive /data/ilucky/hsf/taobao-tomcat-7.0.59/deploy/itemcenter.war has finished in 17,338 ms
2019-03-09 08:17:28,100 org.apache.coyote.AbstractProtocol start
INFO: Starting ProtocolHandler ["http-bio-8080"]
2019-03-09 08:17:28,131 org.apache.catalina.startup.Catalina start
INFO: Server startup in 17579 ms

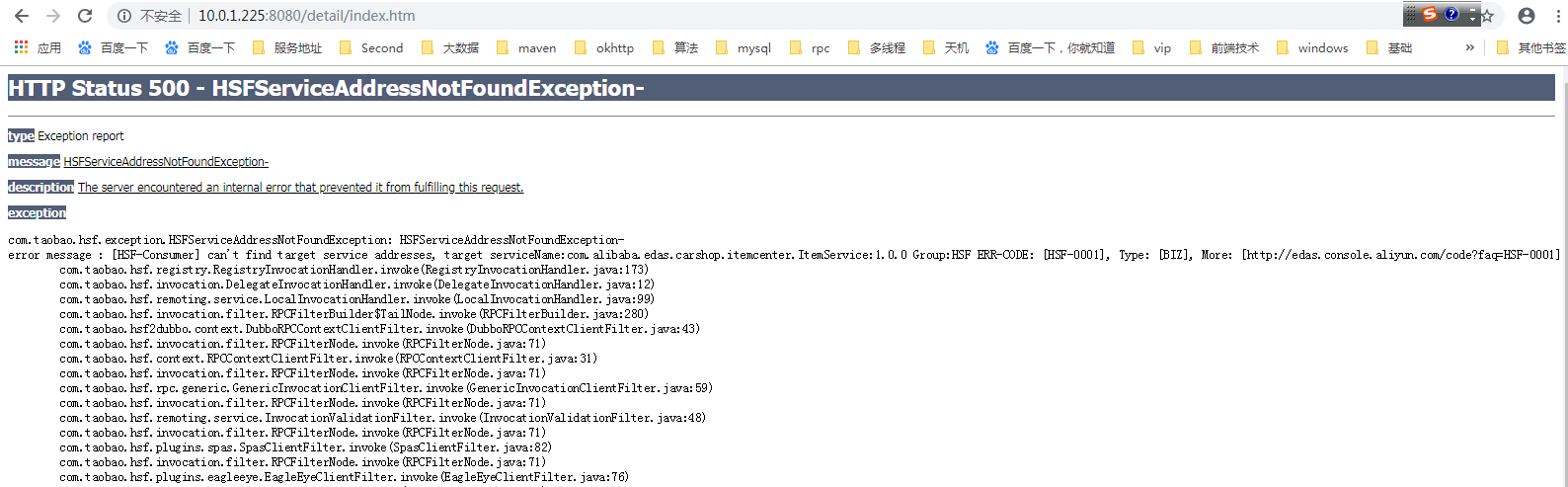

- 解决了上面的问题，轻量配置中的服务列表-提供者列表有了提供者内容，但是Consumer调用Provider服务时报如下错误信息:
HTTP Status 500 - HSFServiceAddressNotFoundException-
type Exception reportmessage HSFServiceAddressNotFoundException-description The server encountered an internal error that prevented it from fulfilling this request.exceptioncom.taobao.hsf.exception.HSFServiceAddressNotFoundException: HSFServiceAddressNotFoundException-
error message : [HSF-Consumer] can't find target service addresses, target serviceName:com.alibaba.edas.carshop.itemcenter.ItemService:1.0.0 Group:HSF ERR-CODE: [HSF-0001], Type: [BIZ], More: [http://edas.console.aliyun.com/code?faq=HSF-0001]com.taobao.hsf.registry.RegistryInvocationHandler.invoke(RegistryInvocationHandler.java:173)com.taobao.hsf.invocation.DelegateInvocationHandler.invoke(DelegateInvocationHandler.java:12)com.taobao.hsf.remoting.service.LocalInvocationHandler.invoke(LocalInvocationHandler.java:99)com.taobao.hsf.invocation.filter.RPCFilterBuilder$TailNode.invoke(RPCFilterBuilder.java:280)com.taobao.hsf2dubbo.context.DubboRPCContextClientFilter.invoke(DubboRPCContextClientFilter.java:43)com.taobao.hsf.invocation.filter.RPCFilterNode.invoke(RPCFilterNode.java:71)com.taobao.hsf.context.RPCContextClientFilter.invoke(RPCContextClientFilter.java:31)
错误的意思是: Consumer不可以消费到正确的Provider服务。参考: https://blog.csdn.net/shengqianfeng/article/details/84373515

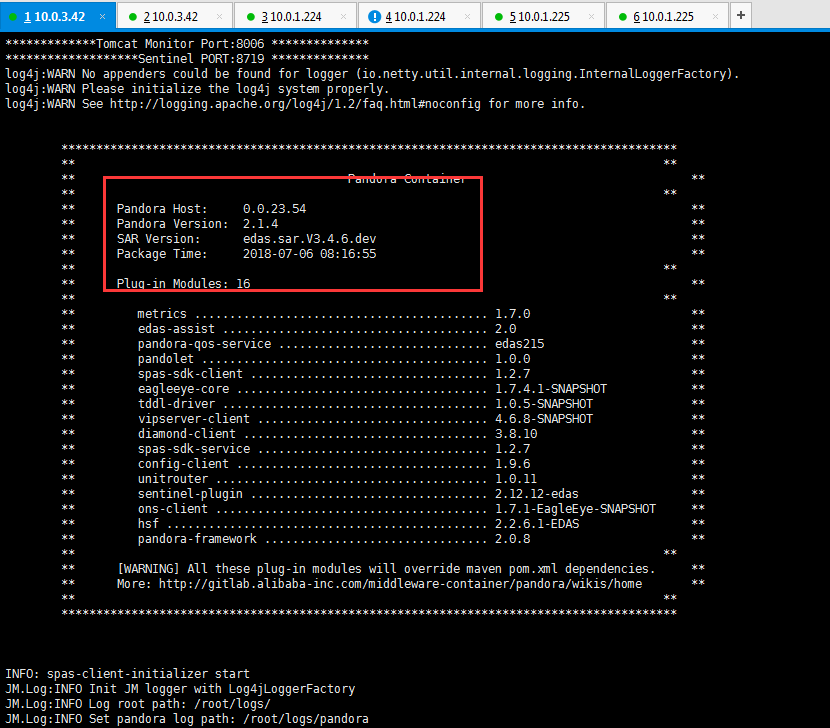

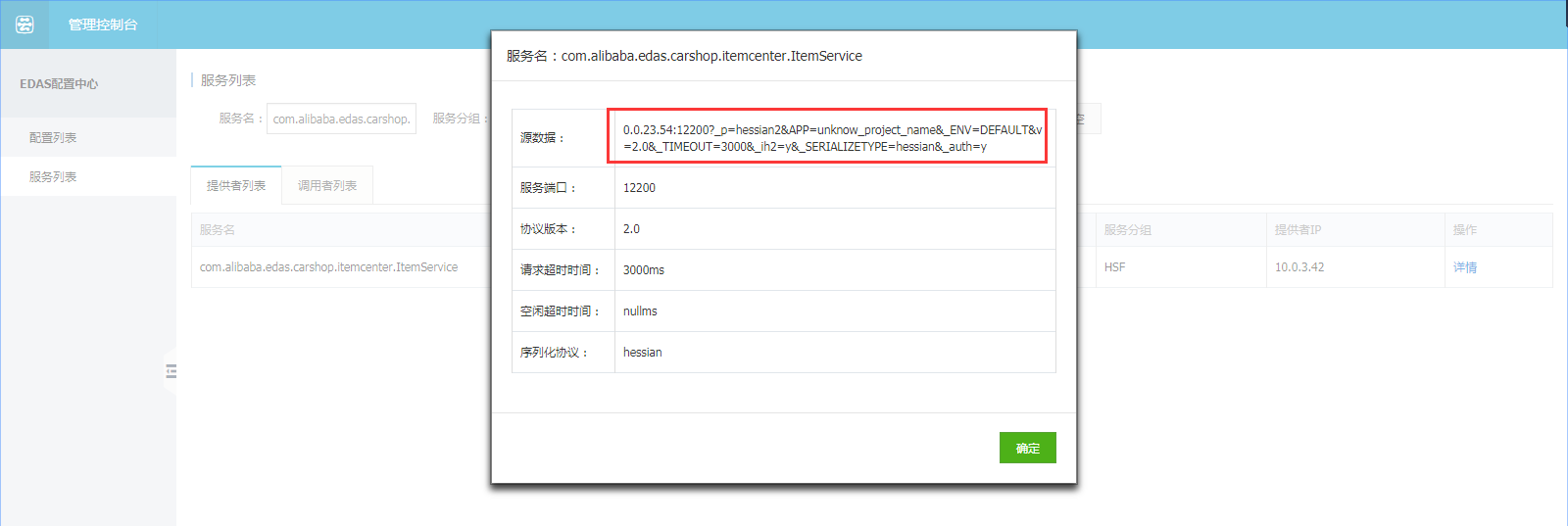

检查Provider的详情: 发现Provider对外提供的服务是0.0.23.54，并不是10.0.3.42.
同时查看Provider日志，发现地址也是错误的:

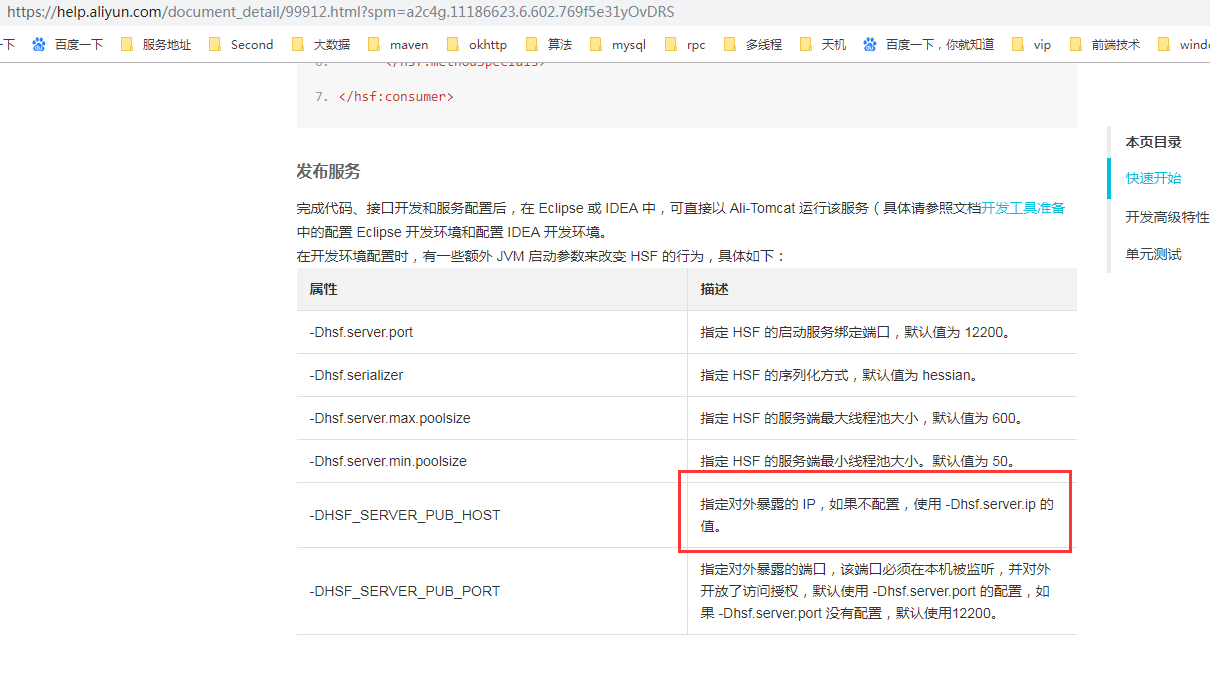

如何去修改这个地址呢? 发现官网上的解决办法:
即在jvm参数中添加-Dhsf.server.ip=10.0.3.42。

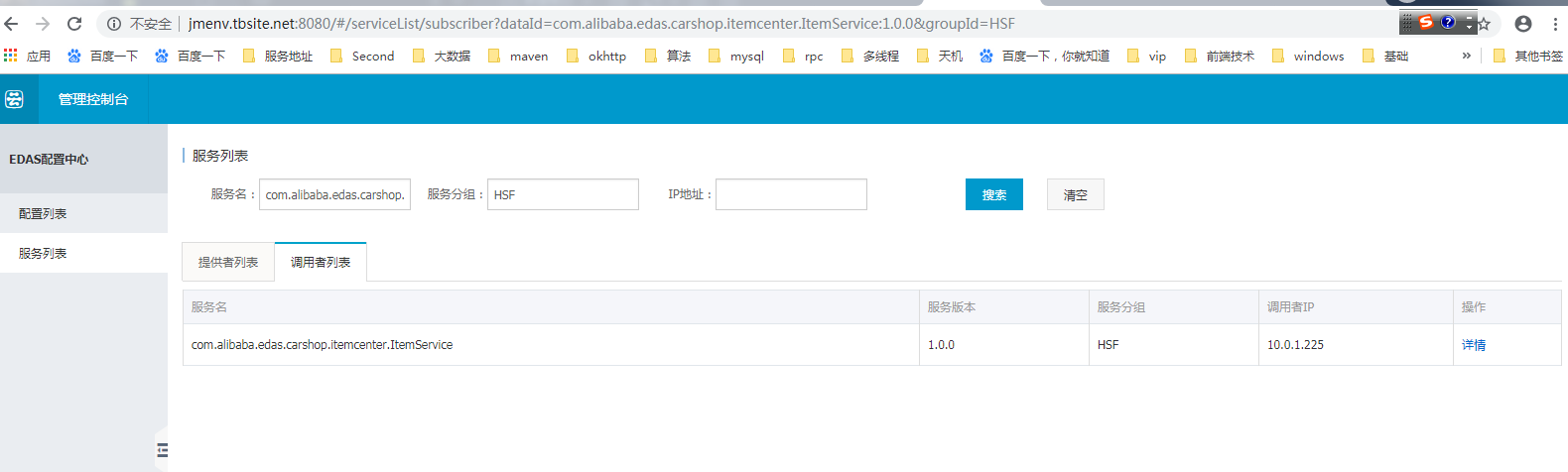

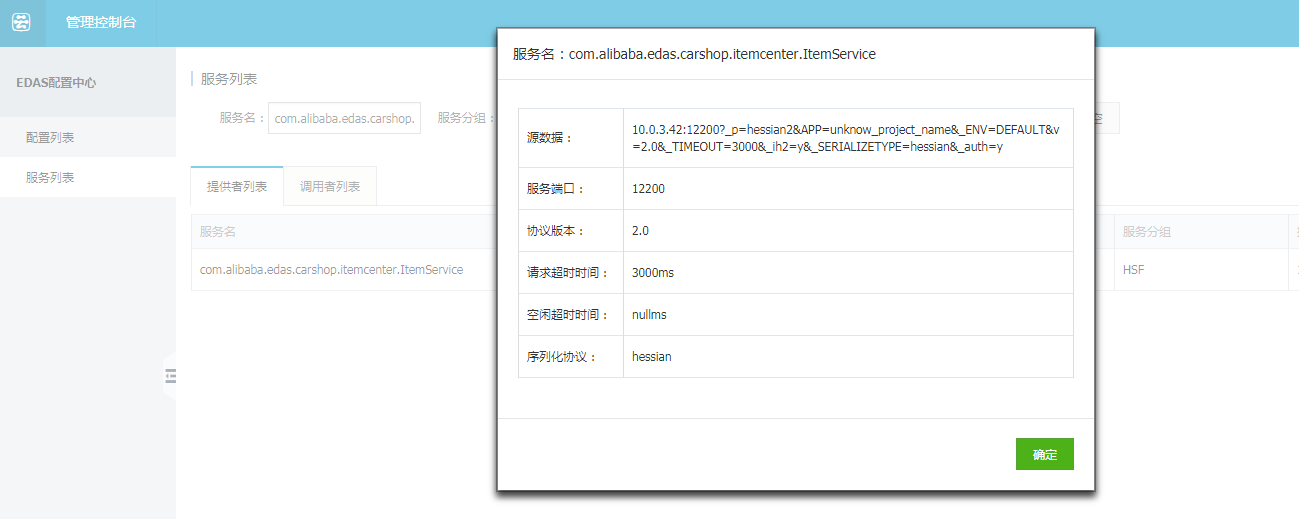

再次启动服务，查看提供者详情，发现地址调整过来了。Consumer日志也不报错误了，可以正常调用了。
注意: 这里还有一个hsf的小bug，即提供者详情改过来了，但是日志打印却没有改过来。
