有线和无线结合的模型模拟

本文主要是介绍有线和无线结合的模型模拟，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

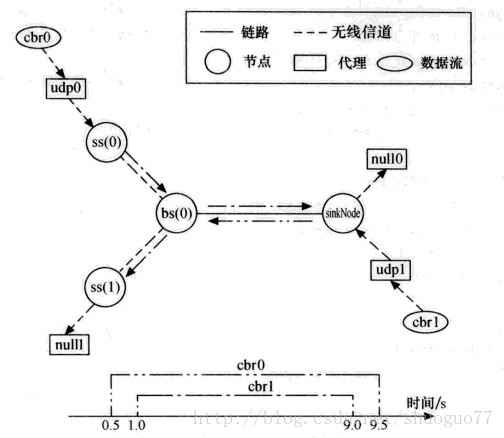

1 拓扑结构

2 程序

#有线无线网络混合模拟

#无线节点参数
set val(chan) Channel/WirelessChannel ;# channel type 信道类型：无线信道
set val(prop) Propagation/TwoRayGround ;# radio-propagation model 信道模型：TwoRayGround
set val(netif) Phy/WirelessPhy ;# network interface type 无线物理层
set val(mac) Mac/802_11 ;# MAC type MAC层协议
set val(ifq) Queue/DropTail/PriQueue ;# interface queue type
set val(ll) LL ;# link layer type
set val(ant) Antenna/OmniAntenna ;# antenna model
set val(ifqlen) 50 ;# max packet in ifq
set val(rp) DSDV ;#路由协议
set val(nn) 4 ;#节点数目
set val(x) 600 ;
set val(y) 600 ;
set val(stop) 10.0 ;# time of simulation end

# 建立一个simulator实例
set ns [new Simulator]

#设定分层路由地址
$ns node-config -addressType hierarchical
AddrParams set domain_num_ 2 ;# 2个网络
lappend cluster_num 1 1 ;# 每个网络一个子网
AddrParams set cluster_num_ $cluster_num
lappend eilastlevel 1 3 ;# 2个子网的节点数目为1和3
AddrParams set nodes_num_ $eilastlevel
puts "Configuration of hierarchical addressing done"

#$ns use-newtrace

#设置trace
set tracefd [open wired_wireless2.tr w]
set namtrace [open wired_wireless2.nam w]
$ns trace-all $tracefd
$ns namtrace-all-wireless $namtrace $val(x) $val(y)

#建立topology对象
set topo [new Topography]
$topo load_flatgrid $val(x) $val(y)

#创建god
create-god $val(nn)

set sinkNode [$ns node 0.0.0]
$sinkNode set X_ 500
$sinkNode set Y_ 300
$sinkNode set Z_ 0
$ns initial_node_pos $sinkNode 60

set chan_1_ [new $val(chan)]

#无线节点配置
$ns node-config -wiredRouting ON \
-adhocRouting $val(rp) \
-llType $val(ll) \
-macType $val(mac) \
-ifqType $val(ifq) \
-ifqLen $val(ifqlen) \
-antType $val(ant) \
-propType $val(prop) \
-phyType $val(netif) \
-channel $chan_1_ \
-topoInstance $topo \
-agentTrace ON \
-routerTrace ON \
-macTrace ON \
-movementTrace OFF

#新建BS节点
set bs(0) [$ns node 1.0.0]
$bs(0) random-motion 0
#节点标签与初始位置设定
$bs(0) set X_ 200.0
$bs(0) set Y_ 300.0
$bs(0) set Z_ 0.0
$ns initial_node_pos $bs(0) 60

#定义节点间的链路
$ns duplex-link $sinkNode $bs(0) 10Mb 1ms DropTail

$ns duplex-link-op $sinkNode $bs(0) orient left

#定义链路的队列长度
#$ns queue-limit $bs(0) $sinkNode 10

#监视链路的队列
#$ns duplex-link-op $bs(0) $sinkNode queuePos 0.5

$ns node-config -wiredRouting OFF \
-macType Mac/802_11

#新建SS节点
set ss(0) [$ns node 1.0.1]
$ss(0) base-station [AddrParams addr2id [$bs(0) node-addr]]
$ss(0) set X_ 50.0
$ss(0) set Y_ 450.0
$ss(0) set Z_ 0.0
$ns initial_node_pos $ss(0) 60

set ss(1) [$ns node 1.0.2]
$ss(1) base-station [AddrParams addr2id [$bs(0) node-addr]]
$ss(1) set X_ 50.0
$ss(1) set Y_ 150.0
$ss(1) set Z_ 0.0
$ns initial_node_pos $ss(1) 60

set udp0 [new Agent/UDP]
$ns attach-agent $ss(0) $udp0
set null0 [new Agent/Null]
$ns attach-agent $sinkNode $null0
$ns connect $udp0 $null0
set ugs0 [new Application/Traffic/UGS]
$ugs0 attach-agent $udp0

set udp1 [new Agent/UDP]
$ns attach-agent $sinkNode $udp1
set null1 [new Agent/Null]
$ns attach-agent $ss(1) $null1
$ns connect $udp1 $null1
set ugs1 [new Application/Traffic/UGS]
$ugs1 attach-agent $udp1

$ns at 0.5 "$ugs0 start"
$ns at 1.0 "$ugs1 start"
$ns at 9.0 "$ugs1 stop"
$ns at 9.5 "$ugs0 stop"

proc finish {} {
global ns tracefd namtrace
$ns flush-trace
close $tracefd
close $namtrace
exit 0
}

#事件安排
$ns at $val(stop) "finish"
$ns at $val(stop) "puts \"NS EXISTING...\"; $ns halt"

puts "Start Simulation..."

# run the simulation
$ns run
