Cocos2d-x 3.X, Android Studio版添加多盟广告平台

本文主要是介绍Cocos2d-x 3.X, Android Studio版添加多盟广告平台，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

考虑到以下两点：

1. Cocos2d-x从3.7版开始优化对Android Studio的支持，相信这一趋势还会继续。可惜目前相关帮助文档还不完善，很多东西需要自己摸索。

2. 多盟广告平台的官方帮助文档没有针对Cocos2d-x。

所以在此对自己所学所得做一些总结，也希望能帮助到那些处在摸索之中的朋友们。

本文所用cocos2d-x为3.8版，android studio为1.3.2版，多盟SDK为4.5.4版。

准备工作

1) 进入多盟官网，注册账户。注册时需要上传身份证正反面照片和银行账户，并等待审核。审核大概需要一两天时间。

2) 审核通过后就可以添加应用和广告位（什么是广告位？你猜。。。我猜就是放广告的位置。可以申请不同的广告位来放置不同类型的广告）。填写一些相关信息，并获取publisher ID和广告位ID。这两个ID将被添加到我们的程序当中。

3)下载多盟安卓版SDK。添加应用最后一步会出现SDK下载选项，当然也可以直接进入下载页下载。我下的是4.5.4版。下完后，可以打开里面的UserGuide.pdf看一看。大部分信息都在里面。可惜并不针对Cocos2d-x以及Android Studio的。

开干正事

1) 在搞懂如何添加之前，建议不要直接在自己的工程里面添加，最好新建一个HelloWorld项目用于试验。关于如何新建一个Android studio版的HelloWorld，请参考上一篇博文。

2) 打开下载下来的多盟SDK->lib，将其中的domob_android_sdk.jar考到新建的HelloWorld项目下proj.android-studio->app->libs->armeabi文件夹中(该文件夹只有在第一步中完成编译之后才会出现)。并在android studio中找到domob_android_sdk.jar(在jiniLibs->armeabi下面)，右击，选择Add As Library。这样就把多盟的SDK添加到我们的项目中了。如果是eclipse，这一步稍有区别，需要通过Java Build Path添加。

3) 在android studio里面打开AndroidManifest.xml。相信你能找到这个文件！往里面添加两样东西：在<application>之前为多盟SDK添加权限，并在<application>里面添加多盟Activity声明。添加完后完整代码如下所示：

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"package="com.istudy.CocosDomob"android:installLocation="auto"android:versionCode="2"android:versionName="2.0"><!--多盟官网考来的部分1开始--><uses-sdk android:minSdkVersion="8" android:targetSdkVersion="19"/><!-- 网络访问权限 --><uses-permission android:name="android.permission.INTERNET" /><!-- 获取网络信息状态，如当前的网络连接是否有效 --><uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" /><!-- 读取手机状态 --><uses-permission android:name="android.permission.READ_PHONE_STATE" /><!-- 允许程序写入外部存储，如SD卡上写文件 --><uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" /><!-- 获取错略位置--><uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" /><!-- 获取WiFi状态 --><uses-permission android:name="android.permission.ACCESS_WIFI_STATE" /><!-- 以下权限为可选权限，主要是品牌广告会用到，如果您没有添加，需要这些效果的品牌广告将不会投放到您的应用上 --><!-- 震动权限 --><uses-permission android:name="android.permission.VIBRATE" /><!--多盟官网考来的部分1结束--><uses-feature android:glEsVersion="0x00020000" /><applicationtools:replace="android:label"android:label="@string/app_name"android:allowBackup="true"android:icon="@mipmap/ic_launcher"><!-- Tell Cocos2dxActivity the name of our .so --><meta-data android:name="android.app.lib_name"android:value="cocos2dcpp" /><!-- 多盟官网考来的部分2开始 --><activity android:name="cn.domob.android.ads.DmActivity"android:theme="@android:style/Theme.Translucent"></activity><!--多盟官网考来的部分2结束--><activityandroid:name="org.cocos2dx.cpp.AppActivity"android:screenOrientation="Portrait"android:configChanges="orientation|keyboardHidden|screenSize"android:label="@string/app_name"android:theme="@android:style/Theme.NoTitleBar.Fullscreen" ><intent-filter><action android:name="android.intent.action.MAIN" /><category android:name="android.intent.category.LAUNCHER" /></intent-filter></activity></application><uses-permission android:name="android.permission.INTERNET"/></manifest>

注意<application>里面的第一行tools:replace="android:label"本来是没有的，但是如果不添加该代码，编译时会提示出错（发生定义冲突），并给出添加该代码的建议。该代码还需配合第三行的xmlns:tools="http://schemas.android.com/tools"使用。

4）在android studio里面找到AppActivity（在java->org.cocos2dx.cpp下面），往里面添加显示广告的java代码，但是由于我们要在cocos2d-x的HelloWorld场景里面（也就是C++代码里面）添加广告，所以此处需要做一些接口函数，而不是像多盟官方文件UserGuide.pdf里面直接令其显示。添加完后，完整代码如下所示：

AppActivity

package org.cocos2dx.cpp;import org.cocos2dx.lib.Cocos2dxActivity;import cn.domob.android.ads.AdEventListener;
//import cn.domob.android.ads.AdManager;
import cn.domob.android.ads.AdManager.ErrorCode;
import cn.domob.android.ads.AdView;
import cn.domob.android.ads.InterstitialAd;
import cn.domob.android.ads.InterstitialAdListener;//import android.app.ActionBar;
import android.content.Context;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.View;
//import android.view.ViewGroup;
import android.widget.RelativeLayout;public class AppActivity extends Cocos2dxActivity {//声明应用ID//private static AppActivity _AppActivity;public static final String PUBLISHER_ID = "你的应用ID";//声明插屏广告和插屏广告IDprivate InterstitialAd mInterstitialAd;public static final String InterstitialPPID = "你的插屏广告ID";//声明广告条层和广告位IDprivate static RelativeLayout bannerLayout;private AdView mAdview;public static final String InlinePPID="你的广告条ID";//声明handler用于发送消息private static Handler handler;@Overrideprotected void onCreate(Bundle savedIntanceState){super.onCreate(savedIntanceState);//创建插屏广告if (mInterstitialAd != null) {return;}mInterstitialAd = new InterstitialAd(this, PUBLISHER_ID, InterstitialPPID);mInterstitialAd.setInterstitialAdListener(new InterstitialAdListener() {@Overridepublic void onInterstitialAdReady() {Log.i("DomobSDKDemo", "onAdReady");}@Overridepublic void onLandingPageOpen() {Log.i("DomobSDKDemo", "onLandingPageOpen");}@Overridepublic void onLandingPageClose() {Log.i("DomobSDKDemo", "onLandingPageClose");}@Overridepublic void onInterstitialAdPresent() {Log.i("DomobSDKDemo", "onLandingAdPresent");}@Overridepublic void onInterstitialAdDismiss() {mInterstitialAd.loadInterstitialAd();Log.i("DomobSDKDemo", "onInterstitialAdDismiss");}@Overridepublic void onInterstitialAdFailed(ErrorCode errorCode) {Log.i("DomobSDKDemo", "onInterstitialAdFailed");}@Overridepublic void onInterstitialAdLeaveApplication() {Log.i("DomobSDKDemo", "onInterstitialAdLeaveApplication");}@Overridepublic void onInterstitialAdClicked(InterstitialAd arg0) {Log.i("DomobSDKDemo", "onInterstitialAdClicked");}});mInterstitialAd.loadInterstitialAd();//创建广告条容器bannerLayout = new RelativeLayout(this);RelativeLayout.LayoutParams parentLayoutParams = new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.WRAP_CONTENT,RelativeLayout.LayoutParams.WRAP_CONTENT);this.addContentView(bannerLayout, parentLayoutParams);//加载广告handler = new Handler() {@Overridepublic void handleMessage(Message msg) {switch (msg.what) {case 0:// showBannerAd()if (bannerLayout.getChildCount() == 0) {//创建广告条//setContentView(R.layout.banner);//mAdContainer = (RelativeLayout) findViewById(R.id.adcontainer);//注意这两行注释掉的代码来自多盟文档，不可用mAdview = new AdView(AppActivity.this, PUBLISHER_ID, InlinePPID);mAdview.setKeyword("game");mAdview.setUserGender("male");mAdview.setUserBirthdayStr("2000-08-08");mAdview.setUserPostcode("123456");mAdview.setAdEventListener(new AdEventListener() {@Overridepublic void onEventAdReturned(AdView adView) {Log.i("DomobSDKDemo", "onDomobAdReturned");}@Overridepublic void onAdFailed(AdView adView, ErrorCode errorCode) {Log.i("DomobSDKDemo", "onDomobAdFailed");}@Overridepublic void onAdOverlayPresented(AdView adView) {Log.i("DomobSDKDemo", "overlayPresented");}@Overridepublic void onAdOverlayDismissed(AdView adView) {Log.i("DomobSDKDemo", "Overrided be dismissed");}@Overridepublic void onLeaveApplication(AdView adView) {Log.i("DomobSDKDemo", "onDomobLeaveApplication");}@Overridepublic void onAdClicked(AdView adView) {Log.i("DomobSDKDemo", "onDomobAdClicked");}@Overridepublic Context onAdRequiresCurrentContext() {//return null;return AppActivity.this;}});//添加广告并设置它的位置RelativeLayout.LayoutParams layoutParams = new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.WRAP_CONTENT, RelativeLayout.LayoutParams.WRAP_CONTENT);//layoutParams.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM, RelativeLayout.TRUE);layoutParams.addRule(RelativeLayout.CENTER_HORIZONTAL, RelativeLayout.TRUE);bannerLayout.addView(AppActivity.this.mAdview, layoutParams);}else{if (mAdview != null) {mAdview.setVisibility(View.VISIBLE);mAdview.requestRefreshAd();}}break;case 1: //hideBannerAd()if (mAdview != null) {mAdview.setVisibility(View.GONE);}break;case 2: //initInterstitialAd()break;case 3: //showInterstitialAd()if (mInterstitialAd != null) {if (mInterstitialAd.isInterstitialAdReady()) {mInterstitialAd.showInterstitialAd(AppActivity.this);} else {Log.i("DomobSDKCocos2d-xDemo", "Interstitial Ad is not ready");mInterstitialAd.loadInterstitialAd();}} else {Log.i("DomobSDKCocos2d-xDemo", "Interstitial Ad is not init");}default:break;}}};}//打开和关闭广告public static void showBannerAd() {handler.sendEmptyMessage(0);}public static void hideBannerAd() {handler.sendEmptyMessage(1);}public static void initInterstitialAd() {handler.sendEmptyMessage(2);}public static void showInterstitialAd() {handler.sendEmptyMessage(3);}}

注意这里和多盟官方文档UserGuide.pdf的两点区别。1, 我们的场景都是通过cocos2d-x创建的，因此本身没有布局文件xml，所以我们不通过布局文件以及setContentView(R.layout.banner)和mAdContainer=(RelativeLayout)findViewById(R.id.adcontainer)两条命令来创建广告条，而是选择通过代码来创建一个RelativeLayout布局对象作为广告条的容器。2，我们通过Handler来发送消息，从而起到控制广告开关的作用。

5) 在cocos2d-x的classes下面添加一个C++类，命名为DomobAd, 里面通过jni把java的广告开关函数转换成了C++函数，以便在cocos2d-x场景里调用。完整代码如下所示：

DomobAd.h

#ifndef CLASSES_DOMOBAD_H
#define CLASSES_DOMOBAD_Hclass DomobAd {
public:static void showBannerAd();static void hideBannerAd();static void showInterstitialAd();
};#endif //CLASSES_DOMOBAD_H

DomobAd.cpp

#include "DomobAd.h"
#include "cocos2d.h"USING_NS_CC;#if (CC_TARGET_PLATFORM == CC_PLATFORM_ANDROID)
#include "platform/android/jni/JniHelper.h"
#include <jni.h>const char* AppActivityCalssName = "org/cocos2dx/cpp/AppActivity";//显示广告条
void DomobAd::showBannerAd()
{cocos2d::JniMethodInfo showBanner;if (cocos2d::JniHelper::getStaticMethodInfo(showBanner, AppActivityCalssName, "showBannerAd", "()V")) {showBanner.env->CallStaticVoidMethod(showBanner.classID, showBanner.methodID);}else{log("jni:showBannerStatic false");}
}//隐藏广告条
void DomobAd::hideBannerAd()
{cocos2d::JniMethodInfo hideBanner;if (cocos2d::JniHelper::getStaticMethodInfo(hideBanner, AppActivityCalssName, "hideBannerAd", "()V")) {hideBanner.env->CallStaticVoidMethod(hideBanner.classID, hideBanner.methodID);}else{log("jni:hideBannerStatic false");}
}//显示插屏广告
void DomobAd::showInterstitialAd()
{cocos2d::JniMethodInfo showInterstitial;if(cocos2d::JniHelper::getStaticMethodInfo(showInterstitial,AppActivityCalssName,"showInterstitialAd","()V")){showInterstitial.env->CallStaticVoidMethod(showInterstitial.classID,showInterstitial.methodID);showInterstitial.env->DeleteLocalRef(showInterstitial.classID);}else{log("jni:showBannerStatic false");}
}#else//广告条
void DomobAd::showBannerAd()
{log("showBannerAd() called");return;
}void DomobAd::hideBannerAd()
{log("hideBannerAd() called");return;
}//插屏广告
void DomobAd::showInterstitialAd(){log("showInterstitialAd() called");return;
}#endif

6) 接下来就可以愉快的在Cocos2d-x场景里添加广告了。这里我们就在HelloWorld场景的上端添加一个广告条，并在场景的中间设置一个按钮，一按就弹出一个插屏广告。完整代码如下：

HelloWorldScene.h

#ifndef __HELLOWORLD_SCENE_H__
#define __HELLOWORLD_SCENE_H__#include "cocos2d.h"class HelloWorld : public cocos2d::Layer
{
public:static cocos2d::Scene* createScene();virtual bool init();// a selector callbackvoid menuCloseCallback(cocos2d::Ref* pSender);void adCallback(cocos2d::Ref* pRef);// implement the "static create()" method manuallyCREATE_FUNC(HelloWorld);
};#endif // __HELLOWORLD_SCENE_H__

HelloWorldScene.cpp

#include "HelloWorldScene.h"
#include "DomobAd.h"USING_NS_CC;Scene* HelloWorld::createScene()
{// 'scene' is an autorelease objectauto scene = Scene::create();// 'layer' is an autorelease objectauto layer = HelloWorld::create();// add layer as a child to scenescene->addChild(layer);// return the scenereturn scene;
}// on "init" you need to initialize your instance
bool HelloWorld::init()
{//// 1. super init firstif ( !Layer::init() ){return false;}Size visibleSize = Director::getInstance()->getVisibleSize();Vec2 origin = Director::getInstance()->getVisibleOrigin();/// 2. add a menu item with "X" image, which is clicked to quit the program//    you may modify it.// add a "close" icon to exit the progress. it's an autorelease objectauto closeItem = MenuItemImage::create("CloseNormal.png","CloseSelected.png",CC_CALLBACK_1(HelloWorld::menuCloseCallback, this));closeItem->setPosition(Vec2(origin.x + visibleSize.width - closeItem->getContentSize().width/2 ,origin.y + closeItem->getContentSize().height/2));//添加一个按钮用来弹出插屏广告auto adItem = MenuItemImage::create("CloseNormal.png","CloseSelected.png",CC_CALLBACK_1(HelloWorld::adCallback, this));adItem->setPosition(Vec2(origin.x + visibleSize.width/2 ,origin.y + visibleSize.height/2));// create menu, it's an autorelease objectauto menu = Menu::create(closeItem,adItem, NULL);menu->setPosition(Vec2::ZERO);this->addChild(menu, 1);/// 3. add your codes below...// add a label shows "Hello World"// create and initialize a label//添加广告条DomobAd::showBannerAd();auto label = Label::createWithTTF("Hello World", "fonts/Marker Felt.ttf", 24);// position the label on the center of the screenlabel->setPosition(Vec2(origin.x + visibleSize.width/2,origin.y + visibleSize.height - label->getContentSize().height));// add the label as a child to this layerthis->addChild(label, 1);// add "HelloWorld" splash screen"auto sprite = Sprite::create("HelloWorld.png");// position the sprite on the center of the screensprite->setPosition(Vec2(visibleSize.width/2 + origin.x, visibleSize.height/2 + origin.y));// add the sprite as a child to this layerthis->addChild(sprite, 0);return true;
}void HelloWorld::menuCloseCallback(Ref* pSender)
{Director::getInstance()->end();#if (CC_TARGET_PLATFORM == CC_PLATFORM_IOS)exit(0);
#endif
}void HelloWorld::adCallback(cocos2d::Ref* pRef){DomobAd::showInterstitialAd();
}

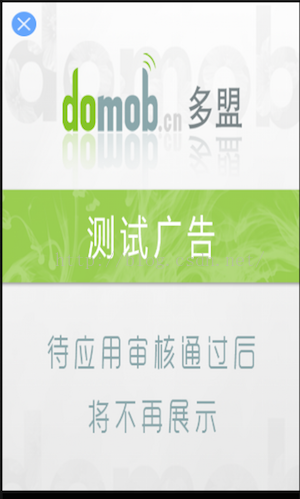

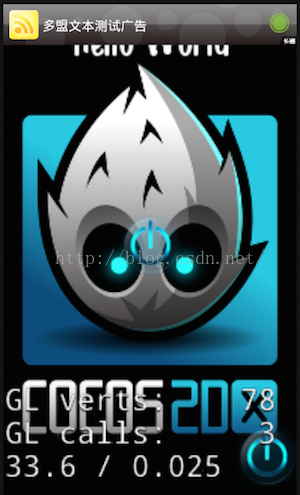

7) 编译并运行。编译之前要先在Android.mk文件里添加DomobAd.cpp的路径，否则新建的C++文件无法被编译进去。比如可以通过命令行输入vi ～/Documents/HelloWorld/proj.android-studio/app/jni/Android.mk 进行添加。最终运行后效果如下图所示
