EMMC IO Operation Mode
The EMMC IO PAD is a multipurpose PAD which can be programmed to operate in different
modes:
1、Output with predetermined source/ sink impedance
2、Open drain
3、Input
4、Tristate
5、Weak pull up or pull down
The PAD mode of operation is determined by ‘phyctrl_dren_xxx’, ‘phyctrl_oden_xxx’, ’phyctrl_ren_xxx’ and ‘phyctrl_pu_xxx’ control signal(xxx equals to dat or cmd).
The ‘phyctrl_dr_ty[2:0]’ are used to program the drive strength of the IO in push/pull mode of operation by programming the source/sink impedance of EMMC51 IO. The PAD source/sink impedance can be programmed to 50, 33, 66, 100 or 40 Ohms. The source/sink impedance variation across PVT exceeds 25 % of its nominal value. Trimming bits are provided to greatly reduce the variation. phyctrl_rtrim[3:0] control are used to trim the selected source/sink impedance value. The dynamic range of the trim is +/- 25%. The power on default setting of phyctrl_rtrim[3:0] equals 4’b1110.
所以我们需要关注：
1、phyctrl_dren_xxx, phyctrl_oden_xxx, phyctrl_ren_xxx and phyctrl_pu_xxx control signal
2、phyctrl_dr_ty[2:0]
3、phyctrl_rtrim[3:0]

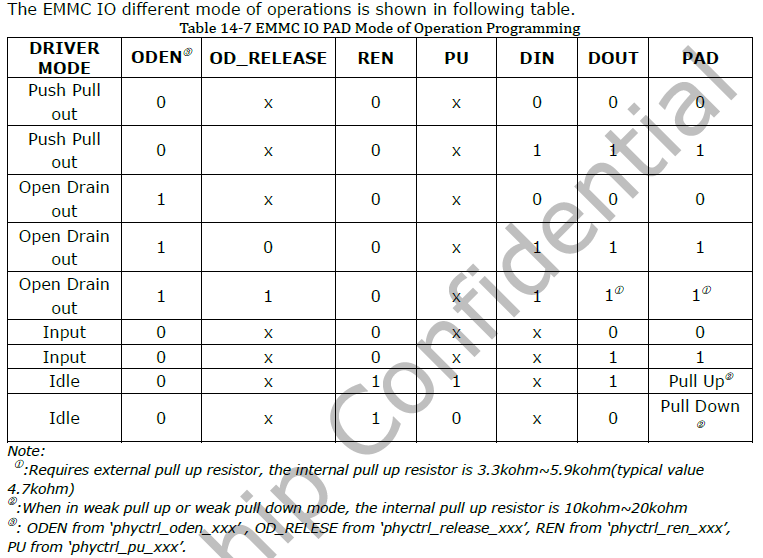

如图所示，不同的IO mode对应了一组寄存器的状态
IO的阻抗则由phyctrl_dr_ty[2:0]控制
相关文件
u-boot/drivers/mmc/rockchip_sdhci.c
kernel/drivers/phy/rockchip/phy-rockchip-emmc.c
uboot设置
#define RK_CLRSETBITS(clr, set) ((((clr) | (set)) << 16) | (set))rk3399_emmc_phy_power_onu32 phy_con6;phy_con6 = readl(&phy->emmcphy_con[6]);printf( "## [\e[31m%s\e[0m():%d] phy_con6=%x !!!!!! \n", __func__, __LINE__, phy_con6);//phy_con6=1108 0001000100001000 irom中的阻抗配置bit[6:4]为0writel(RK_CLRSETBITS(7 << 4, 0), &phy->emmcphy_con[6]);//01110000 将emmcphy_con[6]的bit[6:4]置为0，设置pad阻抗/** According to the user manual, calpad calibration* cycle takes more than 2us without the minimal recommended* value, so we may need a little margin here*/writel(RK_CLRSETBITS(1, 1), &phy->emmcphy_con[6]);/* Set the frequency of the DLL operation */writel(RK_CLRSETBITS(1 << 1, 1 << 1), &phy->emmcphy_con[6]);rk3399_emmc_phy_power_offwritel(RK_CLRSETBITS(1, 0), &phy->emmcphy_con[6]);writel(RK_CLRSETBITS(1 << 1, 0), &phy->emmcphy_con[6]);
irom默认配置：
phy_con5=0
phy_con2=3ff
phy_con3=1ff
phy_con6=110b 0001000100001011
phy_status=6c 0000000001101100uboot修改的配置：
phy_con5=0
phy_con2=3ff
phy_con3=1ff
phy_con6=1108 0001000100001000
phy_status=1c 0000000000011100
内核设置
#define HIWORD_UPDATE(val, mask, shift) \((val) << (shift) | (mask) << ((shift) + 16))#define PHYCTRL_DR_MASK 0x7
#define PHYCTRL_DR_SHIFT 0x4
#define PHYCTRL_DR_50OHM 0x0
#define PHYCTRL_DR_33OHM 0x1
#define PHYCTRL_DR_66OHM 0x2
#define PHYCTRL_DR_100OHM 0x3
#define PHYCTRL_DR_40OHM 0x4regmap_write(rk_phy->reg_base, rk_phy->reg_offset + GRF_EMMCPHY_CON6,HIWORD_UPDATE(PHYCTRL_DR_50OHM, PHYCTRL_DR_MASK, PHYCTRL_DR_SHIFT));
内核读到的配置：

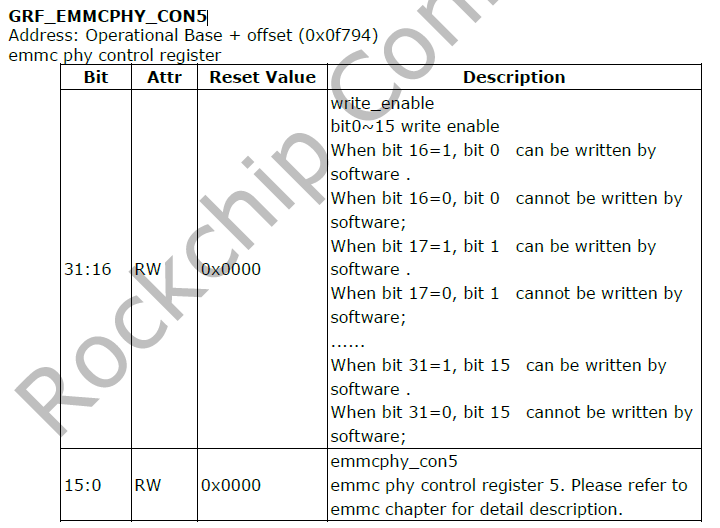

phy_con5=0

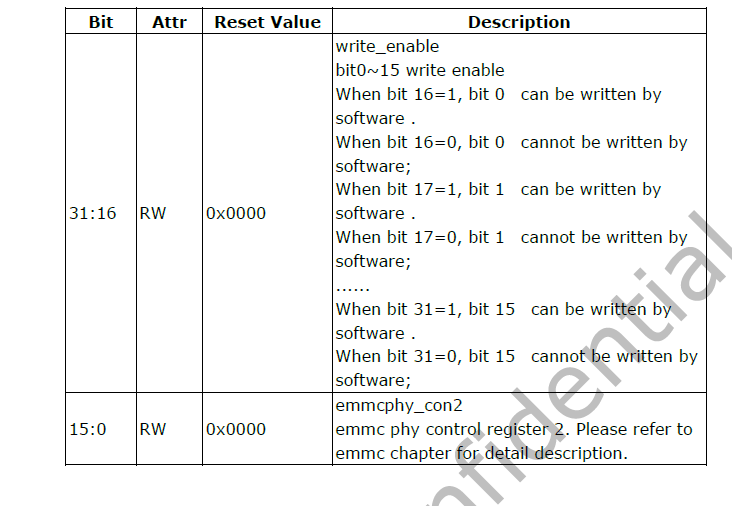

phy_con2=3ff

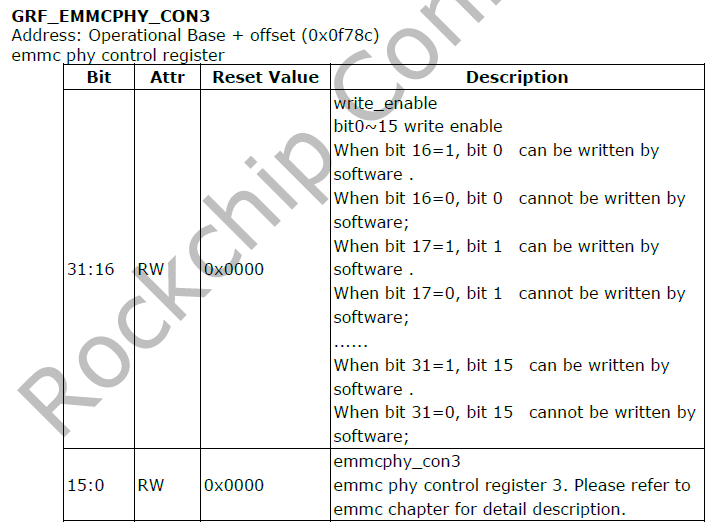

phy_con3=1ff
phy_con6=110b 0001000100001011
phy_status=74 0000000001110100内核设置的配置：
phy_con5=0
phy_con2=3ff
phy_con3=1ff
phy_con6=1108
phy_status=1c
可以看到phy_con6设置的io阻抗没有发生变化，其他的控制寄存器也没有发生变化，con6默认会“Enable retention mode——EMMCIOs will retain its input programming state during VCORE is off in sleep mode”
phyctrl_rtrim根据emmc的不同状态在发生变化。

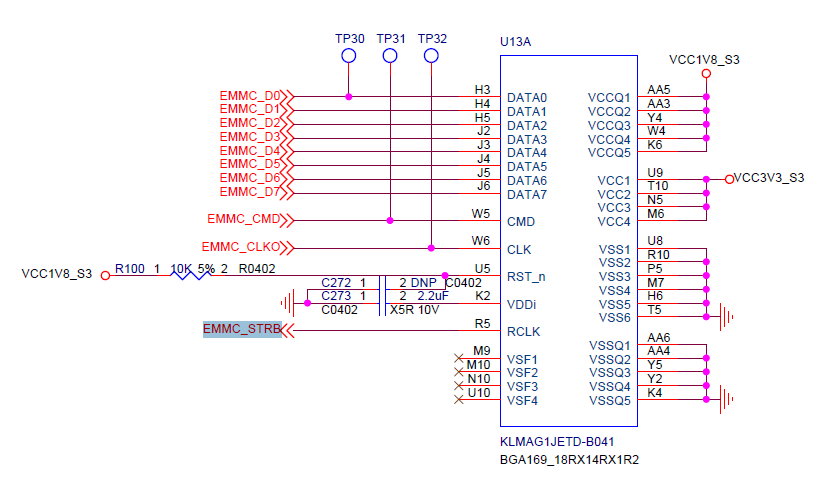

硬件原理
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7
EMMC_CMD
EMMC_CLKO
EMMC_STRB
