之前一直没有更新,原因很简单,懒!
最近在做网络书城部分,发现很多待解决的问题。今天模仿某app的排行榜界面就碰到一个问题。先看看排行榜界面怎么实现的把
一、写Adapter
用的是BaseExpandableListerAdapter,这个可以点击以后展开(qq、微信分组效果)，之前都是用的BaseAdapter，其实用法差不多,多重写几个方法而已。
看看代码
public class ExpandablelistAdapter extends BaseExpandableListAdapter {private Context mContext;private LayoutInflater inflater;//設置組視圖的圖片private int[] groupImags = new int[]{R.drawable.rank_hot,R.drawable.rank_leaving,R.drawable.rank_end,R.drawable.rank_monthly,R.drawable.rank_potential,R.drawable.rank_collapse};//设置组视图的显示文字private String[] groupTexts = new String[]{"追书最热榜","读者留存率top 100","追书完结榜","包月排行榜","本周潜力榜","别人家的排行榜"};private String[][] childTexts = new String[][]{{},{},{},{},{},{"圣诞热搜榜","百度热搜榜","掌阅热销榜","书旗热销榜","17K鲜花榜"}};public ExpandablelistAdapter(Context context){mContext=context;inflater=LayoutInflater.from(context);}public ExpandablelistAdapter(){}@Overridepublic int getGroupCount() {return groupImags.length;}@Overridepublic int getChildrenCount(int i) {return childTexts[i].length;}@Overridepublic Object getGroup(int i) {return groupTexts[i];}@Overridepublic Object getChild(int i, int i1) {return childTexts[i][i1];}@Overridepublic long getGroupId(int i) {return i;}@Overridepublic long getChildId(int i, int i1) {return i1;}@Overridepublic boolean hasStableIds() {return true;}@Overridepublic View getGroupView(final int groupPosition, boolean isExpanded, View convertView, ViewGroup parent) {convertView = inflater.inflate(R.layout.list_item, null);ImageView iv1 = (ImageView) convertView.findViewById(R.id.image1);iv1.setImageResource(groupImags[groupPosition]);TextView textView1 = (TextView) convertView.findViewById(R.id.text1);textView1.setText(getGroup(groupPosition).toString());//箭頭ImageView iv2 = (ImageView) convertView.findViewById(R.id.image2);if (groupPosition==5) {//第六个(别人家的排行榜)if (isExpanded) {iv2.setImageResource(R.drawable.up);} else {iv2.setImageResource(R.drawable.down);}} else {iv2.setVisibility(View.GONE);}/* convertView.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {Toast.makeText(mContext,"组视图: "+groupPosition,Toast.LENGTH_SHORT).show();}});*/return convertView;}@Overridepublic View getChildView(int groupPosition, final int childPosition, boolean isExpanded, View convertView, ViewGroup viewGroup) {convertView = inflater.inflate(R.layout.list_item1,null);TextView tvName = (TextView)convertView.findViewById(R.id.tvRankChildName);tvName.setText(getChild(groupPosition,childPosition).toString());/* convertView.setOnClickListener(new View.OnClickListener() {@Overridepublic void onClick(View view) {Toast.makeText(mContext,"子视图: "+childPosition,Toast.LENGTH_SHORT).show();}});*/return convertView;}@Overridepublic boolean isChildSelectable(int i, int i1) {return true;}
}这个主要是看getGoupView()和getChildView(),
对应的list_item和list_item1布局较简单,就不上代码了
二、MainActivity
和普通ListView一样,在MainActivity里面只需要两个步骤：1.findViewById找到listview控件2.给空间设置适配器
java代码
setContentView(R.layout.activity_main);final ExpandableListView MaleListView = (ExpandableListView) findViewById(R.id.expandableMaleListView);final ExpandableListView FeMaleListView = (ExpandableListView) findViewById(R.id.expandableFeMaleListView);//不顯示默認的MaleListView.setGroupIndicator(null);FeMaleListView.setGroupIndicator(null);ExpandablelistAdapter adapter1 = new ExpandablelistAdapter(this);MaleListView.setAdapter(adapter1);FeMaleListView.setAdapter(adapter1);需要注意的是: 需加入MaleListView.setGroupIndicator(null),Fe MaleListView.setGroupIndicator(null)代码,取消默认的下拉图标;因为在Adapter中已经自定义了下拉图片;当然在xml中加入android:groupIndicator="@null"也是可以的
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/activity_main"android:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"tools:context="test.fangshuoit.com.expandablelistviewtest.MainActivity"><test.fangshuoit.com.expandablelistviewtest.ReboundScrollViewandroid:layout_width="match_parent"android:layout_height="match_parent"android:layerType="software"><LinearLayoutandroid:layout_width="match_parent"android:layout_height="match_parent"android:orientation="vertical"><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:padding="10dp"android:text="男生"android:textSize="20dp" /><ExpandableListViewandroid:id="@+id/expandableMaleListView"android:layout_width="fill_parent"android:layout_height="wrap_content"android:background="#ffffff"android:cacheColorHint="#00000000"android:listSelector="#00000000" /><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:padding="15dp"android:text="女生"android:textSize="20dp" /><ExpandableListViewandroid:id="@+id/expandableFeMaleListView"android:layout_width="fill_parent"android:layout_height="wrap_content"android:background="#ffffff"android:cacheColorHint="#00000000"android:listSelector="#00000000" /></LinearLayout></test.fangshuoit.com.expandablelistviewtest.ReboundScrollView>

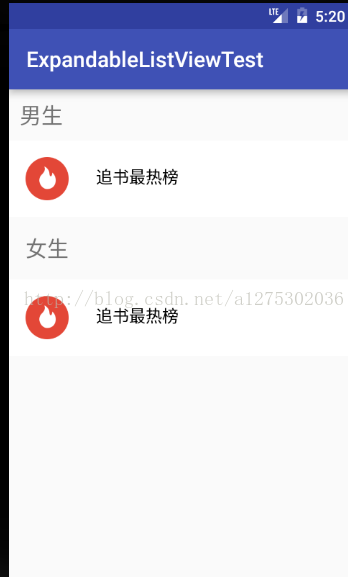

</LinearLayout> 好了,这样一个最简单的ExpandableListView就算写好了,我们来看看效果
只得到了一行数据,经查资料发现是,ScroView嵌套ListView时,需要自定义View来指定ListView的高度
于是,
1.新建一个类继承CustomExpandableListView继承ExpandableListView,重写里面的onMeasure方法,
2.在xml中把控件替换为自定义的就行了
java代码
public class CustomExpandableListView extends ExpandableListView {public CustomExpandableListView(Context context, AttributeSet attrs) {super(context, attrs);}@Overrideprotected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {int expandSpec = MeasureSpec.makeMeasureSpec(Integer.MAX_VALUE >> 2,MeasureSpec.AT_MOST);/*** 重寫該方法,達到expandablelistview適應scrollView的效果*/super.onMeasure(widthMeasureSpec, expandSpec);}
}
) <test.fangshuoit.com.expandablelistviewtest.CustomExpandableListViewandroid:id="@+id/expandableMaleListView"android:layout_width="fill_parent"android:layout_height="wrap_content"android:background="#ffffff"android:cacheColorHint="#00000000"android:listSelector="#00000000" />
)
