springboot项目使用Swagger RestAPI最佳说明文档

本文主要是介绍springboot项目使用Swagger RestAPI最佳说明文档，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

#springboot项目使用Swagger RestAPI最佳说明文档

我们在开发各种rest服务的时候，需要给出rest api的介绍使用。如果没有rest API的介绍使用文档，除了看源代码几乎没人知道怎么使用。那么如何来编写rest API的说明文档了？当然我们可以自己写一个类似javadoc的工具，然后每次构建的时候生成对应的html，或者字节开发注解，然后根据一定规则生成rest doc文档，那么有没有一种开源的，统一并且便捷好用的rest 说明文档工具了？当然有，那就是Swagger.

我们先看看Swagger官方网站是如何介绍该项目的。
Swagger–The World’s Most Popular API Tooling，世界上最流行的API工具。

下面我们直接进入正题，如何在springboot项目中使用Swagger。总共分为三部
第一步，引入swagger依赖
第二部，在spring-boot中配置swagger-ui界面
第三步，提供API文档页基本信息
第四步，给rest API编写文档
项目在这里。欢迎下载和关注，谢谢！

#第一步引入swagger依赖
在pom文件中添加如下依赖

        <!-- Use Swagger for rest API --><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId><version>2.8.0</version></dependency><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger-ui</artifactId><version>2.8.0</version></dependency>

#第二步在spring-boot中配置swagger-ui界面
在我们项目中增加一个类WebMvcConfig。

package com.yq.demo.config;import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;@Configuration
public class WebMvcConfig extends WebMvcConfigurerAdapter {@Overridepublic void addResourceHandlers(ResourceHandlerRegistry registry) {registry.addResourceHandler("/js/**").addResourceLocations("classpath:/js/");registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");}}

#第三步提供API文档页基本信息
也是添加一个新类
package com.yq.demo;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.service.Contact;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2 {
//swagger2的配置文件，这里可以配置swagger2的一些基本的内容，比如扫描的包等等
@Bean
public Docket createRestApi() {
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(apiInfo())
.select()
//为当前包路径
.apis(RequestHandlerSelectors.basePackage(“com.yq.demo.controller”))
.paths(PathSelectors.any())
.build();
}
//构建 api文档的详细信息函数,注意这里的注解引用的是哪个
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title(“Spring Boot 测试使用 Swagger2 构建RESTful API”)
.contact(new Contact(“EricYang”, “https://github.com/xyz/abc.git”, "test1@163.com"))
.version(“1.0”)
.description(“User API 描述”)
.build();
}

}

#第四步，给rest API编写文档
这一步是我们的主要工作，这里我们给两个Controller编写api文档
第一个是HelloWorldController，它有一个get rest api显示Hello World

    @ApiOperation(value = "hello demo", notes = "just for demo")@GetMapping(value = "/hello", produces = "text/plain;charset=UTF-8")public String hello() {return "Hello World";}

可以看到@GetMapping(value = “/hello”, produces = “text/plain;charset=UTF-8”)
其中的value = “/hello"就是我们rest的路径，因为我们返回的是字符串，所以使用"text/plain;charset=UTF-8”
下面是另外一个UserController， API比较多，我们选择其中2个，项目类容可以参看源代码

    @ApiOperation(value = "add new user", notes = "add new user to system")@ApiImplicitParams({@ApiImplicitParam(name = "userName", value = "userName", required = true, dataType = "String", paramType = "query"),@ApiImplicitParam(name = "password", value = "密码", required = true ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "fullName", value = "fullName", required = true ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "email", value = "email", required = true ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "usertype", allowableValues="1,2,3", required = false ,dataType = "int", paramType = "query"),@ApiImplicitParam(name = "dateformat", value = "dateformat", required = false ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "timeforamt", value = "timeforamt", required = false ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "timezone", value = "timezone", required = false ,dataType = "String", paramType = "query"),@ApiImplicitParam(name = "language", value = "language", required = false ,dataType = "String", paramType = "query")})@PostMapping(value = "/add", produces = "application/json;charset=UTF-8")public  @ResponseBody User addNewUser(@RequestParam String userName,@RequestParam String password,@RequestParam String fullName,@RequestParam String email,@RequestParam Integer usertype,@RequestParam(value = "dateformat", defaultValue = "yyyy-MM-dd") String dateformat,@RequestParam(value = "timeforamt", defaultValue = "HH:mm:ss") String timeforamt,@RequestParam(value = "timezone", defaultValue = "GMT+8") String timezone,@RequestParam(value = "language", defaultValue = "zh_CN") String language) {User user = new User();user.setUsername(userName);user.setFullname(fullName);user.setEmail(email);user.setLanguage(language);user.setPassword(password);user.setActive(1);user.setUserType(usertype);user.setCan_delete(1);user.setTimeZone(timezone);user.setTimeFormat(timeforamt);user.setDateFormat(dateformat);userRepository.save(user);return user;}

下面这个是根据FullName进行查询的例子。其中只有一个path的参数fullname

    @ApiOperation(value = "findByFullName", notes = "find by fullName")@ApiImplicitParam(name = "fullname", value = "fullname", required = true, dataType = "String", paramType = "path")@GetMapping(value = "/findByFullName/{fullname}", produces = "application/json;charset=UTF-8")@ResponseBodypublic User getUserByFullName(@PathVariable String fullname){User user = userRepository.getByFullName(fullname);return user;}

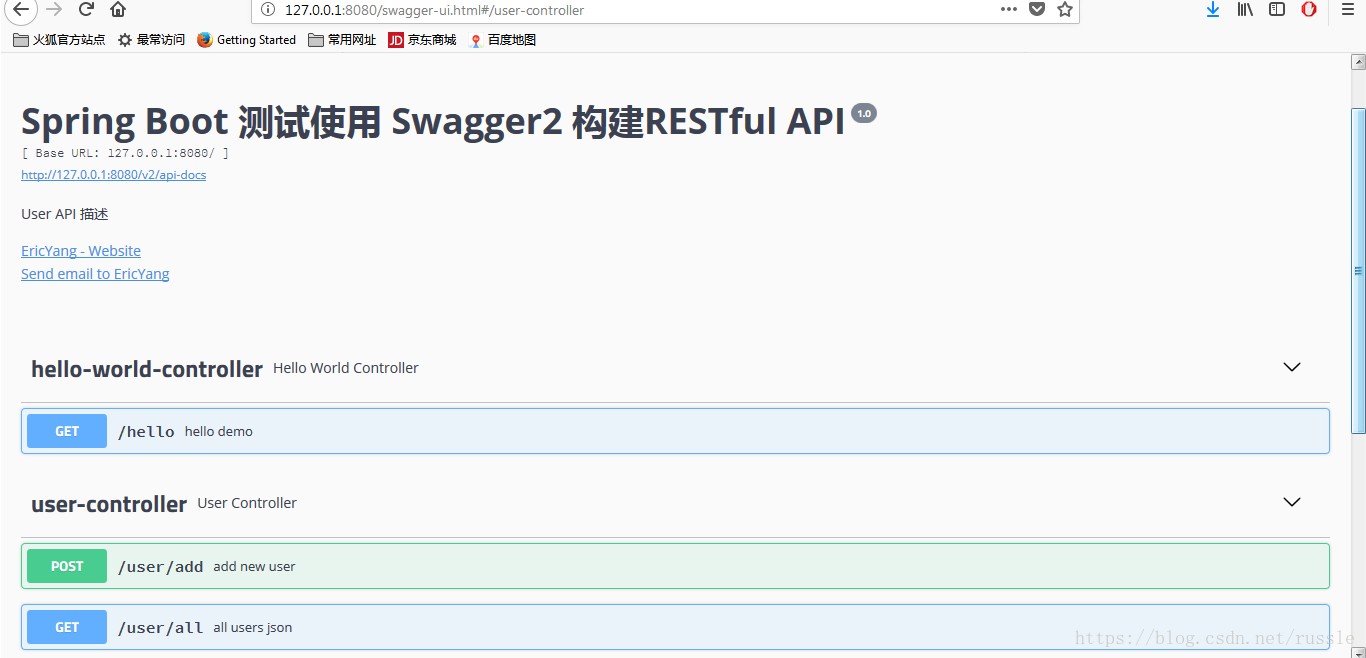

最后运行我们的项目，在浏览器打开http://127.0.0.1:8080/swagger-ui.html

示例图1
这里写图片描述
