Oracle Study 之--Oracle 11g Grid control安装（OMS）

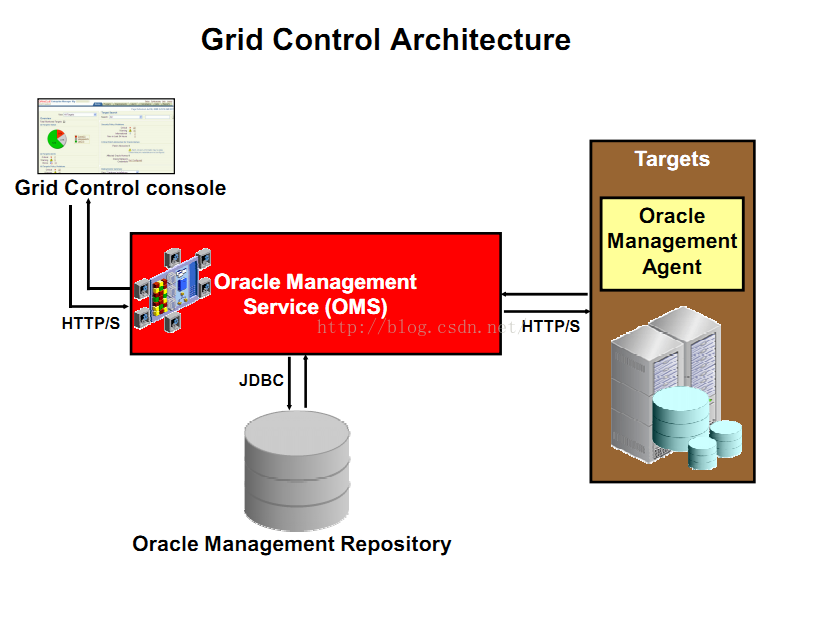

一、GC系统架构
包括Oracle Management Service(OMS), Oracle Management Agent, Oracle Management Repository, GridControl Console四个组成部分. 系统架构如下:

二、安装准备工作

 1）、对于OMS安装，需要卸载系统原有的dbcontrol，以下为卸载步骤：

[oracle@ocm1 soft]$ emctl status dbconsole
Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0
Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.
https://ocm1:1158/em/console/aboutApplication
Oracle Enterprise Manager 11g is not running.
------------------------------------------------------------------
Logs are generated in directory /u01/app/oracle/product/11.2.0/db_1/ocm1_enmoedu/sysman/log
[oracle@ocm1 soft]$ emctl stop dbconsole
Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0
Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.
https://ocm1:1158/em/console/aboutApplication
Stopping Oracle Enterprise Manager 11g Database Control ...
 ...  Stopped.
[oracle@ocm1 soft]$ emctl status dbconsole
Oracle Enterprise Manager 11g Database Control Release 11.2.0.3.0
Copyright (c) 1996, 2011 Oracle Corporation.  All rights reserved.
https://ocm1:1158/em/console/aboutApplication
Oracle Enterprise Manager 11g is not running.
卸载dbcontrol：
[oracle@ocm1 soft]$ emca -deconfig dbcontrol db -repos drop
STARTED EMCA at Sep 20, 2016 2:33:47 PM
EM Configuration Assistant, Version 11.2.0.3.0 Production
Copyright (c) 2003, 2011, Oracle.  All rights reserved.
Enter the following information:
Database SID: enmoedu
Listener port number: 1521
Password for SYS user:
Password for SYSMAN user:
----------------------------------------------------------------------
WARNING : While repository is dropped the database will be put in quiesce mode.
----------------------------------------------------------------------
Do you wish to continue? [yes(Y)/no(N)]: Y
Sep 20, 2016 2:38:46 PM oracle.sysman.emcp.EMConfig perform
INFO: This operation is being logged at /u01/app/oracle/cfgtoollogs/emca/enmoedu/emca_2016_09_20_14_38_31.log.
Sep 20, 2016 2:38:47 PM oracle.sysman.emcp.util.DBControlUtil stopOMS
INFO: Stopping Database Control (this may take a while) ...
Sep 20, 2016 2:38:49 PM oracle.sysman.emcp.EMReposConfig invoke
INFO: Dropping the EM repository (this may take a while) ...
Sep 20, 2016 2:41:10 PM oracle.sysman.emcp.EMReposConfig invoke
INFO: Repository successfully dropped
Enterprise Manager configuration completed successfully
FINISHED EMCA at Sep 20, 2016 2:41:14 PM

2）、配置数据库参数

14:42:46 SYS@ enmoedu>ALTER SYSTEM SET log_buffer=10485760 SCOPE=SPFILE;
System altered.
14:43:00 SYS@ enmoedu>ALTER SYSTEM SET processes=500 SCOPE=SPFILE;
System altered.
14:43:14 SYS@ enmoedu>ALTER SYSTEM SET session_cached_cursors=200 SCOPE=SPFILE;
System altered.
14:44:39 SYS@ enmoedu>alter database datafile 3 resize 200m;
Database altered.

调整redo logfile的size，每个日志组大小为200m。

3）、配置Oracle用户环境变量

[oracle@ocm1 ~]$ cat .bash_profile
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=$ORACLE_BASE/product/11.2.0/db_1
export ORACLE_SID=emrp
export PATH=$PATH:$HOME/bin:$ORACLE_HOME/bin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export ORACLE_MIDDLEWARE_HOME_LOCATION=/u01/app/Oracle/Middleware
export OMS_HOME=/u01/app/Oracle/gc_inst

三、安装OMS

 1）、首先安装JDK要求版本在1.6以上（可以从OTN下载）

[root@ocm1 soft]# rpm -ivh jdk-8u101-linux-x64.rpm
Preparing...                ########################################### [100%]
   1:jdk1.8.0_101         ########################################### [100%]
Unpacking JAR files...
        tools.jar...
        plugin.jar...
        javaws.jar...
        deploy.jar...
        rt.jar...
        jsse.jar...
        charsets.jar...
        localedata.jar...

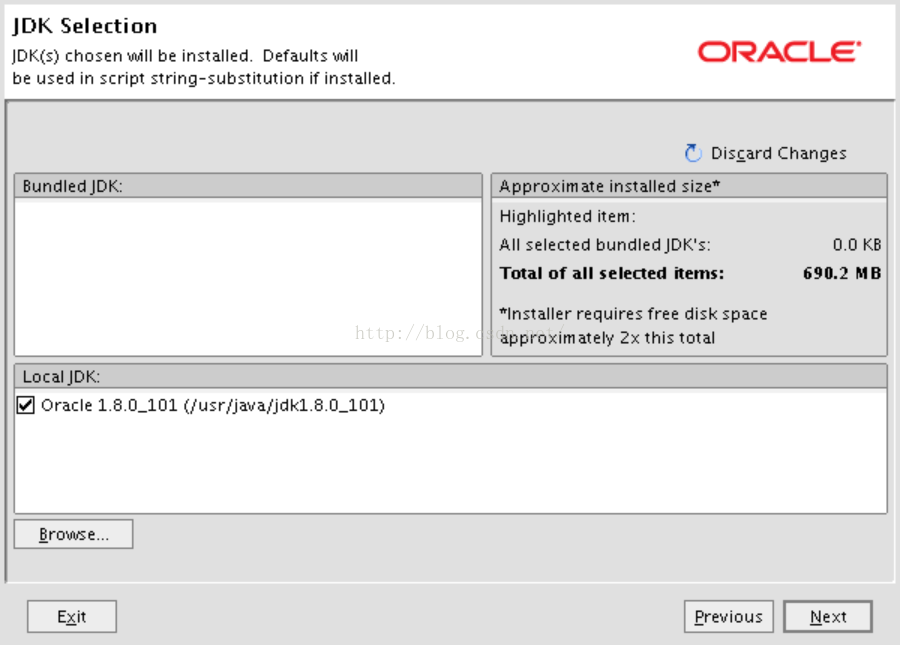

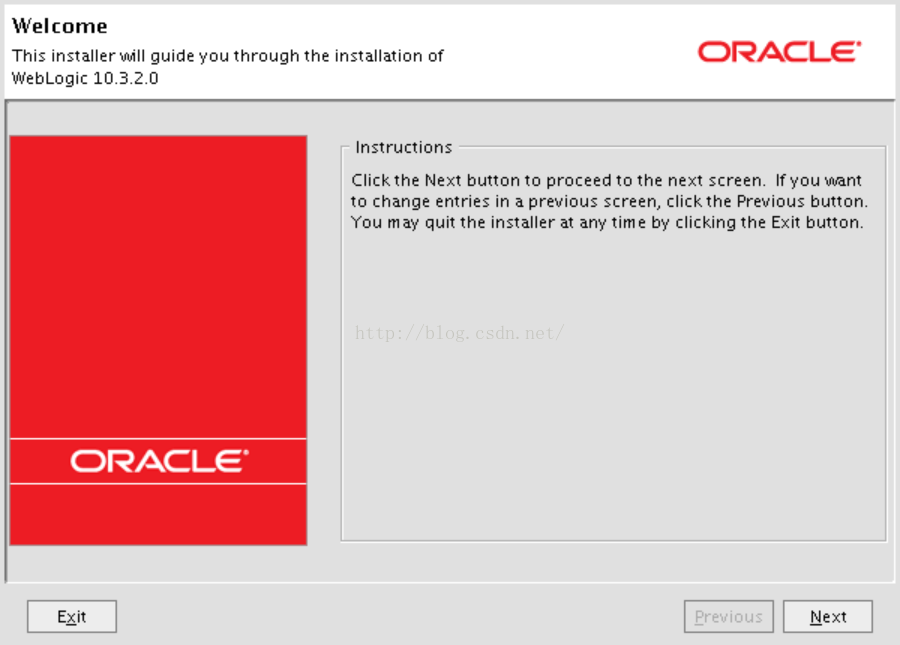

2）安装Weblogic

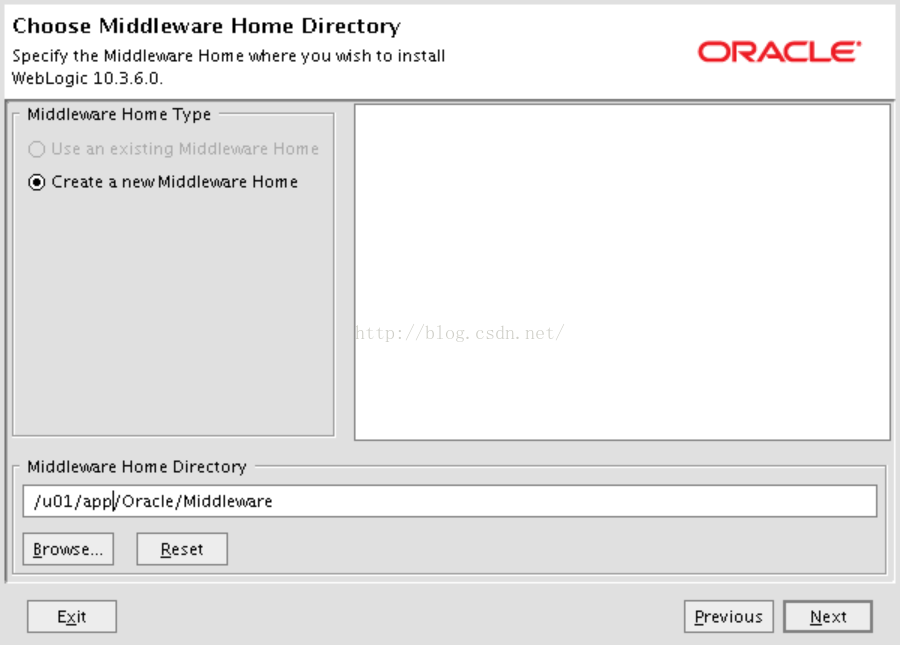

    由于OTN现在只提供10.3.6版本以上版本的下载，多次使用10.3.6（32或64位），在OMS configuration阶段总是“failed”；根据多方面建议，选择10.3.2版本，由于系统、数据库、GC都是64位版本，建议Weblogic也使用64位版本。本次安装没有能获得10.3.2的64位版本，故用32位代替。

[oracle@ocm1 soft]$ export DISPLAY=192.168.8.254:0.0
[oracle@ocm1 soft]$ chmod  +x    wls1032_linux32

[oracle@ocm1 soft]$ ./wls1032_linux32
Launcher log file is /tmp/OraInstall2016-09-20_02-15-34PM/launcher2016-09-20_02-15-34PM.log.
Extracting files..........
Starting Oracle Universal Installer

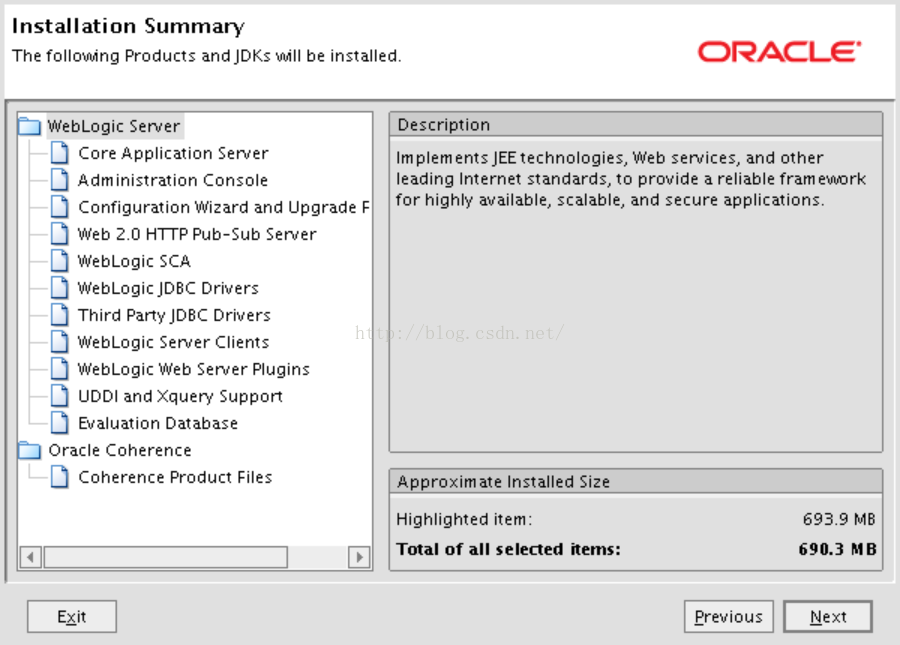

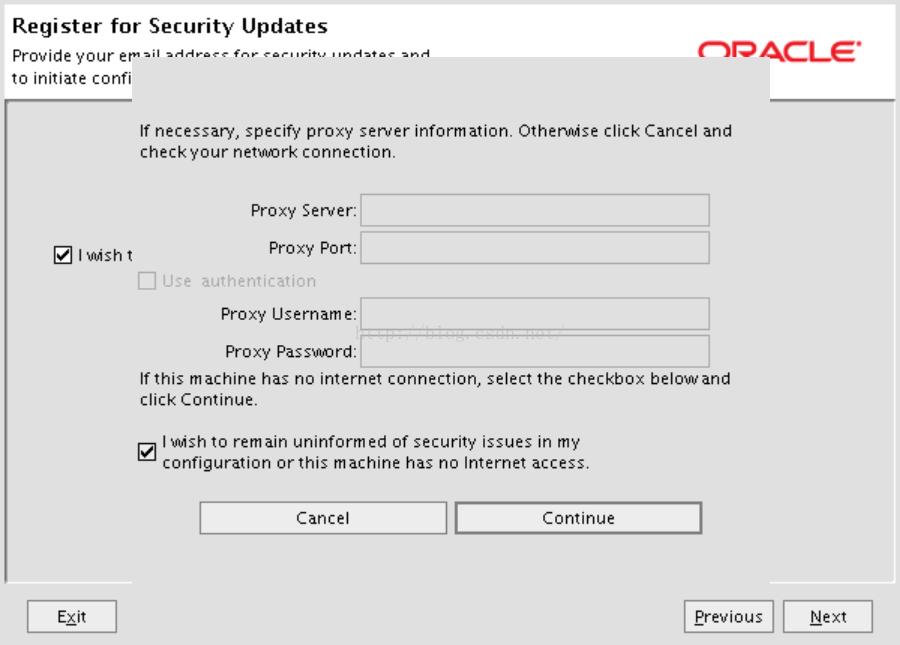

Weblogic安装完后，不选择“quick start”；不需要配置Weblogic的domain，在安装GC时会配置。

3）安装Grid Control （Version：11.1.0.1 ，64位）

对于Grid Control的安装，注意配置主机名，需要有域名支持

[root@ocm1 soft]# cat /etc/hosts

127.0.0.1    localhost

192.168.8.200   ocm1.enmoedu.com   ocm1

[root@ocm1 soft]# ls -l gc
total 4328832
-rwxr--r-- 1 oracle oinstall 1430649530 Sep 20 12:00 GridControl_11.1.0.1.0_Linux_x86-64_1of3.zip
-rwxr--r-- 1 oracle oinstall 1589671704 Sep 20 10:43 GridControl_11.1.0.1.0_Linux_x86-64_2of3.zip
-rwxr--r-- 1 oracle oinstall 1408054645 Sep 20 11:52 GridControl_11.1.0.1.0_Linux_x86-64_3of3.zip

[oracle@ocm1 soft]$ export DISPLAY=192.168.8.254:0.0

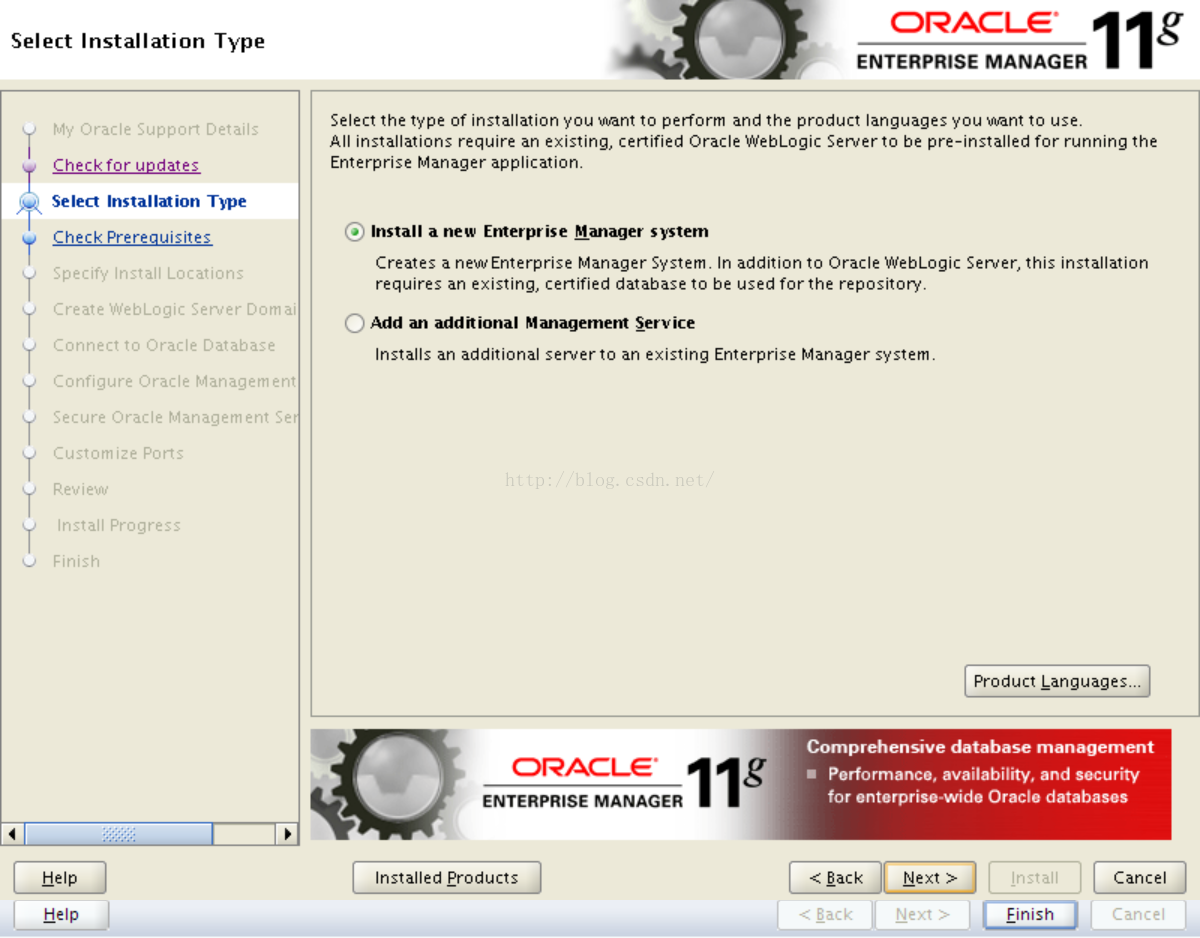

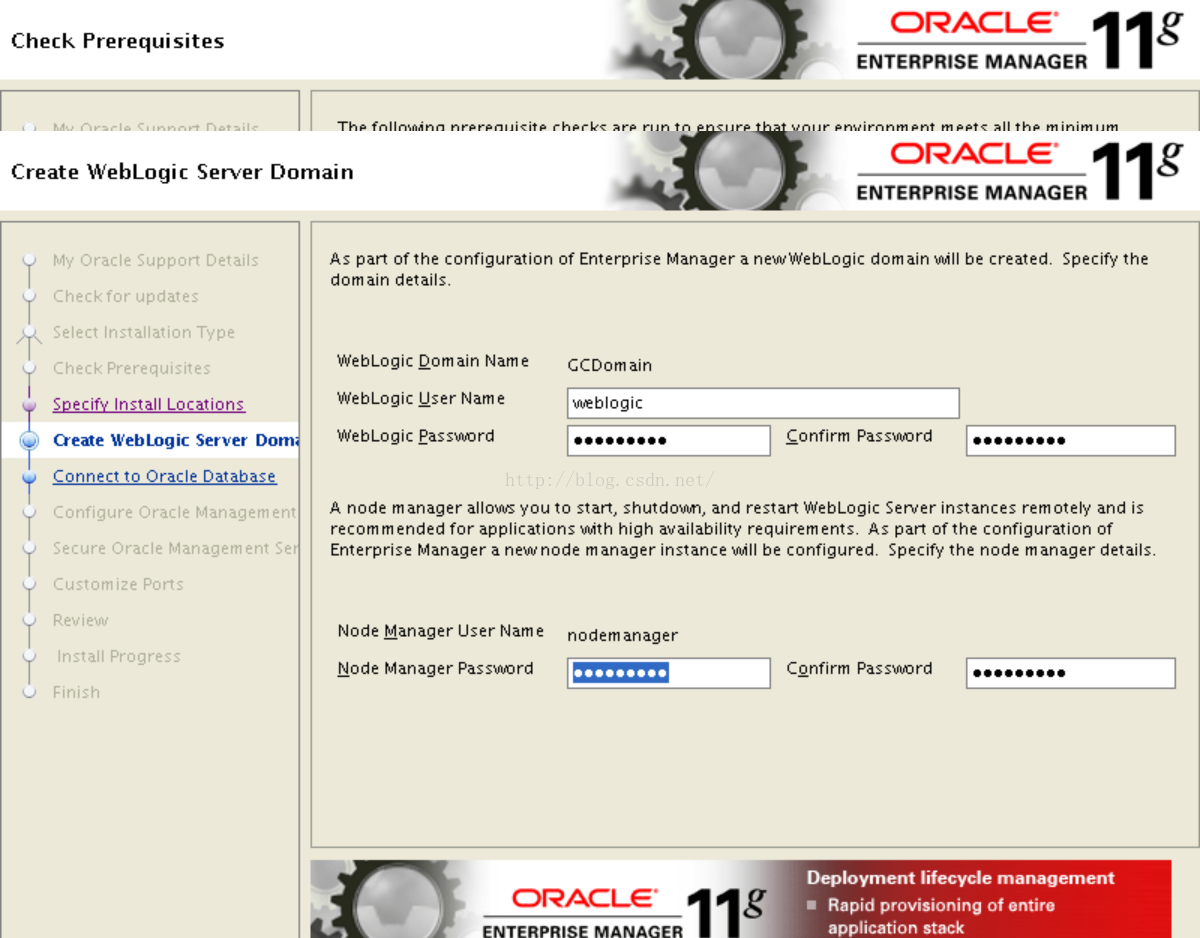

[oracle@ocm1 gc]$./runInstaller

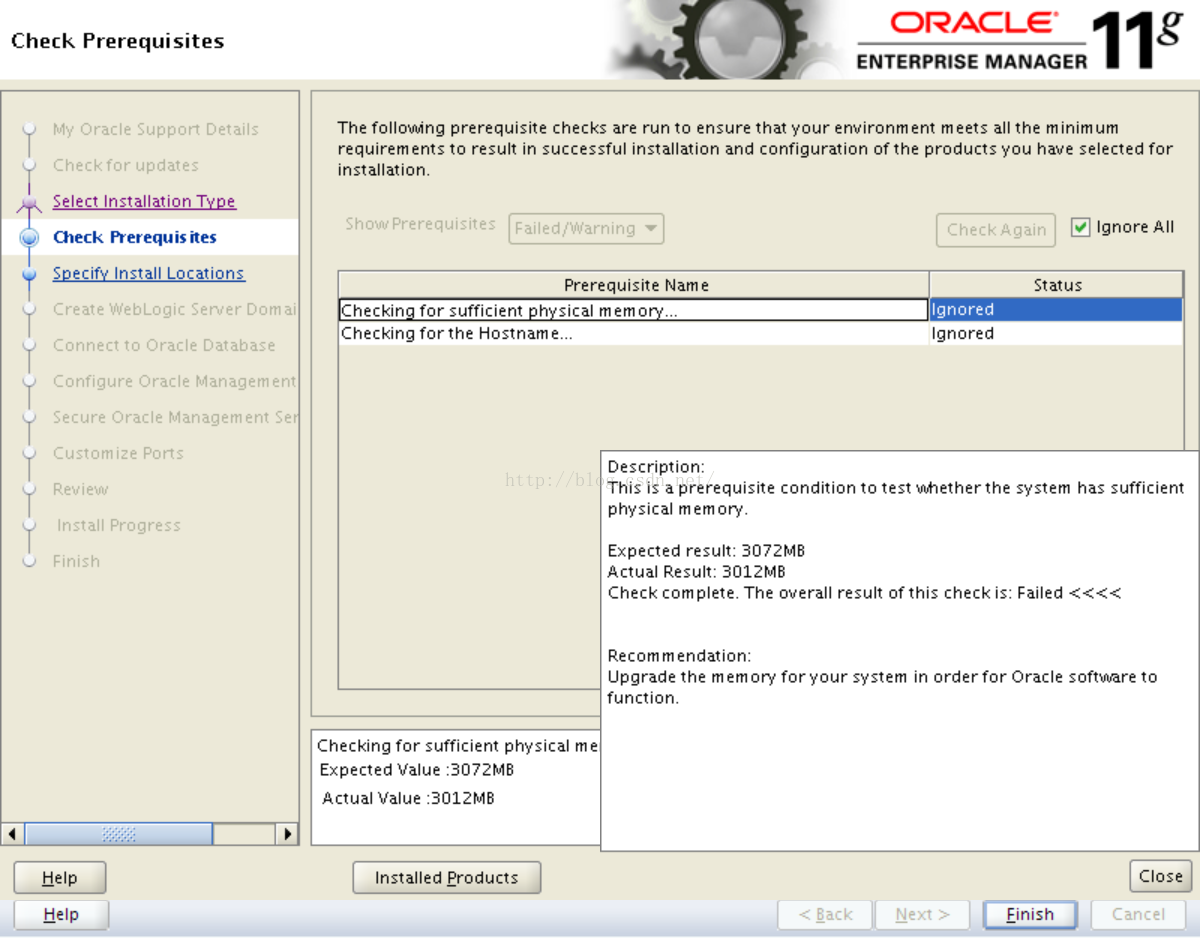

注意：GC的安装要求主机物理内存在3G以上

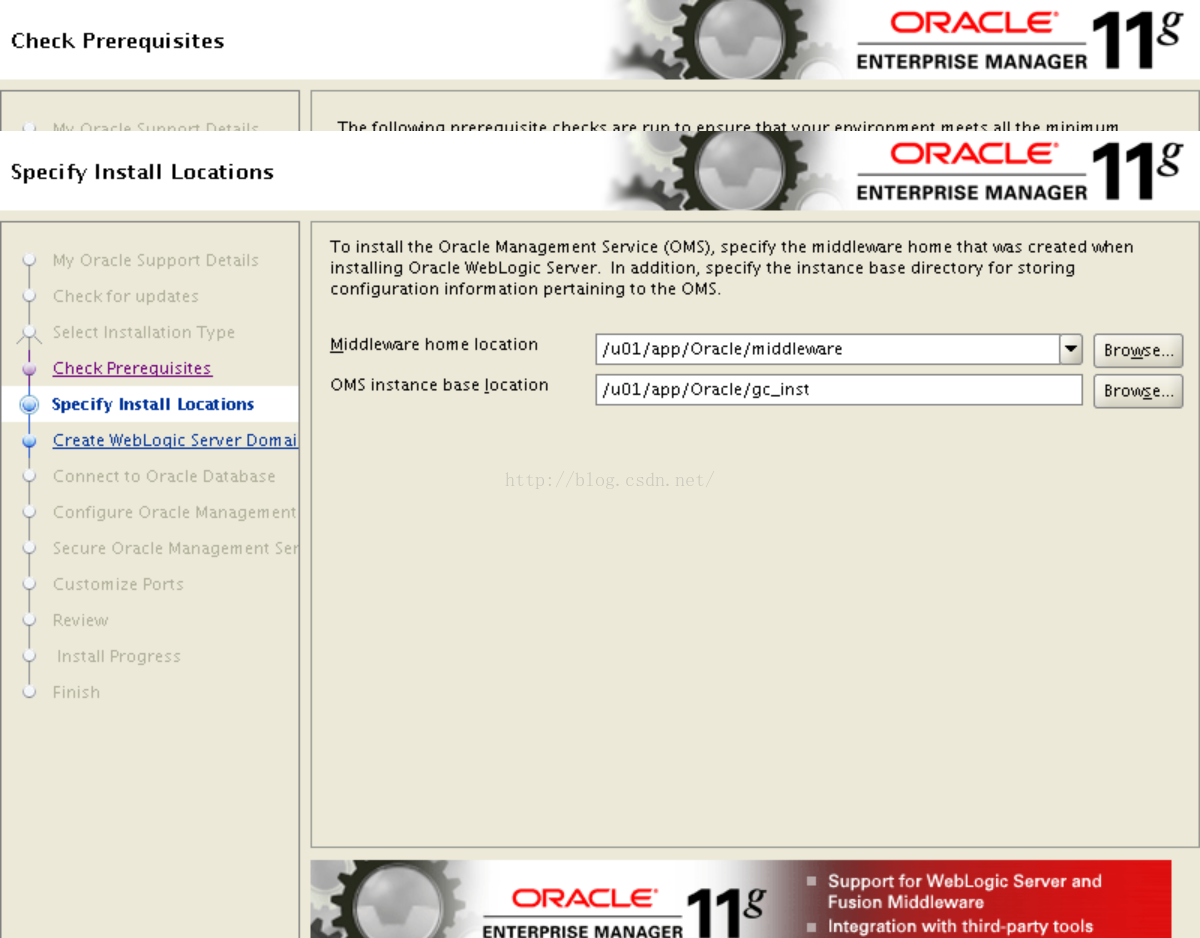

注意：图中Middleware Home Location：应该为 ‘/u01/app/Oracle/Middleware'

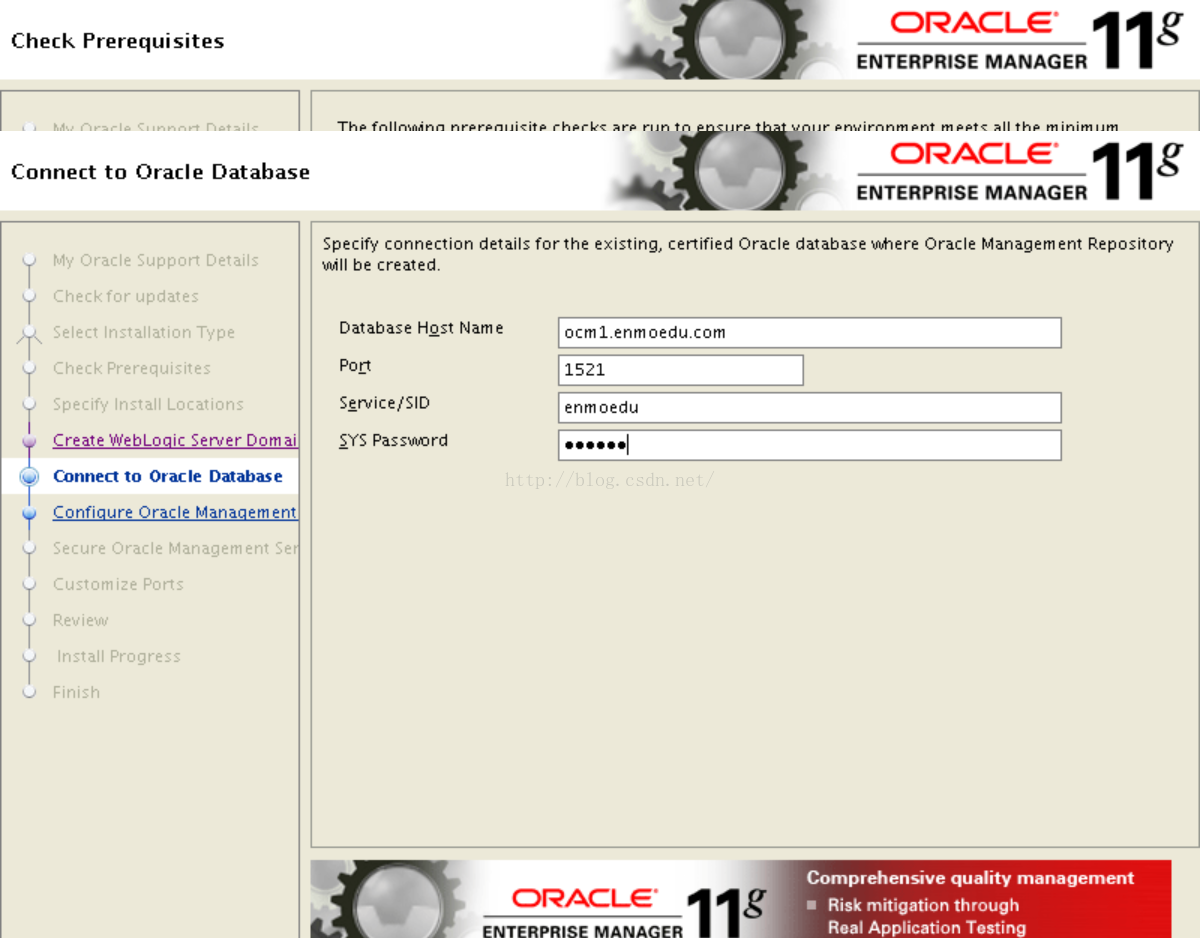

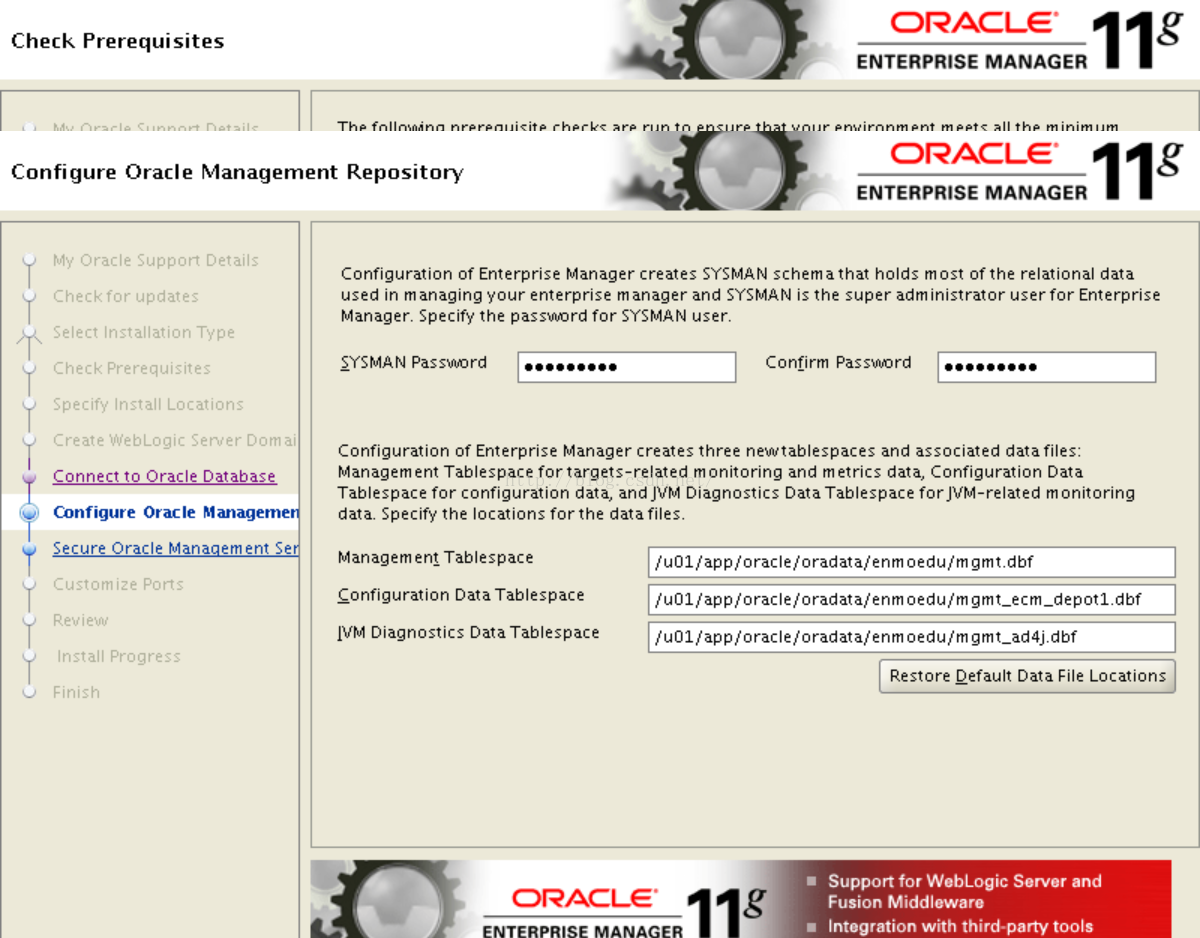

注意：图中SID根据数据实际情况应该为：emrp

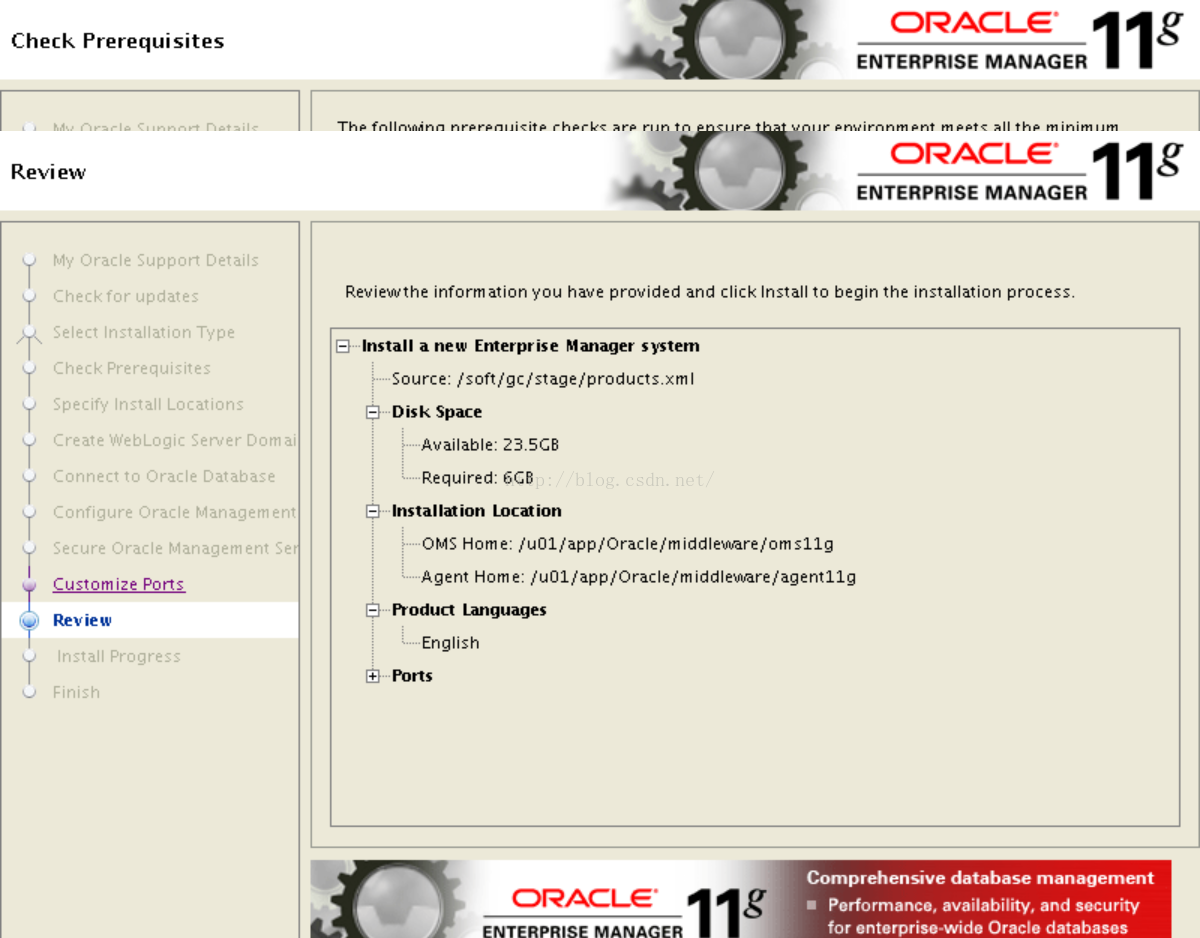

注意：图中路径中的“enmoedu”按照实际安装路径应该是“emrp”

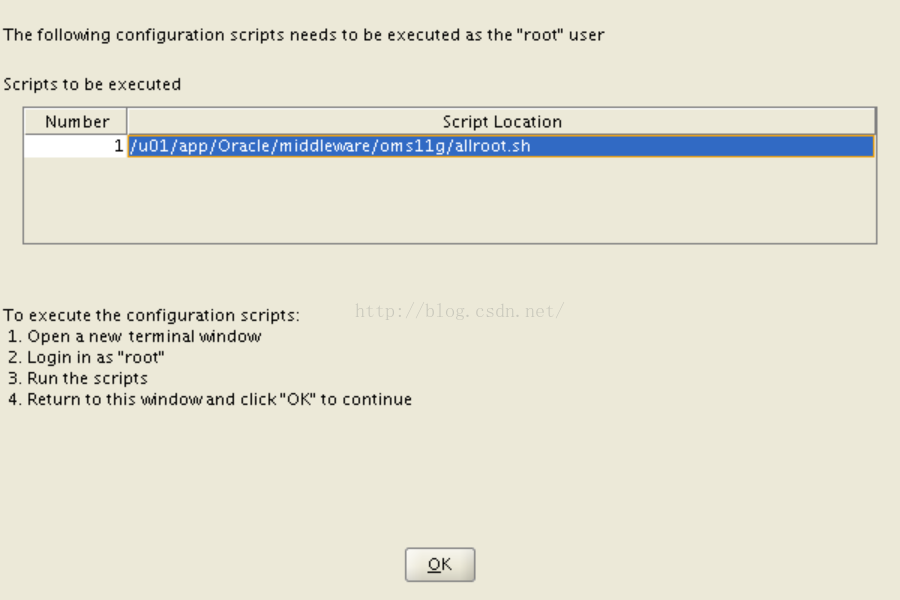

注意：以“root”用户的身份运行脚本

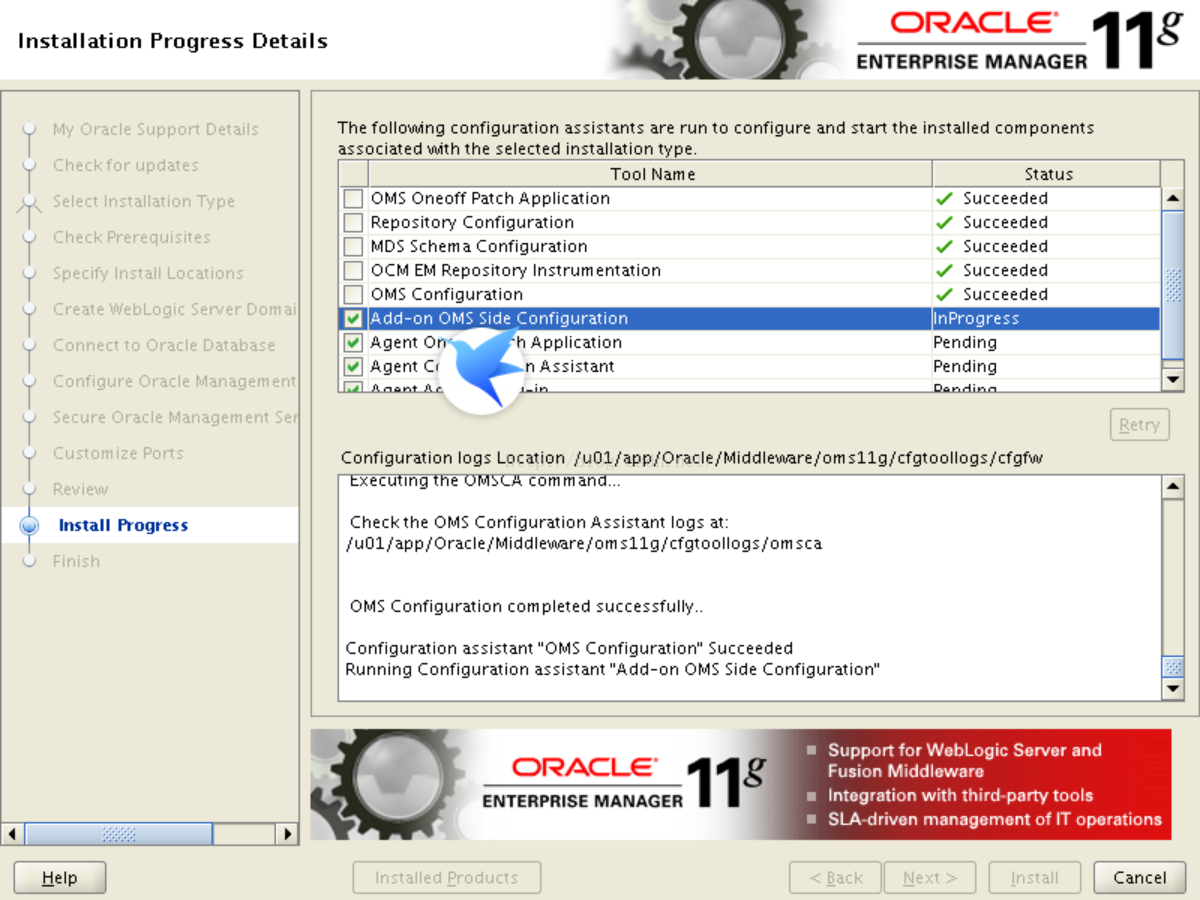

注意：在weblogic使用10.3.6版本（32或64），在OMS configuration阶段总是“failed”；在使用10.3.2后，安装成功！

Failed 日志：

weblogic 10.3.6 安装gc 错误：
OMS configuration：
[oracle@ocm1 ~]$ tail -f /u01/app/Oracle/Middleware/oms11g/cfgtoollogs/omsca/omsca_20160921043159.log
Sep 21, 2016 4:38:54 AM oracle.sysman.omsca.adapter.wls.OMSWLSAdapter adapterDeleteOMS
FINE: Cleaning up instance home directory: /u01/app/Oracle/gc_inst/em
Sep 21, 2016 4:38:54 AM oracle.sysman.omsca.adapter.wls.OMSWLSAdapter adapterDeleteOMS
FINE: Succesfully deleted the oms
Sep 21, 2016 4:38:54 AM oracle.sysman.omsca.adapter.wls.OMSWLSAdapter adapterCleanup
FINE: The value of infra setup completion is :false
Sep 21, 2016 4:38:54 AM oracle.sysman.omsca.framework.OMSCAFreshInstall execute
SEVERE: ERROR:  Infrastructure setup  of EM failed.
Sep 21, 2016 4:38:54 AM oracle.sysman.omsca.framework.OMSConfigAssistantDriver main
FINE: Got resultfalse

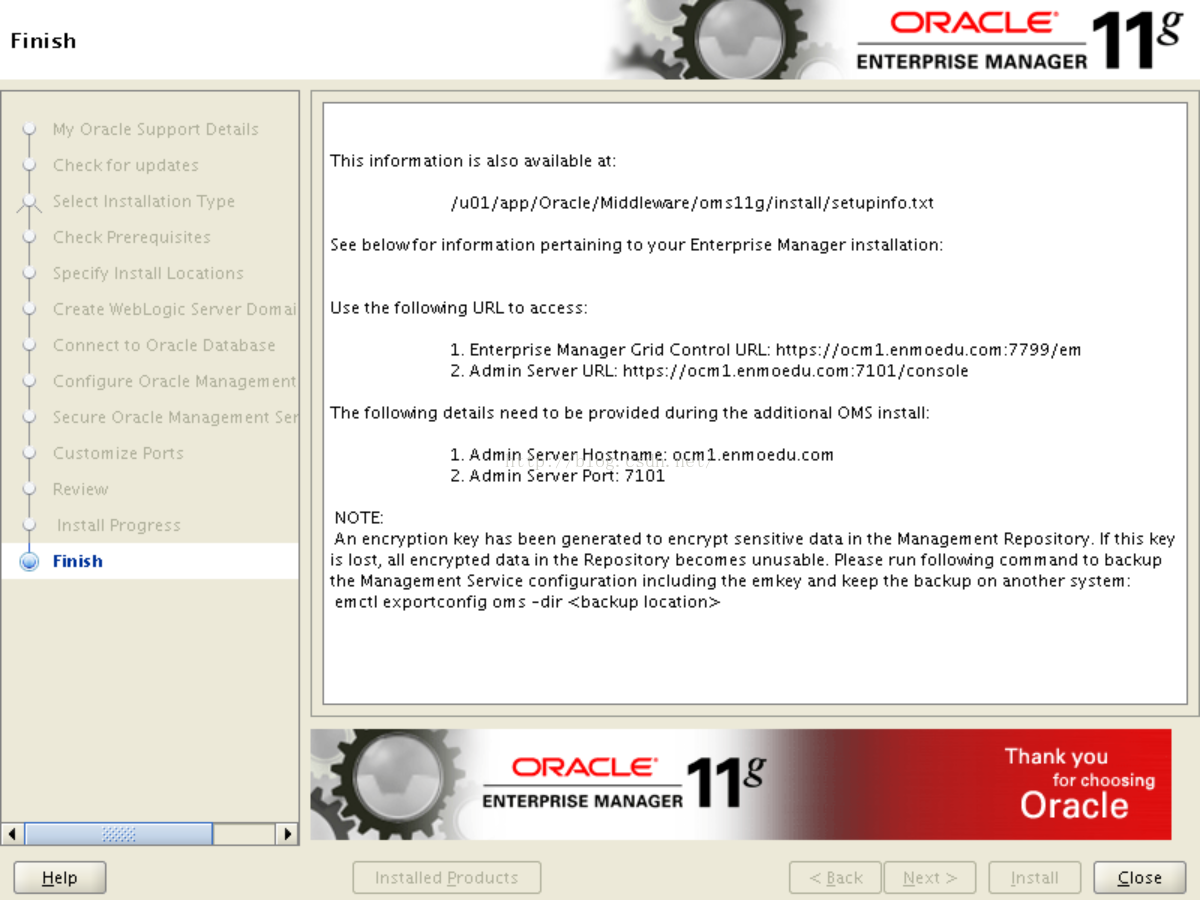

Congratulations： Grid Control Install 终于Success ！

三、安装后的验证

1）、查看OMS服务端口

[oracle@ocm1 gc]$ netstat -an |grep 7799
tcp        0      0 0.0.0.0:7799                0.0.0.0:*                   LISTEN
[oracle@ocm1 gc]$ netstat -an |grep 7101
tcp        0      0 192.168.8.200:7101          0.0.0.0:*                   LISTEN
tcp        0      0 192.168.8.200:7101          192.168.8.200:55547         ESTABLISHED
tcp        0      0 192.168.8.200:7101          192.168.8.200:55566         ESTABLISHED
tcp        0      0 192.168.8.200:55555         192.168.8.200:7101          ESTABLISHED
2）、查看OMS Server状态
[oracle@ocm1 gc]$ cd /u01/app/Oracle/Middleware/oms11g/bin
[oracle@ocm1 bin]$ ./emctl status oms
Oracle Enterprise Manager 11g Release 1 Grid Control
Copyright (c) 1996, 2010 Oracle Corporation.  All rights reserved.
WebTier is Up
Oracle Management Server is Up
3）、查看OMS agent状态
[oracle@ocm1 bin]$ pwd
/u01/app/Oracle/Middleware/agent11g/bin
[oracle@ocm1 bin]$ ./emctl status agent
Oracle Enterprise Manager 11g Release 1 Grid Control 11.1.0.1.0
Copyright (c) 1996, 2010 Oracle Corporation.  All rights reserved.
---------------------------------------------------------------
Agent Version     : 11.1.0.1.0
OMS Version       : 11.1.0.1.0
Protocol Version  : 11.1.0.0.0
Agent Home        : /u01/app/Oracle/Middleware/agent11g
Agent binaries    : /u01/app/Oracle/Middleware/agent11g
Agent Process ID  : 31988
Parent Process ID : 31928
Agent URL            : https://ocm1.enmoedu.com:3872/emd/main/
Repository URL    : https://ocm1.enmoedu.com:4900/em/upload
Started at        : 2016-09-21 09:53:36
Started by user   : oracle
Last Reload       : 2016-09-21 09:54:29
Last successful upload                       : 2016-09-21 10:03:12
Total Megabytes of XML files uploaded so far :    26.37
Number of XML files pending upload           :        0
Size of XML files pending upload(MB)         :     0.00
Available disk space on upload filesystem    :    28.48%
Last successful heartbeat to OMS             : 2016-09-21 10:02:47
---------------------------------------------------------------
Agent is Running and Ready
[oracle@ocm1 bin]$

4）、通过console访问OMS
 对于OMS通过浏览器访问的https端口是7799，http访问是7202
[oracle@ocm1 bin]$ netstat -an |grep 7202
tcp        0      0 192.168.8.200:7202          0.0.0.0:*                   LISTEN
tcp        0      0 192.168.8.200:27800         192.168.8.200:7202          ESTABLISHED
tcp        0      0 192.168.8.200:7202          192.168.8.200:61800         TIME_WAIT
tcp        0      0 192.168.8.200:7202          192.168.8.200:27792         ESTABLISHED

通过http访问连接到OMS，访问成功！

总结：

      对于Oracle 11g Grid Control安装过程并不复杂，但是必须保证Weblogic版本和Grid Control版本匹配，才能保证安装顺利进行！

后续：Oracle 11g Grid Control Agent install
