Linux内核内存管理
固定映射地址(fixmap)和输入输出重映射(ioremap)


rtoax
2021年3月

  • 在英文原文基础上,针对中文译文增加5.10.13内核源码相关内容。

Print kernel’s page table entries

四级页表的虚拟内存映射:

Virtual memory map with 4 level page tables:
0000000000000000 - 00007fffffffffff (=47 bits) user space, different per mm
ffff800000000000 - ffff80ffffffffff (=40 bits) guard hole
ffff880000000000 - ffffc7ffffffffff (=64 TB) direct mapping of all phys. memory
ffffc80000000000 - ffffc8ffffffffff (=40 bits) hole
ffffc90000000000 - ffffe8ffffffffff (=45 bits) vmalloc/ioremap space
ffffe90000000000 - ffffe9ffffffffff (=40 bits) hole
ffffea0000000000 - ffffeaffffffffff (=40 bits) virtual memory map (1TB)
ffffffff80000000 - ffffffffa0000000 (=512 MB)  kernel text mapping, from phys 0
ffffffffa0000000 - fffffffffff00000 (=1536 MB) module mapping space

arch/x86/mm/dump_pagetables.c

1. 固定映射地址和输入输出重映射

固定映射地址是一组特殊的编译时确定的地址,它们与物理地址不一定具有减 __START_KERNEL_map 的线性映射关系。每一个固定映射的地址都会映射到一个内存页,内核会像指针一样使用它们,但是绝不会修改它们的地址。这是这种地址的主要特点。就像注释所说的那样,“在编译期就获得一个常量地址,只有在引导阶段才会被设定上物理地址。”你在本书的前面部分可以看到,我们已经设定了 level2_fixmap_pgt

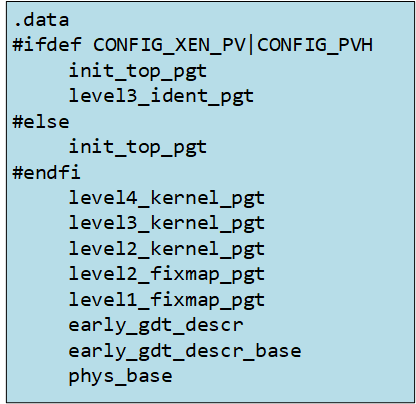

NEXT_PAGE(level2_fixmap_pgt).fill	506,8,0.quad	level1_fixmap_pgt - __START_KERNEL_map + _PAGE_TABLE.fill	5,8,0NEXT_PAGE(level1_fixmap_pgt).fill	512,8,0

在这里插入图片描述

就像我们看到的, level2_fixmap_pgt 紧挨着 level2_kernel_pgt 保存了内核的 code+data+bss 段。每一个固定映射的地址都由一个整数下标表示,这些整数下标在 arch/x86/include/asm/fixmap.h 的 fixed_addresses 枚举类型中定义。比如,它包含了VSYSCALL_PAGE 的入口 - 如果合法的 vsyscall 页模拟机制被开启,或是启用了本地 apic 的 FIX_APIC_BASE 选项等等。在虚拟内存中,固定映射区域被放置在模块区域中:

       +-----------+-----------------+---------------+------------------+|kernel text|      kernel     |               |    vsyscalls     || mapping   |       text      |    Modules    |    fix-mapped    ||from phys 0|       data      |               |    addresses     |+-----------+-----------------+---------------+------------------+
__START_KERNEL_map   __START_KERNEL    MODULES_VADDR            0xffffffffffffffff

这点在5.10.13中并不一致,比如说我的结果为:

ffffffffffffffff : 0xffffffffffffffff
ffffffffff7ff000 : FIXADDR_TOP
ffffffffff600000 : fix_to_virt(VSYSCALL_PAGE)
ffffffffff5ff000 : fix_to_virt(FIX_DBGP_BASE)
ffffffffff5fc000 : fix_to_virt(FIX_APIC_BASE)
ffffffffff5fb000 : fix_to_virt(FIX_IO_APIC_BASE_0)
ffffffffff57b000 : fix_to_virt(FIX_PARAVIRT_BOOTMAP)
ffffffffff57a000 : fix_to_virt(FIX_APEI_GHES_IRQ)
ffffffffff579000 : fix_to_virt(FIX_APEI_GHES_NMI)
ffffffffff578000 : FIXADDR_START
ffffffffff578000 : fix_to_virt(__end_of_permanent_fixed_addresses)
ffffffffff3ff000 : fix_to_virt(FIX_BTMAP_END)
ffffffffff200000 : fix_to_virt(FIX_BTMAP_BEGIN)
ffffffffff1ff000 : fix_to_virt(FIX_TBOOT_BASE)
ffffffffff1fe000 : fix_to_virt(__end_of_fixed_addresses)
ffffffffc0000000 : MODULES_VADDR
ffffffff81000000 : __START_KERNEL
ffffffff80000000 : __START_KERNEL_map

基虚拟地址和固定映射区域的尺寸使用以下两个宏表示:

#define FIXADDR_SIZE	(__end_of_permanent_fixed_addresses << PAGE_SHIFT)
#define FIXADDR_START		(FIXADDR_TOP - FIXADDR_SIZE)

在这里 __end_of_permanent_fixed_addressesfixed_addresses 枚举中的一个元素,如我上文所说:每一个固定映射地址都由一个定义在 fixed_addresses 中的整数下标表示。PAGE_SHIFT 决定了页的大小。比如,我们可以使用 1 << PAGE_SHIFT 来获取一页的大小。在我们的场景下需要获取固定映射区域的尺寸,而不仅仅是一页的大小,这就是我们使用 __end_of_permanent_fixed_addresses 来获取固定映射区域尺寸的原因。在我的系统中这个值可能略大于 536 KB。在你的系统上这个值可能会不同,因为这个值取决于固定映射地址的数目,而这个数目又取决于内核的配置。

The second FIXADDR_START macro just substracts fix-mapped area size from the last address of the fix-mapped area to get its base virtual address. FIXADDR_TOP is a rounded up address from the base address of the vsyscall space:
第二个 FIXADDR_START 宏只是从固定映射区域的末地址减去了固定映射区域的尺寸,这样就可以获得它的基虚拟地址。 FIXADDR_TOP 是一个从 vsyscall 空间的基址取整产生的地址:

#define FIXADDR_TOP     (round_up(VSYSCALL_ADDR + PAGE_SIZE, 1<<PMD_SHIFT) - PAGE_SIZE)

fixed_addresses 枚举量被 fix_to_virt 函数用做下标用于获取虚拟地址。这个函数的实现很简单:

static __always_inline unsigned long fix_to_virt(const unsigned int idx)
{BUILD_BUG_ON(idx >= __end_of_fixed_addresses);return __fix_to_virt(idx);
}

首先它调用 BUILD_BUG_ON 宏检查了给定的 fixed_addresses 枚举量不大于等于 __end_of_fixed_addresses,然后返回了 __fix_to_virt 宏的运算结果:

#define __fix_to_virt(x)        (FIXADDR_TOP - ((x) << PAGE_SHIFT))

在这里我们用 PAGE_SHIFT 左移了给定的固定映射地址下标,就像我上文所述它决定了页的地址,然后将 FIXADDR_TOP 减去这个值,FIXADDR_TOP 是固定映射区域的最高地址。以下是从虚拟地址获取对应固定映射地址的转换函数:

static inline unsigned long virt_to_fix(const unsigned long vaddr)
{BUG_ON(vaddr >= FIXADDR_TOP || vaddr < FIXADDR_START);return __virt_to_fix(vaddr);
}

virt_to_fix 以虚拟地址为参数,检查了这个地址是否位于 FIXADDR_STARTFIXADDR_TOP 之间,然后调用 __virt_to_fix ,这个宏实现如下:

#define __virt_to_fix(x)        ((FIXADDR_TOP - ((x)&PAGE_MASK)) >> PAGE_SHIFT)

一个 PFN 是一块页大小物理内存的下标。一个物理地址的 PFN 可以简单地定义为 (page_phys_addr >> PAGE_SHIFT)

__virt_to_fix 会清空给定地址的前 12 位,然后用固定映射区域的末地址(FIXADDR_TOP)减去它并右移 PAGE_SHIFT 即 12 位。让我们来解释它的工作原理。就像我已经写的那样,这个宏会使用 x & PAGE_MASK 来清空前 12 位。然后我们用 FIXADDR_TOP 减去它,就会得到 FIXADDR_TOP 的后 12 位。我们知道虚拟地址的前 12 位代表这个页的偏移量,当我们右移 PAGE_SHIFT 后就会得到 Page frame number ,即虚拟地址的所有位,包括最开始的 12 个偏移位。固定映射地址在内核中多处使用。 IDT 描述符保存在这里,英特尔可信赖执行技术 UUID 储存在固定映射区域,以 FIX_TBOOT_BASE 下标开始。另外, Xen 引导映射等也储存在这个区域。我们已经在内核初始化的第五部分看到了一部分关于固定映射地址的知识。接下来让我们看看什么是 ioremap,看看它是怎样实现的,与固定映射地址又有什么关系呢?

这里给个小程序:

#include <stdio.h>#define CONFIG_PHYSICAL_ALIGN 0x200000
#define CONFIG_PHYSICAL_START 0x1000000 /* (16 MB) */#define __round_mask(x, y) ((__typeof__(x))((y)-1))
#define round_up(x, y) ((((x)-1) | __round_mask(x, y))+1)
#define round_down(x, y) ((x) & ~ __round_mask(x, y))#define __ALIGN_KERNEL(x, a)		__ALIGN_KERNEL_MASK(x, (typeof(x))(a) - 1)
#define __ALIGN_KERNEL_MASK(x, mask)	(((x) + (mask)) & ~(mask))
#define ALIGN(x, a)		__ALIGN_KERNEL((x), (a))#define PAGE_SHIFT		12
#define PAGE_SIZE		(1UL << PAGE_SHIFT)
#define PAGE_MASK		(~(PAGE_SIZE-1))#define PGDIR_SHIFT		39
#define PUD_SHIFT	30
#define PMD_SHIFT	21#define PMD_SIZE	(1UL << PMD_SHIFT)
#define PMD_MASK	(~(PMD_SIZE - 1))
#define PUD_SIZE	(1UL << PUD_SHIFT)
#define PUD_MASK	(~(PUD_SIZE - 1))#define PTRS_PER_PGD		512
#define PTRS_PER_PUD	512
#define PTRS_PER_PMD	512
#define PTRS_PER_PTE	512#define VSYSCALL_ADDR (-10UL << 20)#define FIXADDR_TOP	(round_up(VSYSCALL_ADDR + PAGE_SIZE, 1<<PMD_SHIFT) - \PAGE_SIZE)#define FIXADDR_SIZE	(__end_of_permanent_fixed_addresses << PAGE_SHIFT)
#define FIXADDR_START		(FIXADDR_TOP - FIXADDR_SIZE)#define __START_KERNEL_map	0xffffffff80000000UL/* kernel 起始地址 */
#define __START_KERNEL		(__START_KERNEL_map + __PHYSICAL_START) /*  */#define __PHYSICAL_START /*  */	ALIGN(CONFIG_PHYSICAL_START, \CONFIG_PHYSICAL_ALIGN)#define KERNEL_IMAGE_SIZE	(1024 * 1024 * 1024)#define MODULES_VADDR		(__START_KERNEL_map + KERNEL_IMAGE_SIZE)#define NR_FIX_BTMAPS		64
#define FIX_BTMAPS_SLOTS	8
#define TOTAL_FIX_BTMAPS	(NR_FIX_BTMAPS * FIX_BTMAPS_SLOTS)#define MAX_IO_APICS 128
#define MAX_LOCAL_APIC 32768#define __fix_to_virt(x)	(FIXADDR_TOP - ((x) << PAGE_SHIFT))
#define __virt_to_fix(x)	((FIXADDR_TOP - ((x)&PAGE_MASK)) >> PAGE_SHIFT)enum fixed_addresses {  /* 每个固定映射的地址都由一个整数索引表示 */VSYSCALL_PAGE = (FIXADDR_TOP - VSYSCALL_ADDR) >> PAGE_SHIFT,    /* =  `511`*/FIX_DBGP_BASE,FIX_EARLYCON_MEM_BASE,FIX_OHCI1394_BASE,FIX_APIC_BASE,	/* local (CPU) APIC) -- required for SMP or not */FIX_IO_APIC_BASE_0,FIX_IO_APIC_BASE_END = FIX_IO_APIC_BASE_0 + MAX_IO_APICS - 1,FIX_PARAVIRT_BOOTMAP,FIX_APEI_GHES_IRQ,FIX_APEI_GHES_NMI,__end_of_permanent_fixed_addresses,/*  */FIX_BTMAP_END =(__end_of_permanent_fixed_addresses ^(__end_of_permanent_fixed_addresses + TOTAL_FIX_BTMAPS - 1)) &-PTRS_PER_PTE? __end_of_permanent_fixed_addresses + TOTAL_FIX_BTMAPS -(__end_of_permanent_fixed_addresses & (TOTAL_FIX_BTMAPS - 1)): __end_of_permanent_fixed_addresses,FIX_BTMAP_BEGIN = FIX_BTMAP_END + TOTAL_FIX_BTMAPS - 1,FIX_TBOOT_BASE,__end_of_fixed_addresses
};static __always_inline unsigned long fix_to_virt(const unsigned int idx)
{//BUILD_BUG_ON(idx >= __end_of_fixed_addresses);return __fix_to_virt(idx);
}static inline unsigned long virt_to_fix(const unsigned long vaddr)
{//BUG_ON(vaddr >= FIXADDR_TOP || vaddr < FIXADDR_START);return __virt_to_fix(vaddr);
}#define print_mm(v) printf("%016lx : %s\n", v, #v);static void print_fixmap() {print_mm(__PHYSICAL_START);print_mm(PAGE_MASK);print_mm(FIXADDR_SIZE);print_mm(0xffffffffffffffff);print_mm(FIXADDR_TOP);print_mm(fix_to_virt(VSYSCALL_PAGE));print_mm(fix_to_virt(FIX_DBGP_BASE));print_mm(fix_to_virt(FIX_APIC_BASE));print_mm(fix_to_virt(FIX_IO_APIC_BASE_0));print_mm(fix_to_virt(FIX_PARAVIRT_BOOTMAP));print_mm(fix_to_virt(FIX_APEI_GHES_IRQ));print_mm(fix_to_virt(FIX_APEI_GHES_NMI));print_mm(FIXADDR_START);print_mm(fix_to_virt(__end_of_permanent_fixed_addresses));print_mm(fix_to_virt(FIX_BTMAP_END));print_mm(fix_to_virt(FIX_BTMAP_BEGIN));print_mm(fix_to_virt(FIX_TBOOT_BASE));print_mm(fix_to_virt(__end_of_fixed_addresses));print_mm(MODULES_VADDR);print_mm(__START_KERNEL);print_mm(__START_KERNEL_map);}int main() {print_fixmap();
}

2. 输入输出重映射

内核提供了许多不同的内存管理原语。现在我们将要接触 I/O 内存。每一个设备都通过读写它的寄存器来控制。比如,驱动可以通过向它的寄存器中写来打开或关闭设备,也可以通过读它的寄存器来获取设备状态。除了寄存器之外,许多设备都拥有一块可供驱动读写的缓冲区。如我们所知,现在有两种方法来访问设备的寄存器和数据缓冲区:

  • 通过 I/O 端口;
  • 将所有寄存器映射到内存地址空间;

第一种情况,设备的所有控制寄存器都具有一个输入输出端口号。该设备的驱动可以用 inout 指令来从端口中读写。你可以通过访问 /proc/ioports 来获取设备当前的 I/O 端口号。

$ cat /proc/ioports
0000-0cf7 : PCI Bus 0000:000000-001f : dma10020-0021 : pic10040-0043 : timer00050-0053 : timer10060-0060 : keyboard0064-0064 : keyboard0070-0077 : rtc00080-008f : dma page reg00a0-00a1 : pic200c0-00df : dma200f0-00ff : fpu00f0-00f0 : PNP0C04:0003c0-03df : vesafb03f8-03ff : serial04d0-04d1 : pnp 00:060800-087f : pnp 00:010a00-0a0f : pnp 00:040a20-0a2f : pnp 00:040a30-0a3f : pnp 00:04
0cf8-0cff : PCI conf1
0d00-ffff : PCI Bus 0000:00
...
...
...

/proc/ioports 提供了驱动使用 I/O 端口的内存区域地址。所有的这些内存区域,比如 0000-0cf7 ,都是使用 include/linux/ioport.h 头文件中的 request_region 来声明的。实际上 request_region 是一个宏,它的定义如下:

#define request_region(start,n,name)   __request_region(&ioport_resource, (start), (n), (name), 0)

正如我们所看见的,它有三个参数:

  • start - 区域的起点;
  • n - 区域的长度;
  • name - 区域需求者的名字。

request_region 分配 I/O 端口区域。通常在 request_region 之前会调用 check_region 来检查传入的地址区间是否可用,然后 release_region 会释放这个内存区域。request_region 返回指向 resource 结构体的指针。 resource 结构体是对系统资源的树状子集的抽象。我们已经在内核初始化的第五部分见到过它了,它的定义是这样的:

struct resource {resource_size_t start;resource_size_t end;const char *name;unsigned long flags;unsigned long desc; //5.10.13+++++++++++++struct resource *parent, *sibling, *child;//+-------------+      +-------------+//|    parent   |------|    sibling  |//+-------------+      +-------------+//       |//+-------------+//|    child    | //+-------------+
};

它包含起止地址、名字等等。每一个 resource 结构体包含一个指向 parentsliblingchild 资源的指针。它有父节点和子节点,这就意味着每一个资源的子集都有一个根节点。比如,对 I/O 端口来说有一个 ioport_resource 结构体:

struct resource ioport_resource = {.name   = "PCI IO",.start  = 0,.end    = IO_SPACE_LIMIT,.flags  = IORESOURCE_IO,
};
EXPORT_SYMBOL(ioport_resource);

或者对 iomem 来说,有一个 iomem_resource 结构体:

struct resource iomem_resource = {.name   = "PCI mem",.start  = 0,.end    = -1,.flags  = IORESOURCE_MEM,
};

就像我所写的,request_region 用于注册 I/O 端口区域,这个宏用于内核中的许多地方。比如让我们来看看 drivers/char/rtc.c。这个源文件提供了内核中的实时时钟接口。与其他内核模块一样, rtc 模块包含一个 module_init 定义:

module_init(rtc_init);

在这里 rtc_initrtc 模块的初始化函数。这个函数也定义在 rtc.c 文件中。在 rtc_init 函数中我们可以看到许多对 rtc_request_region 函数的调用,实际上这是 request_region 的包装:

r = rtc_request_region(RTC_IO_EXTENT);

rtc_request_region 中调用了:

r = request_region(RTC_PORT(0), size, "rtc");

在这里 RTC_TO_EXTENT 是一个内存区域的尺寸,在这里是 0x8"rtc" 是区域的名字,RTC_PORT 是:

#define RTC_PORT(x)     (0x70 + (x))

所以使用 request_region(RTC_PORT(0), size, "rtc") 我们注册了一个内存区域, 以 0x70 开始,大小为 0x8。 让我们看看 /proc/ioports:

~$ sudo cat /proc/ioports | grep rtc
0070-0077 : rtc0

看,我们可以获取了它的信息。这就是端口。第二种途径是使用 I/O 内存。就像我上面写的,这是将设备的控制寄存器和内存映射到内存地址空间中。I/O 内存是一组由设备通过总线提供给 CPU 的相邻的地址。所有的 I/O 映射地址都不能由内核直接访问。有一个 ioremap 函数用来将总线上的物理地址转化为内核的虚拟地址,或者说,ioremap 映射了 I/O 物理地址来让他们能够在内核中使用。这个函数有两个参数:

  • 内存区域的开始;
  • 内存区域的结束;

I/O 内存映射 API 提供了用来检查、请求与释放内存区域的函数,就像 I/O 端口 API 一样。这里有三个函数:

  • request_mem_region
  • release_mem_region
  • check_mem_region
~$ sudo cat /proc/iomem
...
...
...
be826000-be82cfff : ACPI Non-volatile Storage
be82d000-bf744fff : System RAM
bf745000-bfff4fff : reserved
bfff5000-dc041fff : System RAM
dc042000-dc0d2fff : reserved
dc0d3000-dc138fff : System RAM
dc139000-dc27dfff : ACPI Non-volatile Storage
dc27e000-deffefff : reserved
defff000-deffffff : System RAM
df000000-dfffffff : RAM buffer
e0000000-feafffff : PCI Bus 0000:00e0000000-efffffff : PCI Bus 0000:01e0000000-efffffff : 0000:01:00.0f7c00000-f7cfffff : PCI Bus 0000:06f7c00000-f7c0ffff : 0000:06:00.0f7c10000-f7c101ff : 0000:06:00.0f7c10000-f7c101ff : ahcif7d00000-f7dfffff : PCI Bus 0000:03f7d00000-f7d3ffff : 0000:03:00.0f7d00000-f7d3ffff : alx
...
...
...

这些地址中的一部分源于对 e820_reserve_resources 函数的调用。我们可以在 arch/x86/kernel/setup.c 中找到对这个函数的调用,这个函数本身定义在 arch/x86/kernel/e820.c 中。这个函数遍历了 e820 的映射然后将内存区域插入了根 iomen 结构体中。所有具有以下类型的 e820 内存区域都会被插入到 iomem 结构体中:

static inline const char *e820_type_to_string(int e820_type)
{switch (e820_type) {case E820_RESERVED_KERN:case E820_RAM:	return "System RAM";case E820_ACPI:	return "ACPI Tables";case E820_NVS:	return "ACPI Non-volatile Storage";case E820_UNUSABLE:	return "Unusable memory";default:	return "reserved";}
}

我们可以在 /proc/iomem 中看到它们。

现在让我们尝试着理解 ioremap 是如何工作的。我们已经了解了一部分 ioremap 的知识,我们在内核初始化的第五部分见过它。如果你读了那个章节,你就会记得 arch/x86/mm/ioremap.c 文件中对 early_ioremap_init 函数的调用。对 ioremap 的初始化分为两个部分:有一部分在我们正常使用 ioremap 之前,但是要首先进行 vmalloc 的初始化并调用 paging_init 才能进行正常的 ioremap 调用。我们现在还不了解 vmalloc 的知识,先看看第一部分的初始化。首先 early_ioremap_init 会检查固定映射是否与页中部目录对齐:

BUILD_BUG_ON((fix_to_virt(0) + PAGE_SIZE) & ((1 << PMD_SHIFT) - 1));

更多关于 BUILD_BUG_ON 的内容你可以在内核初始化的第一部分看到。如果给定的表达式为真,BUILD_BUG_ON 宏就会抛出一个编译时错误。在检查后的下一步,我们可以看到对 early_ioremap_setup 函数的调用,这个函数定义在 mm/early_ioremap.c 文件中。这个函数代表了对 ioremap 的大体初始化。early_ioremap_setup 函数用初期固定映射的地址填充了 slot_virt 数组。所有初期固定映射地址在内存中都在 __end_of_permanent_fixed_addresses 后面,它们从 FIX_BITMAP_BEGIN 开始,到 FIX_BITMAP_END 结束。实际上初期 ioremap 会使用 512 个临时引导时映射:

#define NR_FIX_BTMAPS		64
#define FIX_BTMAPS_SLOTS	8
#define TOTAL_FIX_BTMAPS	(NR_FIX_BTMAPS * FIX_BTMAPS_SLOTS)

early_ioremap_setup 如下:

void __init early_ioremap_setup(void)
{int i;for (i = 0; i < FIX_BTMAPS_SLOTS; i++)if (WARN_ON(prev_map[i]))break;for (i = 0; i < FIX_BTMAPS_SLOTS; i++)slot_virt[i] = __fix_to_virt(FIX_BTMAP_BEGIN - NR_FIX_BTMAPS*i);
}

slot_virt 和其他数组定义在同一个源文件中:

static void __iomem *prev_map[FIX_BTMAPS_SLOTS] __initdata;
static unsigned long prev_size[FIX_BTMAPS_SLOTS] __initdata;
static unsigned long slot_virt[FIX_BTMAPS_SLOTS] __initdata;

slot_virt 包含了固定映射区域的虚拟地址,prev_map 数组包含了初期 ioremap 区域的地址。注意我在上文中提到的:实际上初期 ioremap 会使用 512 个临时引导时映射,同时你可以看到所有的数组都使用 __initdata 定义,这意味着这些内存都会在内核初始化结束后释放掉。在 early_ioremap_setup 结束后,我们获得了页中部目录,以 early_ioremap_pmd 函数开始的早期 ioremapearly_ioremap_pmd 函数只能获得内存全局目录以及为给定地址计算页中部目录:

static inline pmd_t * __init early_ioremap_pmd(unsigned long addr)
{pgd_t *base = __va(read_cr3());pgd_t *pgd = &base[pgd_index(addr)];pud_t *pud = pud_offset(pgd, addr);pmd_t *pmd = pmd_offset(pud, addr);return pmd;
}

之后我们用 0 填充 bm_pte (早期 ioremap 页表入口),然后调用 pmd_populate_kernel 函数:

pmd = early_ioremap_pmd(fix_to_virt(FIX_BTMAP_BEGIN));
memset(bm_pte, 0, sizeof(bm_pte));
pmd_populate_kernel(&init_mm, pmd, bm_pte);

pmd_populate_kernel 函数有三个参数:

  • init_mm - init 进程的内存描述符 (你可以在前文中看到);
  • pmd - ioremap 固定映射开始处的页中部目录;
  • bm_pte - 初期 ioremap 页表入口数组定义为:
static pte_t bm_pte[PAGE_SIZE/sizeof(pte_t)] __page_aligned_bss;

pmd_popularte_kernel 函数定义在 arch/x86/include/asm/pgalloc.h 中。它会用给定的页表入口(bm_pte)生成给定页中部目录(pmd):

static inline void pmd_populate_kernel(struct mm_struct *mm,pmd_t *pmd, pte_t *pte)
{paravirt_alloc_pte(mm, __pa(pte) >> PAGE_SHIFT);set_pmd(pmd, __pmd(__pa(pte) | _PAGE_TABLE));
}

set_pmd 声明如下:

#define set_pmd(pmdp, pmd)              native_set_pmd(pmdp, pmd)

native_set_pmd 声明如下:

static inline void native_set_pmd(pmd_t *pmdp, pmd_t pmd)
{*pmdp = pmd;
}

到这里 初期 ioremap 就可以使用了。在 early_ioremap_init 函数中有许多检查,但是都不重要,总之 ioremap 的初始化结束了。

3. 初期输入输出重映射的使用

初期 ioremap 初始化完成后,我们就能使用它了。它提供了两个函数:

  • early_ioremap
  • early_iounmap

用于从 IO 物理地址 映射/解除映射 到虚拟地址。这俩函数都依赖于 CONFIG_MMU 编译配置选项。内存管理单元是内存管理的一种特殊块。这种块的主要用途是将物理地址转换为虚拟地址。技术上看内存管理单元可以从 cr3 控制寄存器中获取高等级页表地址(pgd)。如果 CONFIG_MMU 选项被设为 nearly_ioremap 就会直接返回物理地址,而 early_iounmap 就会什么都不做。另一方面,如果设为 yearly_ioremap 就会调用 __early_ioremap,它有三个参数:

  • phys_addr - 要映射到虚拟地址上的 I/O 内存区域的基物理地址;
  • size - I/O 内存区域的尺寸;
  • prot - 页表入口位。

__early_ioremap 中我们首先遍历了所有初期 ioremap 固定映射槽并检查 prev_map 数组中第一个空闲元素,然后将这个值存在了 slot 变量中,另外设置了尺寸:

slot = -1;
for (i = 0; i < FIX_BTMAPS_SLOTS; i++) {if (!prev_map[i]) {slot = i;break;}
}
...
...
...
prev_size[slot] = size;
last_addr = phys_addr + size - 1;

在下一步中我们会看到以下代码:

offset = phys_addr & ~PAGE_MASK;
phys_addr &= PAGE_MASK;
size = PAGE_ALIGN(last_addr + 1) - phys_addr;

在这里我们使用了 PAGE_MASK 用于清空除前 12 位之外的整个 phys_addrPAGE_MASK 宏定义如下:

#define PAGE_MASK       (~(PAGE_SIZE-1))

我们知道页的尺寸是 4096 个字节或用二进制表示为 1000000000000PAGE_SIZE - 1 就会是 111111111111 ,但是使用 ~ 运算后我们就会得到 000000000000 ,然后使用 ~PAGE_MASK 又会返回 111111111111 。在第二行我们做了同样的事情但是只是清空了前 12 个位,然后在第三行获取了这个区域的页对齐尺寸。我们获得了对齐区域,接下来就需要获取新的 ioremap 区域所占用的页的数量然后计算固定映射下标:

nrpages = size >> PAGE_SHIFT;
idx = FIX_BTMAP_BEGIN - NR_FIX_BTMAPS*slot;

现在我们用给定的物理地址填充了固定映射区域。循环中的每一次迭代,我们都调用一次 arch/x86/mm/ioremap.c 中的 __early_set_fixmap 函数,为给定的物理地址加上页的大小 4096,然后更新下标和页的数量:

while (nrpages > 0) {__early_set_fixmap(idx, phys_addr, prot);phys_addr += PAGE_SIZE;--idx;--nrpages;
}

__early_set_fixmap 函数为给定的物理地址获取了页表入口(保存在 bm_pte 中,见上文):

pte = early_ioremap_pte(addr);

early_ioremap_pte 的下一步中我们用 pgprot_val 宏检查了给定的页标志,依赖这个标志选择调用 set_pte 还是 pte_clear

if (pgprot_val(flags))set_pte(pte, pfn_pte(phys >> PAGE_SHIFT, flags));elsepte_clear(&init_mm, addr, pte);

就像你看到的,我们将 FIXMAP_PAGE_IO 作为标志传入了 __early_ioremapFIXMPA_PAGE_IO 从以下

(__PAGE_KERNEL_EXEC | _PAGE_NX)

标志拓展而来, 所以我们调用 set_pte 来设置页表入口,就像 set_pmd 一样,只不过用于 PTE(见上文)。我们在循环中设定了所有 PTE,我们可以看到 __flush_tlb_one 的函数调用:

__flush_tlb_one(addr);

这个函数定义在 arch/x86/include/asm/tlbflush.h中,并通过判断 cpu_has_invlpg 的值来决定调用 __flush_tlb_single 还是 __flush_tlb

static inline void __flush_tlb_one(unsigned long addr)
{if (cpu_has_invlpg)__flush_tlb_single(addr);else__flush_tlb();
}

__flush_tlb_one 函数使 TLB 中的给定地址失效。就像你看到的我们更新了页结构,但是 TLB 还没有改变,这就是我们需要手动做这件事情的原因。有两种方法做这件事。第一种是更新 cr3 寄存器, __flush_tlb 函数就是这么做的:

native_write_cr3(native_read_cr3());

第二种方法是使用 invlpg 命令来使 TLB 入口失效。让我们看看 __flush_tlb_one 的实现。就像我们所看到的,它首先检查了 cpu_has_invlpg ,定义如下:

#if defined(CONFIG_X86_INVLPG) || defined(CONFIG_X86_64)
# define cpu_has_invlpg         1
#else
# define cpu_has_invlpg         (boot_cpu_data.x86 > 3)
#endif

如果 CPU 支持 invlpg 指令,我们就调用 __flush_tlb_single 宏,它拓展自 __native_flush_tlb_single

static inline void __native_flush_tlb_single(unsigned long addr)
{asm volatile("invlpg (%0)" ::"r" (addr) : "memory");
}

__flush_tlb 的调用只是更新了 cr3 寄存器。在这步结束之后 __early_set_fixmap 函数就执行完了,我们又可以回到 __early_ioremap 的实现了。因为我们为给定的地址设定了固定映射区域,我们需要将 I/O 重映射的区域的基虚拟地址用 slot 下标保存在 prev_map 数组中。

prev_map[slot] = (void __iomem *)(offset + slot_virt[slot]);

然后返回它。

第二个函数是 early_iounmap ,它会解除对一个 I/O 内存区域的映射。这个函数有两个参数:基地址和 I/O 区域的大小,这看起来与 early_ioremap 很像。它同样遍历了固定映射槽并寻找给定地址的槽。这样它就获得了这个固定映射槽的下标,然后通过判断 after_paging_init 的值决定是调用 __late_clear_fixmap 还是 __early_set_fixmap 。当这个值是 0 时会调用 __early_set_fixmap。最终它会将 I/O 内存区域设为 NULL

prev_map[slot] = NULL;

这就是关于 fixmapioremap 的全部内容。当然这部分不可能包含所有 ioremap 的特性,仅仅是讲解了初期 ioremap,常规的 ioremap 没有讲。这主要是因为在讲解它之前需要了解更多内容才行。

就是这样!

4. 结束语

讲解内核内存管理的第一部分到此结束,如果你有任何的问题或者建议,你可以直接发消息给我twitter,也可以给我发邮件或是直接创建一个 issue。

英文不是我的母语。如果你发现我的英文描述有任何问题,请提交一个PR到linux-insides.

5. 相关连接

  • apic
  • vsyscall
  • Intel Trusted Execution Technology
  • Xen
  • Real Time Clock
  • e820
  • Memory management unit
  • TLB
  • Paging
  • 内核内存管理第一部分
英文原文

Linux kernel memory management Part 2.

Fix-Mapped Addresses and ioremap

Fix-Mapped addresses are a set of special compile-time addresses whose corresponding physical addresses do not have to be a linear address minus __START_KERNEL_map. Each fix-mapped address maps one page frame and the kernel uses them as pointers that never change their address. That is the main point of these addresses. As the comment says: to have a constant address at compile time, but to set the physical address only in the boot process. You can remember that in the earliest part, we already set the level2_fixmap_pgt:

NEXT_PAGE(level2_fixmap_pgt).fill	506,8,0.quad	level1_fixmap_pgt - __START_KERNEL_map + _PAGE_TABLE.fill	5,8,0NEXT_PAGE(level1_fixmap_pgt).fill	512,8,0

As you can see level2_fixmap_pgt is right after the level2_kernel_pgt which is kernel code+data+bss. Every fix-mapped address is represented by an integer index which is defined in the fixed_addresses enum from the arch/x86/include/asm/fixmap.h. For example it contains entries for VSYSCALL_PAGE - if emulation of legacy vsyscall page is enabled, FIX_APIC_BASE for local apic, etc. In virtual memory fix-mapped area is placed in the modules area:

       +-----------+-----------------+---------------+------------------+|           |                 |               |                  ||kernel text|      kernel     |               |    vsyscalls     || mapping   |       text      |    Modules    |    fix-mapped    ||from phys 0|       data      |               |    addresses     ||           |                 |               |                  |+-----------+-----------------+---------------+------------------+
__START_KERNEL_map   __START_KERNEL    MODULES_VADDR            0xffffffffffffffff

Base virtual address and size of the fix-mapped area are presented by the two following macro:

#define FIXADDR_SIZE	(__end_of_permanent_fixed_addresses << PAGE_SHIFT)
#define FIXADDR_START	(FIXADDR_TOP - FIXADDR_SIZE)

Here __end_of_permanent_fixed_addresses is an element of the fixed_addresses enum and as I wrote above: Every fix-mapped address is represented by an integer index which is defined in the fixed_addresses. PAGE_SHIFT determines the size of a page. For example size of the one page we can get with the 1 << PAGE_SHIFT expression.

In our case we need to get the size of the fix-mapped area, but not only of one page, that’s why we are using __end_of_permanent_fixed_addresses for getting the size of the fix-mapped area. The __end_of_permanent_fixed_addresses is the last index of the fixed_addresses enum or in other words the __end_of_permanent_fixed_addresses contains amount of pages in a fixed-mapped area. So if multiply value of the __end_of_permanent_fixed_addresses on a page size value we will get size of fix-mapped area. In my case it’s a little more than 536 kilobytes. In your case it might be a different number, because the size depends on amount of the fix-mapped addresses which are depends on your kernel’s configuration.

The second FIXADDR_START macro just subtracts the fix-mapped area size from the last address of the fix-mapped area to get its base virtual address. FIXADDR_TOP is a rounded up address from the base address of the vsyscall space:

#define FIXADDR_TOP     (round_up(VSYSCALL_ADDR + PAGE_SIZE, 1<<PMD_SHIFT) - PAGE_SIZE)

The fixed_addresses enums are used as an index to get the virtual address by the fix_to_virt function. Implementation of this function is easy:

static __always_inline unsigned long fix_to_virt(const unsigned int idx)
{BUILD_BUG_ON(idx >= __end_of_fixed_addresses);return __fix_to_virt(idx);
}

first of all it checks that the index given for the fixed_addresses enum is not greater or equal than __end_of_fixed_addresses with the BUILD_BUG_ON macro and then returns the result of the __fix_to_virt macro:

#define __fix_to_virt(x)        (FIXADDR_TOP - ((x) << PAGE_SHIFT))

Here we shift left the given index of a fix-mapped area on the PAGE_SHIFT which determines size of a page as I wrote above and subtract it from the FIXADDR_TOP which is the highest address of the fix-mapped area:

+-----------------+
|    PAGE 1       | FIXADDR_TOP (virt address)
|    PAGE 2       |
|    PAGE 3       |
|    PAGE 4 (idx) | x - 4
|    PAGE 5       |
+-----------------+

There is an inverse function for getting an index of a fix-mapped area corresponding to the given virtual address:

static inline unsigned long virt_to_fix(const unsigned long vaddr)
{BUG_ON(vaddr >= FIXADDR_TOP || vaddr < FIXADDR_START);return __virt_to_fix(vaddr);
}

The virt_to_fix takes a virtual address, checks that this address is between FIXADDR_START and FIXADDR_TOP and calls the __virt_to_fix macro which implemented as:

#define __virt_to_fix(x)        ((FIXADDR_TOP - ((x)&PAGE_MASK)) >> PAGE_SHIFT)

As we may see, the __virt_to_fix macro clears the first 12 bits in the given virtual address, subtracts it from the last address the of fix-mapped area (FIXADDR_TOP) and shifts the result right on PAGE_SHIFT which is 12. Let me explain how it works.

As in previous example (in __fix_to_virt macro), we start from the top of the fix-mapped area. We also go back to bottom from the top to search an index of a fix-mapped area corresponding to the given virtual address. As you may see, first of all we will clear the first 12 bits in the given virtual address with x & PAGE_MASK expression. This allows us to get base address of page. We need to do this for case when the given virtual address points somewhere in a beginning/middle or end of a page, but not to the base address of it. At the next step subtract this from the FIXADDR_TOP and this gives us virtual address of a corresponding page in a fix-mapped area. In the end we just divide value of this address on PAGE_SHIFT. This gives us index of a fix-mapped area corresponding to the given virtual address. It may looks hard, but if you will go through this step by step, you will be sure that the __virt_to_fix macro is pretty easy.

That’s all. For this moment we know a little about fix-mapped addresses, but this is enough to go next.

Fix-mapped addresses are used in different places in the linux kernel. IDT descriptor stored there, Intel Trusted Execution Technology UUID stored in the fix-mapped area started from FIX_TBOOT_BASE index, Xen bootmap and many more… We already saw a little about fix-mapped addresses in the fifth part about of the linux kernel initialization. We use fix-mapped area in the early ioremap initialization. Let’s look at it more closely and try to understand what ioremap is, how it is implemented in the kernel and how it is related to the fix-mapped addresses.

ioremap

The Linux kernel provides many different primitives to manage memory. For this moment we will touch I/O memory. Every device is controlled by reading/writing from/to its registers. For example a driver can turn off/on a device by writing to its registers or get the state of a device by reading from its registers. Besides registers, many devices have buffers where a driver can write something or read from there. As we know for this moment there are two ways to access device’s registers and data buffers:

  • through the I/O ports;
  • mapping of the all registers to the memory address space;

In the first case every control register of a device has a number of input and output port. A device driver can read from a port and write to it with two in and out instructions which we already saw. If you want to know about currently registered port regions, you can learn about them by accessing /proc/ioports:

$ cat /proc/ioports
0000-0cf7 : PCI Bus 0000:000000-001f : dma10020-0021 : pic10040-0043 : timer00050-0053 : timer10060-0060 : keyboard0064-0064 : keyboard0070-0077 : rtc00080-008f : dma page reg00a0-00a1 : pic200c0-00df : dma200f0-00ff : fpu00f0-00f0 : PNP0C04:0003c0-03df : vesafb03f8-03ff : serial04d0-04d1 : pnp 00:060800-087f : pnp 00:010a00-0a0f : pnp 00:040a20-0a2f : pnp 00:040a30-0a3f : pnp 00:04
0cf8-0cff : PCI conf1
0d00-ffff : PCI Bus 0000:00
...
...
...

/proc/ioports provides information about which driver uses which address of a I/O port region. All of these memory regions, for example 0000-0cf7, were claimed with the request_region function from the include/linux/ioport.h. Actually request_region is a macro which is defined as:

#define request_region(start,n,name)   __request_region(&ioport_resource, (start), (n), (name), 0)

As we can see it takes three parameters:

  • start - begin of region;
  • n - length of region;
  • name - name of requester.

request_region allocates an I/O port region. Very often the check_region function is called before the request_region to check that the given address range is available and the release_region function to release the memory region. request_region returns a pointer to the resource structure. The resource structure represents an abstraction for a tree-like subset of system resources. We already saw the resource structure in the fifth part of the kernel initialization process and it looks as follows:

struct resource {resource_size_t start;resource_size_t end;const char *name;unsigned long flags;struct resource *parent, *sibling, *child;
};

and contains start and end addresses of the resource, the name, etc. Every resource structure contains pointers to the parent, sibling and child resources. As it has a parent and a child, it means that every subset of resources has root resource structure. For example, for I/O ports it is the ioport_resource structure:

struct resource ioport_resource = {.name   = "PCI IO",.start  = 0,.end    = IO_SPACE_LIMIT,.flags  = IORESOURCE_IO,
};
EXPORT_SYMBOL(ioport_resource);

Or for iomem, it is the iomem_resource structure:

struct resource iomem_resource = {.name   = "PCI mem",.start  = 0,.end    = -1,.flags  = IORESOURCE_MEM,
};

As I have mentioned before, request_regions is used to register I/O port regions and this macro is used in many places in the kernel. For example let’s look at drivers/char/rtc.c. This source code file provides the Real Time Clock interface in the linux kernel. As every kernel module, rtc module contains module_init definition:

module_init(rtc_init);

where rtc_init is the rtc initialization function. This function is defined in the same rtc.c source code file. In the rtc_init function we can see a couple of calls to the rtc_request_region functions, which wrap request_region for example:

r = rtc_request_region(RTC_IO_EXTENT);

where rtc_request_region calls:

r = request_region(RTC_PORT(0), size, "rtc");

Here RTC_IO_EXTENT is the size of the memory region and it is 0x8, "rtc" is the name of the region and RTC_PORT is:

#define RTC_PORT(x)     (0x70 + (x))

So with the request_region(RTC_PORT(0), size, "rtc") we register a memory region that starts at 0x70 and and has a size of 0x8. Let’s look at /proc/ioports:

~$ sudo cat /proc/ioports | grep rtc
0070-0077 : rtc0

So, we got it! Ok, that was it for the I/O ports. The second way to communicate with drivers is through the use of I/O memory. As I have mentioned above this works by mapping the control registers and the memory of a device to the memory address space. I/O memory is a set of contiguous addresses which are provided by a device to the CPU through a bus. None of the memory-mapped I/O addresses are used by the kernel directly. There is a special ioremap function which allows us to convert the physical address on a bus to a kernel virtual address. In other words, ioremap maps I/O physical memory regions to make them accessible from the kernel. The ioremap function takes two parameters:

  • start of the memory region;
  • size of the memory region;

The I/O memory mapping API provides functions to check, request and release memory regions as I/O memory. There are three functions for that:

  • request_mem_region
  • release_mem_region
  • check_mem_region
~$ sudo cat /proc/iomem
...
...
...
be826000-be82cfff : ACPI Non-volatile Storage
be82d000-bf744fff : System RAM
bf745000-bfff4fff : reserved
bfff5000-dc041fff : System RAM
dc042000-dc0d2fff : reserved
dc0d3000-dc138fff : System RAM
dc139000-dc27dfff : ACPI Non-volatile Storage
dc27e000-deffefff : reserved
defff000-deffffff : System RAM
df000000-dfffffff : RAM buffer
e0000000-feafffff : PCI Bus 0000:00e0000000-efffffff : PCI Bus 0000:01e0000000-efffffff : 0000:01:00.0f7c00000-f7cfffff : PCI Bus 0000:06f7c00000-f7c0ffff : 0000:06:00.0f7c10000-f7c101ff : 0000:06:00.0f7c10000-f7c101ff : ahcif7d00000-f7dfffff : PCI Bus 0000:03f7d00000-f7d3ffff : 0000:03:00.0f7d00000-f7d3ffff : alx
...
...
...

Part of these addresses are from the call of the e820_reserve_resources function. We can find a call to this function in the arch/x86/kernel/setup.c and the function itself is defined in arch/x86/kernel/e820.c. e820_reserve_resources goes through the e820 map and inserts memory regions into the root iomem resource structure. All e820 memory regions which are inserted into the iomem resource have the following types:

static inline const char *e820_type_to_string(int e820_type)
{switch (e820_type) {case E820_RESERVED_KERN:case E820_RAM:	return "System RAM";case E820_ACPI:	return "ACPI Tables";case E820_NVS:	return "ACPI Non-volatile Storage";case E820_UNUSABLE:	return "Unusable memory";default:	return "reserved";}
}

and we can see them in the /proc/iomem (read above).

Now let’s try to understand how ioremap works. We already know a little about ioremap, we saw it in the fifth part about linux kernel initialization. If you have read this part, you can remember the call of the early_ioremap_init function from the arch/x86/mm/ioremap.c. Initialization of the ioremap is split into two parts: there is the early part which we can use before the normal ioremap is available and the normal ioremap which is available after vmalloc initialization and the call of paging_init. We do not know anything about vmalloc for now, so let’s consider early initialization of the ioremap. First of all early_ioremap_init checks that fixmap is aligned on page middle directory boundary:

BUILD_BUG_ON((fix_to_virt(0) + PAGE_SIZE) & ((1 << PMD_SHIFT) - 1));

more about BUILD_BUG_ON you can read in the first part about Linux Kernel initialization. So BUILD_BUG_ON macro raises a compilation error if the given expression is true. In the next step after this check, we can see call of the early_ioremap_setup function from the mm/early_ioremap.c. This function presents generic initialization of the ioremap. early_ioremap_setup function fills the slot_virt array with the virtual addresses of the early fixmaps. All early fixmaps are after __end_of_permanent_fixed_addresses in memory. They start at FIX_BITMAP_BEGIN (top) and end with FIX_BITMAP_END (down). Actually there are 512 temporary boot-time mappings, used by early ioremap:

#define NR_FIX_BTMAPS		64
#define FIX_BTMAPS_SLOTS	8
#define TOTAL_FIX_BTMAPS	(NR_FIX_BTMAPS * FIX_BTMAPS_SLOTS)

and early_ioremap_setup:

void __init early_ioremap_setup(void)
{int i;for (i = 0; i < FIX_BTMAPS_SLOTS; i++)if (WARN_ON(prev_map[i]))break;for (i = 0; i < FIX_BTMAPS_SLOTS; i++)slot_virt[i] = __fix_to_virt(FIX_BTMAP_BEGIN - NR_FIX_BTMAPS*i);
}

the slot_virt and other arrays are defined in the same source code file:

static void __iomem *prev_map[FIX_BTMAPS_SLOTS] __initdata;
static unsigned long prev_size[FIX_BTMAPS_SLOTS] __initdata;
static unsigned long slot_virt[FIX_BTMAPS_SLOTS] __initdata;

slot_virt contains the virtual addresses of the fix-mapped areas, prev_map array contains addresses of the early ioremap areas. Note that I wrote above: Actually there are 512 temporary boot-time mappings, used by early ioremap and you can see that all arrays are defined with the __initdata attribute which means that this memory will be released after the kernel initialization process. After early_ioremap_setup has finished its work, we’re getting page middle directory where early ioremap begins with the early_ioremap_pmd function which just gets the base address of the page global directory and calculates the page middle directory for the given address:

static inline pmd_t * __init early_ioremap_pmd(unsigned long addr)
{pgd_t *base = __va(read_cr3_pa());pgd_t *pgd = &base[pgd_index(addr)];pud_t *pud = pud_offset(pgd, addr);pmd_t *pmd = pmd_offset(pud, addr);return pmd;
}

After this we fill bm_pte (early ioremap page table entries) with zeros and call the pmd_populate_kernel function:

pmd = early_ioremap_pmd(fix_to_virt(FIX_BTMAP_BEGIN));
memset(bm_pte, 0, sizeof(bm_pte));
pmd_populate_kernel(&init_mm, pmd, bm_pte);

pmd_populate_kernel takes three parameters:

  • init_mm - memory descriptor of the init process (you can read about it in the previous part);
  • pmd - page middle directory of the beginning of the ioremap fixmaps;
  • bm_pte - early ioremap page table entries array which defined as:
static pte_t bm_pte[PAGE_SIZE/sizeof(pte_t)] __page_aligned_bss;

The pmd_populate_kernel function is defined in the arch/x86/include/asm/pgalloc.h and populates the page middle directory (pmd) provided as an argument with the given page table entries (bm_pte):

static inline void pmd_populate_kernel(struct mm_struct *mm,pmd_t *pmd, pte_t *pte)
{paravirt_alloc_pte(mm, __pa(pte) >> PAGE_SHIFT);set_pmd(pmd, __pmd(__pa(pte) | _PAGE_TABLE));
}

where set_pmd is:

#define set_pmd(pmdp, pmd)              native_set_pmd(pmdp, pmd)

and native_set_pmd is:

static inline void native_set_pmd(pmd_t *pmdp, pmd_t pmd)
{*pmdp = pmd;
}

That’s all. Early ioremap is ready to use. There are a couple of checks in the early_ioremap_init function, but they are not so important, anyway initialization of the ioremap is finished.

Use of early ioremap

As soon as early ioremap has been setup successfully, we can use it. It provides two functions:

  • early_ioremap
  • early_iounmap

for mapping/unmapping of I/O physical address to virtual address. Both functions depend on the CONFIG_MMU configuration option. Memory management unit is a special block of memory management. The main purpose of this block is the translation of physical addresses to virtual addresses. The memory management unit knows about the high-level page table addresses (pgd) from the cr3 control register. If CONFIG_MMU options is set to n, early_ioremap just returns the given physical address and early_iounmap does nothing. If CONFIG_MMU option is set to y, early_ioremap calls __early_ioremap which takes three parameters:

  • phys_addr - base physical address of the I/O memory region to map on virtual addresses;
  • size - size of the I/O memory region;
  • prot - page table entry bits.

First of all in the __early_ioremap, we go through all early ioremap fixmap slots and search for the first free one in the prev_map array. When we found it we remember its number in the slot variable and set up size:

slot = -1;
for (i = 0; i < FIX_BTMAPS_SLOTS; i++) {if (!prev_map[i]) {slot = i;break;}
}
...
...
...
prev_size[slot] = size;
last_addr = phys_addr + size - 1;

In the next spte we can see the following code:

offset = phys_addr & ~PAGE_MASK;
phys_addr &= PAGE_MASK;
size = PAGE_ALIGN(last_addr + 1) - phys_addr;

Here we are using PAGE_MASK for clearing all bits in the phys_addr except the first 12 bits. PAGE_MASK macro is defined as:

#define PAGE_MASK       (~(PAGE_SIZE-1))

We know that size of a page is 4096 bytes or 1000000000000 in binary. PAGE_SIZE - 1 will be 111111111111, but with ~, we will get 000000000000, but as we use ~PAGE_MASK we will get 111111111111 again. On the second line we do the same but clear the first 12 bits and getting page-aligned size of the area on the third line. We getting aligned area and now we need to get the number of pages which are occupied by the new ioremap area and calculate the fix-mapped index from fixed_addresses in the next steps:

nrpages = size >> PAGE_SHIFT;
idx = FIX_BTMAP_BEGIN - NR_FIX_BTMAPS*slot;

Now we can fill fix-mapped area with the given physical addresses. On every iteration in the loop, we call the __early_set_fixmap function from the arch/x86/mm/ioremap.c, increase the given physical address by the page size which is 4096 bytes and update the addresses index and the number of pages:

while (nrpages > 0) {__early_set_fixmap(idx, phys_addr, prot);phys_addr += PAGE_SIZE;--idx;--nrpages;
}

The __early_set_fixmap function gets the page table entry (stored in the bm_pte, see above) for the given physical address with:

pte = early_ioremap_pte(addr);

In the next step of early_ioremap_pte we check the given page flags with the pgprot_val macro and call set_pte or pte_clear depending on the flags given:

if (pgprot_val(flags))set_pte(pte, pfn_pte(phys >> PAGE_SHIFT, flags));elsepte_clear(&init_mm, addr, pte);

As you can see above, we passed FIXMAP_PAGE_IO as flags to the __early_ioremap. FIXMPA_PAGE_IO expands to the:

(__PAGE_KERNEL_EXEC | _PAGE_NX)

flags, so we call set_pte function to set the page table entry which works in the same manner as set_pmd but for PTEs (read above about it). As we have set all PTEs in the loop, we can now take a look at the call of the __flush_tlb_one function:

__flush_tlb_one(addr);

This function is defined in arch/x86/include/asm/tlbflush.h and calls __flush_tlb_single or __flush_tlb depending on the value of cpu_has_invlpg:

static inline void __flush_tlb_one(unsigned long addr)
{if (cpu_has_invlpg)__flush_tlb_single(addr);else__flush_tlb();
}

The __flush_tlb_one function invalidates the given address in the TLB. As you just saw we updated the paging structure, but TLB is not informed of the changes, that’s why we need to do it manually. There are two ways to do it. The first is to update the cr3 control register and the __flush_tlb function does this:

native_write_cr3(__native_read_cr3());

The second method is to use the invlpg instruction to invalidate the TLB entry. Let’s look at the __flush_tlb_one implementation. As you can see, first of all the function checks cpu_has_invlpg which is defined as:

#if defined(CONFIG_X86_INVLPG) || defined(CONFIG_X86_64)
# define cpu_has_invlpg         1
#else
# define cpu_has_invlpg         (boot_cpu_data.x86 > 3)
#endif

If a CPU supports the invlpg instruction, we call the __flush_tlb_single macro which expands to the call of __native_flush_tlb_single:

static inline void __native_flush_tlb_single(unsigned long addr)
{asm volatile("invlpg (%0)" ::"r" (addr) : "memory");
}

or call __flush_tlb which just updates the cr3 register as we have seen. After this step execution of the __early_set_fixmap function is finished and we can go back to the __early_ioremap implementation. When we have set up the fixmap area for the given address, we need to save the base virtual address of the I/O Re-mapped area in the prev_map using the slot index:

prev_map[slot] = (void __iomem *)(offset + slot_virt[slot]);

and return it.

The second function, early_iounmap, unmaps an I/O memory region. This function takes two parameters: base address and size of a I/O region and generally looks very similar to early_ioremap. It also goes through fixmap slots and looks for a slot with the given address. After that, it gets the index of the fixmap slot and calls __late_clear_fixmap or __early_set_fixmap depending on the after_paging_init value. It calls __early_set_fixmap with one difference to how early_ioremap does it: early_iounmap passes zero as physical address. And in the end it sets the address of the I/O memory region to NULL:

prev_map[slot] = NULL;

That’s all about fixmaps and ioremap. Of course this part does not cover all features of ioremap, only early ioremap but there is also normal ioremap. But we need to know more things before we study that in more detail.

So, this is the end!

Conclusion

This is the end of the second part about linux kernel memory management. If you have questions or suggestions, ping me on twitter 0xAX, drop me an email or just create an issue.

Please note that English is not my first language and I am really sorry for any inconvenience. If you found any mistakes please send me a PR to linux-insides.

Links

  • apic
  • vsyscall
  • Intel Trusted Execution Technology
  • Xen
  • Real Time Clock
  • e820
  • Memory management unit
  • TLB
  • Paging
  • Linux kernel memory management Part 1.

这篇关于Linux内核内存管理(2):固定映射地址(fixmap)和输入输出重映射(ioremap)的文章就介绍到这儿,希望我们推荐的文章对编程师们有所帮助!



http://www.chinasem.cn/article/208917

相关文章

NameNode内存生产配置

Hadoop2.x 系列,配置 NameNode 内存 NameNode 内存默认 2000m ,如果服务器内存 4G , NameNode 内存可以配置 3g 。在 hadoop-env.sh 文件中配置如下。 HADOOP_NAMENODE_OPTS=-Xmx3072m Hadoop3.x 系列,配置 Nam

linux-基础知识3

打包和压缩 zip 安装zip软件包 yum -y install zip unzip 压缩打包命令: zip -q -r -d -u 压缩包文件名 目录和文件名列表 -q:不显示命令执行过程-r:递归处理,打包各级子目录和文件-u:把文件增加/替换到压缩包中-d:从压缩包中删除指定的文件 解压:unzip 压缩包名 打包文件 把压缩包从服务器下载到本地 把压缩包上传到服务器(zip

综合安防管理平台LntonAIServer视频监控汇聚抖动检测算法优势

LntonAIServer视频质量诊断功能中的抖动检测是一个专门针对视频稳定性进行分析的功能。抖动通常是指视频帧之间的不必要运动,这种运动可能是由于摄像机的移动、传输中的错误或编解码问题导致的。抖动检测对于确保视频内容的平滑性和观看体验至关重要。 优势 1. 提高图像质量 - 清晰度提升:减少抖动,提高图像的清晰度和细节表现力,使得监控画面更加真实可信。 - 细节增强:在低光条件下,抖

常用的jdk下载地址

jdk下载地址 安装方式可以看之前的博客: mac安装jdk oracle 版本:https://www.oracle.com/java/technologies/downloads/ Eclipse Temurin版本:https://adoptium.net/zh-CN/temurin/releases/ 阿里版本: github:https://github.com/

Linux 网络编程 --- 应用层

一、自定义协议和序列化反序列化 代码: 序列化反序列化实现网络版本计算器 二、HTTP协议 1、谈两个简单的预备知识 https://www.baidu.com/ --- 域名 --- 域名解析 --- IP地址 http的端口号为80端口,https的端口号为443 url为统一资源定位符。CSDNhttps://mp.csdn.net/mp_blog/creation/editor

【Python编程】Linux创建虚拟环境并配置与notebook相连接

1.创建 使用 venv 创建虚拟环境。例如,在当前目录下创建一个名为 myenv 的虚拟环境: python3 -m venv myenv 2.激活 激活虚拟环境使其成为当前终端会话的活动环境。运行: source myenv/bin/activate 3.与notebook连接 在虚拟环境中,使用 pip 安装 Jupyter 和 ipykernel: pip instal

内核启动时减少log的方式

内核引导选项 内核引导选项大体上可以分为两类:一类与设备无关、另一类与设备有关。与设备有关的引导选项多如牛毛,需要你自己阅读内核中的相应驱动程序源码以获取其能够接受的引导选项。比如,如果你想知道可以向 AHA1542 SCSI 驱动程序传递哪些引导选项,那么就查看 drivers/scsi/aha1542.c 文件,一般在前面 100 行注释里就可以找到所接受的引导选项说明。大多数选项是通过"_

软考系统规划与管理师考试证书含金量高吗?

2024年软考系统规划与管理师考试报名时间节点: 报名时间:2024年上半年软考将于3月中旬陆续开始报名 考试时间:上半年5月25日到28日,下半年11月9日到12日 分数线:所有科目成绩均须达到45分以上(包括45分)方可通过考试 成绩查询:可在“中国计算机技术职业资格网”上查询软考成绩 出成绩时间:预计在11月左右 证书领取时间:一般在考试成绩公布后3~4个月,各地领取时间有所不同

安全管理体系化的智慧油站开源了。

AI视频监控平台简介 AI视频监控平台是一款功能强大且简单易用的实时算法视频监控系统。它的愿景是最底层打通各大芯片厂商相互间的壁垒,省去繁琐重复的适配流程,实现芯片、算法、应用的全流程组合,从而大大减少企业级应用约95%的开发成本。用户只需在界面上进行简单的操作,就可以实现全视频的接入及布控。摄像头管理模块用于多种终端设备、智能设备的接入及管理。平台支持包括摄像头等终端感知设备接入,为整个平台提
