读相关等待事件——单块读、多块读、直接路径读

2023-10-10 22:10
文章标签 路径 事件 等待 相关 直接 单块 多块

本文主要是介绍读相关等待事件——单块读、多块读、直接路径读，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

单块读

相关概念

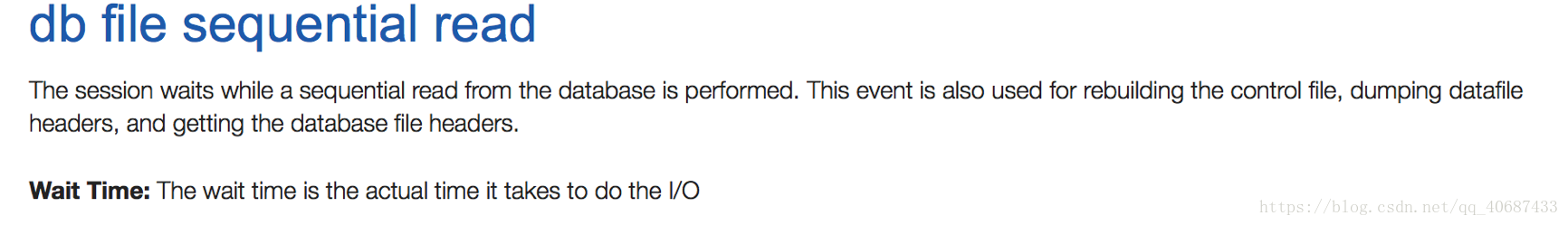

db file sequential read表示会话在等待IO读响应完成。该事件也会在重建控制文件，dump数据文件头，读取数据文件头（p2=1）时出现。

db file sequential read通常是single-block read，但是也可以从P3中查看是否读取了多个数据块，这种情况只在较早版本的oracle中出现，读取的是临时表空间的排序段。

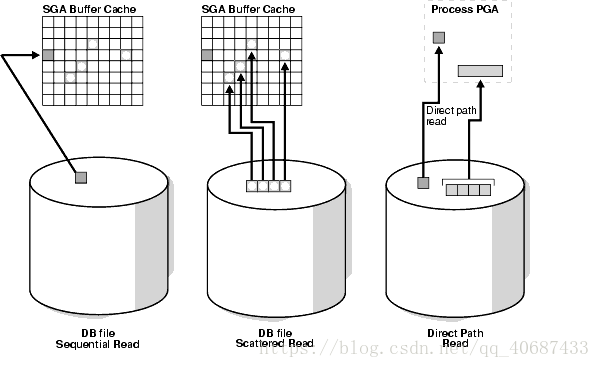

db file sequential read从磁盘中读取一个块到SGA的一个buffer中。

发生场景：

  1. 通常在使用索引时
  2. 在需要单块读时（全表扫描时，表中的块绝大部分都在buffer中）

计量测试

SQL> create table test(col1 number);Table created.SQL> insert into test values(1);1 row created.
SQL> alter system flush buffer_cache2  /System altered.SQL> oradebug setmypid;
Statement processed.
SQL>  Oradebug unlimit
Statement processed.--查询初始计量值
SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2  where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');
EVENT                      TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
-------------------------- ----------- ----------- -----------------
db file sequential read             42          12            120100
db file scattered read              21          21            213947
SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2  where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                      TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
-------------------------- ----------- ----------- -----------------
db file sequential read         222146       23742         237421261
db file scattered read            8279        2691          26912209
direct path read                    44           6             64325;
--开启10046
SQL> Oradebug event 10046  trace name context forever,level 8;
Statement processed.
--查询小表
SQL> select * from test;COL1
----------1
--关闭10046
SQL> Oradebug event 10046 trace name context off;SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2   where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                      TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
-------------------------------------- ----------- -----------------
db file sequential read             47          12            124665
db file scattered read              21          21            213947
SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2   where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                    TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------------------ ----------- -----------------
db file sequential read       222153       23743         237430783
db file scattered read          8279        2691          26912209
direct path read                  44           6             64325
--tracefile path
SQL> Oradebug tracefile_name
/oracle/app/oracle/diag/rdbms/ngjkdb1/ngjkdb11/trace/ngjkdb11_ora_88464.trc

从上面的测试可用看出，在查询小表前后db file sequential read增加了5次，db file scattered read没有增加。在trace中可以找到5次关于db file sequential read的等待，没有db file scattered read的等待

[oracle@xx31 trace]$   cat /oracle/app/oracle/diag/rdbms/test/test1/trace/test1_ora_88464.trc|grep "db file sequential read"|wc -l
5
[oracle@xx31 trace]$  cat /oracle/app/oracle/diag/rdbms/test/test1/trace/test1_ora_88464.trc|grep "db file scattered read"|wc -l
0
trace：
WAIT #0: nam='SQL*Net message from client' ela= 10518442 driver id=1650815232 #bytes=1 p3=0 obj#=0 tim=1534129966861302
WAIT #140506785910600: nam='gc cr disk read' ela= 394 p1=1 p2=81040 p3=4 obj#=93881 tim=1534129966864599
WAIT #140506785910600: nam='Disk file operations I/O' ela= 560 FileOperation=2 fileno=0 filetype=15 obj#=93881 tim=1534129966865438
WAIT #140506785910600: nam='db file sequential read' ela= 1026 file#=1 block#=81040 blocks=1 obj#=93881 tim=1534129966866541
=====================
PARSING IN CURSOR #140506785960544 len=337 dep=1 uid=0 oct=3 lid=0 tim=1534129966869134 hv=3345277572 ad='327e774780' sqlid='baj7tjm3q9sn4'
SELECT /* OPT_DYN_SAMP */ /*+ ALL_ROWS IGNORE_WHERE_CLAUSE NO_PARALLEL(SAMPLESUB) opt_param('parallel_execution_enabled', 'false') NO_PARALLEL_INDEX(SAMPLESUB) NO_SQL_TUNE */ NVL(SUM(C1),0), NVL(SUM(C2B
END OF STMT
PARSE #140506785960544:c=2364,e=2355,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=1,plh=1950795681,tim=1534129966869129
EXEC #140506785960544:c=62,e=60,p=0,cr=0,cu=0,mis=0,r=0,dep=1,og=1,plh=1950795681,tim=1534129966869258
WAIT #140506785960544: nam='gc cr grant 2-way' ela= 266 p1=1 p2=81040 p3=4 obj#=93881 tim=1534129966869767
WAIT #140506785960544: nam='db file sequential read' ela= 694 file#=1 block#=81040 blocks=1 obj#=93881 tim=1534129966870539
WAIT #140506785960544: nam='gc cr grant 2-way' ela= 230 p1=1 p2=81041 p3=1 obj#=93881 tim=1534129966870972
WAIT #140506785960544: nam='db file sequential read' ela= 779 file#=1 block#=81041 blocks=1 obj#=93881 tim=1534129966871818
...
PARSING IN CURSOR #140506783380160 len=210 dep=1 uid=0 oct=3 lid=0 tim=1534129966874871 hv=864012087 ad='329ea774f0' sqlid='96g93hntrzjtr'
select /*+ rule */ bucket_cnt, row_cnt, cache_cnt, null_cnt, timestamp#, sample_size, minimum, maximum, distcnt, lowval, hival, density, col#, spare1, spare2, avgcln from hist_head$ where obj#=:1 and i2
END OF STMT
PARSE #140506783380160:c=1460,e=1460,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=3,plh=0,tim=1534129966874870
EXEC #140506783380160:c=1043,e=1043,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=3,plh=2239883476,tim=1534129966876002
WAIT #140506783380160: nam='db file sequential read' ela= 1003 file#=1 block#=3025 blocks=1 obj#=450 tim=1534129966877212
WAIT #140506783380160: nam='gc cr grant 2-way' ela= 275 p1=1 p2=81285 p3=1 obj#=450 tim=1534129966877685
WAIT #140506783380160: nam='db file sequential read' ela= 1063 file#=1 block#=81285 blocks=1 obj#=450 tim=1534129966878800
FETCH #140506783380160:c=0,e=2814,p=2,cr=2,cu=0,mis=0,r=0,dep=1,og=3,plh=2239883476,tim=1534129966878859
STAT #140506783380160 id=1 cnt=0 pid=0 pos=1 obj=448 op='TABLE ACCESS BY INDEX ROWID HIST_HEAD$ (cr=2 pr=2 pw=0 time=2824 us)'
STAT #140506783380160 id=2 cnt=0 pid=1 pos=1 obj=450 op='INDEX RANGE SCAN I_HH_OBJ#_INTCOL# (cr=2 pr=2 pw=0 time=2819 us)'
上面的trace信息可分为两个部分，第一次解析时有3次单块读，前两次读的同一个块81040，后一次读的块为81041，这两个块属于同一个对象test（93881）。
SQL> select OWNER,OBJECT_NAME,OBJECT_ID,OBJECT_TYPE from dba_objects where OBJECT_ID=93881 ;OWNER    OBJECT_NAME         OBJECT_ID OBJECT_TYPE
-------- ------------------ ---------- -------------------
SYS      TEST                    93881 TABLE
第二次解析时有2次单块读，两次单块读的块是3025和81285，对象均是I_HH_OBJ#_INTCOL#（450），是一个索引，该索引在表HIST_HEAD$上，从字段上看该表跟统计信息有关。
SQL>  select OWNER,OBJECT_NAME,OBJECT_ID,OBJECT_TYPE from dba_objects where OBJECT_ID=450;OWNER     OBJECT_NAME        OBJECT_ID OBJECT_TYPE
--------- ---------------------------- -------------------
SYS       I_HH_OBJ#_INTCOL#        450 INDEX
SQL> select OWNER,INDEX_NAME,TABLE_OWNER,TABLE_NAME,TABLE_TYPE from dba_indexes where index_name='I_HH_OBJ#_INTCOL#';OWNER   INDEX_NAME         TABLE_OWNER   TABLE_NAME  TABLE_TYPE
------- ------------------ ------------- -----------------------
SYS     I_HH_OBJ#_INTCOL#  SYS           HIST_HEAD$  TABLE

多块读

相关概念

多块读与单块读很相似，但是多块读表示会话在读取多个数据块。

 db file scattered read从磁盘中读取多个块到SGA中不连续的buffer中。The db file scattered read wait event identifies that a full scan is occurring. When performing a full scan into the buffer cache,the blocks read are read intomemory locations that are not physically adjacent to each other.scattered read必须是从磁盘读取多个块到buffer cache中，且buffer不连续，块必须是scattered（零散地）分布在内存中。一个full scan的上限就是DB_FILE_MULTIBLOCK_READ_COUNT，默认值为128。



发生场景：

  1. 全表扫描
  2. INDEX FAST FULL SCAN

计量测试：

--继续插入数据
SQL> insert into test select * from test;1 row created....
SQL> /1048576 rows created.SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2   where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                    TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------------------ ----------- -----------------
db file sequential read          105          31            309751
db file scattered read            17           8             78877
SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2   where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                    TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------ ----------- ----------- -----------------
db file sequential read       226701       24553         245525814
db file scattered read          8305        2702          27023315
direct path read                  44           6             64325SQL> select count(*) from test;COUNT(*)
----------2097152SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2   where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                     TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------- ----------- ----------- -----------------
db file sequential read           132          34            338516
db file scattered read            146          32            322342
SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2   where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                    TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------------------ ----------- -----------------
db file sequential read       226743       24557         245569479
db file scattered read          8434        2727          27266780
direct path read                  44           6             64325



直接路径读

相关概念

direct path read从磁盘中读取一个或多个块直接到PGA中，不通过SGA。

发生场景：

11g后引入serial table scan ，全表扫描至少超过5倍的_small_table_threshold值



计量测试

SQL> select a.ksppinm name,b.ksppstvl value,a.ksppdesc description  2  from x$ksppi a,x$ksppcv b  3  where a.indx = b.indx  4  and a.ksppinm='_serial_direct_read'5
SQL> /NAME                 VALUE     DESCRIPTION
---------
_serial_direct_read    auto   enable direct read in serial
SQL> select a.ksppinm name,b.ksppstvl value,a.ksppdesc description  2  from x$ksppi a,x$ksppcv b  3  where a.indx = b.indx  4  and a.ksppinm like '%small_table%' ;
NAME                   VALUE      DESCRIPTION
---------------------- ---------- ----------------------------------------
_small_table_threshold 7679	      lower threshold level of table size fordirect reads

_small_table_threshold为7679，也就是说我们创建的表占用的块数必须大于7679个。因为有块头和水位线的关系，我们就粗略的算一个块占8k，那么我们的表应该大于7679*8/1024= 59.9921875mb。如果我们建立一个表的一条记录占用1k，那么就需要至少60k行。

创建一张大表，该表有3300w+数据

SQL> create table tbig(a char(1024 byte));Table created.SQL> insert into tbig values('a');1 row created.SQL> insert into tbig select * from tbig;1 row created.
SQL> /65536 rows created.SQL> alter system flush buffer_cache2
SQL> /System altered.SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2   where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                   TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
----------------------------------- ----------- -----------------
db file sequential read         272         133           1328785SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2   where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                   TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
----------------------------------- ----------- -----------------
db file sequential read   359234531   100436020        1.0044E+12
db file scattered read     63025426     5089881        5.0899E+10
direct path read             416564      341760        3417600930SQL> select * from (select * from tbig order by 1)where rownum<=10;
...SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$session_event 2   where sid=(select sid from v$mystat where rownum<=1) and EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                    TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
------------------------------------ ----------- -----------------
db file sequential read          309         133           1334823
db file scattered read            28           0               797
direct path read                 148          12            122384SQL> select EVENT,TOTAL_WAITS,TIME_WAITED,TIME_WAITED_MICRO from  v$system_event 2   where  EVENT in ('db file sequential read','db file scattered read','direct path read');EVENT                   TOTAL_WAITS TIME_WAITED TIME_WAITED_MICRO
----------------------------------- ----------- -----------------
db file sequential read   359251382   100439191        1.0044E+12
db file scattered read     63025485     5089885        5.0899E+10
direct path read             416712      341772        3417723314

session的direct path read从无到有增加了148次，system的direct path read增加了416712-416564=148次。









这篇关于读相关等待事件——单块读、多块读、直接路径读的文章就介绍到这儿，希望我们推荐的文章对编程师们有所帮助！
