BIRT报表script

2024-09-08 13:18

文章标签 script 报表 birt

本文主要是介绍BIRT报表script，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

1.隔行高亮显示

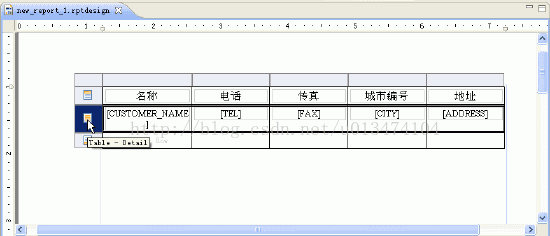

1. 在布局（Layout）中,选择Table－Detail的行。如下图：

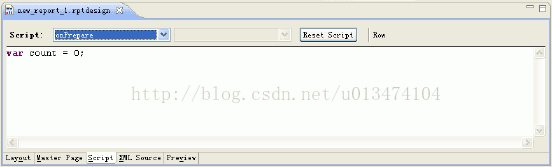

2. 然后选择Script，打开脚本窗口顶部的方法列表并选择onPrepare，如图所示。

var count=0;

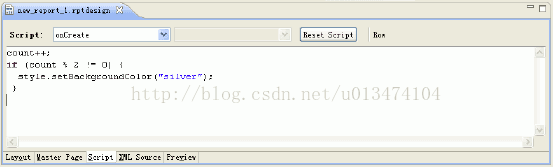

3. 最后打开脚本窗口顶部的方法列表并选择 onCreate，如图所示：

count++;
if (count % 2 != 0) {
style.setBackgroundColor(silver);
}

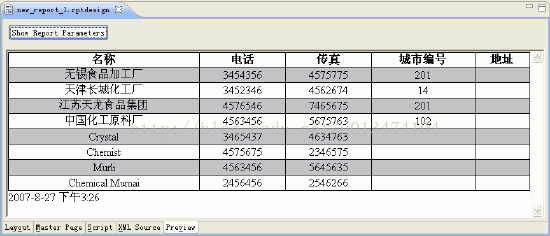

4. 保存，点击Preview预览结果如下图。

这是网上找别人的案例来的，然后就照着做，就出现问题了

报了一大堆问题：

Multiple annotations found at this line:- org.eclipse.birt.report.engine.api.EngineException: There are errors evaluating script "count++; if (count % 2 != 0) {   style.setBackgroundColor("#000000"); }": ReferenceError: "count" is not defined. (/report/body/grid[@id="43"]/row[@id="45"]/cell[@id="46"]/table[@id="49"]/detail/row[@id="54"]/method[@name="onCreate"]#1) at org.eclipse.birt.report.engine.script.internal.ScriptExecutor.addException(ScriptExecutor.java:249) at org.eclipse.birt.report.engine.script.internal.RowScriptExecutor.handleOnCreate(RowScriptExecutor.java:64) at org.eclipse.birt.report.engine.script.internal.OnCreateScriptVisitor.visitRow(OnCreateScriptVisitor.java:167) at org.eclipse.birt.report.engine.ir.RowDesign.accept(RowDesign.java:108) at org.eclipse.birt.report.engine.script.internal.OnCreateScriptVisitor.onCreate(OnCreateScriptVisitor.java:73) at org.eclipse.birt.report.engine.executor.ReportItemExecutor.handleOnCreate(ReportItemExecutor.java:917) at org.eclipse.birt.report.engine.executor.RowExecutor.execute(RowExecutor.java:83) at org.eclipse.birt.report.engine.internal.executor.wrap.WrappedReportItemExecutor.execute(WrappedReportItemExecutor.java:46) at org.eclipse.birt.report.engine.internal.executor.emitter.ReportItemEmitterExecutor.execute(ReportItemEmitterExecutor.java:46) at org.eclipse.birt.report.engine.internal.executor.dup.SuppressDuplicateItemExecutor.execute(SuppressDuplicateItemExecutor.java:43) at org.eclipse.birt.report.engine.internal.executor.wrap.WrappedReportItemExecutor.execute(WrappedReportItemExecutor.java:46) at org.eclipse.birt.report.engine.internal.executor.l18n.LocalizedReportItemExecutor.execute(LocalizedReportItemExecutor.java:34) at org.eclipse.birt.report.engine.layout.html.HTMLBlockStackingLM.layoutNodes(HTMLBlockStackingLM.java:65) at org.eclipse.birt.report.engine.layout.html.HTMLStackingLM.layoutChildren(HTMLStackingLM.java:26) at
.
.
.

ReferenceError: "count" is not defined表示说我的count未定义，我不是明明定义了吗。

又到网上搜了，然后就说:

不是在明细行的script里定义count,定义count也不能使用var哦。
要在表格的onprepare里定义count=0;

貌似在明细里还是在表格的script定义都一样，然后把它修整过来，竟然可以了。
