Shiro Shiro Web Support - WebIniSecurityManagerFactory IniFilterChainResolverFactory

本文主要是介绍Shiro Shiro Web Support - WebIniSecurityManagerFactory IniFilterChainResolverFactory，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

昨天晚上在说的时候没有吧创建Web管家和 FilterChainResolver 说的特别的清楚，今天呢，继续进行学习，其实大概和之前的讲的差不多。

这里写图片描述

IniWebEnvironment类中的继续进行

 protected void configure() {this.objects.clear();WebSecurityManager securityManager = createWebSecurityManager();setWebSecurityManager(securityManager);FilterChainResolver resolver = createFilterChainResolver();if (resolver != null) {setFilterChainResolver(resolver);}}

IniSecurityManagerFactory是我们之前学习的一个类，这里面的一个ReflectionBuilder，反射创建器创建我们的IOC简单的容器哦~然后把这些创建的实例，放到昨天将的环境中的currentHashMap中去保存，我们继续跟进看看怎么创建了WebSecurityManager，哈哈！

protected WebSecurityManager createWebSecurityManager() {WebIniSecurityManagerFactory factory;Ini ini = getIni();if (CollectionUtils.isEmpty(ini)) {factory = new WebIniSecurityManagerFactory();} else {factory = new WebIniSecurityManagerFactory(ini);}WebSecurityManager wsm = (WebSecurityManager)factory.getInstance();//SHIRO-306 - get beans after they've been created (the call was before the factory.getInstance() call,//which always returned null.Map<String, ?> beans = factory.getBeans();if (!CollectionUtils.isEmpty(beans)) {this.objects.putAll(beans);}return wsm;}

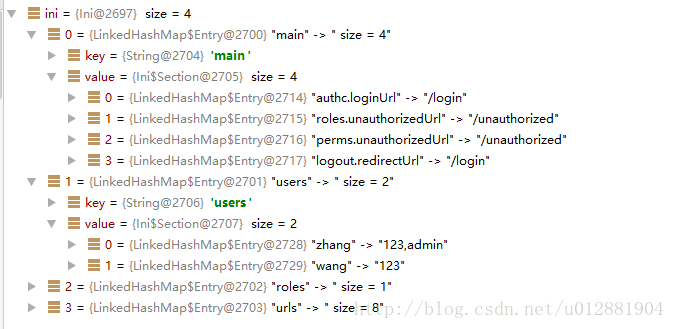

这个当前getIni中获取的数据的信息，可以看出，就把配置中的信息读取出来了。我们一步步的跟进去。
这里写图片描述

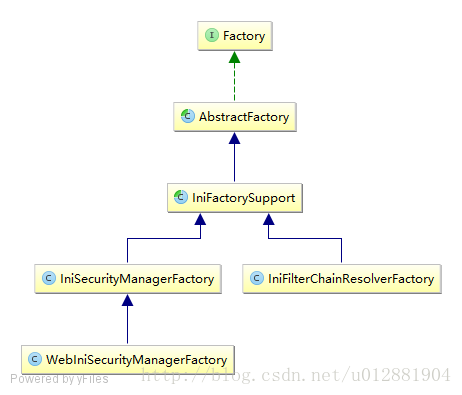

**之后就是创建WebSecurityManager工厂，继承了之前的工厂，就是之前简单的解析的那个工厂**IniSecurityManagerFactory 这个是我们之前写测试使用的这个工厂类！首先看看新具体的流程，之后再去查看这个工厂的具体的意义是什么。
跟进这个充满了模板方法的类中

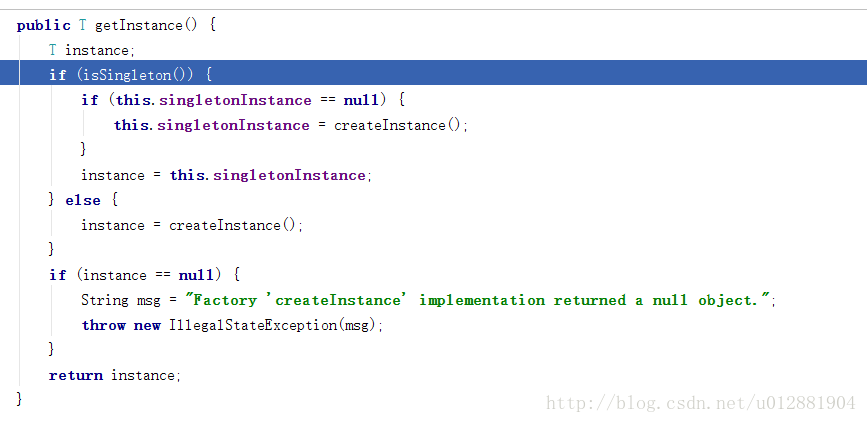

WebSecurityManager wsm = (WebSecurityManager)factory.getInstance();

public abstract class AbstractFactory<T> implements Factory<T> //模板方法给子类调用protected abstract T createInstance();

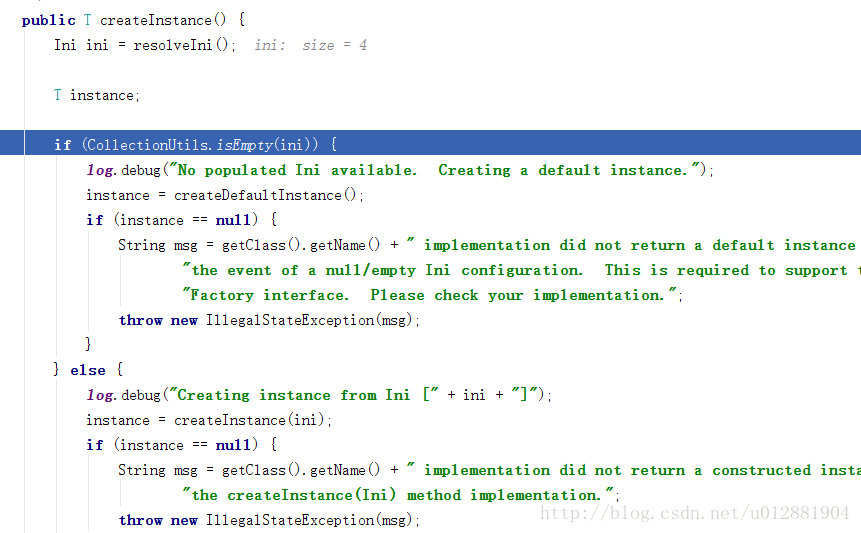

这里写图片描述

public abstract class IniFactorySupport<T> extends AbstractFactory<T>//继续模板给子类的这个方法
protected abstract T createInstance(Ini ini);

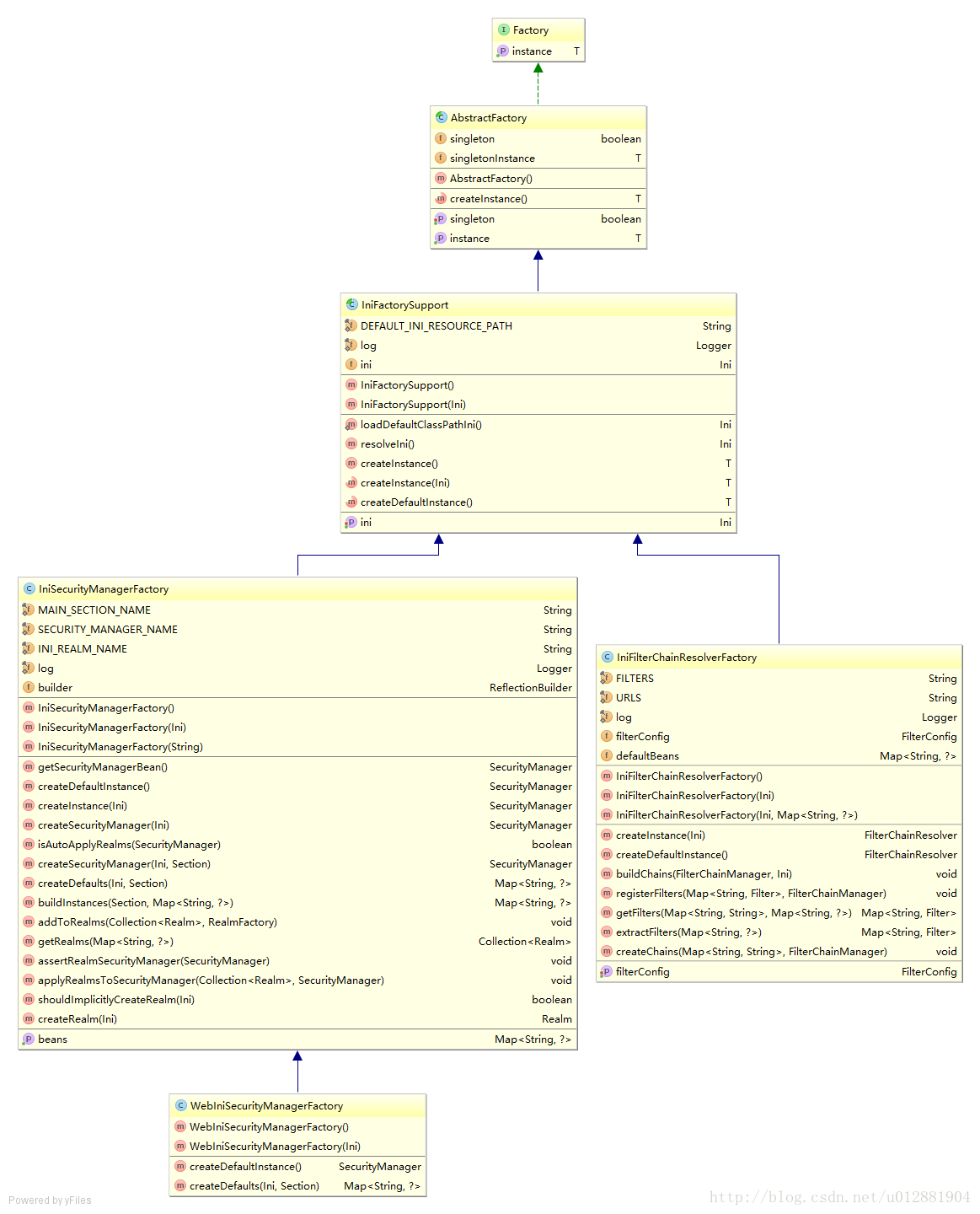

这里写图片描述

IniSecurityManagerFactory

public class IniSecurityManagerFactory extends IniFactorySupport<SecurityManager>protected SecurityManager createInstance(Ini ini) {if (CollectionUtils.isEmpty(ini)) {throw new NullPointerException("Ini argument cannot be null or empty.");}SecurityManager securityManager = createSecurityManager(ini);if (securityManager == null) {String msg = SecurityManager.class + " instance cannot be null.";throw new ConfigurationException(msg);}return securityManager;}

createSecurityManager(ini);
这里需要指出，Ini里面其实就是一个两层Map的结构，这里拿到配置的信息进行处理，这里的处理方式一般为，通过反射一会放置在ReflectionBuilder类里面的map中，比如我们的管家都是放置在这里的，最后通过getBean设置在之前的环境中，builder就是ReflectionBuilder，一个备份的Map容器！

 public Map<String, ?> getBeans() {return this.builder != null ? Collections.unmodifiableMap(builder.getObjects()) : null;}

 private SecurityManager createSecurityManager(Ini ini) {Ini.Section mainSection = ini.getSection(MAIN_SECTION_NAME);if (CollectionUtils.isEmpty(mainSection)) {//try the default:mainSection = ini.getSection(Ini.DEFAULT_SECTION_NAME);}return createSecurityManager(ini, mainSection);}

然后进入这里，这里的主要的思路就是，首先创建一个默认的SecurityManager，然后设置信息哦！buildInstances 这里面就是通过反射设置信息relam!

 private SecurityManager createSecurityManager(Ini ini, Ini.Section mainSection) {Map<String, ?> defaults = createDefaults(ini, mainSection);Map<String, ?> objects = buildInstances(mainSection, defaults);SecurityManager securityManager = getSecurityManagerBean();boolean autoApplyRealms = isAutoApplyRealms(securityManager);if (autoApplyRealms) {//realms and realm factory might have been created - pull them out first so we can//initialize the securityManager:Collection<Realm> realms = getRealms(objects);//set them on the SecurityManagerif (!CollectionUtils.isEmpty(realms)) {applyRealmsToSecurityManager(realms, securityManager);}}return securityManager;}

public class WebIniSecurityManagerFactory extends IniSecurityManagerFactory createDefaults 这个被子类覆盖了，因为增加了Web的信息内容，有了过滤器，有一些默认的过滤器需要实例化！放在备份的文件中。

 protected Map<String, ?> createDefaults(Ini ini, Ini.Section mainSection) {Map defaults = super.createDefaults(ini, mainSection);//add the default filters:Map<String, Filter> defaultFilters = DefaultFilter.createInstanceMap(null);defaults.putAll(defaultFilters);return defaults;}

IniSecurityManagerFactory 工厂的创建默认的管家信息哦

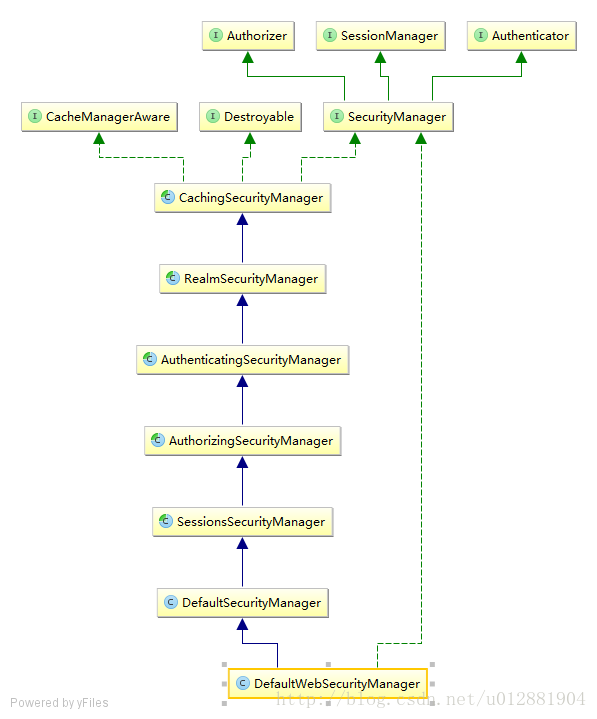

 protected Map<String, ?> createDefaults(Ini ini, Ini.Section mainSection) {Map<String, Object> defaults = new LinkedHashMap<String, Object>();//把创建好的管家，放置在Io容器中哦！SecurityManager securityManager = createDefaultInstance();defaults.put(SECURITY_MANAGER_NAME, securityManager);if (shouldImplicitlyCreateRealm(ini)) {Realm realm = createRealm(ini);if (realm != null) {defaults.put(INI_REALM_NAME, realm);}}return defaults;}//创建的管家哦~~ 上传过了好多次图了，继续学习一次！protected SecurityManager createDefaultInstance() {return new DefaultSecurityManager();}

这里写图片描述

WebIniSecurityManagerFactory回过头来在看看，创建默认的Filter过滤器是怎么样的东西呢！

  Map<String, Filter> defaultFilters = DefaultFilter.createInstanceMap(null);

哈哈，这个你看的懂？，写的还是不错哦，使用枚举，然后进行反射创建过滤器实例，虽然这些实例之间的联系还没有创建，过滤链，但是想想应该有用的哦，这个用法比较高级吧！不过笔者也是比较喜欢使用枚举的~看起来就是舒服啊！创建实例放入备份的map中！

public enum DefaultFilter {anon(AnonymousFilter.class),authc(FormAuthenticationFilter.class),authcBasic(BasicHttpAuthenticationFilter.class),logout(LogoutFilter.class),noSessionCreation(NoSessionCreationFilter.class),perms(PermissionsAuthorizationFilter.class),port(PortFilter.class),rest(HttpMethodPermissionFilter.class),roles(RolesAuthorizationFilter.class),ssl(SslFilter.class),user(UserFilter.class);private final Class<? extends Filter> filterClass;private DefaultFilter(Class<? extends Filter> filterClass) {this.filterClass = filterClass;}public Filter newInstance() {return (Filter) ClassUtils.newInstance(this.filterClass);}public Class<? extends Filter> getFilterClass() {return this.filterClass;}public static Map<String, Filter> createInstanceMap(FilterConfig config) {Map<String, Filter> filters = new LinkedHashMap<String, Filter>(values().length);for (DefaultFilter defaultFilter : values()) {Filter filter = defaultFilter.newInstance();if (config != null) {try {filter.init(config);} catch (ServletException e) {String msg = "Unable to correctly init default filter  type " +filter.getClass().getName();throw new IllegalStateException(msg, e);}}filters.put(defaultFilter.name(), filter);}return filters;}
}

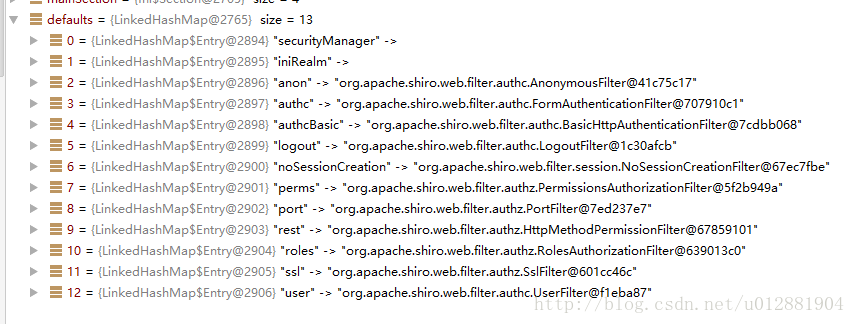

IniSecurityManagerFactory又来到了这里继续进行处理工作createSecurityManager的createDefaults，完成了之后，看看defaults中有了多少实例的变量的信息呢？，下面接着的buildInstances这里很重要啦，这里是配置信息的处理，通过读取配置信息，然后进行反射创建对象。比如配置的realm的信息，进行反射呢！
这里写图片描述

 private SecurityManager createSecurityManager(Ini ini, Ini.Section mainSection) {Map<String, ?> defaults = createDefaults(ini, mainSection);Map<String, ?> objects = buildInstances(mainSection, defaults);SecurityManager securityManager = getSecurityManagerBean();boolean autoApplyRealms = isAutoApplyRealms(securityManager);if (autoApplyRealms) {//realms and realm factory might have been created - pull them out first so we can//initialize the securityManager:Collection<Realm> realms = getRealms(objects);//set them on the SecurityManagerif (!CollectionUtils.isEmpty(realms)) {applyRealmsToSecurityManager(realms, securityManager);}}return securityManager;}

反射建筑，英文翻译过来就是这个意思啦~， private Map< String, ?> objects;内部有个Map保存之前放置的，然后最后返回给Web环境变量哦！得到之后，又返回重IOC-MP中获取realm然后设置在管家里面！

 private Map<String, ?> buildInstances(Ini.Section section, Map<String, ?> defaults) {this.builder = new ReflectionBuilder(defaults);return this.builder.buildObjects(section);}

IniWebEnvironment

 protected WebSecurityManager createWebSecurityManager() {WebIniSecurityManagerFactory factory;Ini ini = getIni();if (CollectionUtils.isEmpty(ini)) {factory = new WebIniSecurityManagerFactory();} else {factory = new WebIniSecurityManagerFactory(ini);}//得到返回的工厂之后设置,实例Bean，到当前类的currentHashMap中去备份起来！WebSecurityManager wsm = (WebSecurityManager)factory.getInstance();//SHIRO-306 - get beans after they've been created (the call was before the factory.getInstance() call,//which always returned null. 这个之前说过的，反射里面进行获取信息。Map<String, ?> beans = factory.getBeans();if (!CollectionUtils.isEmpty(beans)) {this.objects.putAll(beans);}return wsm;}

IniWebEnvironment中的里面的信息，获取了WebSecurityManager之后，可以获取到FilterChainResolver，进行处理信息哦！，在继续看看怎么产生这个FilterChainResolver

  protected void configure() {this.objects.clear();WebSecurityManager securityManager = createWebSecurityManager();setWebSecurityManager(securityManager);FilterChainResolver resolver = createFilterChainResolver();if (resolver != null) {setFilterChainResolver(resolver);}}

FilterChainResolver

protected FilterChainResolver createFilterChainResolver() {FilterChainResolver resolver = null;Ini ini = getIni();if (!CollectionUtils.isEmpty(ini)) {//only create a resolver if the 'filters' or 'urls' sections are defined:Ini.Section urls = ini.getSection(IniFilterChainResolverFactory.URLS);Ini.Section filters = ini.getSection(IniFilterChainResolverFactory.FILTERS);if (!CollectionUtils.isEmpty(urls) || !CollectionUtils.isEmpty(filters)) {//either the urls section or the filters section was defined.  Go ahead and create the resolver:IniFilterChainResolverFactory factory = new IniFilterChainResolverFactory(ini, this.objects);resolver = factory.getInstance();}}return resolver;}

public class IniFilterChainResolverFactory extends IniFactorySupport< FilterChainResolver> 这个好像之前见过的吧！，一样的跟着使用getInstance(),达到了一种复用的感觉~，也可以让使用者调用的API接口根加的简单，清晰！
和之前的差不多~，一步步的模板往下面走，然后走到了这里哦

 protected FilterChainResolver createInstance(Ini ini) {FilterChainResolver filterChainResolver = createDefaultInstance();if (filterChainResolver instanceof PathMatchingFilterChainResolver) {PathMatchingFilterChainResolver resolver = (PathMatchingFilterChainResolver) filterChainResolver;FilterChainManager manager = resolver.getFilterChainManager();buildChains(manager, ini);}return filterChainResolver;}

PathMatchingFilterChainResolver 创建了一个这个，是它的实现

protected FilterChainResolver createDefaultInstance() {FilterConfig filterConfig = getFilterConfig();if (filterConfig != null) {return new PathMatchingFilterChainResolver(filterConfig);} else {return new PathMatchingFilterChainResolver();}}

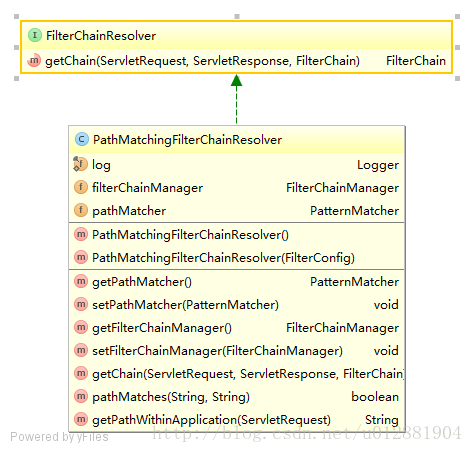

PathMatchingFilterChainResolver继承图

这里写图片描述

//这个过滤器链，更加灵活的允许动态的构建，这个是我们希望达到的目的，之前的那些默认的过滤器并没有被配置到XML中，我也在想这个问题，这个怎么动态的加入的，对于不同的URL的请求！

 /*** A {@code FilterChainResolver} can resolve an appropriate {@link FilterChain} to execute during a* {@code ServletRequest}.  It allows resolution of arbitrary filter chains which can be executed for any given* request or URI/URL.* <p/>* This mechanism allows for a much more flexible FilterChain resolution than normal {@code web.xml} servlet filter* definitions:  it allows arbitrary filter chains to be defined per URL in a much more concise and easy to read manner,* and even allows filter chains to be dynamically resolved or constructed at runtime if the underlying implementation* supports it.** @since 1.0*/
public interface FilterChainResolver {/*** Returns the filter chain that should be executed for the given request, or {@code null} if the* original chain should be used.* <p/>* This method allows a implementation to define arbitrary security {@link javax.servlet.Filter Filter}* chains for any given request or URL pattern.** @param originalChain the original {@code FilterChain} intercepted by the ShiroFilter implementation.* @return the filter chain that should be executed for the given request, or {@code null} if the*         original chain should be used.*/FilterChain getChain(ServletRequest request, ServletResponse response, FilterChain originalChain);}

//这个基于路基匹配算法，是否匹配正确！正确返回过滤链哦！
public class PathMatchingFilterChainResolver implements FilterChainResolver {private FilterChainManager filterChainManager;private PatternMatcher pathMatcher;public PathMatchingFilterChainResolver() {this.pathMatcher = new AntPathMatcher();this.filterChainManager = new DefaultFilterChainManager();}public PathMatchingFilterChainResolver(FilterConfig filterConfig) {this.pathMatcher = new AntPathMatcher();this.filterChainManager = new DefaultFilterChainManager(filterConfig);}public PatternMatcher getPathMatcher() {return pathMatcher;}public void setPathMatcher(PatternMatcher pathMatcher) {this.pathMatcher = pathMatcher;}public FilterChainManager getFilterChainManager() {return filterChainManager;}@SuppressWarnings({"UnusedDeclaration"})public void setFilterChainManager(FilterChainManager filterChainManager) {this.filterChainManager = filterChainManager;}public FilterChain getChain(ServletRequest request, ServletResponse response, FilterChain originalChain) {FilterChainManager filterChainManager = getFilterChainManager();if (!filterChainManager.hasChains()) {return null;}String requestURI = getPathWithinApplication(request);//the 'chain names' in this implementation are actually path patterns defined by the user.  We just use them//as the chain name for the FilterChainManager's requirementsfor (String pathPattern : filterChainManager.getChainNames()) {// If the path does match, then pass on to the subclass implementation for specific checks:if (pathMatches(pathPattern, requestURI)) {if (log.isTraceEnabled()) {log.trace("Matched path pattern [" + pathPattern + "] for requestURI [" + requestURI + "].  " +"Utilizing corresponding filter chain...");}return filterChainManager.proxy(originalChain, pathPattern);}}return null;}//看看匹配是否成功！protected boolean pathMatches(String pattern, String path) {PatternMatcher pathMatcher = getPathMatcher();return pathMatcher.matches(pattern, path);}protected String getPathWithinApplication(ServletRequest request) {return WebUtils.getPathWithinApplication(WebUtils.toHttp(request));}
}
