MSP-EXP430F5529LP开发板006-UART库函数

本文主要是介绍MSP-EXP430F5529LP开发板006-UART库函数，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

串口是比较常用的开发中比较常用的部分了，这部分难点就是波特率的设置了，为此还特地下了篇英文手册，硬着头皮看了下，学会如何配置了，下面就是串口初始化部分

void myuart_init()
{//P3.3,4 = USCI_A0 TXD/RXDGPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3,GPIO_PIN3 + GPIO_PIN4);//Baudrate = 9600, clock freq = 4MHz//UCBRx = 26, UCBRFx = 1, UCBRSx = 0, UCOS16 = 1USCI_A_UART_initParam param = {0};param.selectClockSource = USCI_A_UART_CLOCKSOURCE_SMCLK;param.clockPrescalar = 26;param.firstModReg = 1;param.secondModReg = 0;param.parity = USCI_A_UART_NO_PARITY;param.msborLsbFirst = USCI_A_UART_LSB_FIRST;param.numberofStopBits = USCI_A_UART_ONE_STOP_BIT;param.uartMode = USCI_A_UART_MODE;param.overSampling = USCI_A_UART_OVERSAMPLING_BAUDRATE_GENERATION;if (STATUS_FAIL == USCI_A_UART_init(USCI_A0_BASE, &param)){return;}//Enable UART module for operationUSCI_A_UART_enable(USCI_A0_BASE);//Enable Receive InterruptUSCI_A_UART_clearInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);USCI_A_UART_enableInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);
}

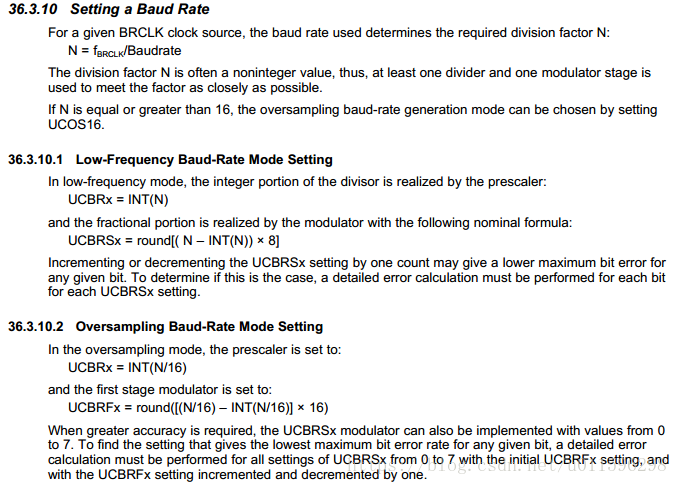

看到这一部分大家就应该比较眼熟了，有点类似32的uart初始化，但不同的是波特率部分，需要根据时钟源进行计算。这里我选择的是SMCLK，时钟配置沿袭了上一篇文章的配置，也就是SMCLK为4MHz。那么具体怎么设置呢？这里就只能参看英文手册了，这一部分截图如下

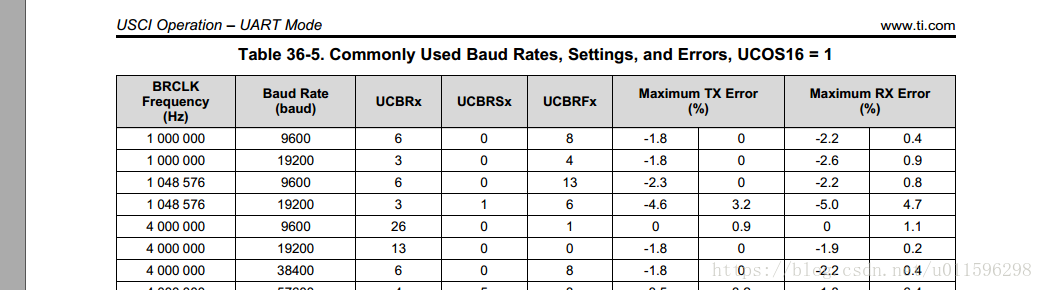

大体思路就是先计算N，然后根据N值进行后面的设置，N大于等于16可以设置为Oversampling，UCOS16 = 1；N小于16可以设置为Low-Frequency，UCOS16 = 0。UCBR, UCBRFx , UCBRSx三个寄存器可以按上述进行计算，但是TI为我们提供了不同时钟源下的取值，还是比较人性化的。下面截图部分，可以很轻松找到4MHz下9600bps的对应设置

整体代码在下面

//*****************************************************************************
#include "driverlib.h"
//*****************************************************************************
//
//Target frequency for MCLK in kHz
//
//*****************************************************************************
#define UCS_MCLK_DESIRED_FREQUENCY_IN_KHZ   24000//*****************************************************************************
//
//MCLK/FLLRef Ratio
//
//*****************************************************************************
#define UCS_MCLK_FLLREF_RATIO   6//*****************************************************************************
//
//Variable to store current Clock values
//
//*****************************************************************************
uint32_t clockValue = 0;//*****************************************************************************
//
//Variable to store status of Oscillator fault flags
//
//*****************************************************************************
//*****************************************************************************
//
//XT1 Crystal Frequency being used
//
//*****************************************************************************
#define UCS_XT1_CRYSTAL_FREQUENCY    32768//*****************************************************************************
//
//XT2 Crystal Frequency being used
//
//*****************************************************************************
#define UCS_XT2_CRYSTAL_FREQUENCY   4000000
//*****************************************************************************
//
//Desired Timeout for XT1 initialization
//
//*****************************************************************************
#define UCS_XT1_TIMEOUT 50000
#define TIMER_PERIOD 399
#define DUTY_CYCLE  100
#define UCS_XT2_TIMEOUT 50000
uint16_t status;
uint8_t returnValue = 0;
void myclock_init()
{//Set VCore = 1 for 12MHz clockPMM_setVCore(PMM_CORE_LEVEL_1);//主频提高后，VCore电压也需要随之配置//Initializes the XT1 and XT2 crystal frequencies being usedUCS_setExternalClockSource(UCS_XT1_CRYSTAL_FREQUENCY,UCS_XT2_CRYSTAL_FREQUENCY);//设置外部时钟源的频率，没什么实际设定//Initialize XT1. Returns STATUS_SUCCESS if initializes successfullyGPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5,GPIO_PIN4 + GPIO_PIN5);//XT1口不作为普通IOreturnValue = UCS_turnOnLFXT1WithTimeout(UCS_XT1_DRIVE_0,UCS_XCAP_3,UCS_XT1_TIMEOUT);//启动XT1//Startup HF XT2 crystal Port select XT2GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5,GPIO_PIN2 + GPIO_PIN3);//XT2口不作为普通IO//Initialize XT2. Returns STATUS_SUCCESS if initializes successfullyreturnValue = UCS_turnOnXT2WithTimeout(UCS_XT2_DRIVE_4MHZ_8MHZ,UCS_XT2_TIMEOUT);//启动XT2//Set DCO FLL reference = REFOUCS_initClockSignal(UCS_FLLREF,UCS_XT2CLK_SELECT,UCS_CLOCK_DIVIDER_1);//XT2作为FLL参考//Set Ratio and Desired MCLK Frequency  and initialize DCOUCS_initFLLSettle(UCS_MCLK_DESIRED_FREQUENCY_IN_KHZ,UCS_MCLK_FLLREF_RATIO);//MCLK设置为24MHz//Set ACLK = REFOUCS_initClockSignal(UCS_ACLK,UCS_REFOCLK_SELECT,UCS_CLOCK_DIVIDER_1);//ACLK设置为32.768kHzUCS_initClockSignal(UCS_SMCLK,UCS_XT2CLK_SELECT,UCS_CLOCK_DIVIDER_1);//SMCLK设置为4MHz
}
void mypwm_init()
{//P2.0 as PWM outputGPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P2,GPIO_PIN0);//Generate PWM - Timer runs in Up modeTimer_A_outputPWMParam param = {0};param.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;param.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_1;param.timerPeriod = TIMER_PERIOD;param.compareRegister = TIMER_A_CAPTURECOMPARE_REGISTER_1;param.compareOutputMode = TIMER_A_OUTPUTMODE_RESET_SET;param.dutyCycle = DUTY_CYCLE;Timer_A_outputPWM(TIMER_A1_BASE, &param);
}
void myuart_init()
{//P3.3,4 = USCI_A0 TXD/RXDGPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3,GPIO_PIN3 + GPIO_PIN4);//Baudrate = 9600, clock freq = 4MHz//UCBRx = 26, UCBRFx = 1, UCBRSx = 0, UCOS16 = 1USCI_A_UART_initParam param = {0};param.selectClockSource = USCI_A_UART_CLOCKSOURCE_SMCLK;param.clockPrescalar = 26;param.firstModReg = 1;param.secondModReg = 0;param.parity = USCI_A_UART_NO_PARITY;param.msborLsbFirst = USCI_A_UART_LSB_FIRST;param.numberofStopBits = USCI_A_UART_ONE_STOP_BIT;param.uartMode = USCI_A_UART_MODE;param.overSampling = USCI_A_UART_OVERSAMPLING_BAUDRATE_GENERATION;if (STATUS_FAIL == USCI_A_UART_init(USCI_A0_BASE, &param)){return;}//Enable UART module for operationUSCI_A_UART_enable(USCI_A0_BASE);//Enable Receive InterruptUSCI_A_UART_clearInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);USCI_A_UART_enableInterrupt(USCI_A0_BASE,USCI_A_UART_RECEIVE_INTERRUPT);
}
unsigned int i;
uint8_t transmitData = 0x00;
uint8_t receivedData = 0x00;
bool send_ready=0;
void main (void)
{//Stop WDTWDT_A_hold(WDT_A_BASE);   myclock_init();mypwm_init();myuart_init();//Verify if the Clock settings are as expectedclockValue = UCS_getMCLK();clockValue = UCS_getACLK();clockValue = UCS_getSMCLK();// Enable global interrupt__bis_SR_register(GIE);//Loop in placewhile (1){}
}
//******************************************************************************
//
//This is the USCI_A0 interrupt vector service routine.
//
//******************************************************************************
#if defined(__TI_COMPILER_VERSION__) || defined(__IAR_SYSTEMS_ICC__)
#pragma vector=USCI_A0_VECTOR
__interrupt
#elif defined(__GNUC__)
__attribute__((interrupt(USCI_A0_VECTOR)))
#endif
void USCI_A0_ISR (void)
{switch (__even_in_range(UCA0IV,4)){//Vector 2 - RXIFGcase 2: receivedData = USCI_A_UART_receiveData(USCI_A0_BASE);USCI_A_UART_transmitData(USCI_A0_BASE,receivedData);break;default: break;}
}

实现上位机向430发送数据，原封不动返回
