将activiti整合到spring里

本文主要是介绍将activiti整合到spring里，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

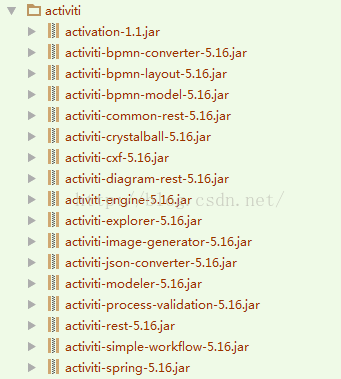

1、添加activiti有关的jar包，这不是下载的activiti全部jar包，如图为：

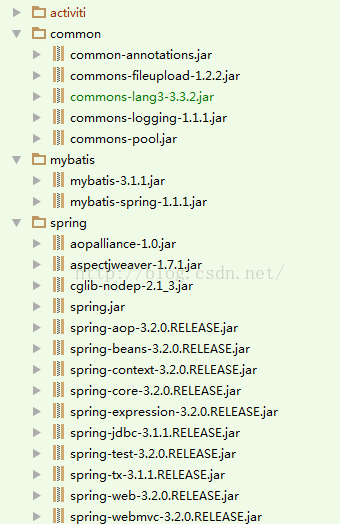

其他的jar包，如图：

2、在spring.xml里添加

<!-- 加载activiti引擎-->
<bean id="processEngineConfiguration" class="org.activiti.spring.SpringProcessEngineConfiguration"><property name="dataSource" ref="dataSource"/><property name="transactionManager" ref="transactionManager"/><property name="databaseSchemaUpdate" value="true"/><property name="jobExecutorActivate" value="false"/><!--<property name="databaseSchema" value="ACT"/>-->
       <!--<property name="history" value="full"/>-->
       <property name="processDefinitionCacheLimit" value="10"/><!-- 自动部署 -->
       <property name="deploymentResources"><list><value>classpath*:/activiti/*</value></list></property>
</bean><bean id="processEngine" class="org.activiti.spring.ProcessEngineFactoryBean"><property name="processEngineConfiguration" ref="processEngineConfiguration"/></bean><bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService"/>
<bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService"/>
<bean id="formService" factory-bean="processEngine" factory-method="getFormService"/>
<bean id="identityService" factory-bean="processEngine" factory-method="getIdentityService"/>
<bean id="taskService" factory-bean="processEngine" factory-method="getTaskService"/>
<bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService"/>
<bean id="managementService" factory-bean="processEngine" factory-method="getManagementService"/>

就可以了。
