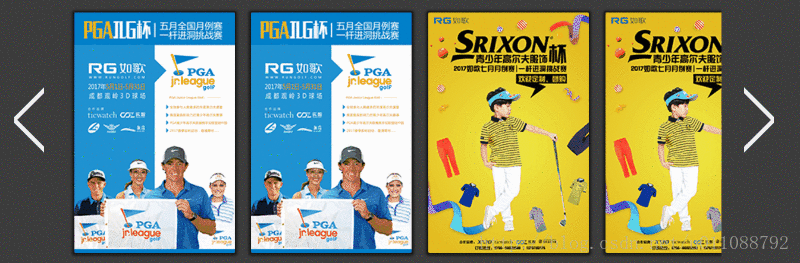

展示如下
目标效果
- 默认选中第一张,鼠标悬浮缓慢放大图片,底部文字介绍由下往上缓慢滑出,选中后边框效果;
- 左右滑动,距离为四张图片。
思路
- 定义一个定宽的容器,然后图片不换行并排显示,超出部分隐藏,隐藏x轴滚动条;
- 左右按钮点击,获取容器的滚动条位置,在此基础上加上固定移动距离,然后重置容器滚动条位置。
做法
左右箭头可以使用图片,我这里使用的是:before和:after伪类做的,通过倾斜加定位凑成一个箭头,这样做箭头前端是平的,不是尖的。还有一种做法是用height:0;width:0;然后通过边框做的,这种做法需要把背景色设置和页面颜色一样,看起来是个中空的箭头
图片并排显示需要给容器使用 white-space: nowrap,然后容器定宽高,并且overflow:hidden;
鼠标悬浮放大:很简单,使用transition和transform做
.box{width: 50px;height: 50px;background-color: red;transition: all 0.6s;cursor: pointer;
}.box:hover{transform: scale(1.1);
}
- 底部文字缓慢从下往上滑出也是使用transition和transform做
/*info应该被包裹在box里*/
.box{position: relative;
}.box .info{position: absolute;left: 0;bottom: 0;transition: height 0.6s;width: 100%;height: 0;
}.box:hover > .info{height: auto;
}
/*仅做示范,实际可以看本文最后代码*/
- 选中后保持放大,并且加亮边框,可以直接将它的样式换成放大后的就可以
/*js*/
//jq对attr方法渐渐的使用prop去取代,有时使用attr方法获取不到你要的属性
$(".box").click(function(){$(this).prop('class','box-active');
});/*css*/
//有时直接计算放大后的宽高得不到整数,直接设置宽高,点击效果会像移动了,可以直接使用transform进行原比例放大.box-active{width: 50px;height: 50px;transform: scale(1.1);background-color: red;cursor: pointer;border: 2px solid #0068b7;
}
这样做出来的效果依然会出现点击后,图片像移动了一样,是因为多出了2px的边框宽度导致,可以给box加一个和背景一样颜色的2px边框,选中后将颜色换成亮色,由于边框一直存在,切换颜色就不会导致位移; 在有阴影时颜色设为和阴影同色。
- 点击左右按钮图片移动
/*js*/$(".turn-right").click(function(){var obj = $(".box");if(obj.scrollWidth - obj.scrollLeft() < 1177){obj.animate({scrollLeft: obj.scrollWidth},1000);}else{obj.animate({scrollLeft:obj.scrollLeft()+1177},1000);}
});$(".turn-left").click(function(){var obj = $(".box");if(obj.scrollLeft() < 1177){obj.animate({scrollLeft:0},1000);}else{obj.animate({scrollLeft:obj.scrollLeft()-1177},1000);}
});
obj.scrollWidth: 获取滚动条宽度(除滚动条本身按钮的宽度)
obj.animate: 设置滑动效果。scrollLeft:滚动至距离滚动条多少的位置。1000动画执行时间ms
1177:移动固定距离,可以根据自己需求定制
以下为所有代码,仅供参考
html
<div class="match container"><div class="content"><div class="slide"><div class="turn-left"><span class="arrow-left"></span></div><ul class="match-list"><li class="match-item"><img src="1.png" alt="" width="100%" /><div class="info"><p>球场:<span class="color-blue">成都观岭</span></p><p>一杆进洞奖金:<span class="color-yellow">2000元</span></p><p>2017.05.01~2017.05.31</p></div></li><li class="match-item"><img src="1.png" alt="" width="100%" /><div class="info"><p>球场:<span class="color-blue">成都观岭</span></p><p>一杆进洞奖金:<span class="color-yellow">2000元</span></p><p>2017.05.01~2017.05.31</p></div></li><li class="match-item"><img src="2.png" alt="" width="100%" /></li><li class="match-item"><img src="2.png" alt="" width="100%" /></li><li class="match-item"><img src="3.png" alt="" width="100%" /></li><li class="match-item"><img src="3.png" alt="" width="100%" /></li><li class="match-item"><img src="1.png" alt="" width="100%" /></li><li class="match-item"><img src="1.png" alt="" width="100%" /></li></ul><div class="turn-right"><span class="arrow-right"></span></div><div class="clearfix"></div></div></div>
</div>
js
$(".match-item").click(function(){$(".match-item-active").prop('class','match-item');$(this).prop('class','match-item-active');
});$(".turn-right").click(function(){var list = $(".match-list");if(list.scrollWidth - list.scrollLeft() < 1177){list.animate({scrollLeft: list.scrollWidth},1000);}else{list.animate({scrollLeft:list.scrollLeft()+1177},1000);}
});$(".turn-left").click(function(){var list = $(".match-list");if(list.scrollLeft() < 1177){list.animate({scrollLeft:0},1000);}else{list.animate({scrollLeft:list.scrollLeft()-1177},1000);}
});
css
ul,li{list-style: none;margin: 0;padding: 0;
}.match .slide{margin: 40px 0;
}.match .turn-left,.match .turn-right{display: inline-block;vertical-align: middle;width: 80px;height: 400px;cursor: pointer;margin: 0 20px;
}.match .turn-left:hover{background: linear-gradient(to left,rgba(96,110,122,0.8),rgba(96,110,122,0));
}.match .turn-right:hover{background: linear-gradient(to right,rgba(96,110,122,0.8),rgba(96,110,122,0));
}.match .turn-left .arrow-left,.match .turn-right .arrow-right{position: relative;
}.match .turn-left .arrow-left:before{content: '';display: inline-block;width: 50px;height: 10px;transform: skewY(-45deg);background-color: #eee;position: absolute;top: 150px;left: 15px;
}.match .turn-left .arrow-left:after{content: '';display: inline-block;width: 50px;height: 10px;transform: skewY(45deg);background-color: #eee;position: absolute;top: 200px;left: 15px;
}.match .turn-right .arrow-right:before{content: '';display: inline-block;width: 50px;height: 10px;transform: skewY(45deg);background-color: #eee;position: absolute;top: 150px;left: 15px;
}.match .turn-right .arrow-right:after{content: '';display: inline-block;width: 50px;height: 10px;transform: skewY(-45deg);background-color: #eee;position: absolute;top: 200px;left: 15px;
}.match .match-list{width: 1100px;height: 405px;padding: 20px 0;vertical-align: middle;display: inline-block;white-space: nowrap;overflow-x: hidden;overflow-y: hidden;
}.match .match-item{width: 270px;height: 405px;display: inline-block;margin: 0 10px 10px;box-shadow: 0 1px 6px 2px rgba(1,1,1,0.6);border-radius: 2px;border: 2px solid rgba(1,1,1,0.6);transition: all 0.5s;position: relative;cursor: pointer;
}.match .match-item:hover{transform: scale(1.05);box-shadow: 0 1px 8px 4px rgba(1,1,1,0.8);border: 2px solid rgba(1,1,1,0.8);
}.match .match-item-active{width: 270px;height: 405px;transform: scale(1.05);display: inline-block;margin: 0 10px 10px;box-shadow: 0 1px 10px 4px rgba(1,1,1,0.8);border-radius: 2px;border: 2px solid #68d0ff;position: relative;cursor: pointer;
}.match .info{position: absolute;left: 0;bottom: 0;width: 250px;height: 0;overflow: hidden;padding: 0 10px;z-index: 200;transition: all 0.5s;background-color: rgba(0,0,0,0.6);
}.match .match-item-active .info{width: 250px;height: 120px;
}.match .match-item:hover > .info{height: 120px;
}.match .info p{font-size: 16px;font-family: SourceHanSansCN-Medium, sans-serif;color: #f0f0f0;margin: 5px 0;padding: 0;line-height: 30px;height: 30px;text-shadow: 1px 1px rgba(1,1,1,0.6);
}.match .info .color-blue{color: #00a1fe;font-size: 18px;
}.match .info .color-yellow{color: #e07e3e;font-size: 18px;
}
