SAP BW create custom Datasource

本文主要是介绍SAP BW create custom Datasource，希望对大家解决编程问题提供一定的参考价值，需要的开发者们随着小编来一起学习吧！

用到的TCODE:

SE37/SE80函数构建器

SE11 ABAP字典（包括数据库表/视图/数据类型等）

SE16 数据浏览器

RSA6 数据源目录

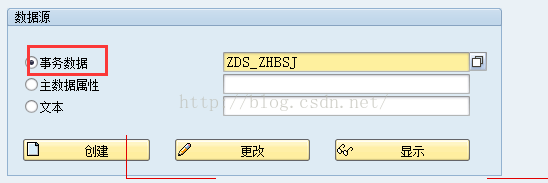

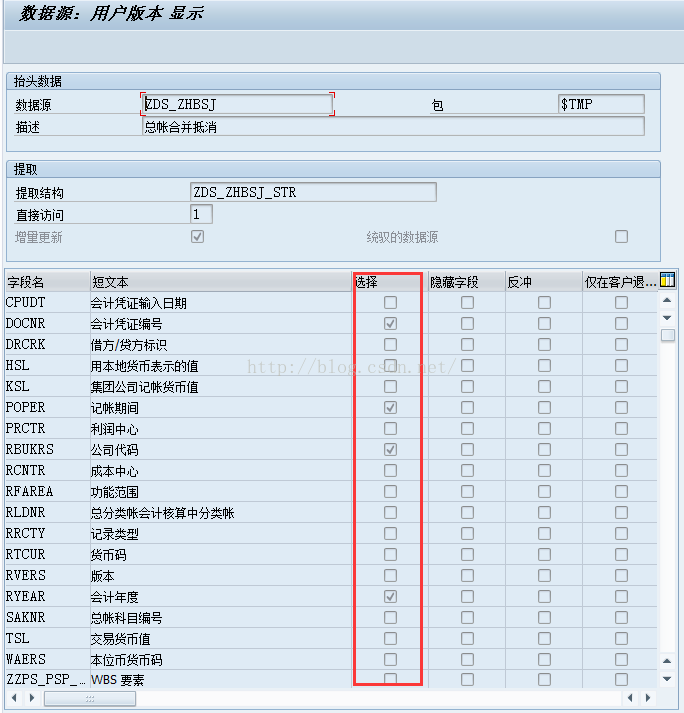

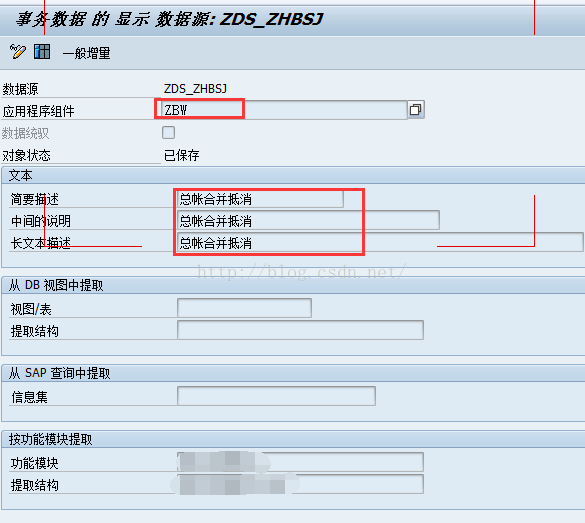

RSO2 维护一般数据源（事务数据/主数据属性/文本）

RSA3 提取器检验程序（数据源测试）

SE80 新建函数组，利用copy RSAX新建一个，最好一个函数组对应一个数据源

安全间隔下限：若2，则会将今天+昨天+前天的数抽一次

数据库表：ZHBSJ

数据类型：ZDS_ZHBSJ_STR

函数组：ZDS_ZHBSJ_GRP

函数：ZDS_ZHBSJ

数据源：ZDS_ZHBSJ

Step1:TCODE: SE11 创建数据库表

表名：ZHBSJ

Step2:TCODE: SE11 创建数据结构

数据结构名：ZDS_ZHBSJ_STR

Step3:TCODE: SE80 创建函数组和函数

函数组：ZDS_ZHBSJ_GRP，函数：ZDS_ZHBSJ

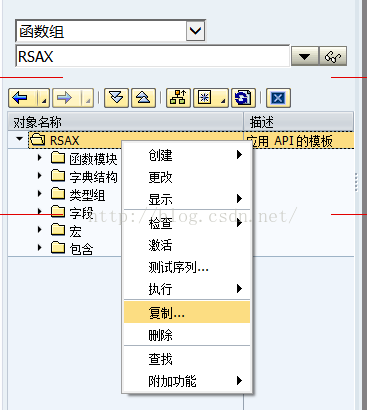

筛选出“函数组”，以“RSAX”作为关键字搜索我们要作为函数组模板的对象，并右击选择“复制”

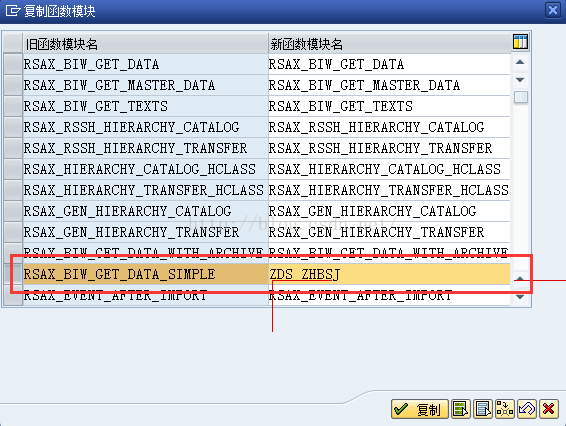

函数组创建完成后，需要复制函数模块，这里我们只需要复制“RSAX_BIW_GET_DATA_SIMPLE”，并输入新函数模块名“ZDS_ZHBSJ”，然后点击“复制”。

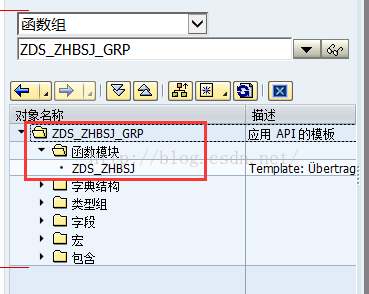

这时候一定不要忘记右击函数组ZDS_ZHBSJ_GRP激活

Step4:TCODE: SE37 更改函数信息，修改源代码

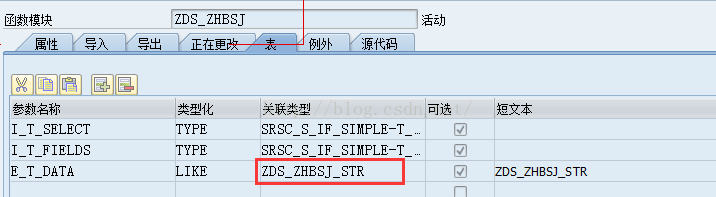

下图中关联类型更改为我们刚创建的数据结构ZDS_ZHBSJ_STR

这时候，我们就需要修改源代码了

FUNCTION ZDS_ZHBSJ.
*"----------------------------------------------------------------------
*"*"本地接口：
*"  IMPORTING
*"     VALUE(I_REQUNR) TYPE  SRSC_S_IF_SIMPLE-REQUNR
*"     VALUE(I_DSOURCE) TYPE  SRSC_S_IF_SIMPLE-DSOURCE OPTIONAL
*"     VALUE(I_MAXSIZE) TYPE  SRSC_S_IF_SIMPLE-MAXSIZE OPTIONAL
*"     VALUE(I_INITFLAG) TYPE  SRSC_S_IF_SIMPLE-INITFLAG OPTIONAL
*"     VALUE(I_READ_ONLY) TYPE  SRSC_S_IF_SIMPLE-READONLY OPTIONAL
*"     VALUE(I_REMOTE_CALL) TYPE  SBIWA_FLAG DEFAULT SBIWA_C_FLAG_OFF
*"  TABLES
*"      I_T_SELECT TYPE  SRSC_S_IF_SIMPLE-T_SELECT OPTIONAL
*"      I_T_FIELDS TYPE  SRSC_S_IF_SIMPLE-T_FIELDS OPTIONAL
*"      E_T_DATA STRUCTURE  ZDS_ZHBSJ_STR OPTIONAL
*"  EXCEPTIONS
*"      NO_MORE_DATA
*"      ERROR_PASSED_TO_MESS_HANDLER
*"----------------------------------------------------------------------

* Example: DataSource for table SFLIGHT
  TABLES: ZHBSJ."T001--公司代码

* Auxiliary Selection criteria structure
  DATA: L_S_SELECT TYPE SRSC_S_SELECT.

* Maximum number of lines for DB table
  STATICS: S_S_IF TYPE SRSC_S_IF_SIMPLE,

* counter
          S_COUNTER_DATAPAKID LIKE SY-TABIX,

* cursor
          S_CURSOR TYPE CURSOR.
* Select ranges
  RANGES: L_R_RYEAR  FOR ZHBSJ-RYEAR,
          L_R_POPER  FOR ZHBSJ-POPER,
          L_R_DOCNR  FOR ZHBSJ-DOCNR,
          L_R_CPUDT  FOR ZHBSJ-CPUDT,
          L_R_RBUKRS  FOR ZHBSJ-RBUKRS.

* Initialization mode (first call by SAPI) or data transfer mode
* (following calls) ?
  IF I_INITFLAG = SBIWA_C_FLAG_ON.

************************************************************************
* Initialization: check input parameters
*                 buffer input parameters
*                 prepare data selection
************************************************************************

* Check DataSource validity 数据源名字 : ZDS_ZHBSJ
    CASE I_DSOURCE.
      WHEN 'ZDS_ZHBSJ'.
      WHEN OTHERS.
        IF 1 = 2. MESSAGE E009(R3). ENDIF.
* this is a typical log call. Please write every error message like this
        LOG_WRITE 'E'                  "message type
                  'R3'                 "message class
                  '009'                "message number
                  I_DSOURCE   "message variable 1
                  ' '.                 "message variable 2
        RAISE ERROR_PASSED_TO_MESS_HANDLER.
    ENDCASE.

    APPEND LINES OF I_T_SELECT TO S_S_IF-T_SELECT.

* Fill parameter buffer for data extraction calls
    S_S_IF-REQUNR    = I_REQUNR.
    S_S_IF-DSOURCE = I_DSOURCE.
    S_S_IF-MAXSIZE   = I_MAXSIZE.

* Fill field list table for an optimized select statement
* (in case that there is no 1:1 relation between InfoSource fields
* and database table fields this may be far from beeing trivial)
    APPEND LINES OF I_T_FIELDS TO S_S_IF-T_FIELDS.

  ELSE.                 "Initialization mode or data extraction ?

************************************************************************
* Data transfer: First Call      OPEN CURSOR + FETCH
*                Following Calls FETCH only
************************************************************************

* First data package -> OPEN CURSOR
    IF S_COUNTER_DATAPAKID = 0.

* Fill range tables BW will only pass down simple selection criteria
* of the type SIGN = 'I' and OPTION = 'EQ' or OPTION = 'BT'.
      LOOP AT S_S_IF-T_SELECT INTO L_S_SELECT WHERE FIELDNM = 'RYEAR'.
        MOVE-CORRESPONDING L_S_SELECT TO L_R_RYEAR.
        APPEND L_R_RYEAR.
      ENDLOOP.

      LOOP AT S_S_IF-T_SELECT INTO L_S_SELECT WHERE FIELDNM = 'POPER'.
        MOVE-CORRESPONDING L_S_SELECT TO L_R_POPER.
        APPEND L_R_POPER.
      ENDLOOP.

      LOOP AT S_S_IF-T_SELECT INTO L_S_SELECT WHERE FIELDNM = 'DOCNR'.
        MOVE-CORRESPONDING L_S_SELECT TO L_R_DOCNR.
        APPEND L_R_DOCNR.
      ENDLOOP.

      LOOP AT S_S_IF-T_SELECT INTO L_S_SELECT WHERE FIELDNM = 'CPUDT'.
        MOVE-CORRESPONDING L_S_SELECT TO L_R_CPUDT.
        APPEND L_R_CPUDT.
      ENDLOOP.

      LOOP AT S_S_IF-T_SELECT INTO L_S_SELECT WHERE FIELDNM = 'RBUKRS'.
        MOVE-CORRESPONDING L_S_SELECT TO L_R_RBUKRS.
        APPEND L_R_RBUKRS.
      ENDLOOP.

* Determine number of database records to be read per FETCH statement
* from input parameter I_MAXSIZE. If there is a one to one relation
* between DataSource table lines and database entries, this is trivial.
* In other cases, it may be impossible and some estimated value has to
* be determined.
      OPEN CURSOR WITH HOLD S_CURSOR FOR
      SELECT * FROM ZHBSJ WHERE RYEAR IN L_R_RYEAR AND
                                     POPER IN L_R_POPER AND
                                     DOCNR IN L_R_DOCNR AND
                                     CPUDT IN L_R_CPUDT AND
                                     RBUKRS IN L_R_RBUKRS.

    ENDIF.                             "First data package ?

* Fetch records into interface table.
*   named E_T_'Name of extract structure'.
    FETCH NEXT CURSOR S_CURSOR
               APPENDING CORRESPONDING FIELDS
               OF TABLE e_t_data
               PACKAGE SIZE S_S_IF-MAXSIZE.

    IF SY-SUBRC <> 0.
      CLOSE CURSOR S_CURSOR.
      RAISE NO_MORE_DATA.
    ENDIF.

    S_COUNTER_DATAPAKID = S_COUNTER_DATAPAKID + 1.

  ENDIF.              "Initialization mode or data extraction ?

ENDFUNCTION.
